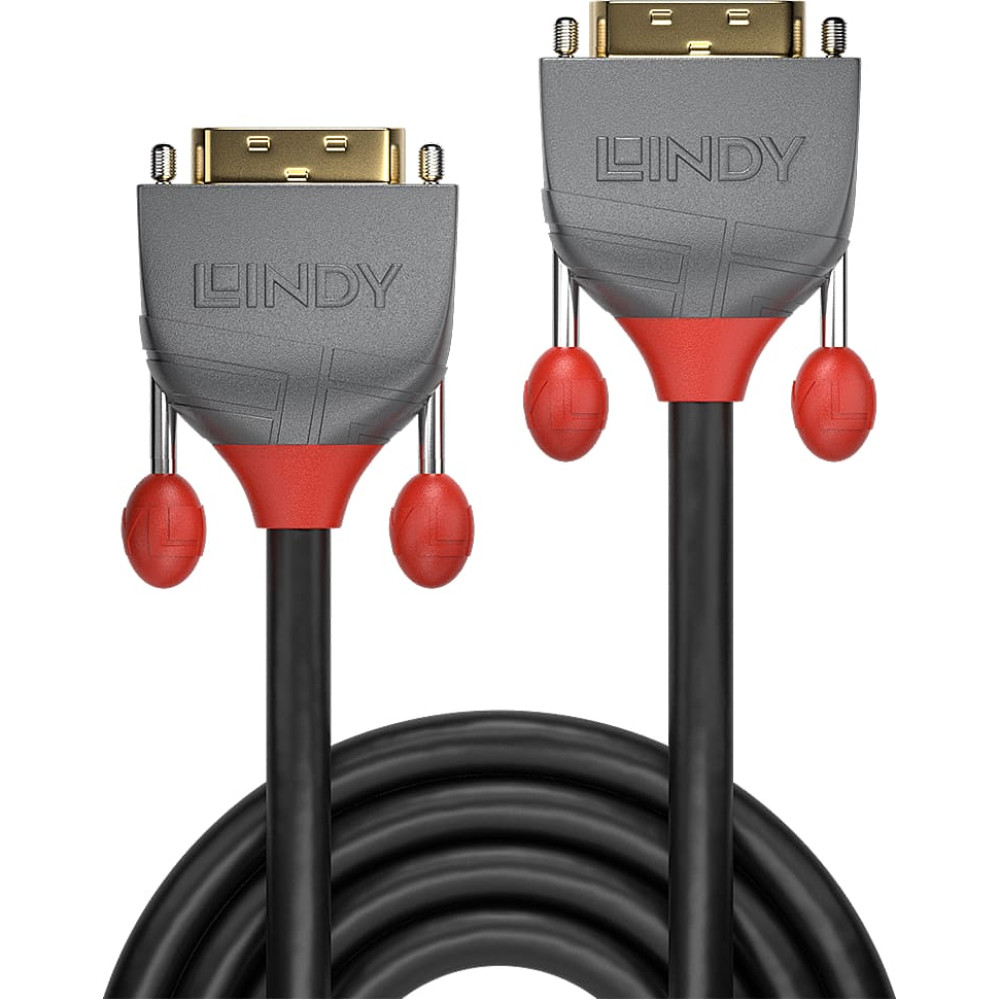

Lindy DVI-D Dual Link Kabel Anthra Line 7.50m

Product Code: 36225

Barcode 4002888362252

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

awg wire size: 28

cable jacket material: Polyvinyl chloride (PVC)

cable length: 7.5 m

cable material: Copper

ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/a2/56/7f/68/687f56a29484cbbbbb7e00ff/CE_36220-27.pdf

certification: REACH, UL

compliance certificates: RoHS

connector 1: DVI-D

connector 1 gender: Male

connector 2: DVI-D

connector 2 gender: Male

connector contacts plating: Gold

country of origin: CN

data transfer rate: 9.9 Gbit/s

dual link dvi: Yes

harmonized system (hs) code: 84733080

magnetically shielded: Yes

maximum resolution: 2560 x 1600 pixels

number of shielding layers: 3

operating temperature (t-t): -20 - 80 °C

package type: Polybag

packaging height: 33.5

packaging lenght: 32.4

packaging width: 4.0

product colour: Black

storage temperature (t-t): -25 - 85 °C

supported video modes: 1080p

variation of: 36220.0

warranty: 10.0

Description

Connectors

Connector A: DVI-D Male (Dual Link)
Connector B: DVI-D Male (Dual Link)
Housing Material: PVC
Connector Plating: 24K Gold 1μm
Pin Construction: Brass
Pin Plating: 24K Gold 1μm
Dimensions (approx.) WxDxH: 39.5x16.5x44.5mm (1.56x0.65x1.75in)

Cable Construction

Length: 7.5m (24.61ft)
Standard: DVI-D Dual Link
Colour: Black
Type: Round
Jacket Diameter: 8.6mm (0.34in)
Jacket Material: PVC
Conductor Material: Bare Copper
Conductor Gauge: 28AWG
Shielding: Aluminium Magnesium Braid 75%

Specifications

Supported Bandwidth: 9.9 Gbps
Maximum Resolution: 2560x1600@60Hz
Nominal Attenuation: 1 - 825Mhz < 8db
Minimum Bend Radius: 50mm (1.97in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Purchasing Information

No. 36225
EAN: 4002888362252

This product is also available in other lengths

36220 - 0.5m (1.64ft)
36221 - 1m (3.28ft)
36222 - 2m (6.56ft)
36223 - 3m (9.84ft)
36224 - 5m (16.40ft)
36226 - 10m (32.81ft)
36227 - 15m (49.21ft)
36228 - 20m (65.62ft)
