LINDY

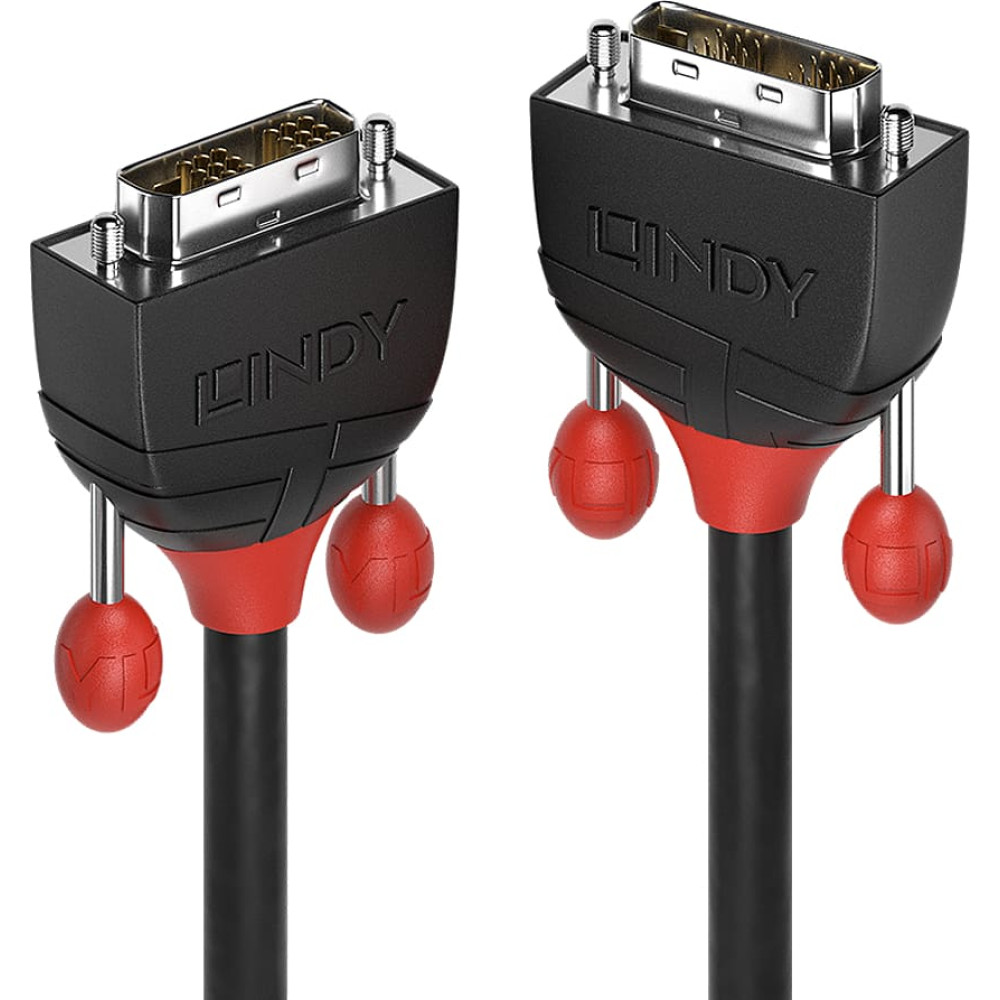

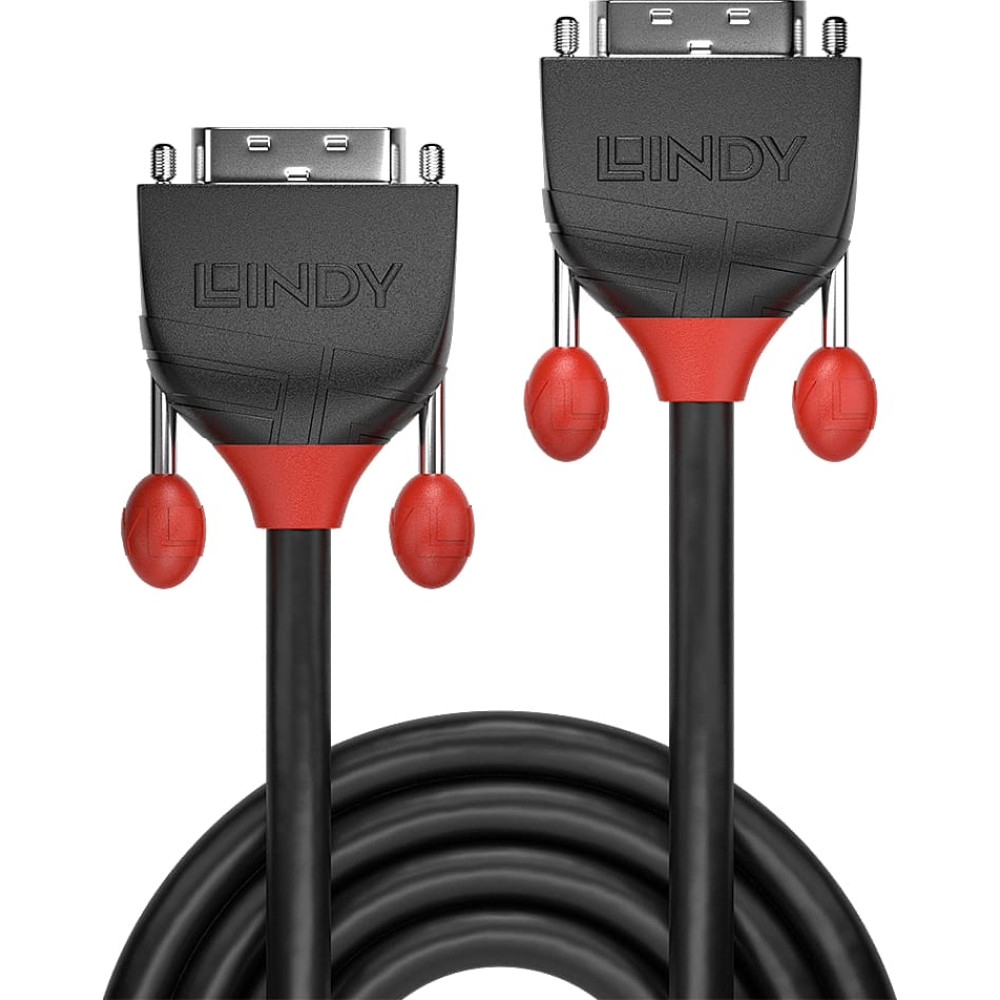

Lindy DVI-D Single Link Kabel Black Line 3m

Product Code: 36257
Barcode 4002888362573

To purchase this product you must be registered in our system.



Specification
awg wire size: 28
cable jacket material: Polyvinyl chloride (PVC)
cable length: 3 m
certification: REACH, UL
compliance certificates: RoHS
connector 1: DVI-D
connector 1 gender: Male
connector 2: DVI-D
connector 2 gender: Male
connector contacts plating: Nickel
data transfer rate: 4.95 Gbit/s
dual link dvi: No
harmonized system (hs) code: 84733080
maximum resolution: 1920 x 1200 pixels
operating temperature (t-t): -20 - 80 °C
product colour: Black
storage temperature (t-t): -25 - 85 °C
supported graphics resolutions: 1920 x 1200 (WUXGA)

Description

Connectors

  • Connector A: DVI-D Male (Single Link)
  • Connector B: DVI-D Male (Single Link)
  • Housing Material: PVC
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: 24K Gold 1μm
  • Dimensions (approx.) WxDxH: 36.8x44.5x12.5mm (1.45x1.75x0.49in)



Cable Construction

  • Length: 3m (9.84ft)
  • Standard: DVI-D Single Link
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7.3mm (0.29in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 28AWG
  • Shielding: Aluminium/Magnesium Braid 85%



Specifications

  • Supported Bandwidth: 4.95 Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Nominal Attenuation: 1 - 825Mhz < 8db
  • Minimum Bend Radius: 120mm (4.72in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL



Purchasing Information

  • No. 36257
  • EAN: 4002888362573



This product is also available in other lengths

  • 36255 - 1m (3.28ft)
  • 36256 - 2m (6.56ft)
  • 36258 - 5m (16.44ft)
  • 36259 - 10m (32.81ft)
