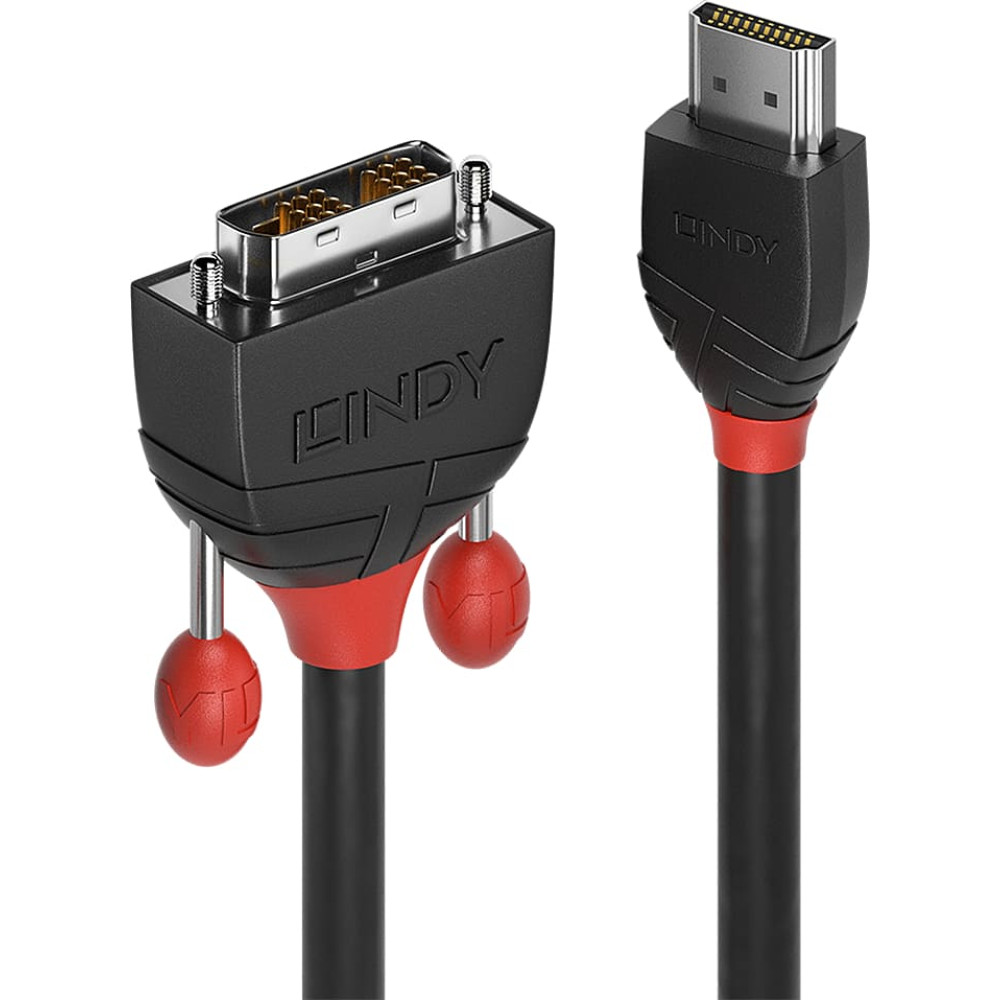

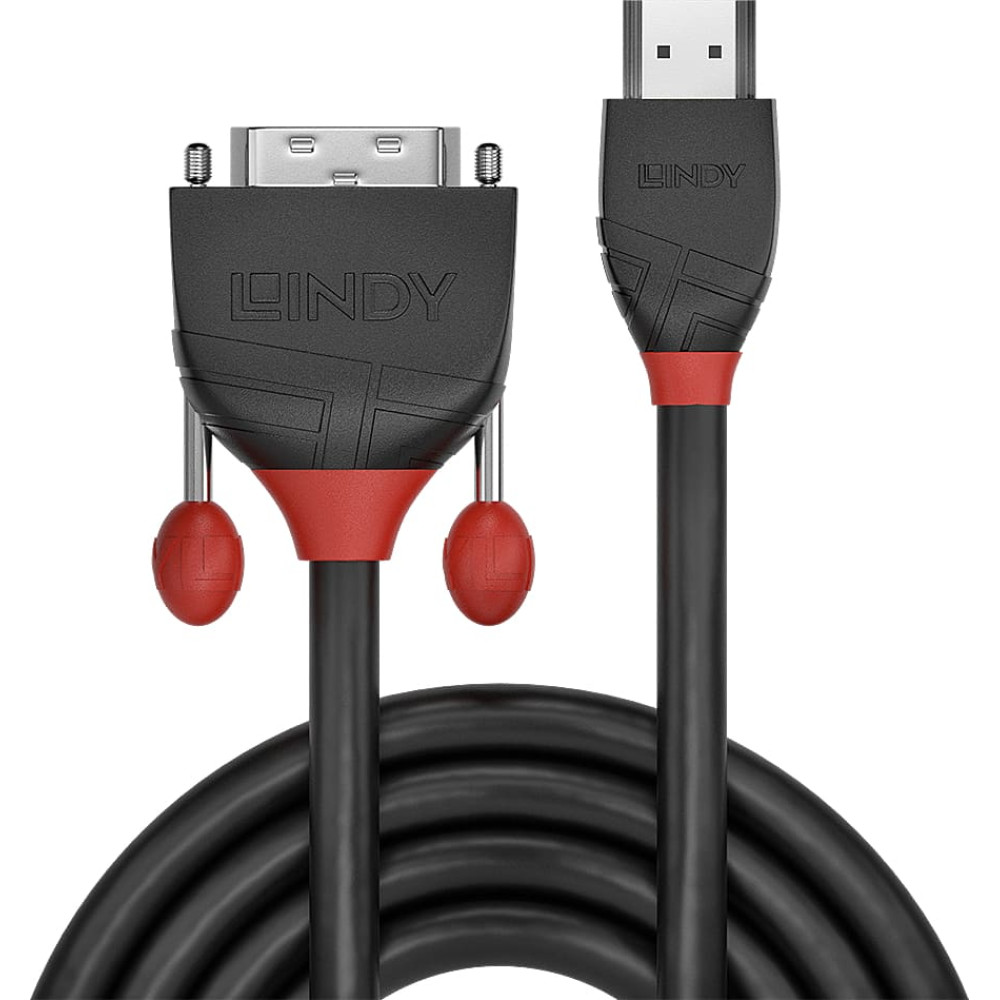

Lindy HDMI an DVI-D Single Link Kabel Black Line 1m
To purchase this product you must be registered in our system.
Specification
awg wire size: 30
bend radius (min): 5.5 cm
cable diameter: 5.5 mm
cable length: 1 m
cable material: Tinned copper
cable shielding: Aluminium braid
cable type: Round cable
certification: RoHS, REACH, UL
conductor material: Tinned copper
connector 1: HDMI Type A (Standard)
connector 1 dimensions (wxdxh): 21.4 x 34.2 x 12.7 mm
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: DVI-D
connector 2 dimensions (wxdxh): 36.8 x 44.5 x 12.5 mm
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Gold
connector housing material: Polyvinyl chloride (PVC)
connector material: Nickel
contact material: Brass
data transfer rate: 4.95 Gbit/s
harmonized system (hs) code: 84733080
jacket material: Polyvinyl chloride (PVC)
maximum resolution: 1920 x 1200 pixels
nominal attenuation: 1 €“ 825Mhz 12db
operating temperature (t-t): -20 - 80 °C
package type: Polybag
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): -25 - 85 °C
supported graphics resolutions: 1920 x 1200 (WUXGA)
Description
Connectors
Cable Construction
Specifications
Miscellaneous
Purchasing Information
This product is also available in other lengths
|
