Lindy Adapterkabel USB 3.1 Typ C an A Anthra Line 0.15m

LINDY

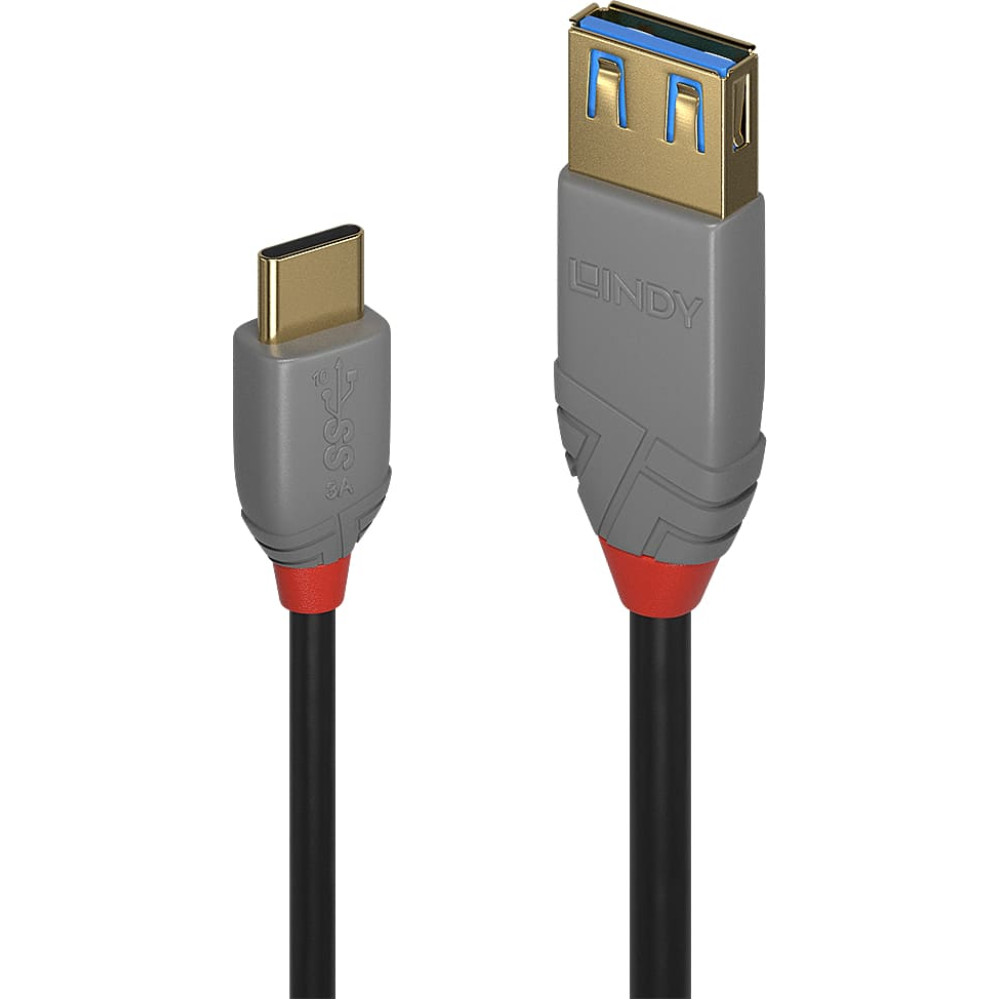

Lindy Adapterkabel USB 3.1 Typ C an A Anthra Line 0.15m

Product Code: 36895
Barcode 4002888368957

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 26/30/30
cable diameter: 4.5 mm
cable jacket material: Polyvinyl chloride (PVC)
cable length: 0.15 m
certification: RoHS, REACH, UL
compliance certificates: RoHS
conductor material: Copper
connector 1: USB C
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB A
connector 2 form factor: Straight
connector 2 gender: Female
connector contacts plating: Gold
country of origin: CN
harmonized system (hs) code: 84733080
maximum data transfer rate: 10 Gbit/s
package type: Polybag
packaging height: 14.4
packaging lenght: 13.3
packaging width: 1.0
product colour: Black
usb version: USB 3.2 Gen 2 (3.1 Gen 2)
warranty: 10.0
Description

Connectors

  • Connector A: USB 3.2 Type C Male
  • Connector B: USB 3.2 Type A Female
  • Housing Material: PVC
  • Connector Plating: 24K Gold Plated
  • Pin Construction: Phosphor Bronze
  • Pin Plating: 24K Gold Plated
  • Dimensions, USB Type C (approx.) WxDxH: 11.0x25.5x7.3mm (0.43x1.00x0.29in)
  • Dimensions, USB Type A Female (approx.) WxDxH: 17.0x35.1x9.8mm (0.67x1.38x0.39in)



Cable Construction

  • Length: 0.15m (0.49ft)
  • Standard: USB 3.2 Gen 2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.5mm (0.18in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 26/30/30AWG
  • Shielding: Aluminium Magnesium Braid 85%



Specifications

  • Supported Bandwidth: 10Gbps
  • Maximum Resolution: -
  • Nominal Attenuation: 0.5Mhz – 15Ghz < 40db
  • Minimum Bend Radius: 45mm (1.77in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: CE, UKCA, RoHS, REACH, UL



Purchasing Information

  • No. 36895
  • EAN: 4002888368957
