Home Cables Displayport Lindy DisplayPort Kabel Black Line 1.5m

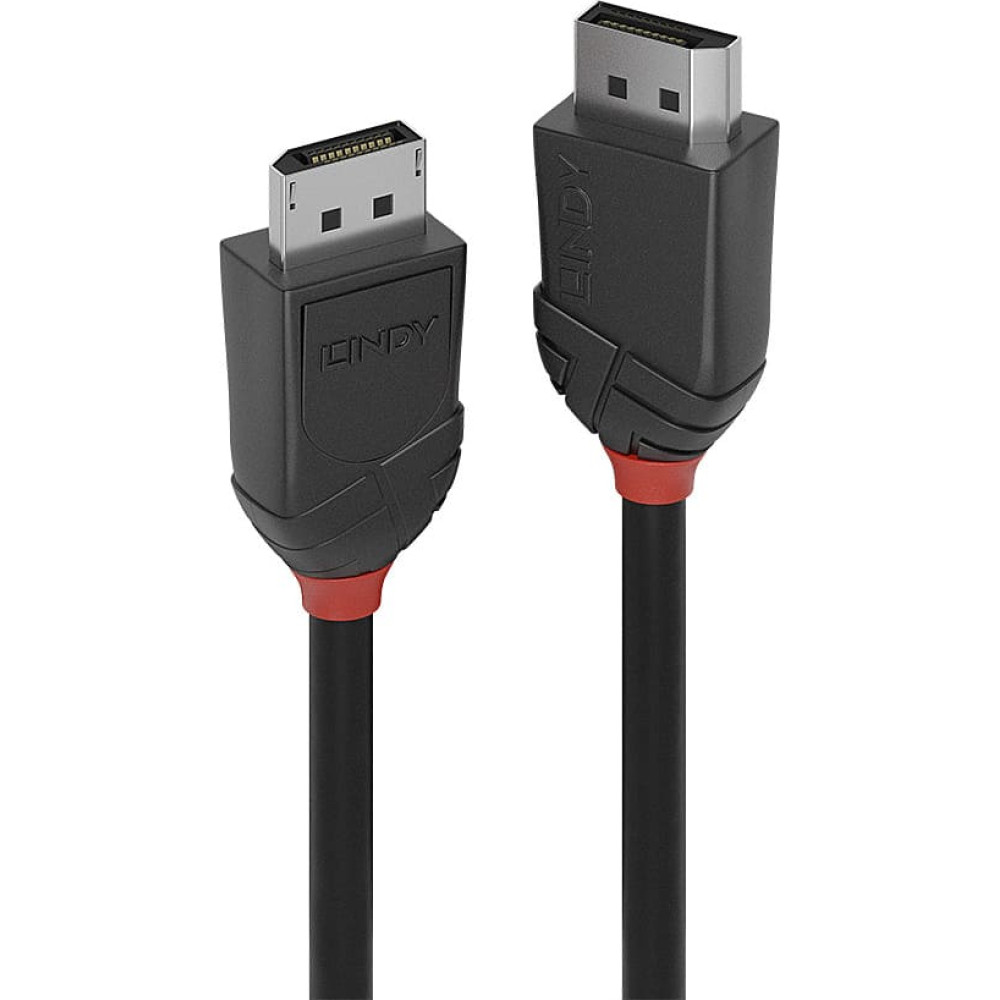

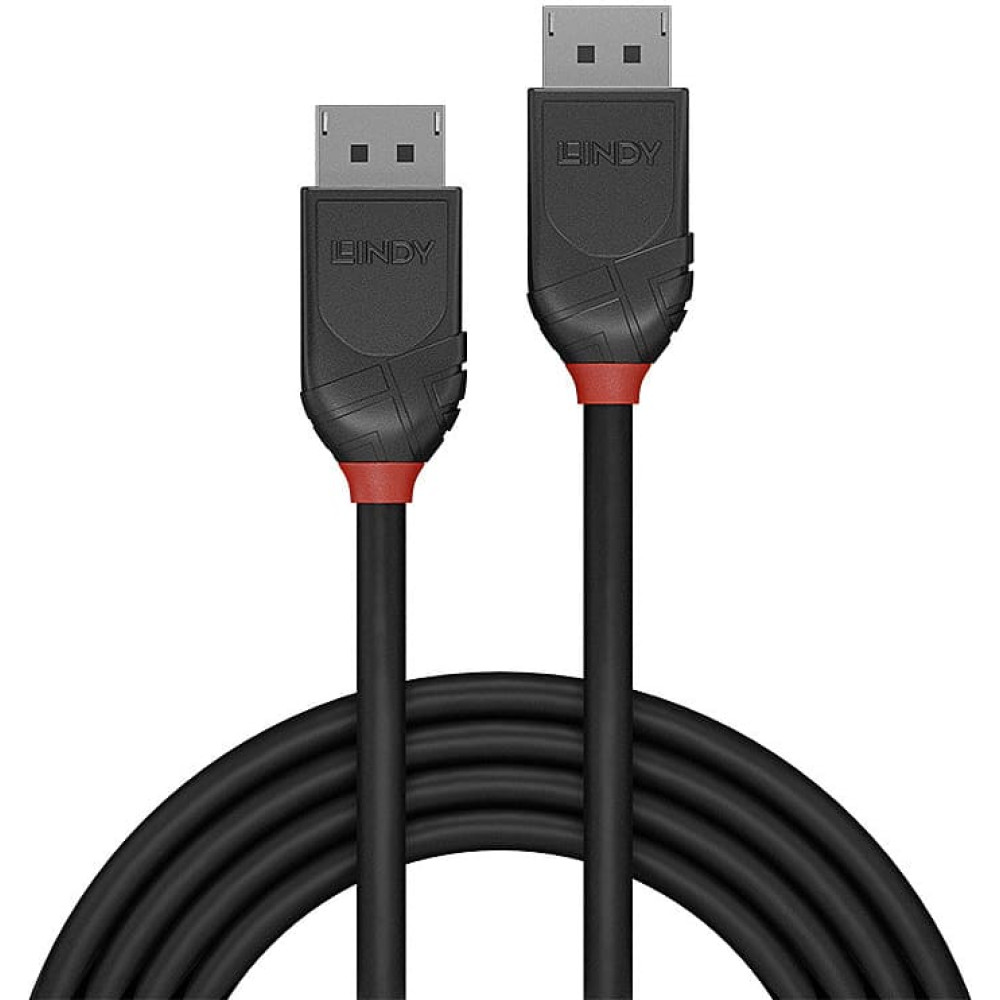

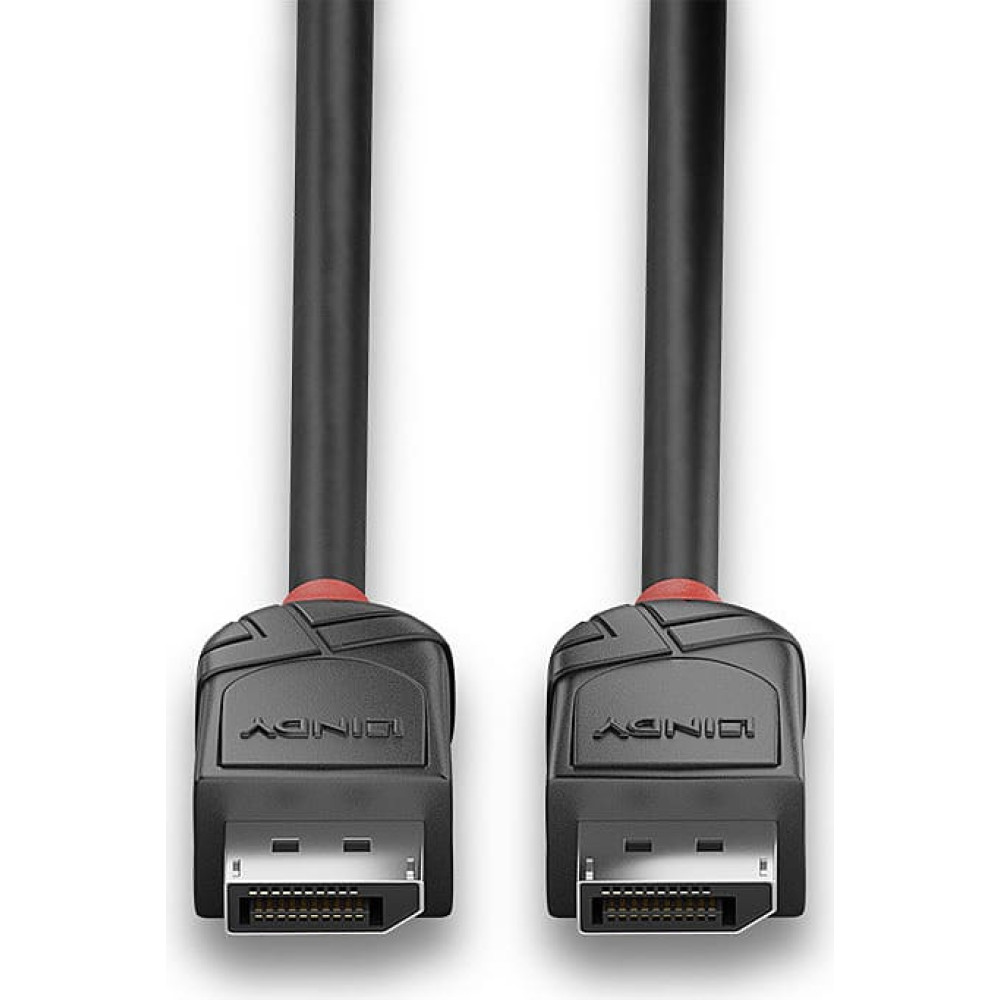

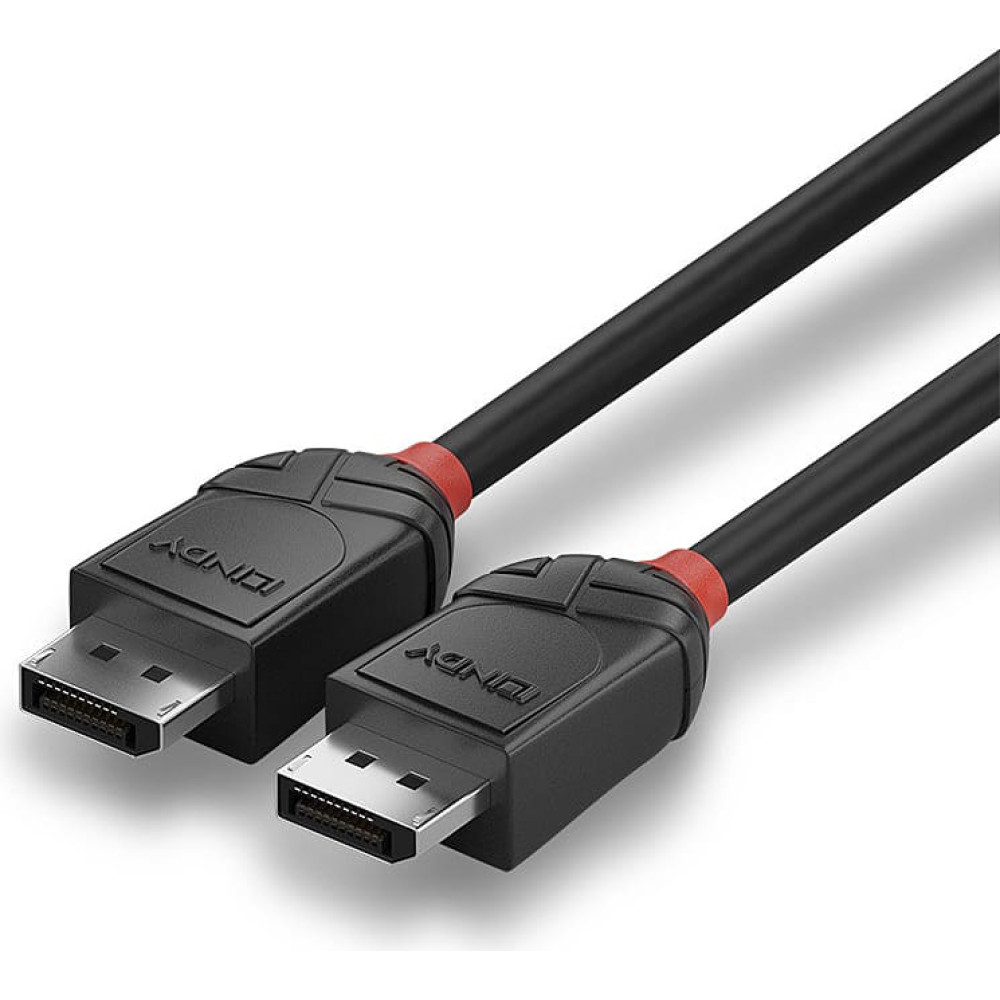

Lindy DisplayPort Kabel Black Line 1.5m

Product Code: 36494

Barcode 4002888364942

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

3d: Yes

awg wire size: 30

bend radius (min): 4.8 cm

cable diameter: 6 mm

cable length: 1.5 m

cable material: Copper

cable shielding: Copper

cable type: Round cable

certification: RoHS, REACH, UL

colour sampling: 4:4:4

connector 1: DisplayPort

connector 1 dimensions (wxdxh): 21 x 38.9 x 13.6 mm

connector 1 form factor: Straight

connector 1 gender: Male

connector 2: DisplayPort

connector 2 dimensions (wxdxh): 21 x 38.9 x 13.6 mm

connector 2 form factor: Straight

connector 2 gender: Male

connector contacts plating: Gold

connector housing material: Acrylonitrile butadiene styrene (ABS)

connector material: Nickel

contact material: Phosphor bronze

data transfer rate: 21.6 Gbit/s

displayport version: 1.2

harmonized system (hs) code: 84733080

jacket material: Polyvinyl chloride (PVC)

maximum refresh rate: 60 Hz

maximum resolution: 4096 x 2160 pixels

nominal attenuation: 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB

operating temperature (t-t): -20 - 80 °C

package type: Polybag

product colour: Black

storage temperature (t-t): -25 - 85 °C

supported graphics resolutions: 4096 x 2160

Description

Connectors

Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: ABS
Connector Plating: Nickel
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 3µm
Dimensions (approx.) WxDxH: 21.0x38.9x13.6mm (0.83x1.53x0.54in)

Cable Construction

Length: 1.5m (4.92ft)
Standard: DisplayPort 1.2
Colour: Black
Type: Round
Jacket Diameter: 6mm (0.24in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 30AWG
Shielding: Copper Braid 80%

Specifications

Supported Bandwidth: 21.6Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
Nominal Attenuation:
- 300kHz-825MHz <5dB
- 825MHz-2.475GHz <5dB
- 2.475GHz-4.125GHz <12dB
- 4.125GHz-5.1GHz <20dB
Minimum Band Radius: 48mm (1.89in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -20°C - 80°C (-4°F - 176°F)
ATC Approved: -

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Purchasing Information

No.: 36494
EAN: 4002888364942

This product is also available in other lengths

36490 - 0.5m (1.64ft)
36491 - 1m (3.28ft)
36494 - 1.5m (4.92ft)
36492 - 2m (6.56ft)
36493 - 3m (9.84ft)
