Home Cables Displayport Lindy DisplayPort an HDMI 8K60 Adapterkabel aktiv 3m

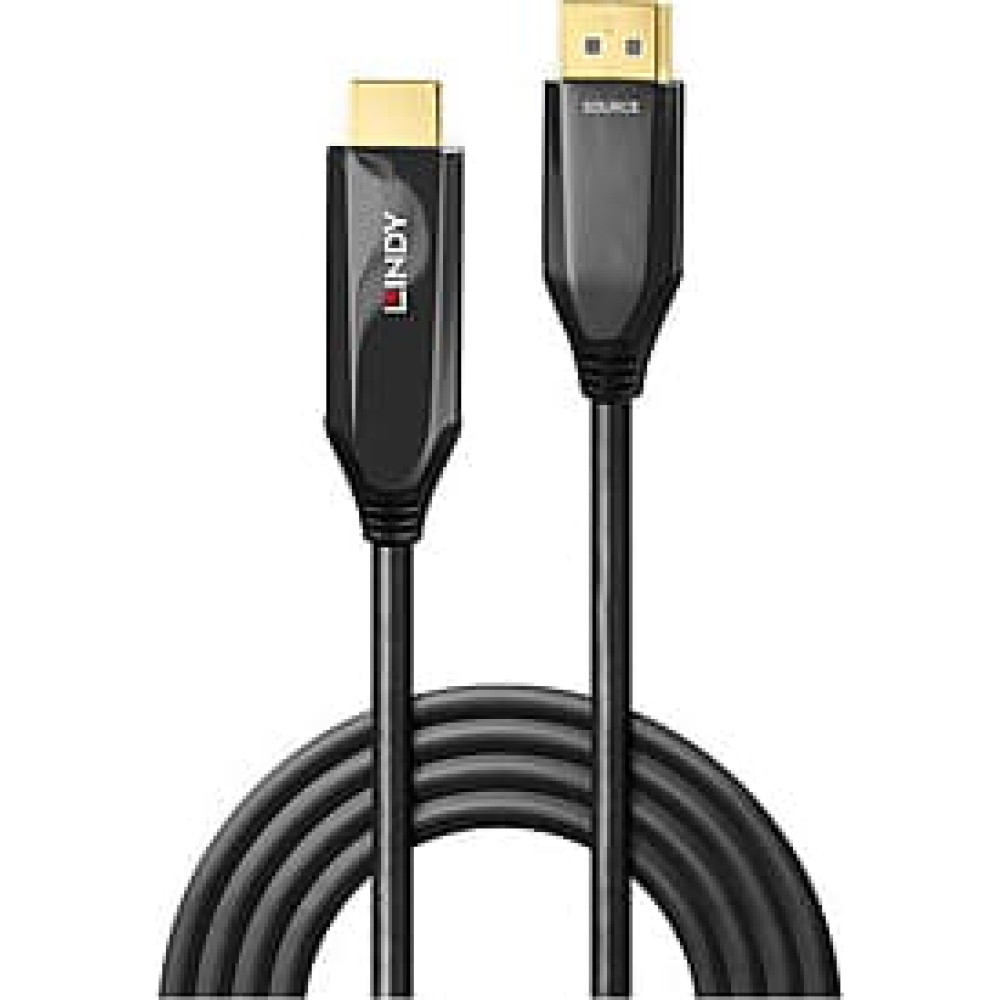

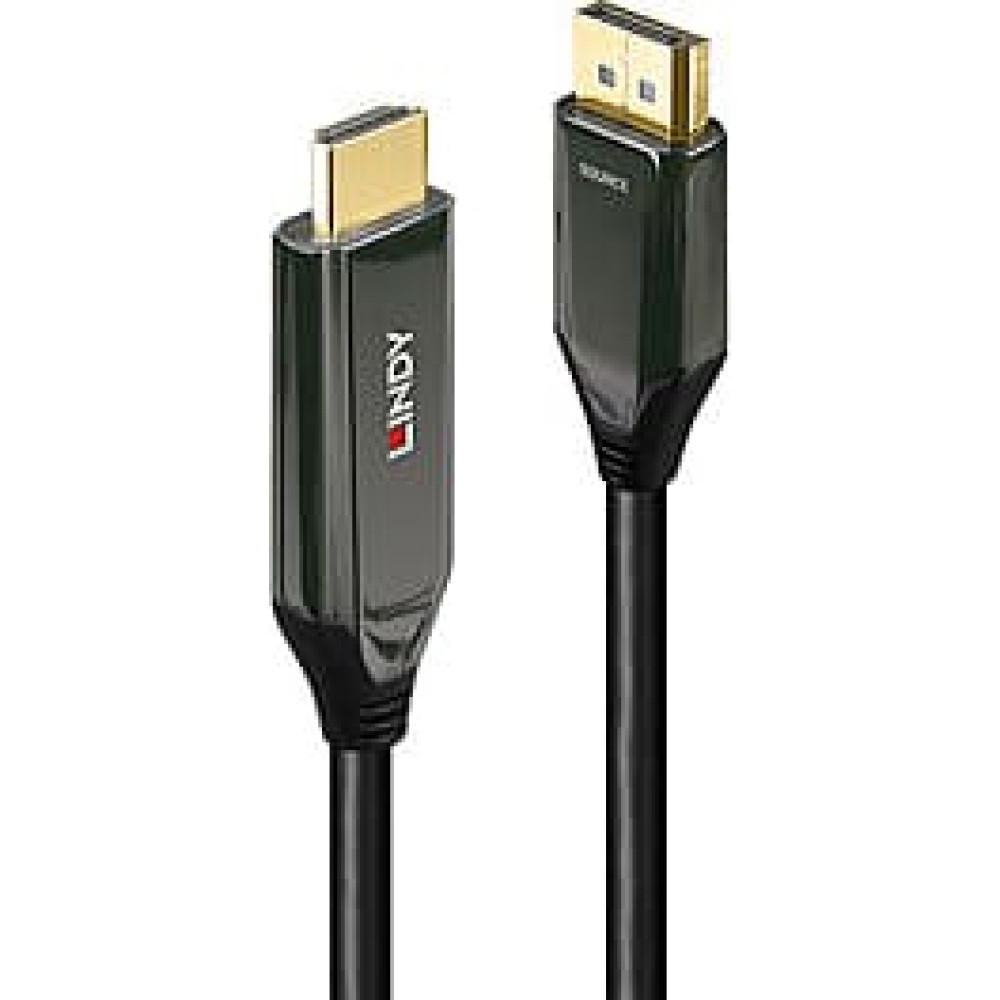

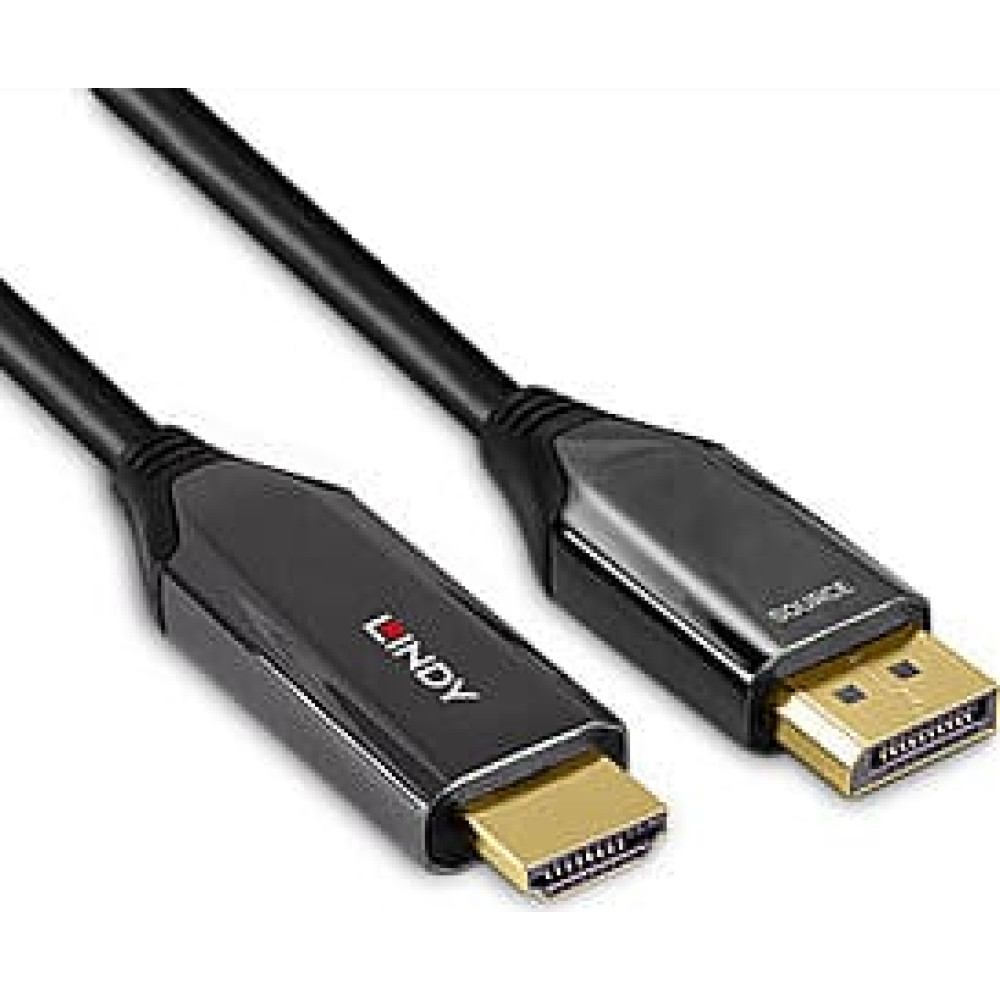

Lindy DisplayPort an HDMI 8K60 Adapterkabel aktiv 3m

LINDY

Lindy DisplayPort an HDMI 8K60 Adapterkabel aktiv 3m

Product Code: 40932
Barcode 4002888409322

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 32
bandwidth: 48000 MB/s
cable diameter: 5.5 mm
cable length: 3 m
cable type: Round cable
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/ca/a3/d6/62/62d6a3ca50ac7c4f9cbb8532/CE_DoC_DE_40930_40932.pdf
colour sampling: 4:4:4
connector 1: DisplayPort
connector 1 dimensions (wxdxh): 50 x 20 x 8 mm
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: HDMI
connector 2 dimensions (wxdxh): 60 x 20 x 8 mm
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Gold
converter type: Active video converter
country of origin: CN
data transfer rate: 48 Gbit/s
displayport version: 1.4
hdmi version: 2.1
jacket material: Nylon/Polyvinyl Chloride (PVC)
maximum refresh rate: 60 Hz
maximum resolution: 7680 x 4320 pixels
operating temperature (t-t): -20 - 40 °C
package type: Polybag
packaging height: 25.5
packaging lenght: 23.6
packaging width: 1.0
product colour: Black
refresh rate at maximum resolution: 60 Hz
storage temperature (t-t): -40 - 80 °C
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/72/6f/2c/63/632c6f72070dd8eb9d4cc02f/40932_TDS_v1.pdf
variation of: 40930.0
warranty: 2.0
Description

Connectors

  • Connector A: DisplayPort Male
  • Connector B:  HDMI Type A Male
  • Chipset: VM7100
  • Housing Material: Zinc Alloy
  • Connector Plating: Gold Plating
  • Pin Construction: Copper Alloy
  • Pin Plating: Gold Plating
  • Dimensions (approx.) WxDxH:
    • DisplayPort: 50x20x8mm (1.97x0.79x0.31in)
    • HDMI: 60x20x8mm (2.36x0.79x0.31in)



Cable Construction

  • Length: 3m (9.84ft)
  • Standard: DisplayPort 1.4, HDMI 2.1
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.5mm (0.22in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 32AWG
  • Shielding: Tinplate



Specifications

  • Supported Bandwidth: 48Gbps
  • Maximum Resolution: 7680x4320@60Hz 4:4:4 10bit
  • Nominal Attenuation: 100MHz-10GHz ≤ 24dB
  • Minimum Bend Radius: 33mm (1.3in)
  • Operating Temperature: -20°C - 40°C (-4°F - 104°F)
  • Storage Temperature: -40°C - 80°C (-40°F - 176°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH, UL & California Proposition 65



Purchasing Information

  • No.: 40932
  • EAN: 4002888409322



This product is also available in other lenghts

  • 40930 - 1m (3.28ft)
  • 40931 - 2m (6.56ft)
  • 40932 - 3m (9.84ft)
