Delock Adapter mini Displayport 1.2 male > VGA / HDMI / DVI female 4K Passive black
To purchase this product you must be registered in our system.
Specification
depth: 0.150
height: 0.020
width: 0.155
Description

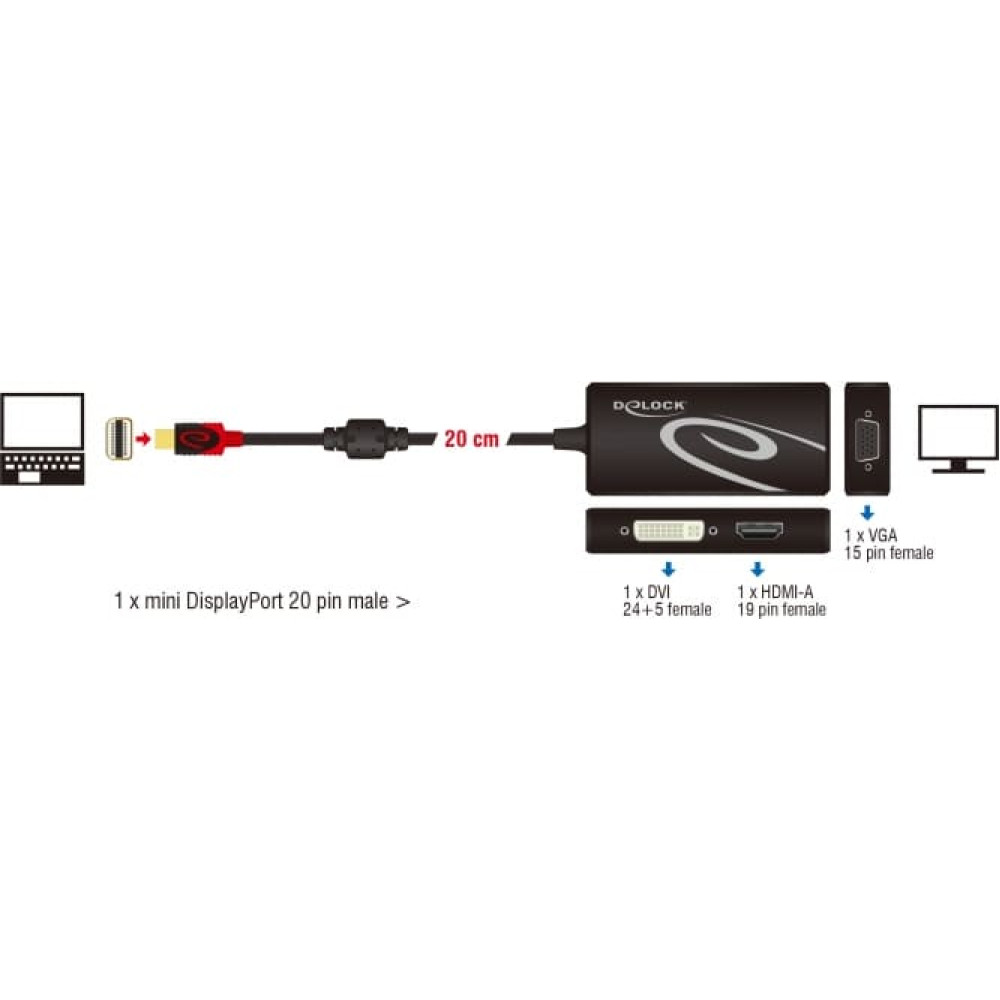

| With this mini DisplayPort adapter by Delock, the system can be extended by a VGA, HDMI or DVI interface and various devices such as TV, beamer, monitor etc. can be connected. Only one monitor can be used on the adapter. System requirements: • One free mini DisplayPort DP++ female Specification: • Connectors: 1 x mini DisplayPort 20 pin male > 1 x VGA 15 pin female 1 x HDMI-A 19 pin female 1 x DVI-D (Single Link) 24+1 female • Chipset: 2 x Parade PS8339 (HDMI + DVI), 1 x Analogix ANX9833 (VGA) • DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification • DVI-D (Single Link) 24+1 port with nuts (VGA not wired) • Passive converter (level shifter), suitable only for graphics cards with DP++ output • Only 1 monitor to the adapter available • Audio signal is transmitted only over HDMI • HDMI / DVI specification: • Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected hardware) • Supports 3D displays (1080p @ 60 Hz) • VGA specification: • Resolution up to WUXGA 1920 x 1200 @ 60 Hz (depending on the system and the connected hardware) • 1 x ferrite core • Cable length without connectors: ca. 20 cm • Colour: black • OS independent, no driver installation necessary Package content: • Adapter mini DisplayPort to VGA / HDMI / DVI Data sheet: http://www.delock.de/produkt/62855/pdf.html?sprache=en |
