Home Cables Displayport Delock Adapter mini Displayport 1.2 male Displayport female 4K 90 turned black

Delock Adapter mini Displayport 1.2 male Displayport female 4K 90 turned black

Product Code: 65626

Barcode 4043619656264

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.100

height: 0.015

width: 0.170

Description

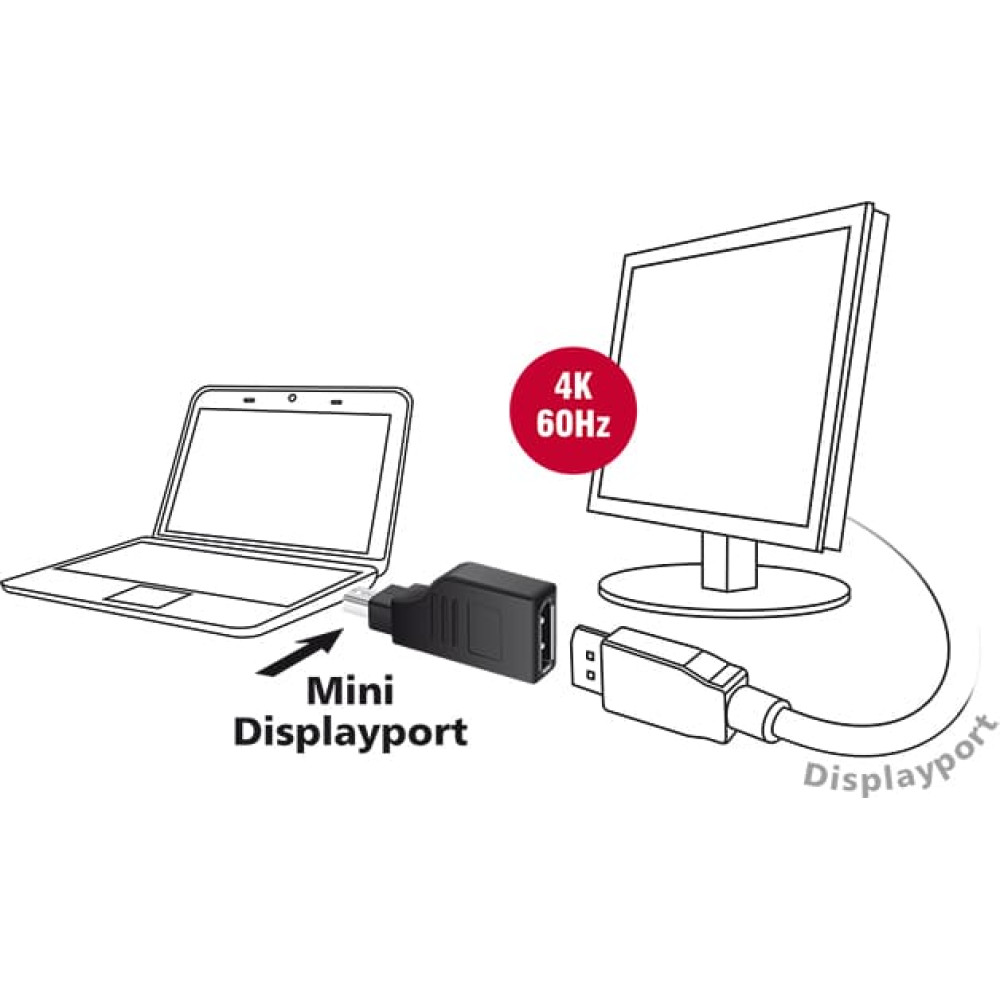

This Adapter by Delock can be connected to a DisplayPort monitor via a free mini DisplayPort interface of the system. Thereby the DisplayPort connector will be turned by 90°. The adapter supports a resolution up to Ultra HD (4K) and is backward compatible to Full-HD 1080p.

System requirements:
• A free mini DisplayPort female port

Specification:
• Connector:
1 x mini DisplayPort 20 pin male >
1 x DisplayPort 20 pin female
• DisplayPort 1.2 specification
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
hardware)
• Supports 3D displays (1080p @ 120 Hz)
• Supports HDCP 1.3
• Gold-plated connector
• Dimensions incl. connector (LxWxH): ca. 54 x 22 x 11 mm
• Colour: black
• OS independent, no driver installation necessary

Package content:
• Adapter

Data sheet:
http://www.delock.de/produkt/65626/pdf.html?sprache=en
