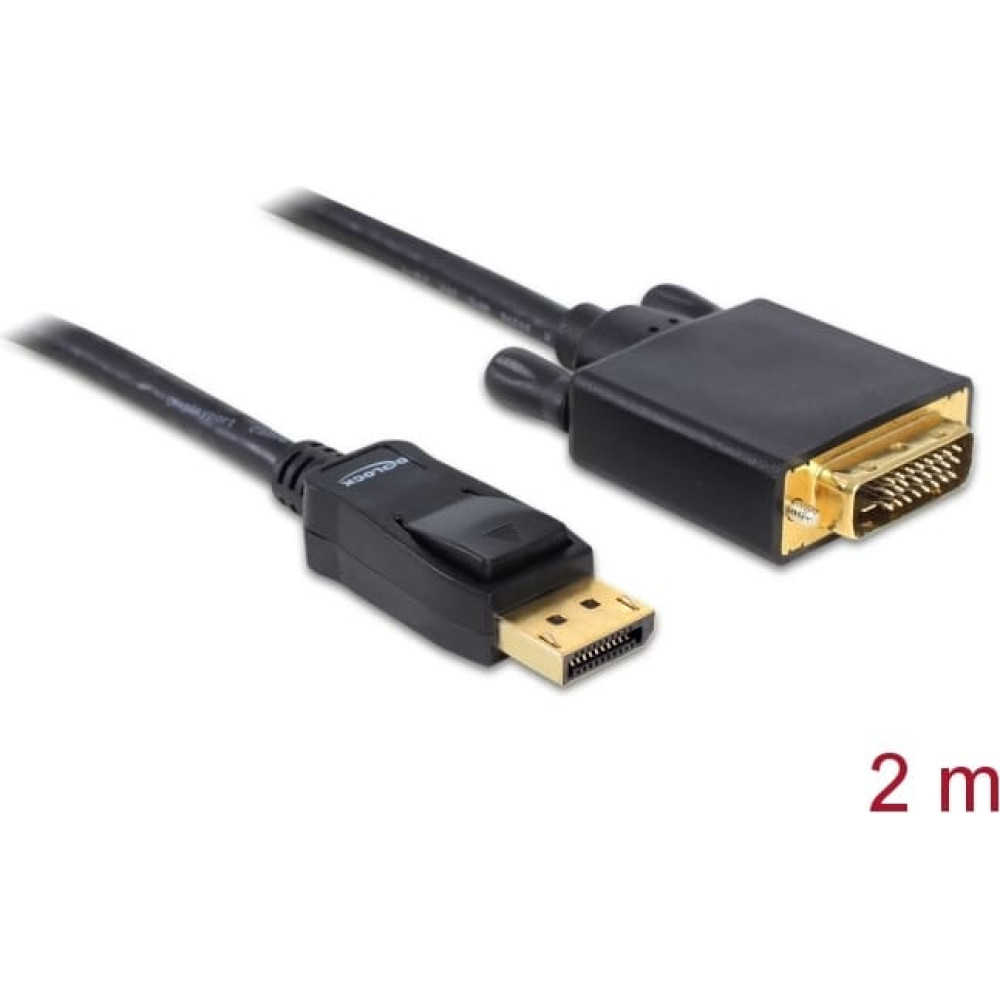

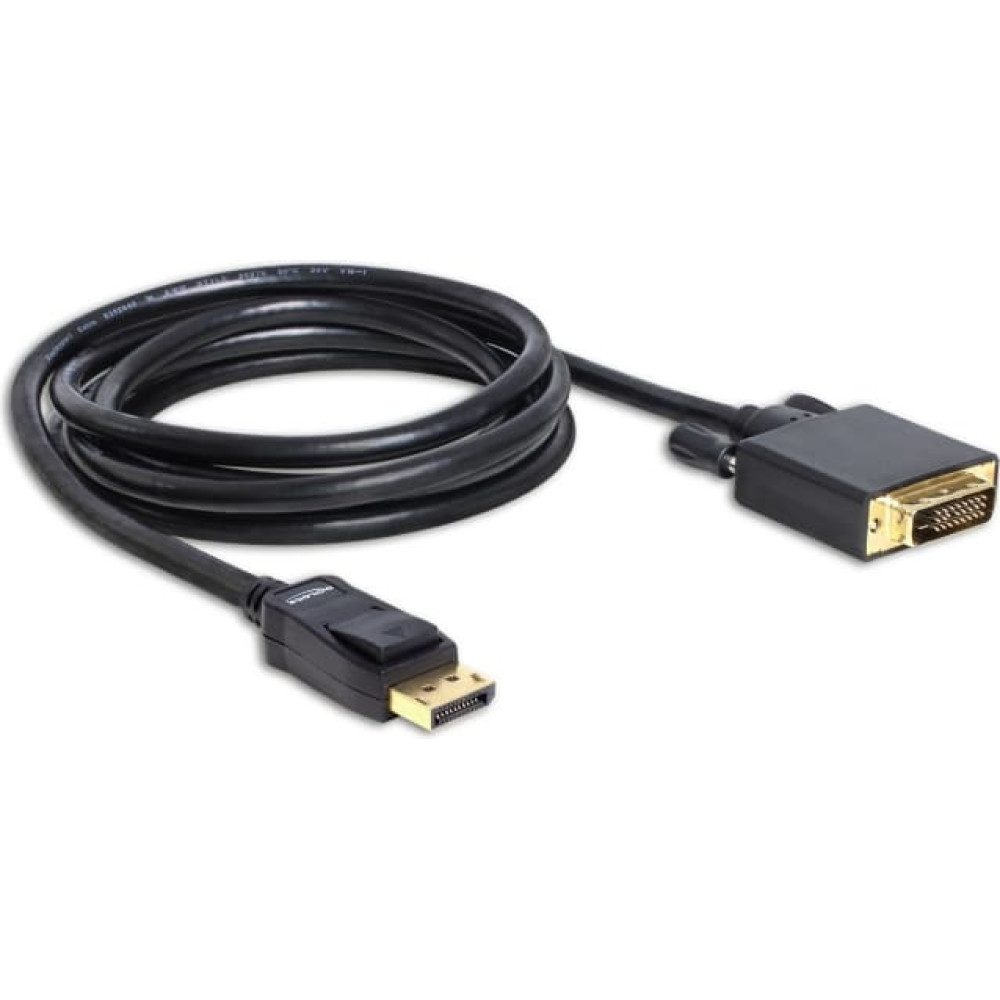

Delock Cable Displayport 1.2 male to DVI 24+1 male 2 m
To purchase this product you must be registered in our system.
Specification
depth: 0.240
height: 0.025
width: 0.150
Description
| This cable by Delock enables the connection between devices, e.g. a monitor, with DVI connector to a DisplayPort interface. System requirements: • A free DisplayPort DP++ female port Specification: • Connectors: 1 x DisplayPort 20 pin male > 1 x DVI-D (Dual Link) 24+1 male • Chipset: NXP PTN3361 • DVI connector with screws • DisplayPort 1.1 specification • Passive cable (level shifter), suitable only for graphics cards with DP++ output • Signal direction: DisplayPort input > DVI output • Cable gauge: 28 AWG • Cable diameter: ca. 6.5 mm • Twisted-pair cabling • Copper conductor • Gold-plated connectors • Triple shielded cable • Data transfer rate up to 10.8 Gb/s • Resolution up to 1920 x 1200 @ 60 Hz (depending on the system and the connected hardware) • Colour: black • Length incl. connectors: ca. 2 m Package content: • DisplayPort to DVI cable Data sheet: http://www.delock.de/produkt/82591/pdf.html?sprache=en |
