Home Cables Displayport Digitus DisplayPort Connection Cable

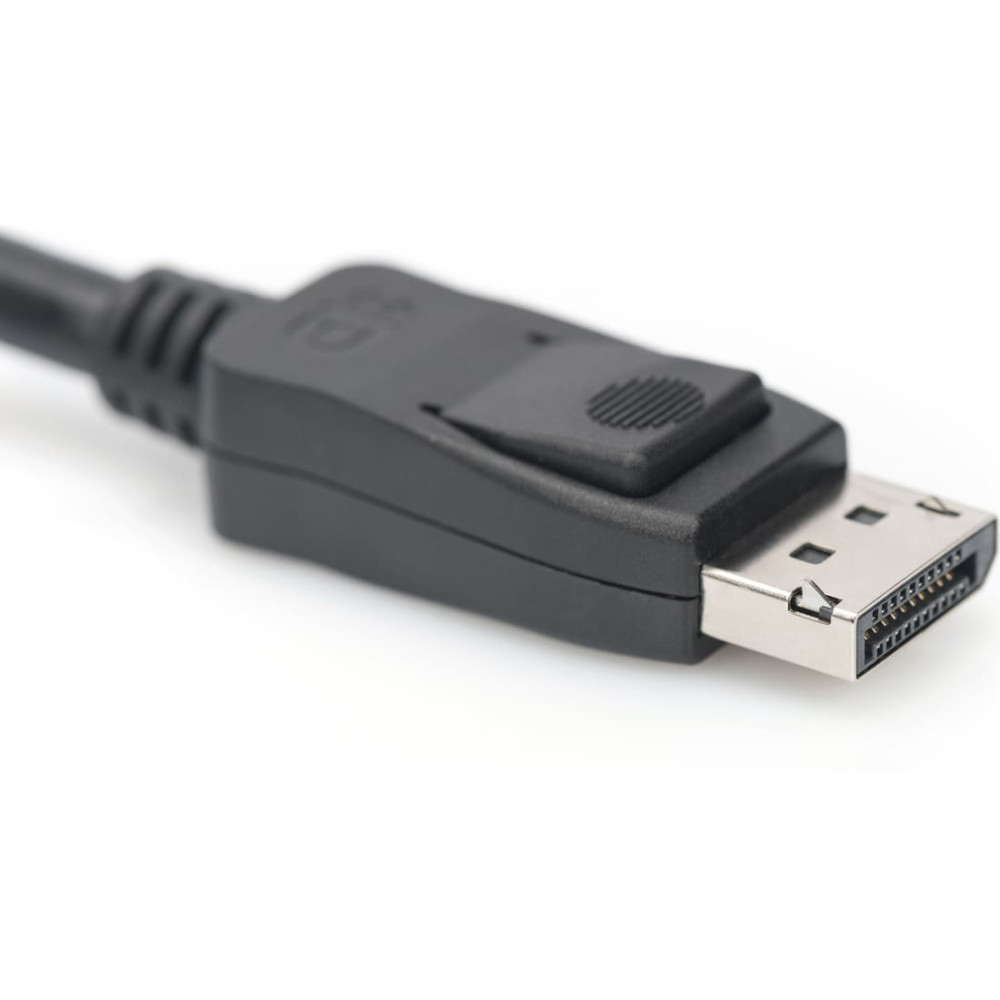

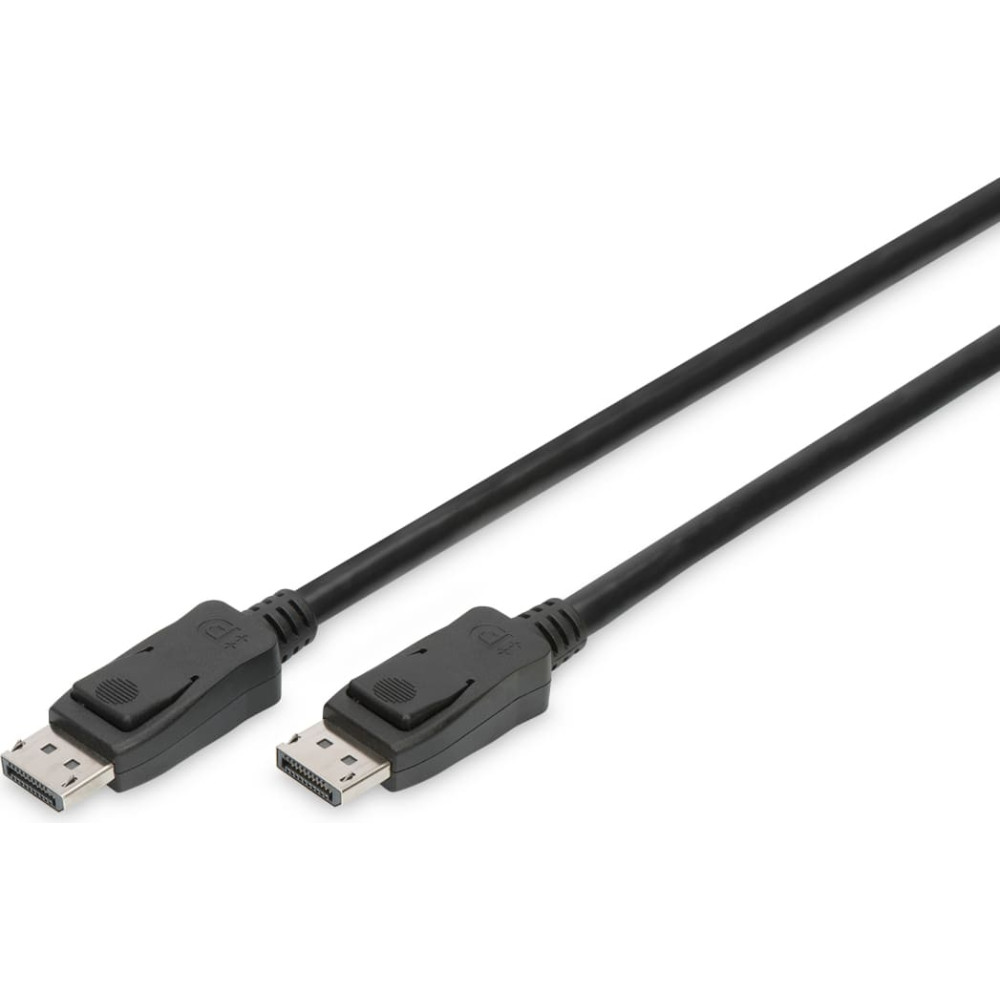

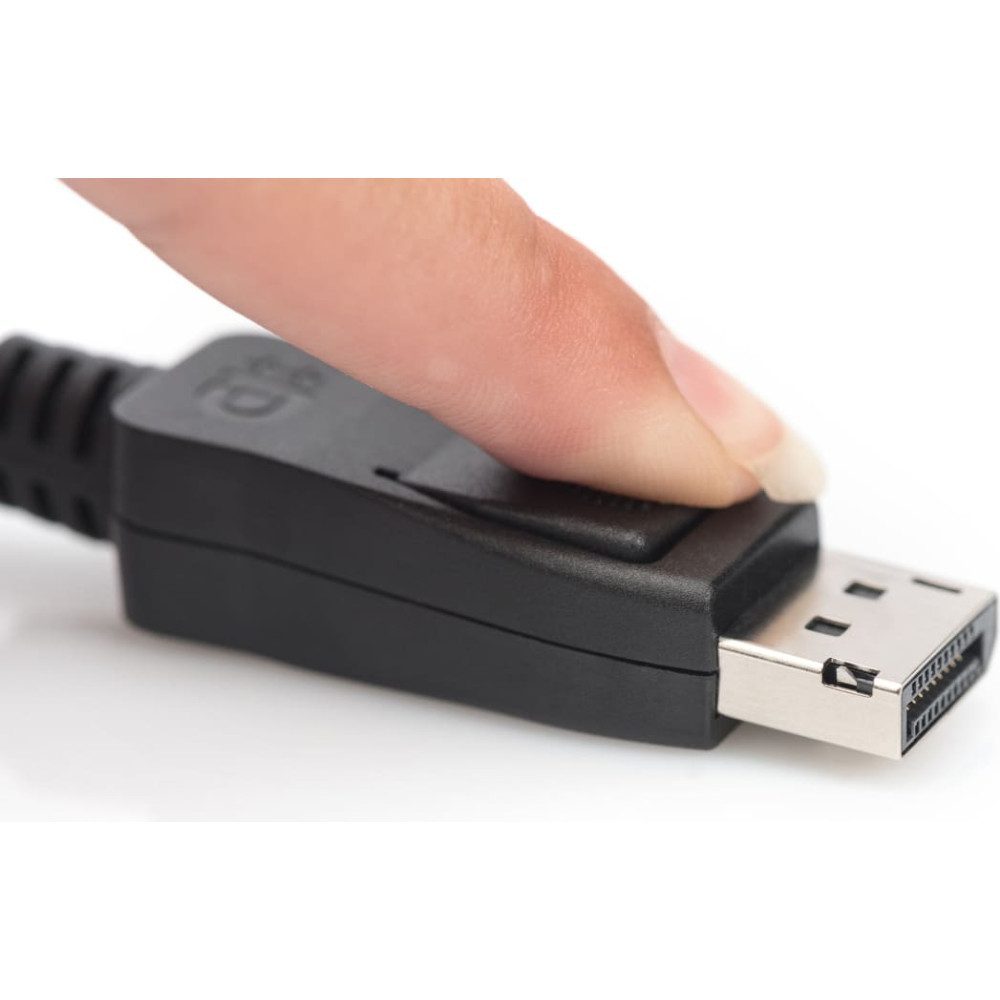

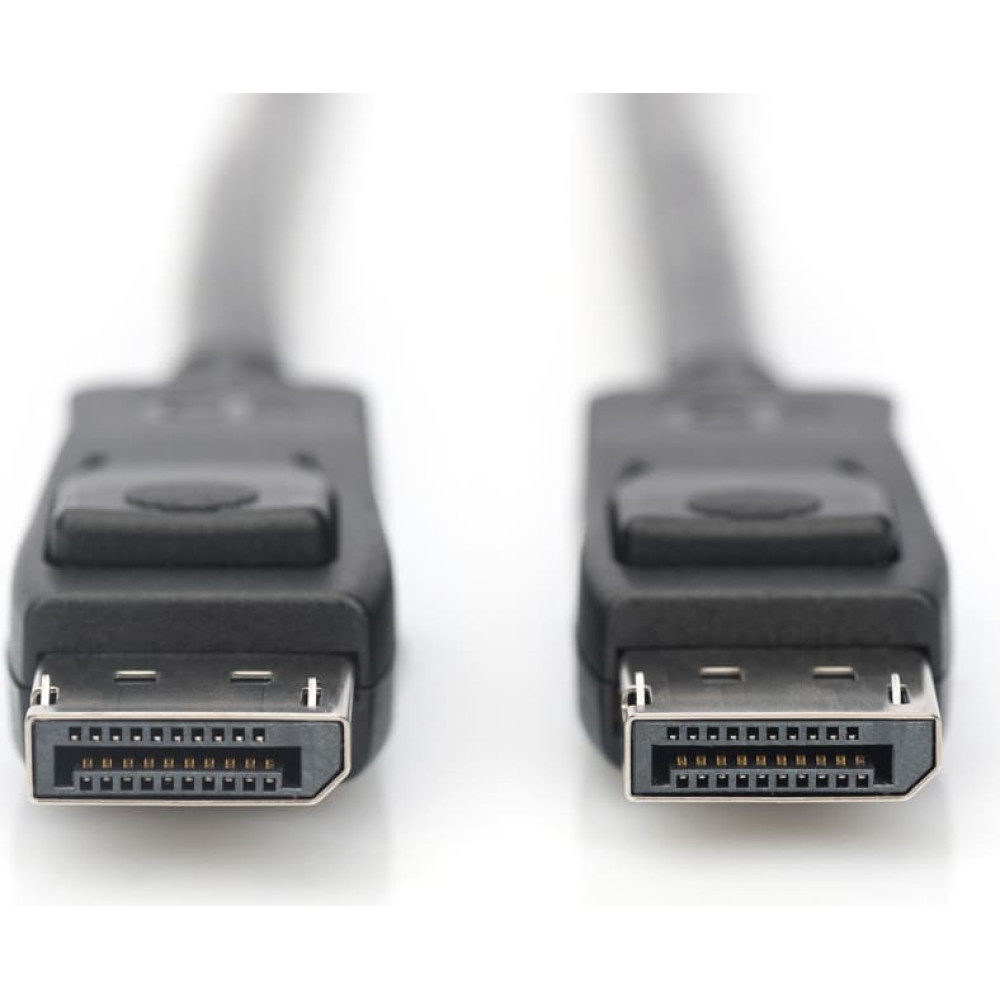

Digitus DisplayPort Connection Cable

Product Code: AK-340106-020-S

Barcode 4016032450313

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

country of origin: CN

depth: 0.195

height: 0.030

height(cm): 25

length(cm): 3

volume(cm3): 1275

weight(kg): 0.155

width: 0.155

width(cm): 17

Description

DisplayPort Connection Cable, Type DP M/M, 2.0m,w/lock, UHD 8K, DP 1.3/1.4, bl

Ideal for CAD/CAM, GIS, 3D modeling, real time simulation, and more.

Supported Video format: 4K/2K@120Hz, 5K@60Hz or 8K@30Hz
Transfer digital HD content to displays connected via DisplayPort
Supports resolutions up to max. 8K/30 Hz
Supports color depths up to max.: 24-bit RGB
Supports HDCP and DPCP encryption

With this cable standard, this DisplayPort cable supports all of today's requirements - from the playback of high-resolution UHD 8K content through 8-channel audio transmission to the support of HDCP and DPCP encryptions. Mirror your laptop desktop on a large monitor or extend your desktop with another DisplayPort display. This high-quality cable allows rapid data transfer without jerking, even in demanding graphics applications or games. Gold-plated contacts and double shielding of the cable ensure maximum conductivity and trouble-free transmission.

Color cable: black
Connector 1: DP, plug
Connector 2: DP, plug
Connector surface: nickel-plated
DisplayPort standard: DisplayPort 1.4
HDTV Resolution max.: 7680 × 4320 Pixel, 60Hz
HDTV Standard: Ultra HD 8K
Length: 2 m
AOC - Active Optical Cable: false
Transfer rate: up to 32.4 GBit/s
Supports up to 4K/2K@120Hz (Ultra HD ) resolution
Supports up to 5K@60Hz (Ultra HD) resolutions
Supports up to 8K@30Hz (Ultra HD) resolutions
Supported video resolution: 7680 x 4320 dpi; 5120 x 2880 dpi; 3840 x 2160 dpi
Color depth: 24bit RGB
Supports 1-8 audio channels for audio transmission
Audio sampling frequencies: 32-192 kHz with max. bit rate of 4,608 kB/s
Supports HDCP and DPCP
Plug & Play installation
DisplayPort version: 1.3 / 1.4
