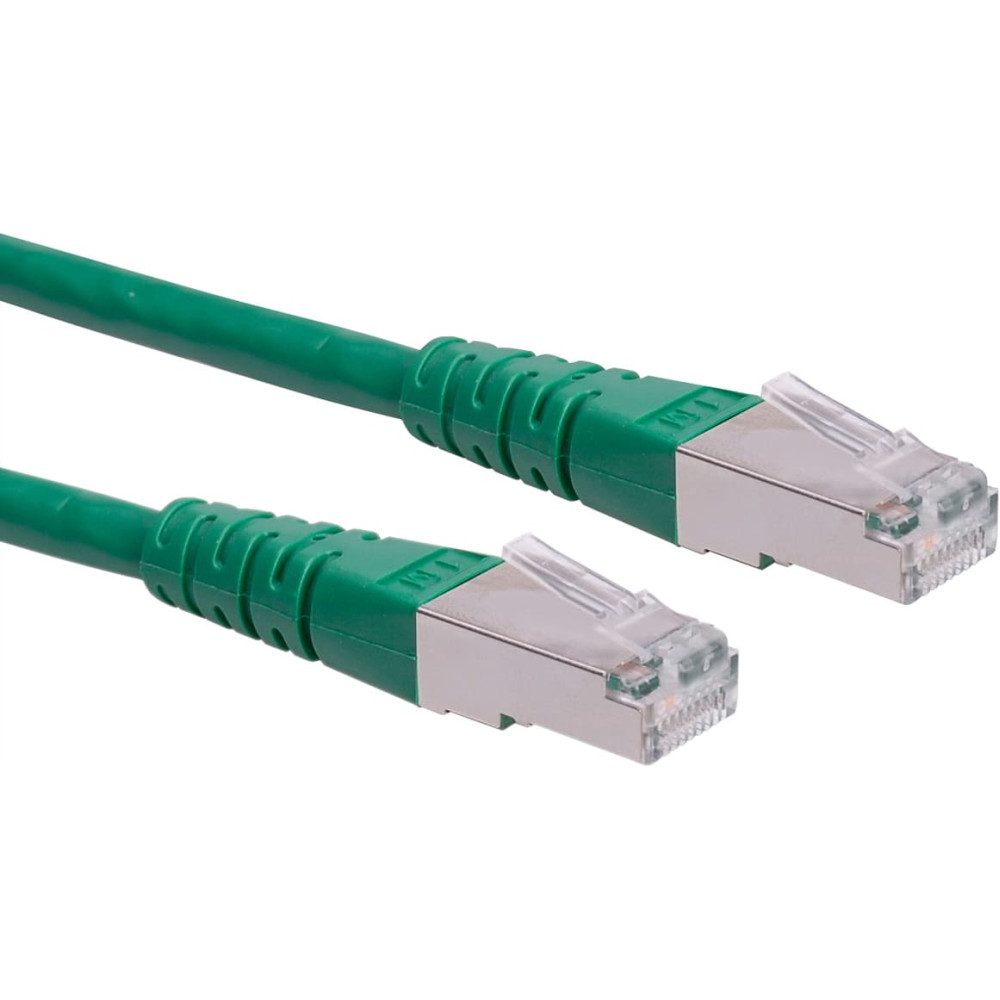

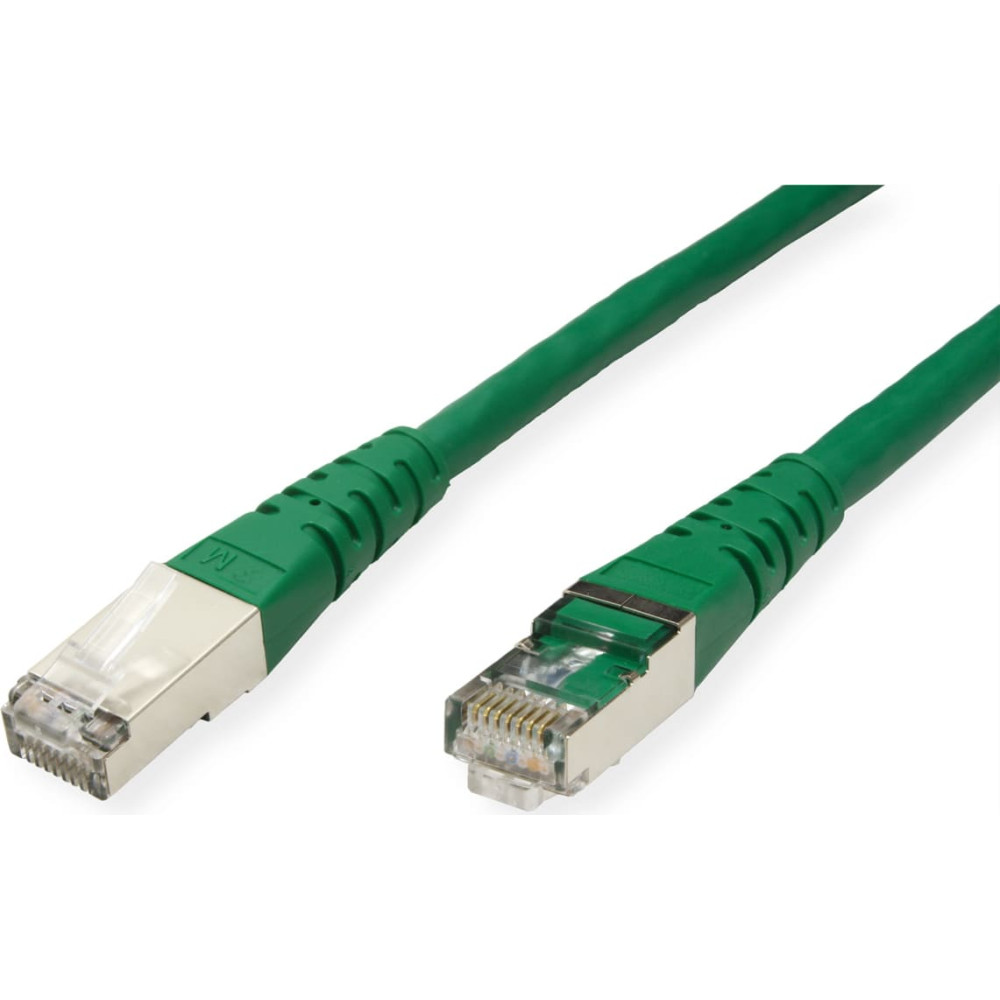

Roline S/FTP (PiMF) Patch Cord, Cat.6, green 10.0m

Product Code: 21.15.1383

Barcode 7611990971664

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

anti-kink sleeve: Moulded-on

cable lsoh: no

colour: green

colour (spout): green

conductor type: Stranded

connector type rj45: Standard

crossed: no

current catalog edition: 24.1

current catalog page: 1.32

depth of packaging (single piece): 180 mm

gross weight: 0.412

height of packaging (single piece): 40 mm

impedance: 100 Ohm

length: 10 m

locking lever: no

manufacturer: ROLINE

package weight (single piece): 0.412 kg

product group: Twisted Pair Cable

product type: S/FTP Patchcord

quantity of wires: 8

shield type: SFTP

side 1 connector gender: Male

side 1 connector type: RJ-45

side 2 connector gender: Male

side 2 connector type: RJ-45

transfer quality: Cat6 / Class E

weight: 385.5 g

width of packaging (single piece): 150 mm

Description

Patch cable for networking connections between devices. Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. High quality plugs with gold plated contacts. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 4-pair stranded copper wire. Complete braid shielding. Pairs shielded with aluminium clad polyester foil.

For a structured cabling system we recommend to use the following components: ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m); ROLINE Cat.6 Flush Mount Wall Jack, shielded: 25.16.8492 (white), 25.16.8493 (ivory); ROLINE Cat.6 Surface Mount Wall Jack, shielded: 25.16.8392 (white), 25.16.8393 (ivory); ROLINE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.11.0351 (light grey), 26.11.0361 (black); ROLINE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.15.0835. The accredited German laboratory GHMT has tested and certified this product combination, in a Channel of 100 meters, as being compliant to Class E specifications; certificate no. z2365b-10-E (with flush mount)/z2364b-10-E (with surface mount).
