Home Cables Network patch cable RJ45 Network RJ45 (6a cat) Easylan VarioBoot Patch cable Cat.6A, S/FTP, blue, 1 m

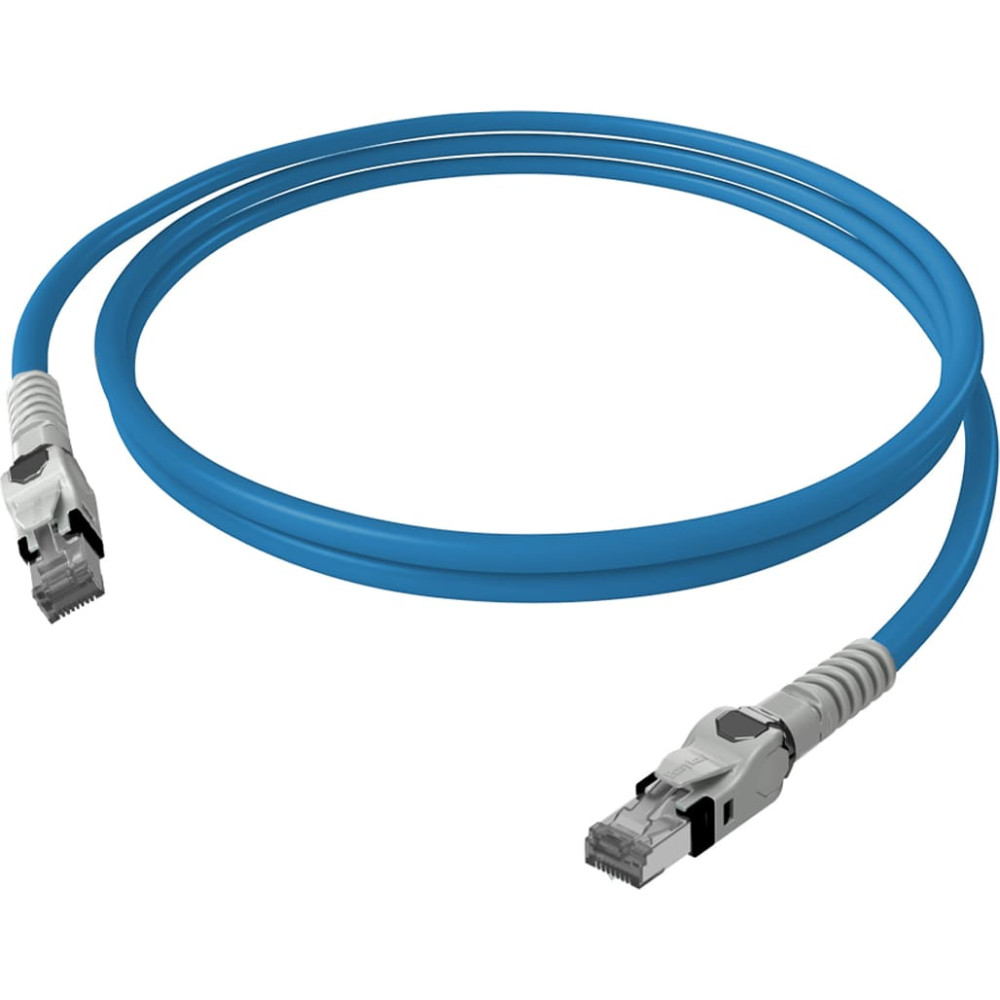

Easylan VarioBoot Patch cable Cat.6A, S/FTP, blue, 1 m

Easylan VarioBoot Patch cable Cat.6A, S/FTP, blue, 1 m

Product Code: CP1OBMSMS0010
Barcode 4055516091918
Brand: EASYLAN

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
assignment: 1:1
cable lsoh: yes
colour: blue
conductor cross section (awg): AWG 26
connector type rj45: saCon®
depth: 1000 mm
depth of packaging (single piece): 200 mm
gross weight: 0.062
height: 14 mm
height of packaging (single piece): 10 mm
impedance: 100 Ohm
length: 1 m
locking lever: yes
manufacturer: EasyLan
operating temperature max.: 60 °C
operating temperature min.: -25 °C
package weight (single piece): 0.062 kg
product group: Twisted Pair Cable
product type: S / FTP patch cable PiMF
shield type: S/FTP
side 1 connector gender: Male
side 1 connector type: RJ-45
side 2 connector gender: Male
side 2 connector type: RJ-45
transfer quality: Cat6A / Class EA
weight: 60.122 g
width: 13 mm
width of packaging (single piece): 190 mm
Description

Patch cable RJ45, VarioBoot S/FTP Cat. 6A ISO/IEC, shielded

Connection cable RJ45/RJ45 shielded, 1:1 assignment with angle-adjustable plugs. This patch cable was developed for the use in offices and computer centers. The cable used with its combination shield (PiMf + meshwork) as well as the 360° shielded RJ45 plugs offers a high degree of data security. The VarioBoot patch cable provides nine different variants of outlet arrangements due to the easy dismantling of the grommet from the plug housing. A straight as well as a 45° or 90° arrangement can be realized. This means that the outlets can be adapted individually.
