Home Cables Optical cables 9/125 62.5/125 50/124 MTP Metz Connect OpDAT patch cord, SC-D/SC-D OS2, 2 m

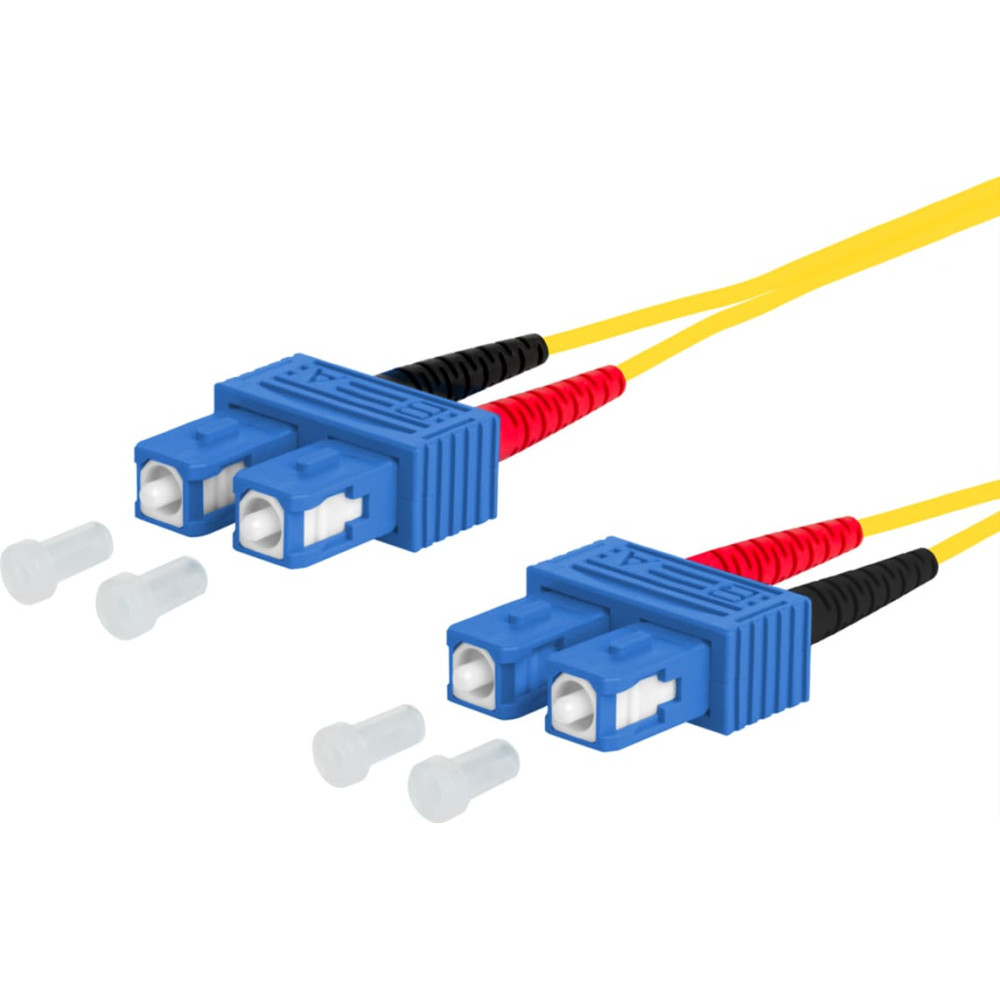

Metz Connect OpDAT patch cord, SC-D/SC-D OS2, 2 m

METZ CONNECT

Metz Connect OpDAT patch cord, SC-D/SC-D OS2, 2 m

Product Code: 151P1EOEO20E
Barcode 4250184148227

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
aramid strain relief: yes
bend insensitivity: yes
cable lsoh: yes
cable type: Duplex Cable
colour: yellow
connection ports: SC / SC
crossed: yes
depth of packaging (single piece): 190 mm
external cable diameter: 2.0 x 4.2 mm
fibre section: Single mode 9/125µm OS2
flame retardant according to iec 60332-1-2: yes
gross weight: 0.038
halogen free according to iec 60754-2: yes
height of packaging (single piece): 40 mm
length: 2 m
low smoke according to iec 61034-2: yes
manufacturer: METZ CONNECT
operating temperature max.: 60 °C
operating temperature min.: -10 °C
package weight (single piece): 0.038 kg
product group: Fibre optic cable
product type: Fibre Optic Jumper Cables OS2
side 1 connector type: SC
side 2 connector type: SC
storage temperature max.: 60 °C
storage temperature min.: -10 °C
weight: 32 g
width of packaging (single piece): 200 mm
Description

Single mode patch cord I-V(ZN)H E9/125 OS2

  • single mode fiber OS2, E9/125 µm, bend insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2, compatible to G.652.D
  • outer diameter 2.0 x 4.2 mm
  • halogen-free LSHF-FR sheath with low smoke development, flame retardant
  • duplex cord as zip-cord (figure 8) with two tight buffered fibers and aramide strain relief
  • 100 % tested
