Digitus Fiber optic patch cable, MPO, socket, OS2, method A, 1m

DIGITUS

Digitus Fiber optic patch cable, MPO, socket, OS2, method A, 1m

Product Code: DK-2966-01
Barcode 4016032345121

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
country of origin: CN
height(cm): 29
length(cm): 1
volume(cm3): 580
weight(kg): 0.01368
width(cm): 20
Description

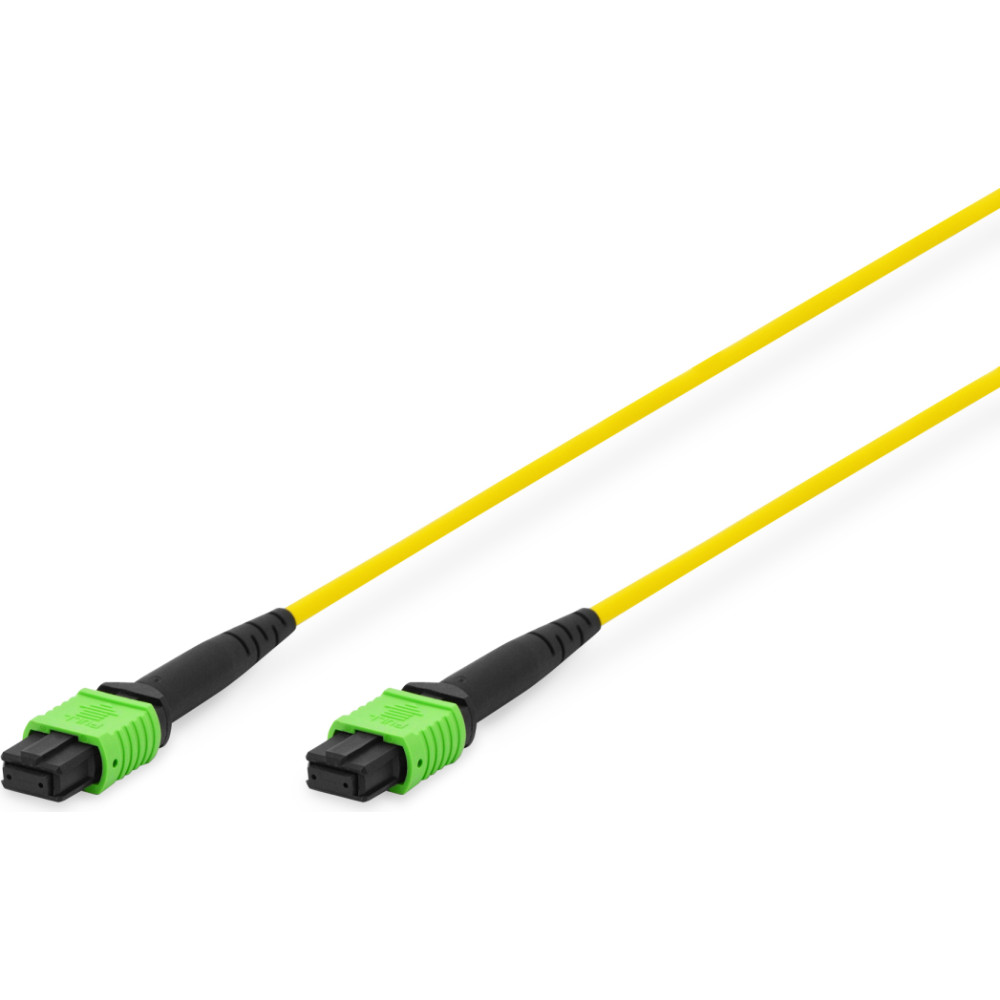

Fiber Optic Patchcord, MPO to MPO, Female, OS2, SM 09/125 µ, 1m, APC, Method A, yellow/green

High-performance solutions for efficient and scalable connectivity in data centers.

Improved data transfer rates
Ultra-low loss
Slim and flexible
Enables rapid deployment
Robust design

The MPO patch cable enables data rates of 40Gb/s or 100Gb/s and is the answer to the growing bandwidths required by data centers. The standardized IEC61754-7 and TIA/EIA 604-5 MPO connector guarantees the best performance in the entire network and is hardly larger than a standard RJ45 connector. The excellent attenuation and compact design make this patch cable the first choice when it comes to bandwidth and performance.

Cable diameter: 3 mm
Cable jacket: LSOH
Color cable: yellow
Fiber class: OS2
Fiber diameter: 9/125µ
Mode: Singlemode
Number of connectors side 1: 1
Number of connectors side 2: 1
Number of fibers: 12
Packaging: DIGITUS Polybag
Length: 1 m
Plug: MPO socket
Ground joint: APC
Type: Method A
Fiber type: SM-G652D, 9/125µ, OS2
Number of fibers: 12
Cable outer diameter: 3 mm
Coat color: Yellow
Cable length: 1 m
Material of the outer sheath: LSZH
Max. Tensile strength: 300 N
Min. bending radius: 30 mm
Temperature range: -40°C to +75°C

Package content:
1 x fiber optic patch cable, MPO, socket, OS2, method A, 1m
