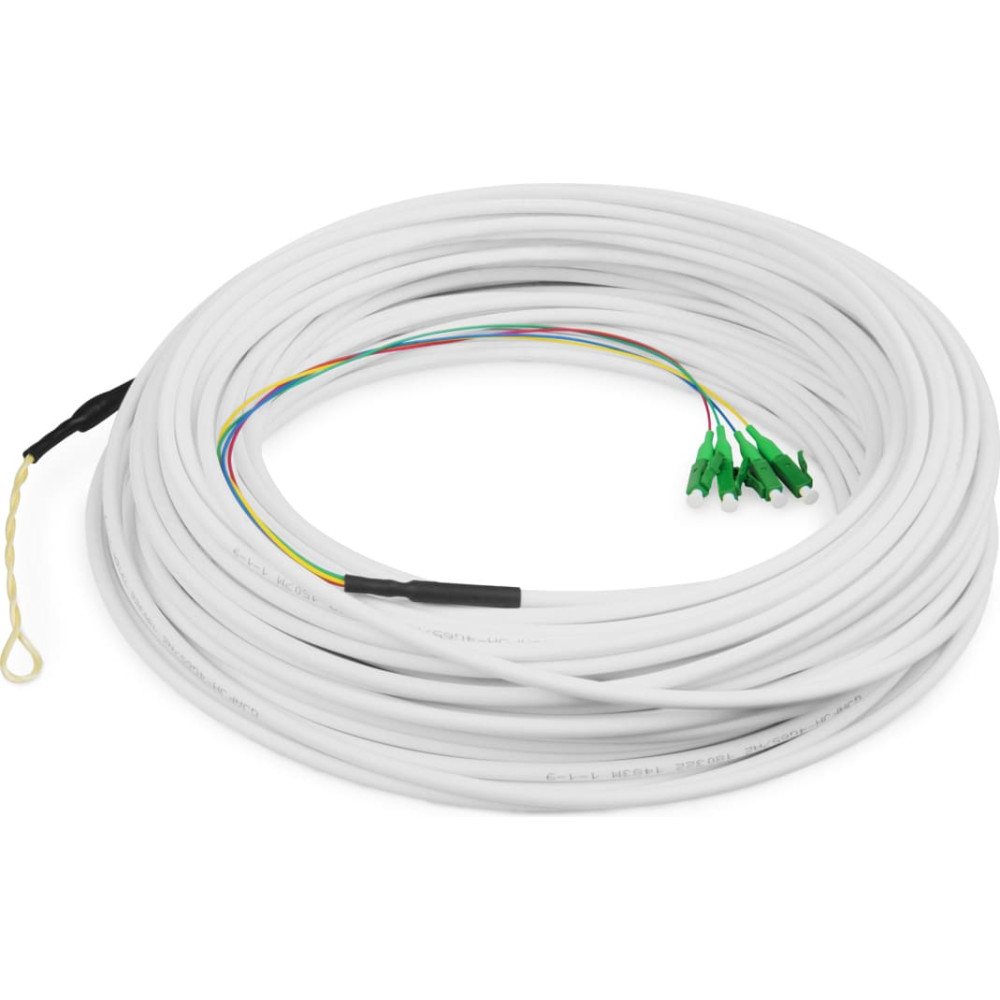

Digitus FTTH Drop Cable, Singlemode, 4 Fiber, 4 LC/APC, 50 m
To purchase this product you must be registered in our system.
Specification
country of origin: CN
depth: 0.000
height: 0.000
height(cm): 25.5
length(cm): 5.5
volume(cm3): 3506.25
weight(kg): 0.882222
width: 0.000
width(cm): 25
Description

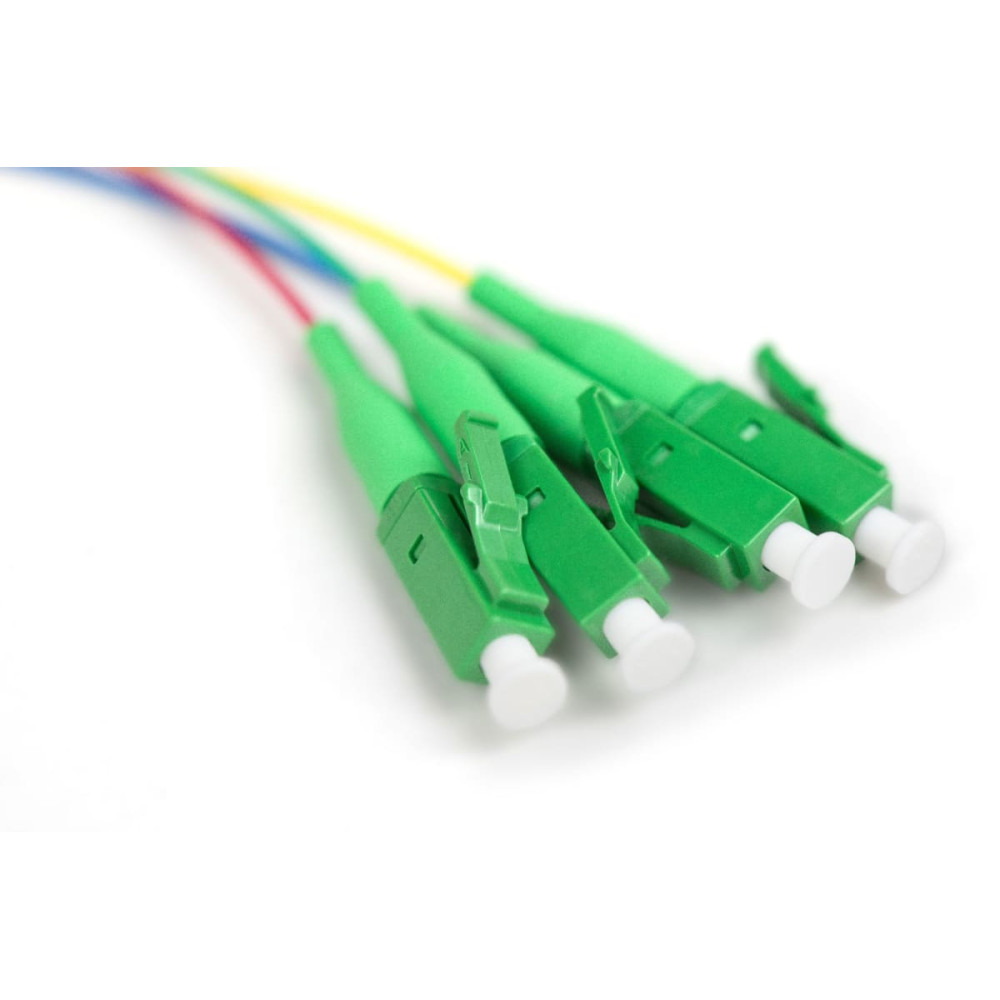

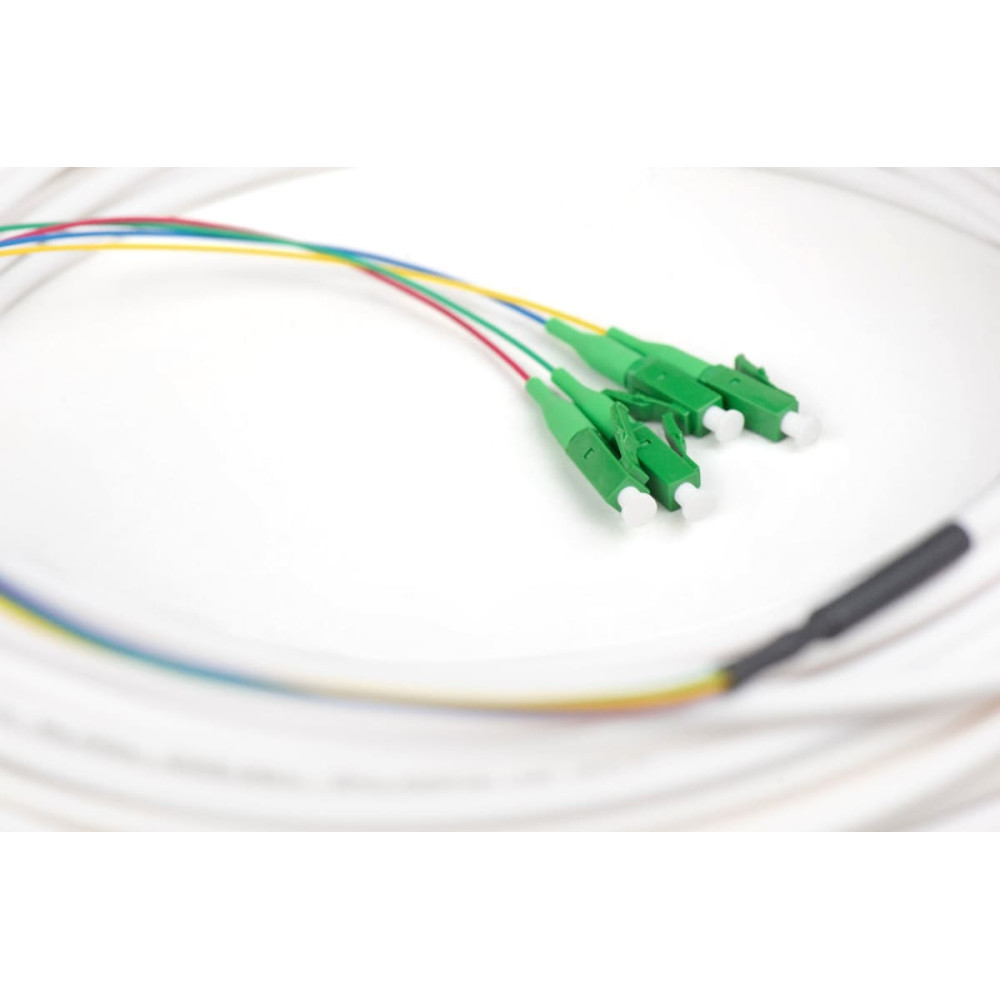

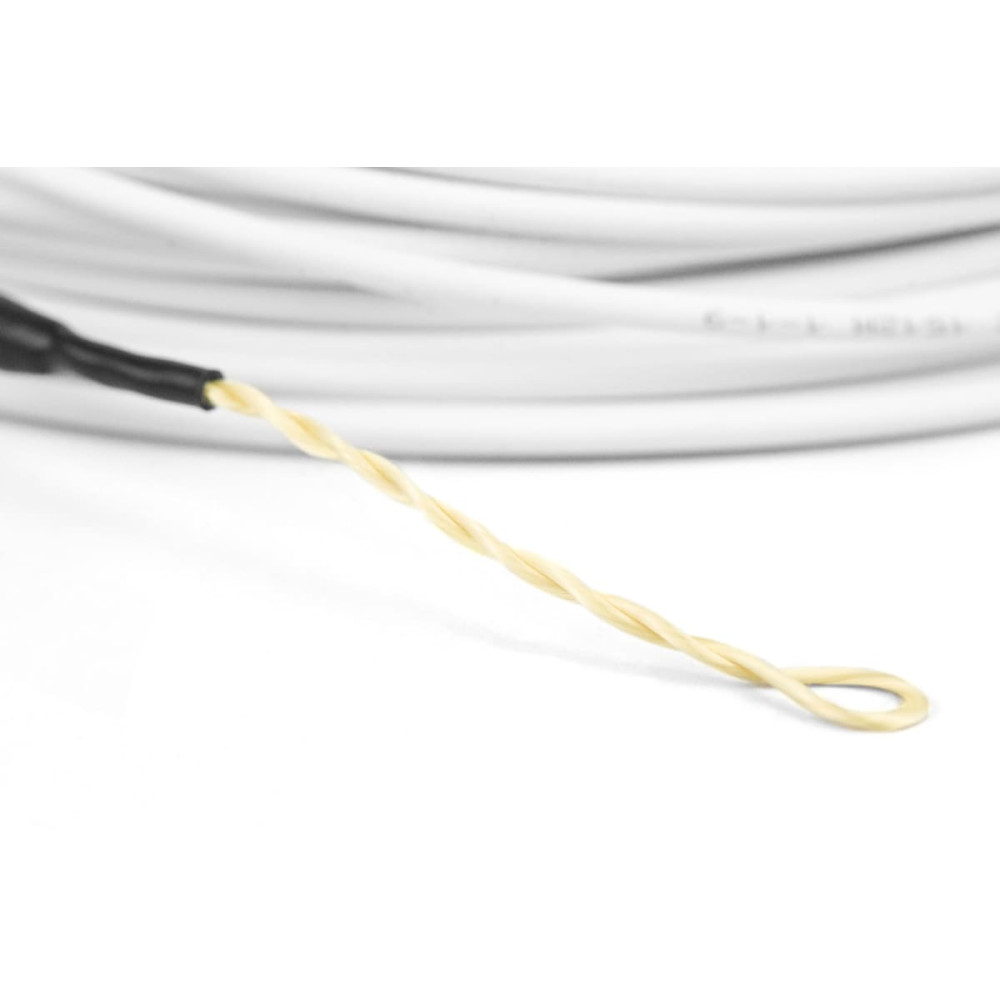

| FTTH Drop Cable, Singlemode, 4 Fiber, LC/APC G.657.A2, 50m High-quality cable offers an excellent option for fiber optic connections in the designated network level 4. Installation is made easier with preassembled connectors for all 4 fibers on one end of cable. Significantly reduces installation time Pre-assembled with LC/APC connectors on one side The open end can simply be pulled in or laid to the house distribution unit G.657A2 bend-optimised Stable pulling loop for pulling the cable into duct systems The growing requirement for extending Fiber networks into the home demands products that enable an easy and effecient installation to realize the network. The Digitus cable offers the possibility to easily extend and complete the fiber network inside the home. The cable is designed to be used as the connection line between building distributor and floor distributor or subscriber termination point in network level 4. The easiness of installation comes from the fact that the cable is preassembled with LC/APC connectors on subscriber end and the open can then be installed through duct to the distributor acting as entry point for fiber network in building. Application: universal Cable diameter: 4 mm Cable jacket: LSOH Color cable: white Connector 1: LC (APC) Fiber class: OS2 Fiber diameter: 9/125µ Mode: Singlemode Number of fibers: 4 Polishing: APC Length: 50 m Fiber type : Singlemode 9/125 Category : G657A2 Cable length : 50 m Number of fibers : 4 Fiber Color : Blue, Green, Yellow, Red Connector type : LC/APC Sheath color : White Sheath material : LSZH Stranding element : Kevlar Yarn Cable construction : Dca Cable diameter : 4,0mm Diameter of pulling aid : 7-8cm (length) Min. Bending radius of cable : 10D/20D Tensile strength : 400N Compressive strength : 1000N Connector insertion loss : <=0.3dB Connector return loss : >=60dB Storage temperature : -40~+80 Working temperature : -20~+70 Cable Weight : 0,63kg Package content: 1 x FTTH Cable, Singlemode, 4 Fiber, 4 x LC/APC, 50 m |
