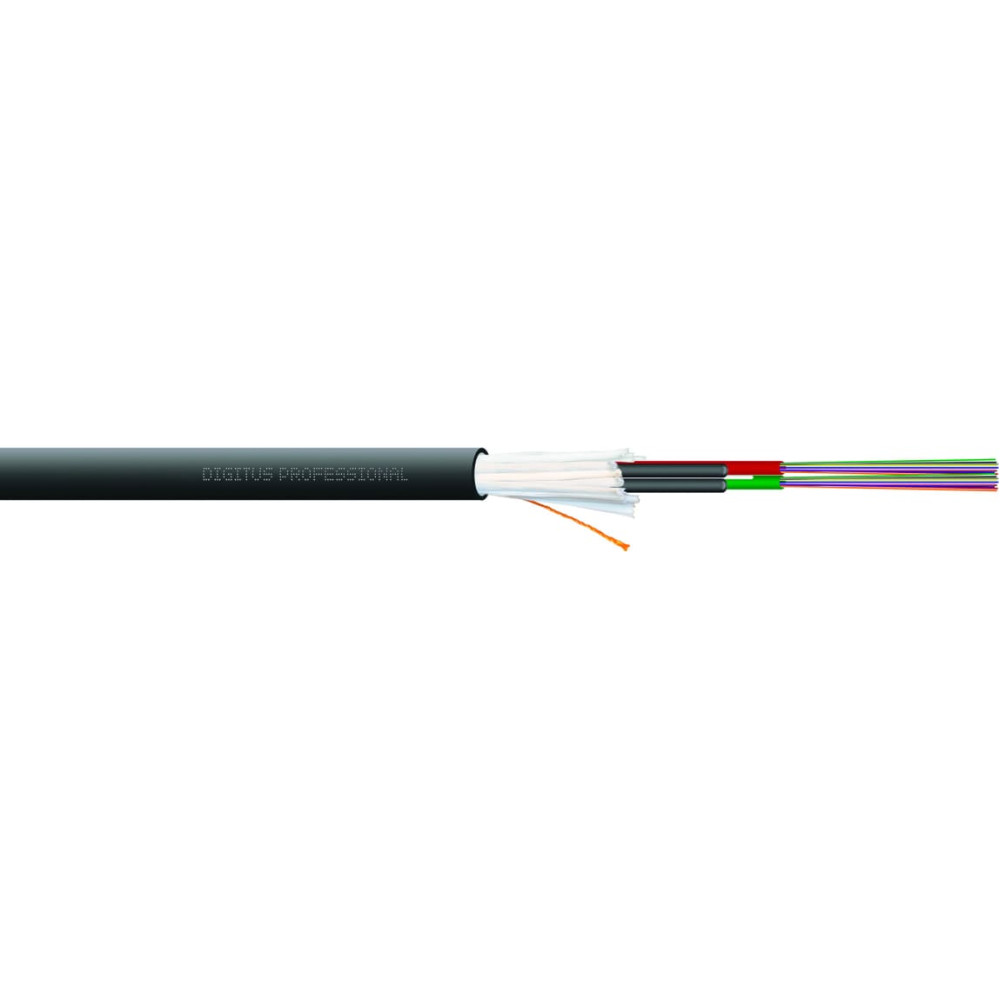

Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 9/125? OS2, 24 fibers, CPR Dca, LSZH
To purchase this product you must be registered in our system.
Specification
country of origin: CN
depth: 0.000
height: 0.000
height(cm): 0.5
length(cm): 100
volume(cm3): 25
weight(kg): 0.059
width: 0.000
width(cm): 0.5
Description

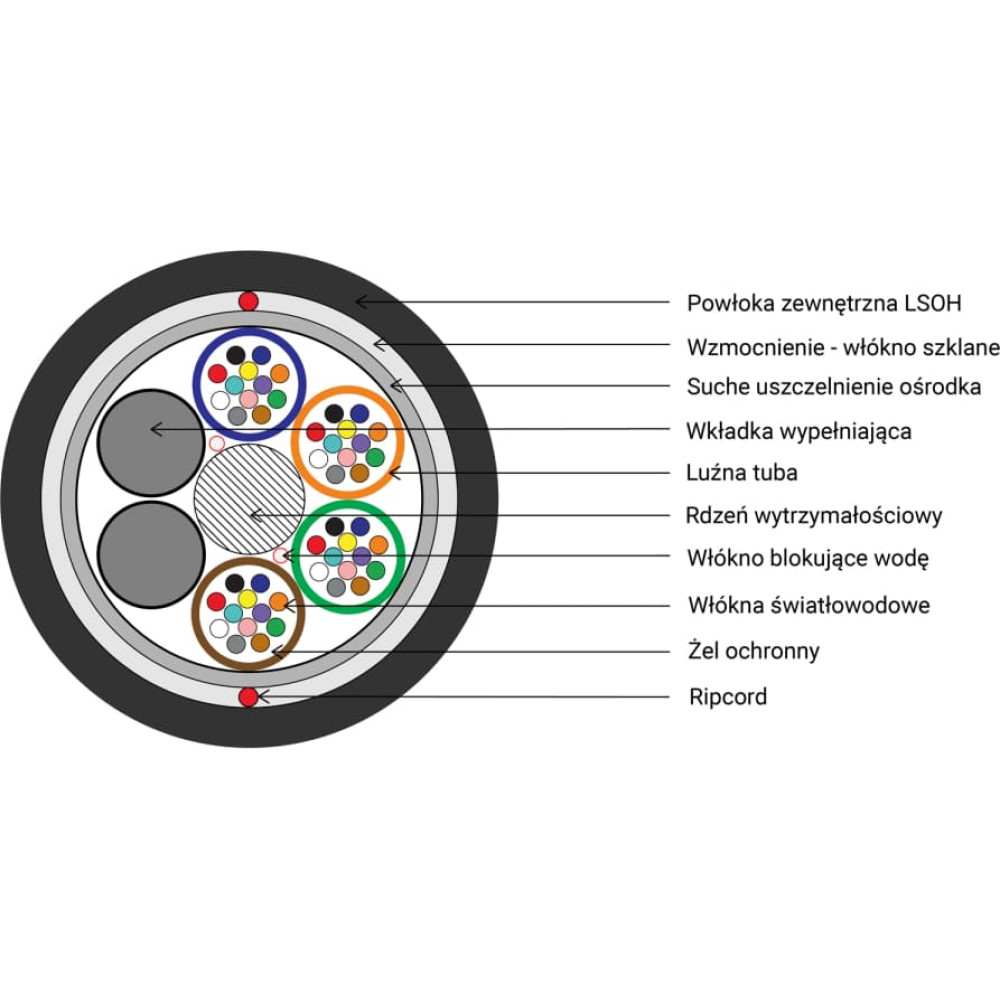

| FO A-I-DQ(ZN)BH 24E9/125µ, SM, OS2, 24 fibers Indoor/Outdoor, LSZH, Dca, black, length 1 m OS2 9/125µ Multi-tube 12 fibers per tube Non-metallic rodent protection LSZH, CPR Dca Multi tube cable is a design that has high tensile strength and flexibility in a compact cable size. Our loose tube cable provides excellent optical transmission and physical performance. We ensure a continuing level of quality in our cable products through several quality control programs including ISO 9001 and all the materials have passed REACH and ROHS. We ensure product reliability through rigorous qualification testing of each product family. Both initial and periodic qualification testing are performed to assure the cable's performance and durability in the field environments Application: universal Cable jacket: LSOH Cable type: U-DQ (ZN) BH X E 9/125µm Color cable: black Fiber class: OS2 Fiber diameter: 9/125µ Mode: Singlemode Number of fibers: 24 LSZH low smoke zero halogen UV-resistant Longitudinaly and laterally water-resistant Glass yarn armoured Non-metal rodent protection Metal free Attenuation at 1310nm : <= max. 0.34 dB/km (before cabling) ; <= max. 0.36 dB/km (after cabling) Attenuation at 1550nm: <= max. 0.21 dB/km (before cabling) ; <= max. 0.22 dB/km (after cabling) Attenuation at 1625nm : <= max. 0.23 dB/km (before cabling) ; <= max. 0.25 dB/km (after cabling) Zero Dispersion Wavelength : 1302 ~ 1324 nm Zero Dispersion Slope : <= 0.092 ps/nm 2 x km PMD Link value ( M= 20 cables Q= 0.01%) max. PMDQ : 0.2 ps/?km Cable Cutoff Wavelength (?cc) : <= 1260 nm Macro bending Loss (100 turns ; ?50nm) at 1550 nm : <= 0.05 dB Macro bending Loss (100 turns ; ?50nm) at 1625 nm : <= 0.10 dB Mode Field Diameter at 1310nm : 9.2 ± 0.4 µm Cladding diameter : 125 ± 1 µm Core/ clad concentricity error : <= 0.6 µm Cladding Non-Circularity : <= 1.0 % Proof stress : >= 0.69 Gpa Fiber count (OS2 G.652) : 2 ~ 72 pc Max. number of loose tube : 6 pc Fiber number per tube : 12 pc Loose tube : 2.3 ± 0.2 mm Strenght member : FRP Outer sheath : material : LSZH, CPR Dca, EN 50575: 2014+ A1: 2016 ; thickness : 1,6mm ; diameter : 12.0 ± 0.5mm Max. allowable pulling force : 1500 N Crush resistance : 1000/300 N/100mm Cable weight : 300 ± 10 % kg/km Standard lenght : 4 ± 5 % KMS Temperature range : transport and storage : - 40°C to + 70°C ; installation : - 40°C to + 60°C ; operation : - 40°C to + 70°C |
