Home Cables Optical cables 9/125 62.5/125 50/124 MTP Digitus Consolidation point box, 4-port Keystone modules with intelligent cable manager

Digitus Consolidation point box, 4-port Keystone modules with intelligent cable manager

Product Code: DN-93708-4

Barcode 4016032497509

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

country of origin: CN

depth: 0.000

height: 0.000

height(cm): 4.4

length(cm): 17.2

volume(cm3): 590.304

weight(kg): 0.625

width: 0.000

width(cm): 7.8

Description

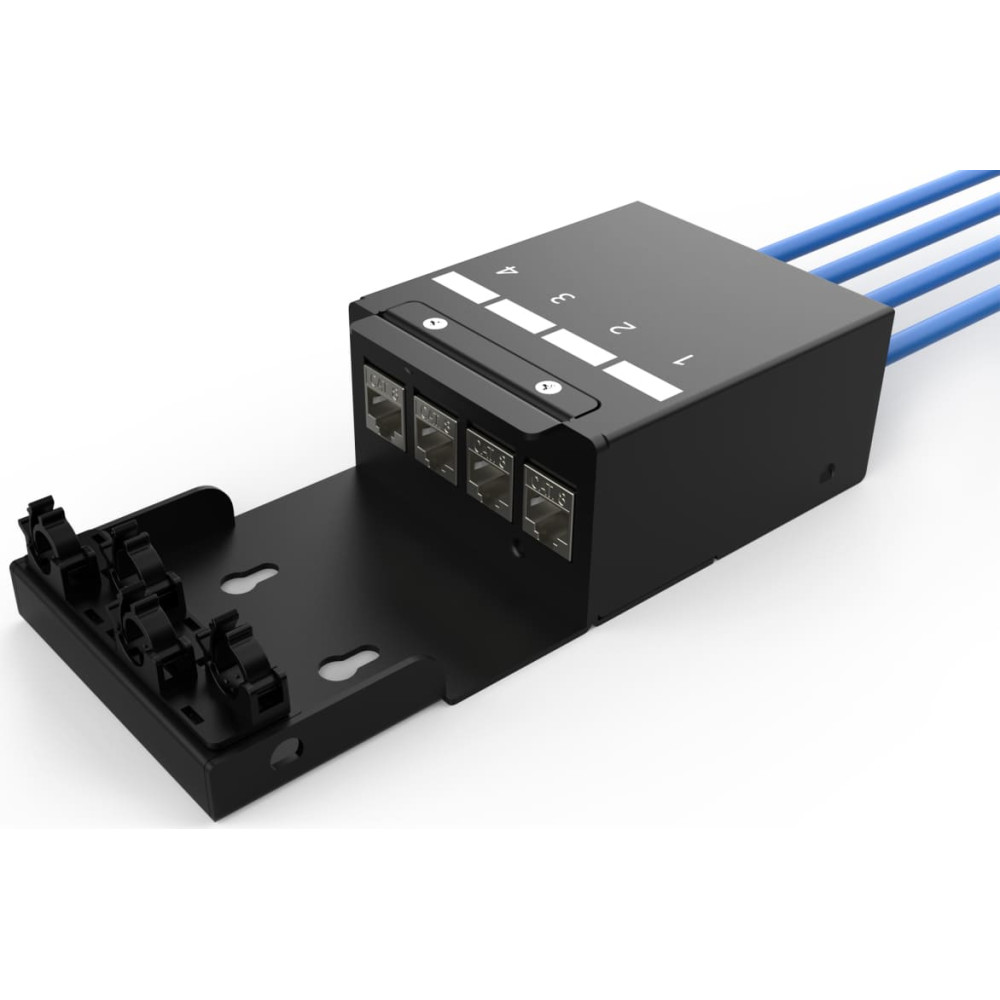

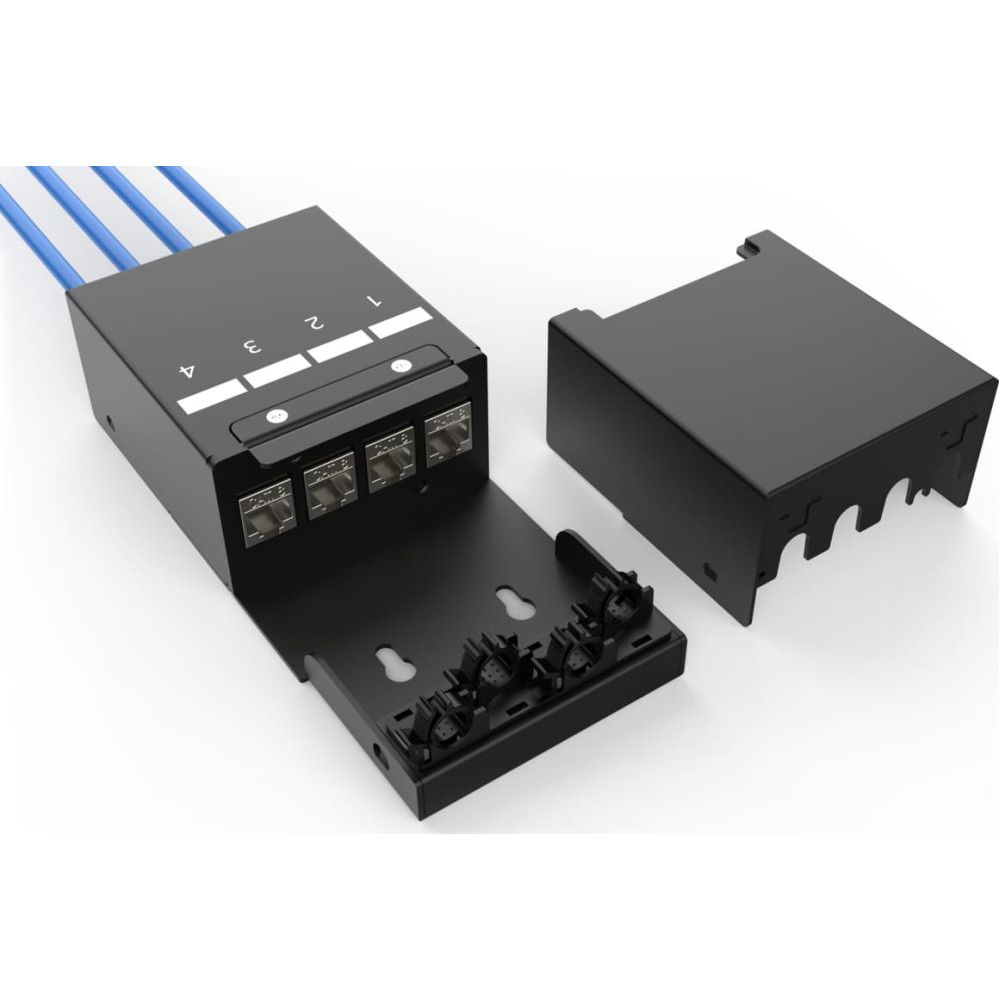

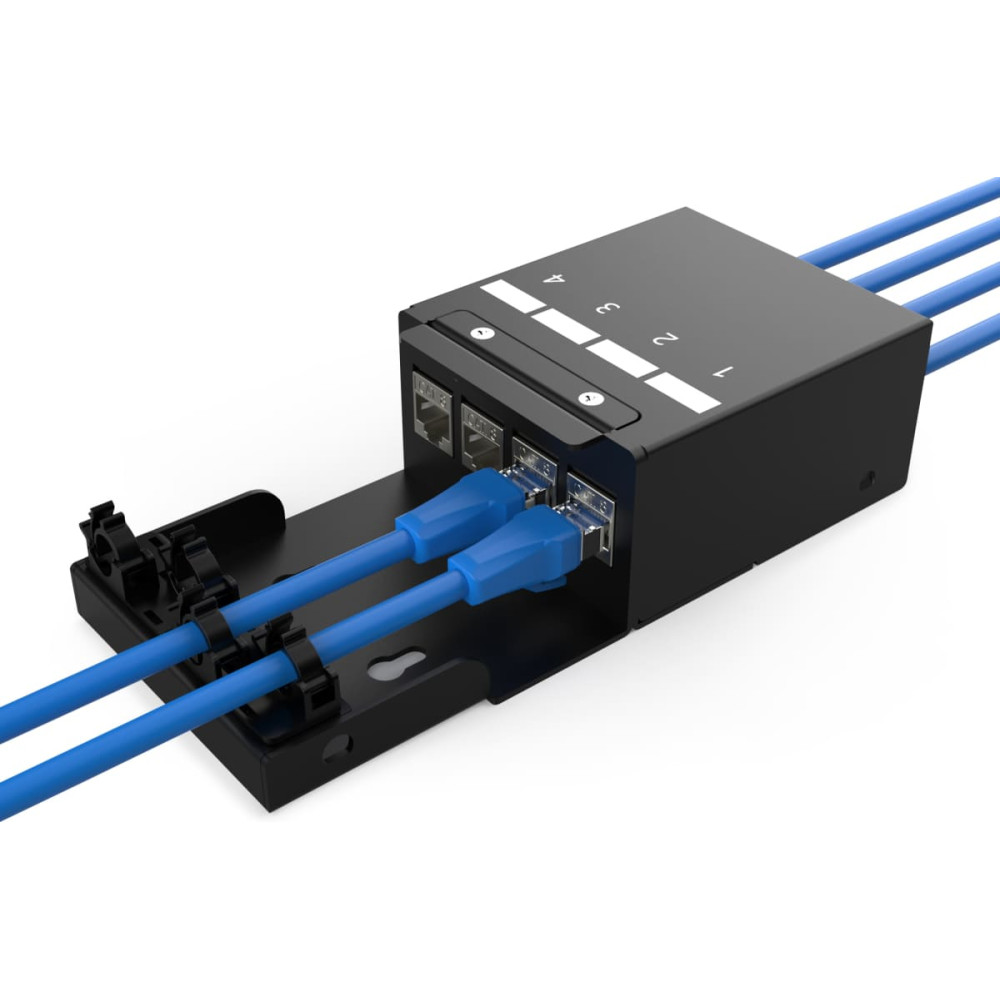

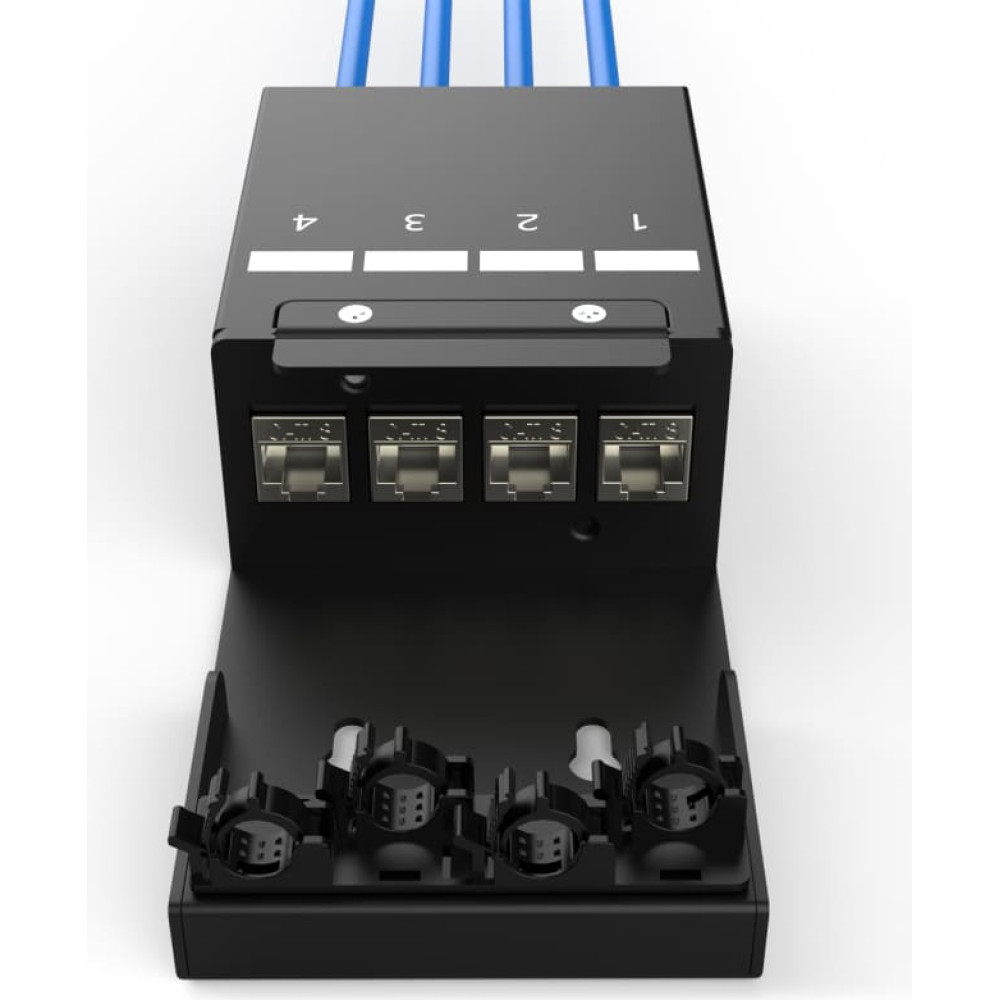

Consolidation Point Box, 4 ports Keystone modules with smart cable manager

Optimal solution to ensure flexible network cabling in the modern office environment (clean desk)

Robust steel housing with hinged cover and bolted cable clamp
Suitable for the installation of 4 RJ45 Keystone modules
The part accessible for the patch cables is hinged and can be opened without tools using a quick-release fastener

Consolidation points (CP) are collection points for structured building cabling, especially in the commercial or industrial sector. These core elements of cabling systems are used in buildings and open-plan offices as connection or distribution points for workstations. The DIGITUS® consolidation point box is designed to accommodate 4 Keystone modules. The box can be used for wall mounting, in ceilings, underfloor or as a desktop version. With optional accessories (AN-25188), it can also be mounted on a top-hat rail. A cost-effective and flexible solution for a wide range of areas and applications.

CP box for 4 modules
Mounting holes for UTP/STP keystones
Separate earthing bolt
Hinged cover with quick-release fastener for CP cable connections
Cable openings on the front and rear with dust protection
Material made from robust sheet steel
Color: black powder-coated (similar to RAL9005)
Protection class IP20
Delivery without modules
Dimensions: 175 x 77 x 45 (WxDxH)

Package content:
1 x consolidation point box, 4 ports Keystone modules
