DIGITUS

Digitus Fttx Installation Kit, Pre-assembled, 4-Core, LC/APC connector, 50m

Product Code: DN-948050
Barcode 4016032487098

To purchase this product you must be registered in our system.



Specification
country of origin: CN
depth: 0.000
height: 0.000
height(cm): 25.5
length(cm): 5.5
volume(cm3): 3506.25
weight(kg): 1.01222
width: 0.000
width(cm): 25

Description
Fttx - Installation Kit, 4-Core, LC connector 50 m, APC, NE4

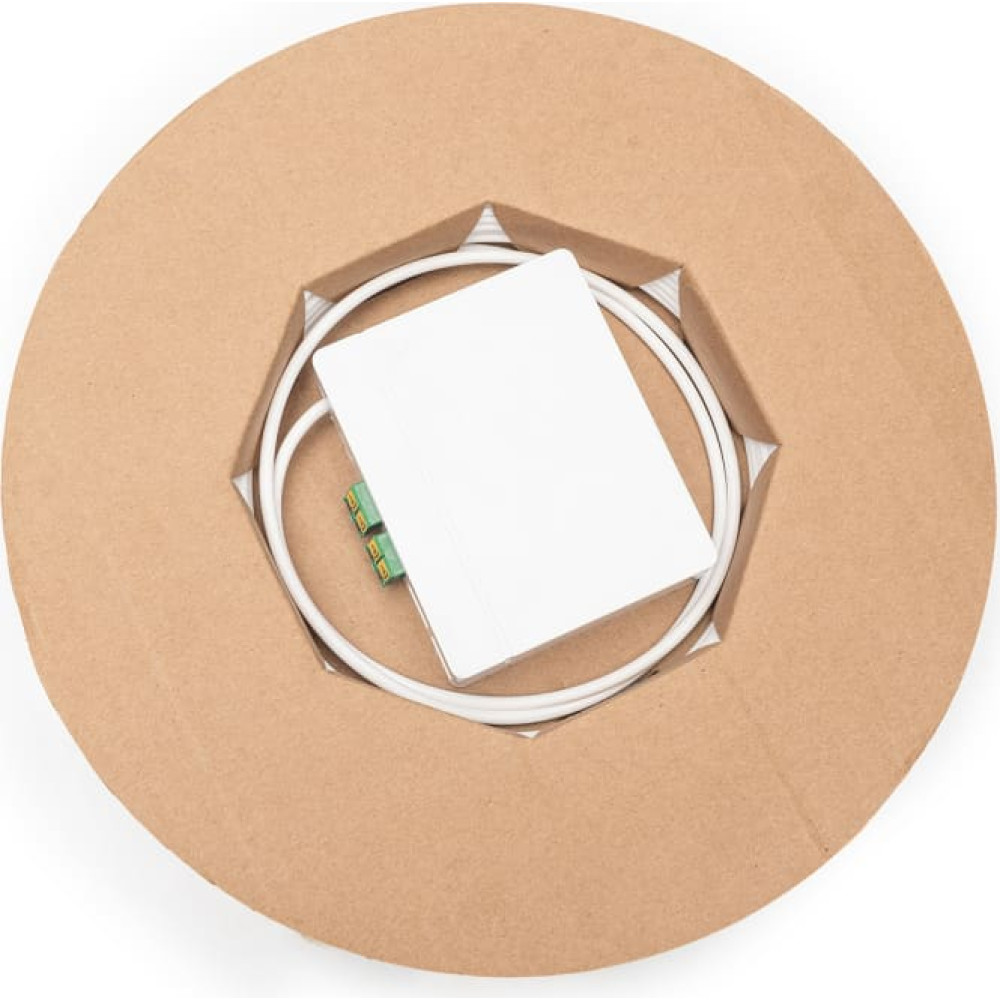

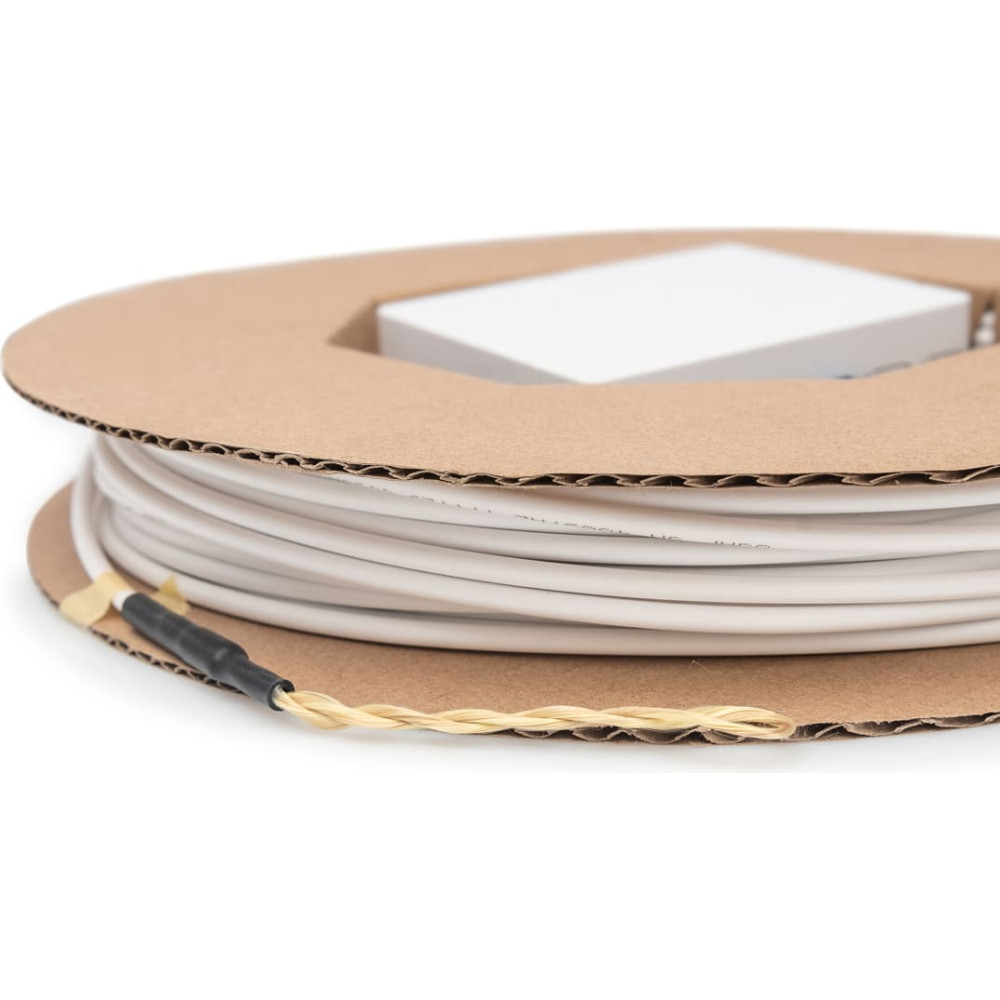

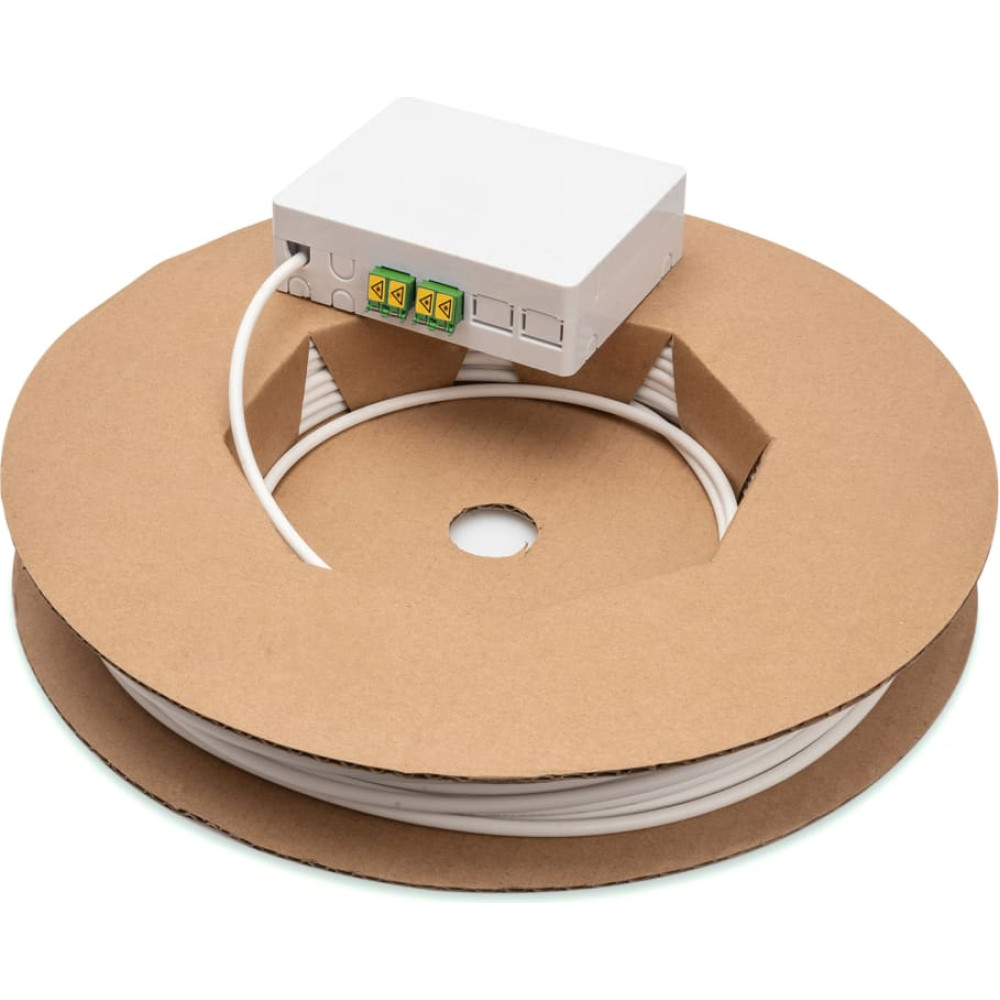

The compact FTTH kit with preassembled fiber optic laying cable on one side is ideal for the installation of high-speed fiber optic connections within the house for the designated network level 4. The fiber optic laying cable is contained in a roll of cardboard, the pigtails are already mounted in the termination box and ready for connection.

Short installation time within the residential unit
FTTH drop cables are already assembled with LC/APC connectors on one side
The open end can simply be pulled in or laid to the house distribution unit
Surface mounting of the box for optimized, secured installation of patch cables
Integrated, undetachable laser protection on the LC / APC couplers
Stable pulling loop for pulling the cable into duct systems

The growing requirement for extending Fiber networks into the home demands products that enable an easy and effecient installation to realize the network. The Digitus FTTH installation kit solution offers the possibility to easily extend and complete the fiber network inside the home. The easiness of installation comes from the fact that the product is delivered with all required components negating the requirement to individually look for components to make the installation. The termination outlet can be mounted at the designated location and making the connection to router is made easier as the LC/APC connectors are already included. The included fiber drop cable can then be pulled to make the connection to house transfer point which is mounted in building as the entry point for fiber network. It offers additional ports and splice options to meet requirement for scaling up the number of fiber connections.

FTTH Wall Outlet :
Termination box for FTTH applications
2x LC-APC duplex fiber optic coupler with shutter
Coupler shutter ensures laser protection and dust protection
Adapter Type : LC/APC Duplex
Adapter Capacity : 4 pcs
Dimensions (H*W*D) : 100 * 80 * 30 mm
Color : White
Weight : 75 g
Working Temperature : -40 - + 65 C
Material: ABS
FTTH Dropcable :
4 fibers 9/125µm G.657A2 bend optimized
900µm buffer, easily removable
Aramid strain relief
LSOH outer jacket, color white
Cable construction: I/A-V(Q(ZN)H
Short term Tensile strength : 200 N
Operation Temperature : 0 - +70C

Package content:
Fttx Installation Kit, Pre-assembled, 4-Core, LC/APC connector, 50m
Mounting accessories (screws and bolts)
