Digitus Fiber Optic Splice Box, Equipped, SC, OM4

Product Code: DN-96321-4

Barcode 4016032325796

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

country of origin: TR

depth: 0.510

height: 0.050

height(cm): 5.5

length(cm): 51.5

volume(cm3): 8922.38

weight(kg): 3.06

width: 0.285

width(cm): 31.5

Description

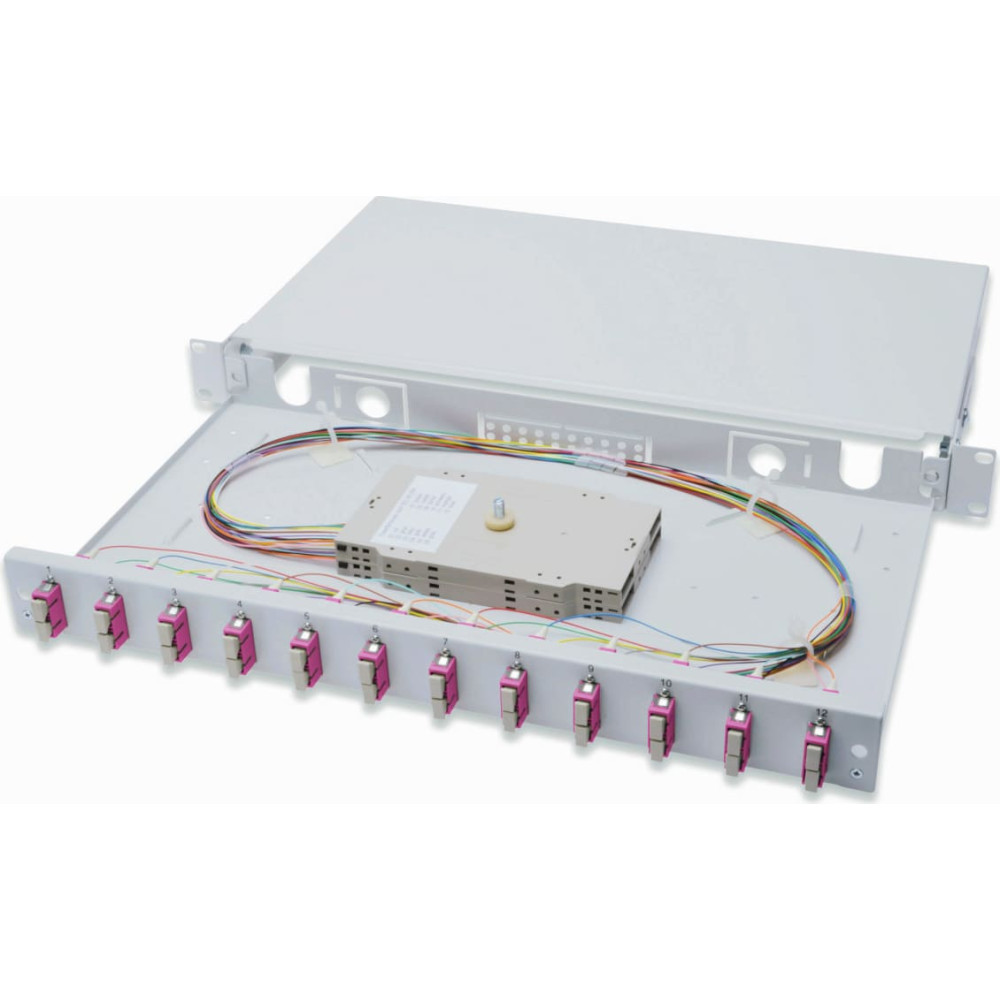

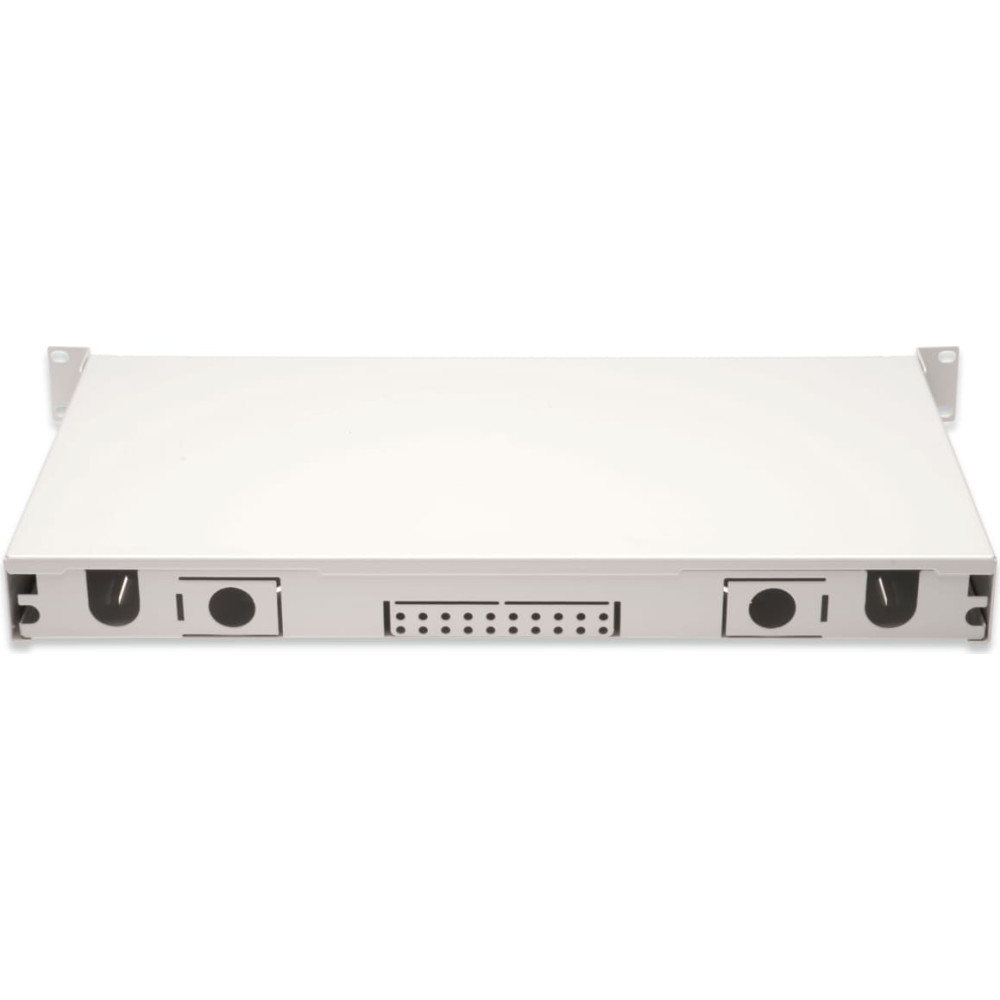

FO splice box, 1U, equipped, 12x SC DX, OM4 incl. splice cassette, colored pigtails, couplers

FO splice box, 1U, equipped, 12x SC DX, OM4, incl. splice cassette, colored pigtails, couplers

Assembly: Splice Box
Color: light grey, RAL 7035
Connector type: SC / UPC / duplex
Fiber class: OM4
Number of fibers: 24
Type: sliding
Completely prefabricated, fiber pigtails exposed and inserted into the splice cassette(s), crimp splice holders
Colored pigtails
Couplers with zirconia ceramic ferrule
Couplers in polymer housing
Carrier housing made of 1.0 mm steel sheet, varnished
1 height unit (44.45 mm)
483mm width (19")
240mm depth
M20/M25 screw, cassette, cassette cover and strain relief included
12x SC duplex, Multimode OM4
