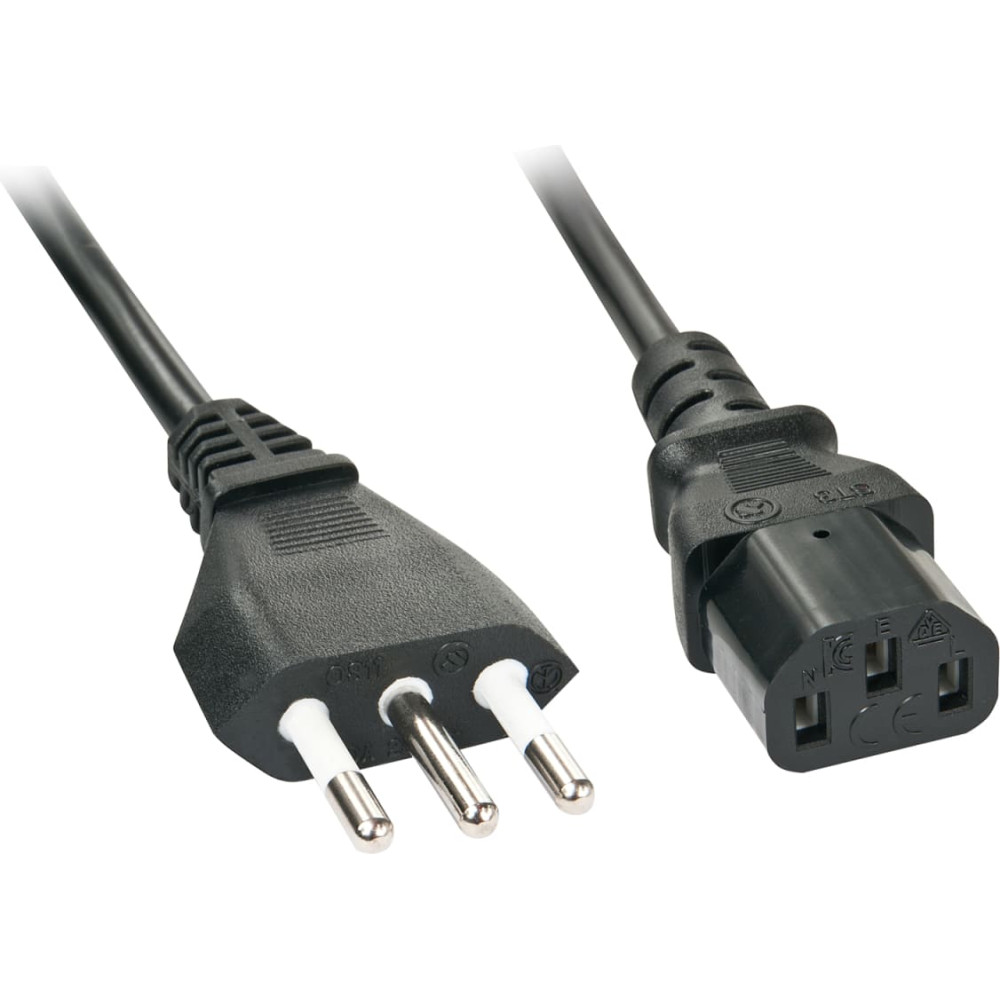

Lindy 3m IT to C13 Mains Cable

LINDY

Lindy 3m IT to C13 Mains Cable

Product Code: 30414
Barcode 4002888304146

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
cable length: 3 m
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c7/cc/c0/65/65c0ccc7aab9dc9353741f51/CE_30346, 30411, 30413, 30414, 30415.pdf
connector 1: CEI 23-16
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: C13 coupler
connector 2 form factor: Straight
connector 2 gender: Female
country of origin: CN
harmonized system (hs) code: 84733080
packaging height: 25.9
packaging lenght: 23.9
packaging width: 2.0
product colour: Black
quantity per pack: 1 pc(s)
variation of: 30411.0
warranty: 10.0
Description

Connectors

  • Connector A: Italian Mains Plug (CEI23-16-VII)
  • Connector B: IEC C13
  • Housing Material: PVC
  • Pin Construction:
    • A: Brass
    • B: Phosphor Bronze
  • Pin Plating: Nickel
  • Dimensions (approx.) WxDxH:
    • A: 35.5x49.6x13.5mm (1.4x1.95x0.53in)
    • B: 25.6x65x16.5mm (1.01x2.56x0.65in)

Cable Construction

  • Length: 3m (9.84ft)
  • Colour: Black
  • Conductor Material: Copper
  • Cable Material: H05-VVF 3G 1.0mm²
  • Number of Wires: 3
  • Wire Gauge: 1.0mm²
  • Jacket Diameter: 6.8mm (0.27in)
  • Jacket Material: PVC

Specifications

  • Rated Voltage and Current: 10A/250V
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

  • No.: 30414
  • EAN: 4002888304146

This product is also available in other lengths

  • 30411- 0.7m (2.30ft)
  • 30413 - 2m (6.56ft)
  • 30414 - 3m (9.84ft)
  • 30415 - 5m (16.40ft)
