Bachmann extension cable with earthing contact, 230VAC, white, 15 m
To purchase this product you must be registered in our system.
Specification
cable material: H05VV-F
colour: white
conductor cross section (mm²): 1,5
connection ports: 3P. German, CEE 7/7, Type-E/F Male / 3P. German, CEE 7/3,...
current catalog edition: 24.1
current catalog page: 10.16
depth: 250 mm
depth of packaging (single piece): 240 mm
external diameter of cable: 8 mm
gross weight: 1.664
height: 70 mm
height of packaging (single piece): 100 mm
length: 15 m
length: 15 m
manufacturer: BACHMANN
material identification: H05VV-F
max. current: 16 A
max. power: 3600W
max. voltage: 250V AC
operating temperature max.: 35 °C
operating temperature min.: 5 °C
package weight (single piece): 1.664 kg
product group: Power Cables
product type: Power Extensions
protection class (ip code): IP20
quantity of wires: 3
regional use: Germany, Austria, Netherlands
side 1 connector external diameter (mm): 38
side 1 connector gender: Male
side 1 connector type: 3P. German, CEE 7/7, Type-E/F
side 1 description: Schutzkontakt Stecker
side 2 connector external diameter (mm): 52
side 2 connector gender: Female
side 2 connector type: 3P. German, CEE 7/3, Type-F
side 2 description: Schutzkontakt Buchse
weight: 1.28 kg
width: 250 mm
width of packaging (single piece): 210 mm
Description

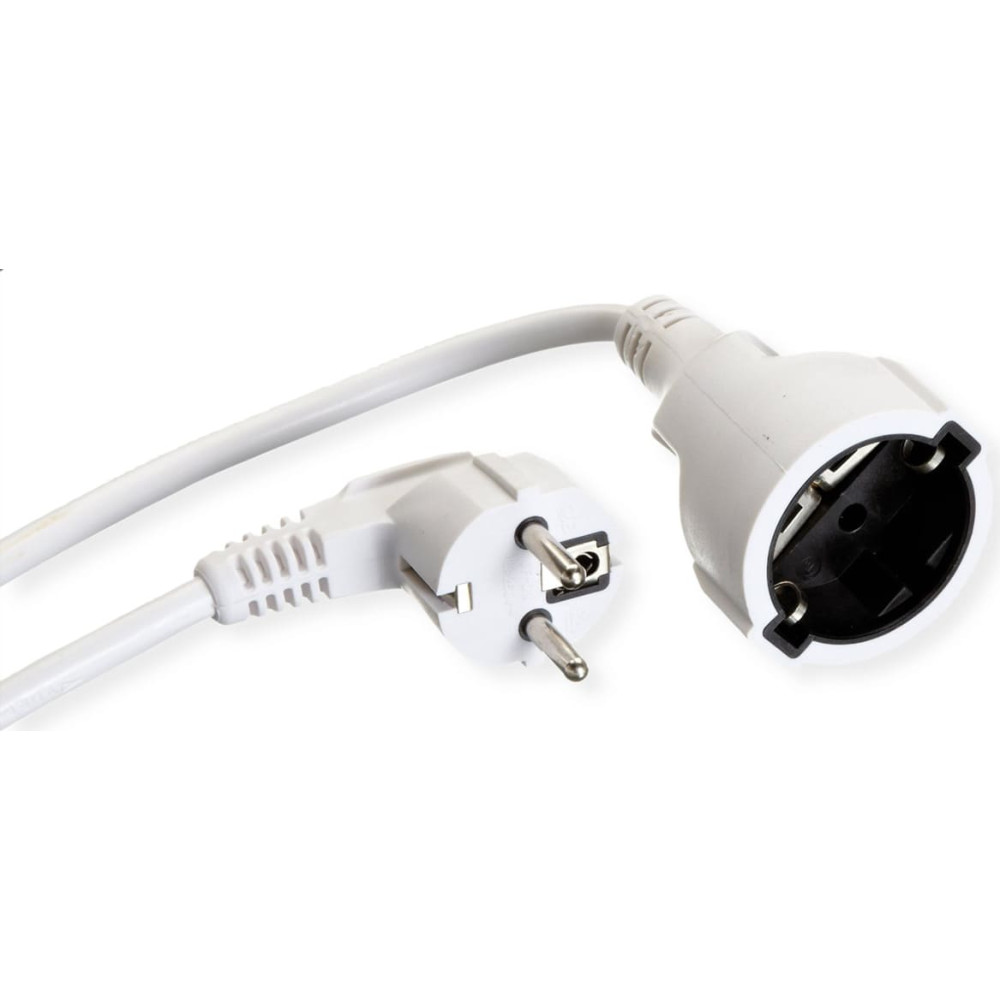

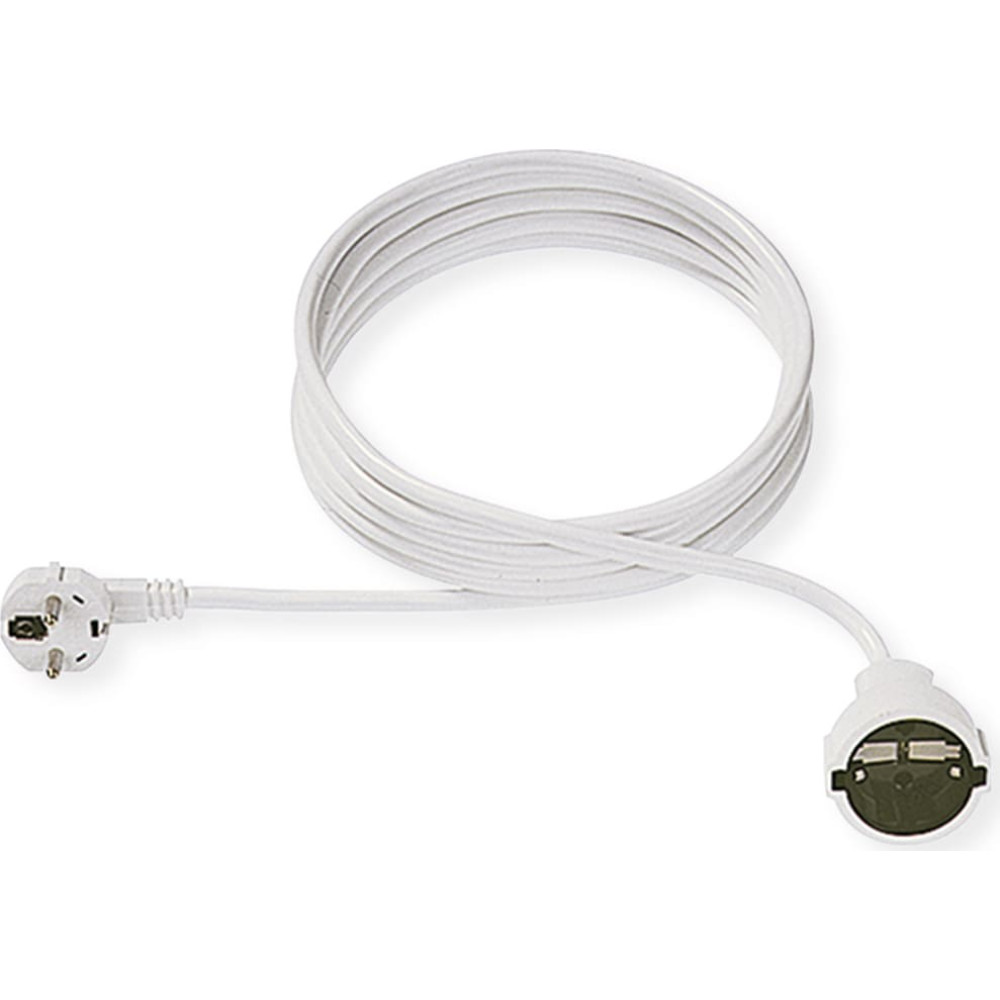

AC power extension cable - Extension cable with earthing contact plug and coupling, 16A/230V~- Connections: Earthing contact, CEE 7/7 plug / earthing contact, CEE 7/7 socket - Supply cable: H05VV-F 3G 1.50mm² |
