Home Cables Serial / Parallel Roline Modem Cable, DB9 F - DB25 M, 3.0 m

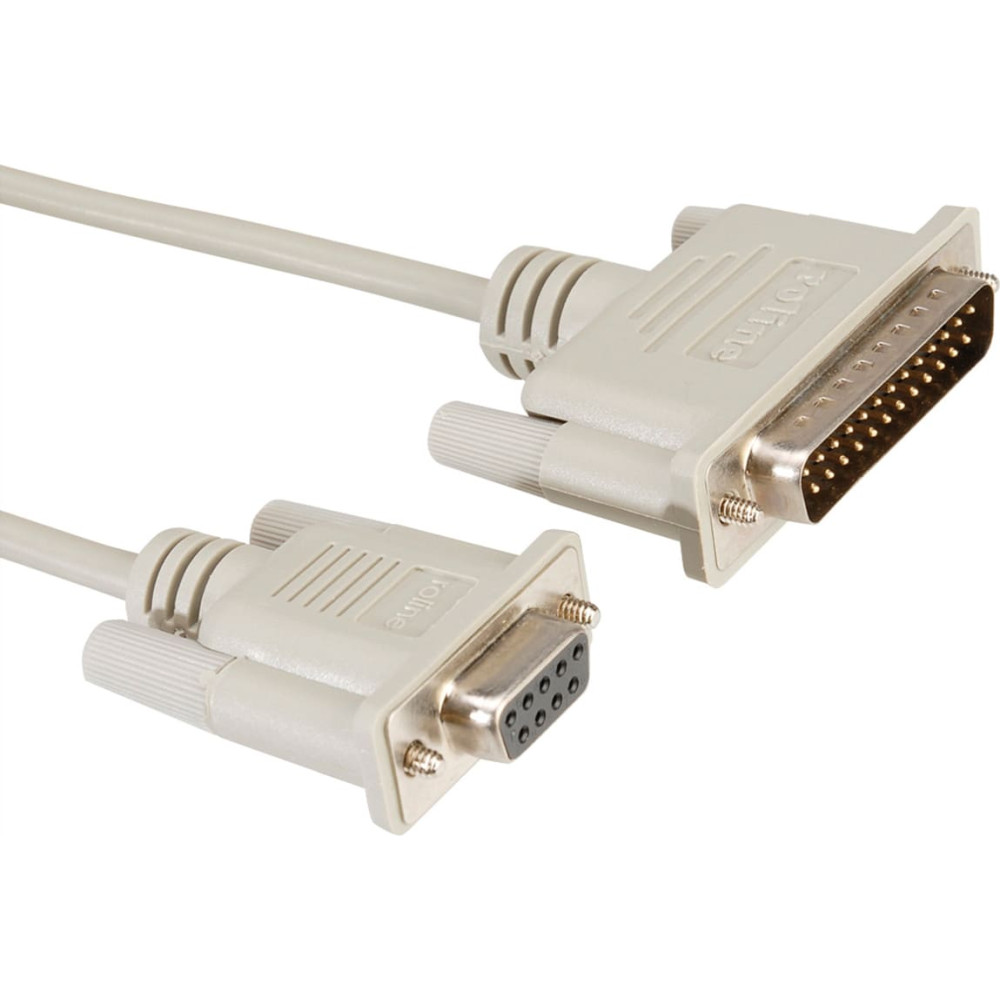

Roline Modem Cable, DB9 F - DB25 M, 3.0 m

Product Code: 11.01.4530

Barcode 7611990910144

To purchase this product you must be registered in our system.

Specification

cable shielding: Screened

colour: grey

connection ports: Female / Male

current catalog edition: C25-03.23

current catalog page: 4.14

depth of packaging (single piece): 200 mm

gross weight: 0.19

hand locking screws: yes

height of packaging (single piece): 30 mm

length: 3 m

manufacturer: ROLINE

package weight (single piece): 0.19 kg

product group: Cable

product type: 9 - 25 pin modem cable

side 1 connector: 9 pin Female

side 1 connector gender: Female

side 1 connector type: D-Sub 9-pin (DE-9)

side 2 connector: 25 pin Male

side 2 connector gender: Male

side 2 connector type: D-Sub 25-pin (DB-25)

weight: 147.7 g

width of packaging (single piece): 210 mm

Description

Cable with a 9-pole D-Sub socket and a 25-pole D-Sub plug
Connects PC and modem
Connector casing moulded with special plastic, thus optimal strain reduction, no cable breaks
Very good screening prevents data loss and electromagnetic interference
Hand locking screws
Bronze contacts with gold coating

DB9 F 1|2|3| 4 |5|6|7|8|9
DB25 M 8|3|2|20|7|6|4|5|22
