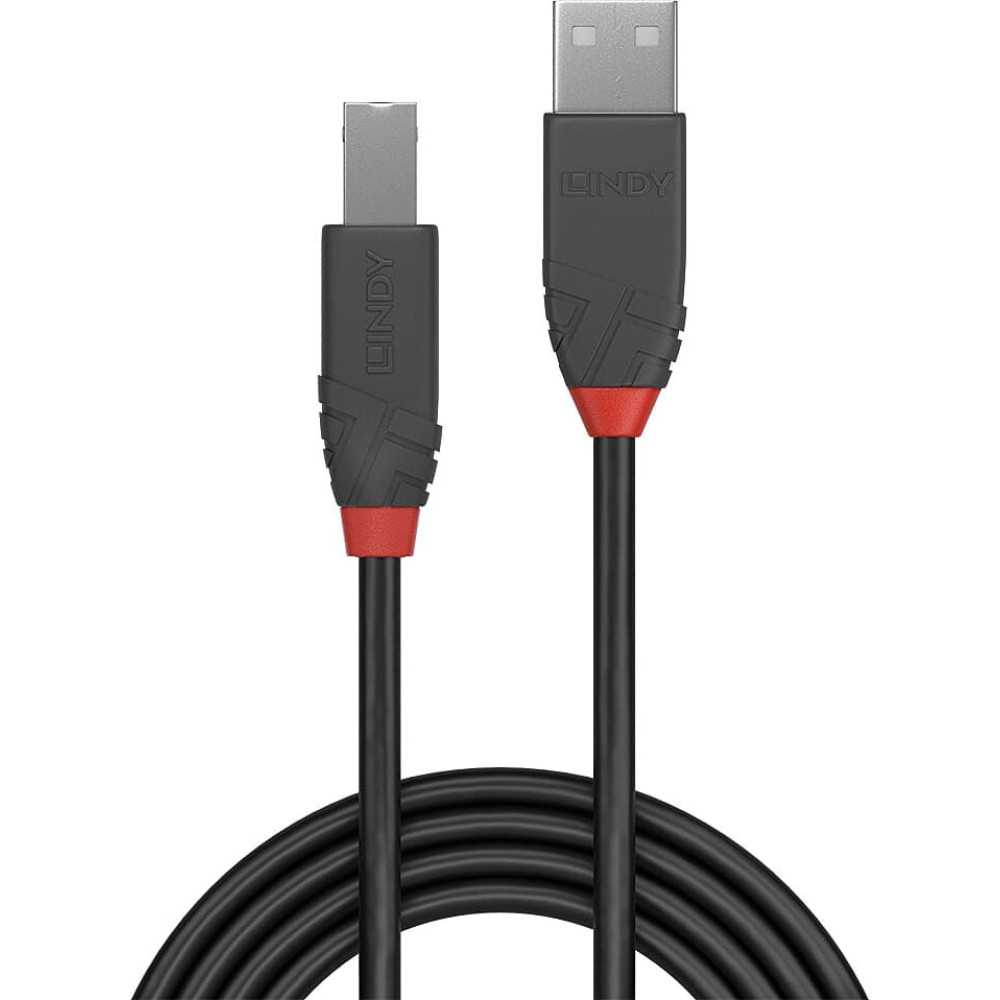

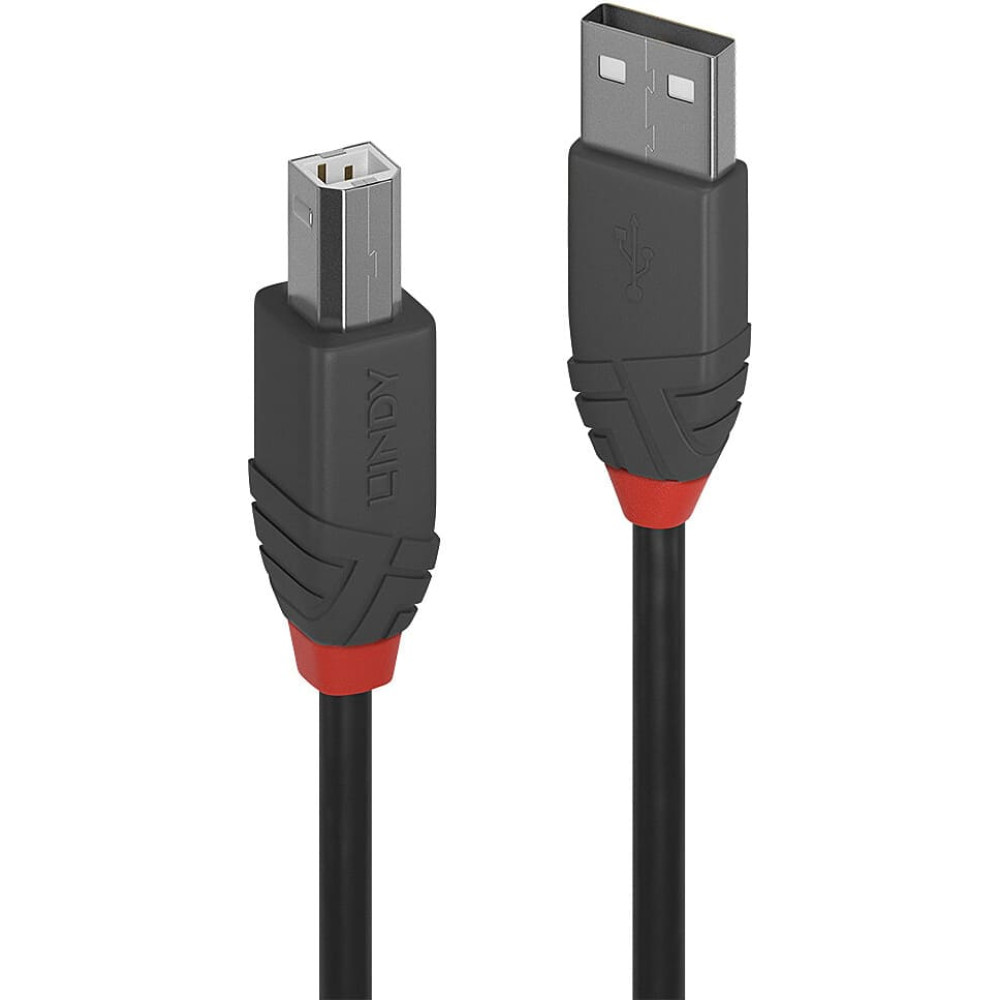

Lindy USB 2.0 Kabel Typ A/B Anthra Line M/M 0.2m

LINDY

Lindy USB 2.0 Kabel Typ A/B Anthra Line M/M 0.2m

Product Code: 36670
Barcode 4002888366700

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 28/26
cable colour: Black
cable jacket material: Polyvinyl chloride (PVC)
cable length: 0.2 m
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/61/ac/64/65/6564ac61616844f6e00ea038/CE_DoC_DE_36670_36677.pdf
certification: REACH, UL
compliance certificates: RoHS
conductor material: Copper
connector 1: USB A
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB B
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Nickel/Gold
country of origin: CN
harmonized system (hs) code: 84733080
maximum data transfer rate: 0.48 Gbit/s
package type: Polybag
packaging height: 14.4
packaging lenght: 13.3
packaging width: 1.0
plug and play: Yes
product colour: Black, Grey
quantity per pack: 1 pc(s)
usb version: USB 2.0
variations: 36673,36677,36672,36676,36675,36674,36671
warranty: 10.0
Description

Connectors

  • Connector A: USB 2.0 Type A Male
  • Connector B: USB 2.0 Type B Male
  • Housing Material: PVC
  • Connector Plating: Nickel
  • Pin Construction: Copper
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
    • A: 15.5x35x7.8mm (0.61x1.38x0.31in)
    • B: 11.8x35x10.2mm (0.47x1.38x0.40in)

    •

Cable Construction

  • Length: 0.2m (0.66ft)
  • Standard: USB 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.4mm (0.17in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 26/28AWG
  • Shielding: Aluminium Magnesium Braid



Specifications

  • Supported Bandwidth: 480Mbps
  • Maximum Resolution: -
  • Nominal Attenuation: 5.8db/km
  • Minimum Band Radius: 16mm (0.63in)
  • Operating Temperature: 0°C - 60°C (32°F - 140°F)
  • Storage Temperature: 0°C - 60°C (32°F - 140°F)
  • ATC Approved: -



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH & UL



Purchasing Information

  • No.: 36670
  • EAN: 4002888366700



This product is also available in other lengths

  • 36670 - 0.2m (0.66ft)
  • 36671  - 0.5m (1.64ft)
  • 36672 - 1m (3.28ft)
  • 36673 - 2m (6.56ft)
  • 36674 - 3m (9.84ft)
  • 36675 - 5m (16.44ft)
  • 36676 - 7.5m (24.61ft)
  • 36677 - 10m (32.81ft)
