Home Cables USB USB 2.0 Lindy USB 2.0 Verlängerung Typ A/A Anthra Line M/F 1m

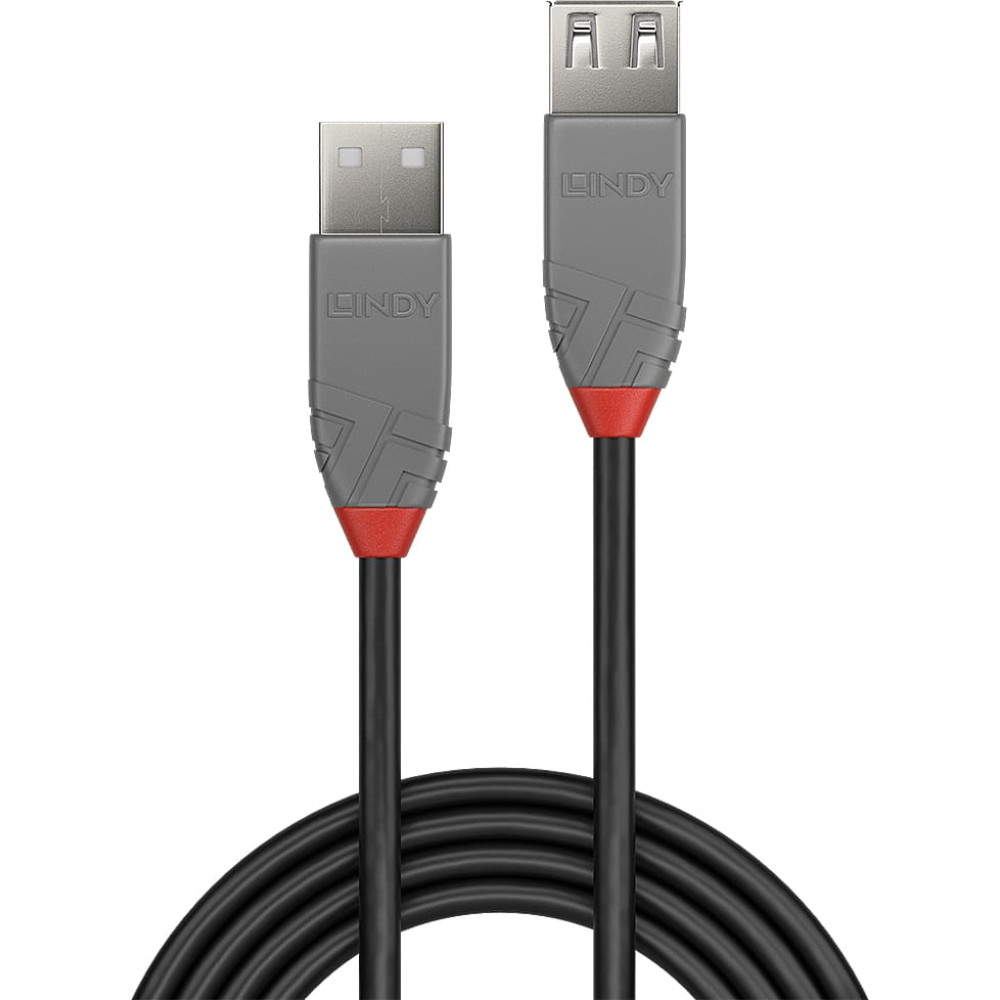

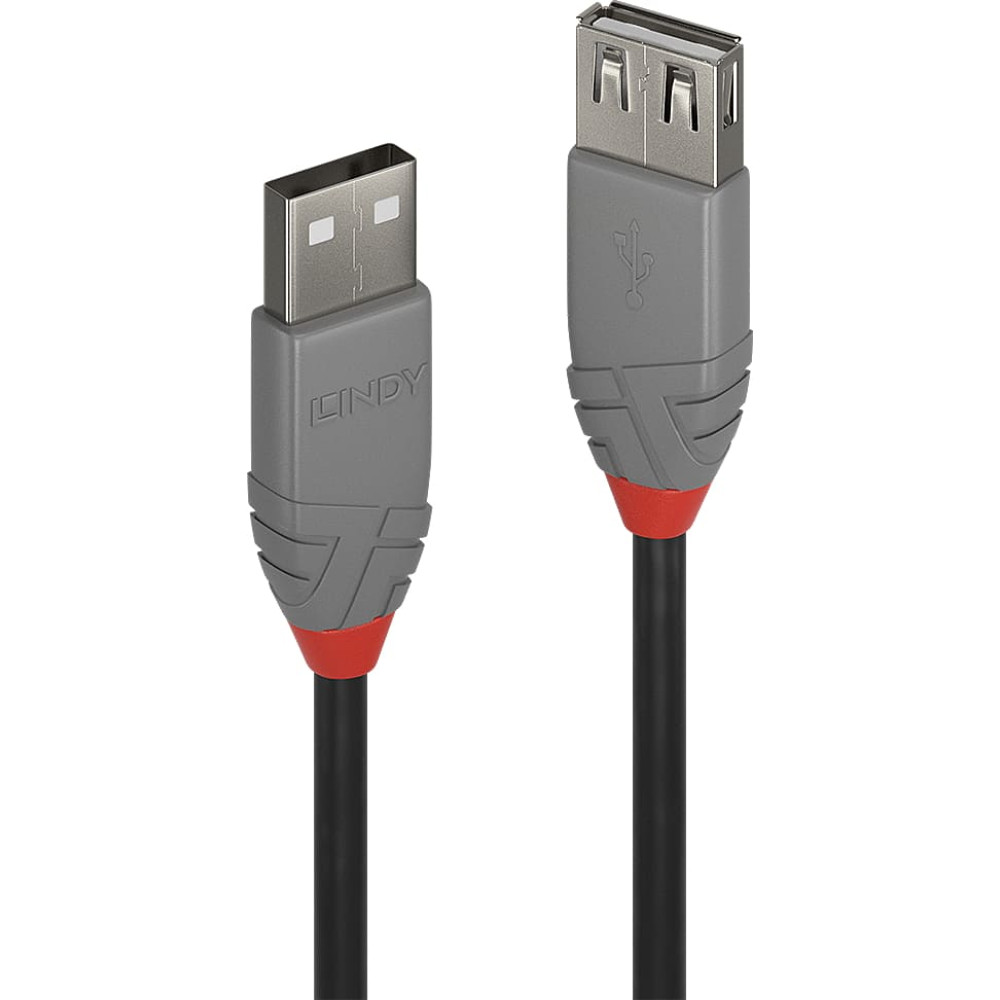

Lindy USB 2.0 Verlängerung Typ A/A Anthra Line M/F 1m

LINDY

Lindy USB 2.0 Verlängerung Typ A/A Anthra Line M/F 1m

Product Code: 36702
Barcode 4002888367028

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 26/28
cable diameter: 4.4 mm
cable jacket material: Polyvinyl chloride (PVC)
cable length: 1 m
certification: REACH & UL
compliance certificates: RoHS
conductor material: Tinned copper
connector 1: USB A
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB A
connector 2 form factor: Straight
connector 2 gender: Female
connector contacts plating: Nickel/Gold
harmonized system (hs) code: 84733080
magnetically shielded: Yes
maximum data transfer rate: 0.48 Gbit/s
package type: Polybag
product colour: Black, Grey
usb version: USB 2.0
Description

Connectors

  • Connector A: USB 2.0 Type A Male
  • Connector B: USB 2.0 Type A Female
  • Housing Material: PVC
  • Connector Plating: Nickel
  • Pin Construction: Copper
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
    • A (M): 15.5x35x7.8mm (0.61x1.38x0.31in)
    • A (F): 17x35x9.8mm (0.67x1.38x0.39in)

    •

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: USB 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.4mm (0.17in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 26/28AWG
  • Shielding: Aluminium Magnesium Braid



Specifications

  • Supported Bandwidth: 480Mbps
  • Maximum Resolution: -
  • Nominal Attenuation: 5.8db/km
  • Minumum Band Radius: 16mm (0.63in)
  • Operating Temperature: 0°C - 60°C (32°F - 140°F)
  • Storage Temperature: 0°C - 60°C (32°F - 140°F)
  • ATC Approved: -



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH & UL



Purchasing Information

  • No.: 36702
  • EAN: 4002888367028



This product is also available in other lengths

  • 36700 - 0.2m (0.66ft)
  • 36701  - 0.5m (1.64ft)
  • 36702 - 1m (3.28ft)
  • 36703 - 2m (6.56ft)
  • 36704 - 3m (9.84ft)
  • 36705 - 5m (16.44ft)
