LINDY

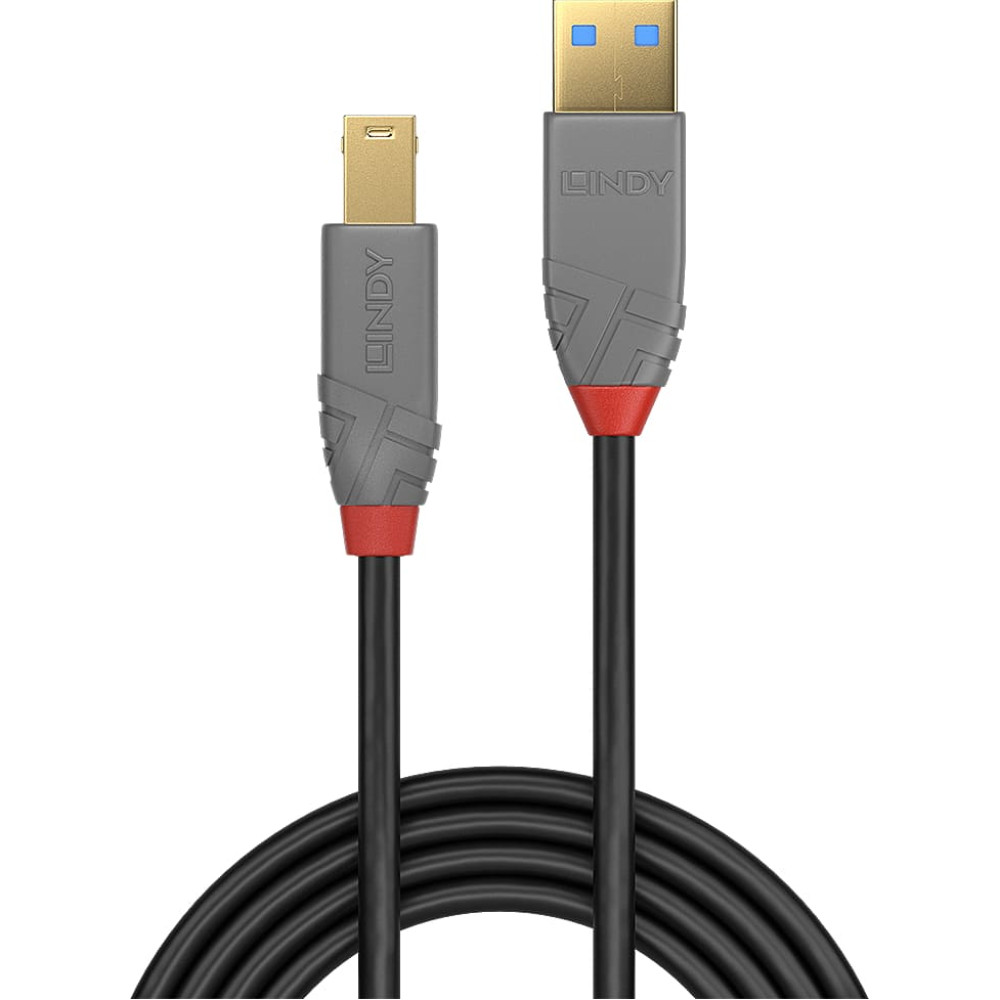

Lindy USB 3.0 Kabel Typ A/B Anthra Line M/M 1m

Product Code: 36741
Barcode 4002888367417

To purchase this product you must be registered in our system.



Specification
awg wire size: 24/28/30
cable diameter: 5.5 mm
cable jacket material: Polyvinyl chloride (PVC)
cable length: 1 m
certification: RoHS, REACH, UL
compliance certificates: RoHS
conductor material: Copper
connector 1: USB A
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB B
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Gold
harmonized system (hs) code: 84733080
maximum data transfer rate: 5 Gbit/s
package type: Polybag
product colour: Black
usb version: USB 3.2 Gen 1 (3.1 Gen 1)

Description

Connectors

  • Connector A: USB 3.2 Type A Male
  • Connector B: USB 3.2 Type B Male
  • Housing Material: PVC
  • Connector Plating: Gold Plated
  • Pin Construction: Copper
  • Pin Plating: Gold Plated
  • Dimensions (approx.) WxDxH:
    • A: 15.5x35x7.8mm (0.61x1.38x0.31in)
    • B: 12.2x35x13.5mm (0.48x1.38x0.53in)



Cable Construction

  • Length: 1m (3.28ft)
  • Standard: USB 3.2 Gen 1
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.5mm (0.22in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge Power: 24AWG
  • Conductor Gauge Data: 28AWG
  • Shielding: Aluminium Braid 85%



Specifications

  • Supported Bandwidth: 5Gbps
  • Maximum Resolution: -
  • Nominal Attenuation: 0.5MHz-7.5GHz<25DB
  • Minumum Band Radius: 48mm (1.89in)
  • Operating Temperature: 0°C - 60°C (32°F - 140°F)
  • Storage Temperature: 0°C - 60°C (32°F - 140°F)
  • ATC Approved: -



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: CE, UKCA, RoHS, REACH & UL



Purchasing Information

  • No.: 36741
  • EAN: 4002888367417



This product is also available in other lengths

  • 36740 - 0.5m (1.64ft)
  • 36741 - 1m (3.28ft)
  • 36742 - 2m (6.56ft)
  • 36743 - 3m (9.84ft)
  • 36744 - 5m (16.40f)
