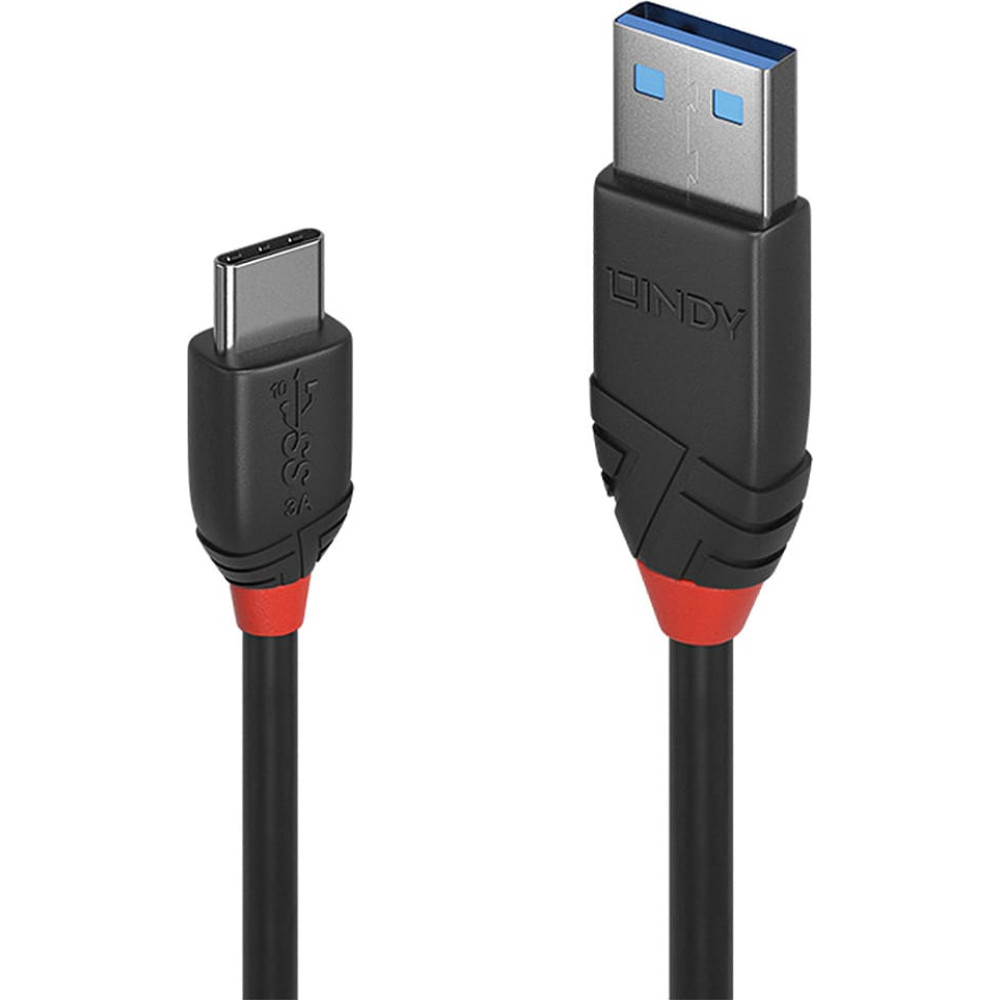

Connectors

• Connector A: USB 3.2 Type A Male
• Connector B: USB 3.1 Type C Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold plated
• Dimensions (approx.) WxDxH:
  • A: 15.5x35.1x7.8mm (0.61x1.38x0.31in)
  • C: 11.0x25.5x7.3mm (0.43x1.00x0.29in)

Cable Construction

• Length: 0.15m (0.49ft)
• Standard: USB 3.2 Gen 2
• Colour: Black
• Type: Round
• Jacket Diameter: 4.5mm (0.18in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 26AWG
• Conductor Gauge Data. 30AWG
• Shielding: Aluminium Magnesium Braid 85%

Specifications

• Supported Bandwidth: 10Gbps
• Maximum Resolution: -
• Nominal Attenuation: 0.5Mhz – 15Ghz < 40db
• Minumum Band Radius: 45mm (1.77in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)
• ATC Approved: -

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: CE; UKCA, RoHS, REACH, UL

Purchasing Information

• No.: 36914
• EAN: 4002888369145

This product is also available in other lengths

• 36914 - 0.15m (1.64ft)
• 36915 - 0.5m (1.64ft)
• 36916 - 1m (3.28ft)
• 36917 - 1.5m (4.92ft)
