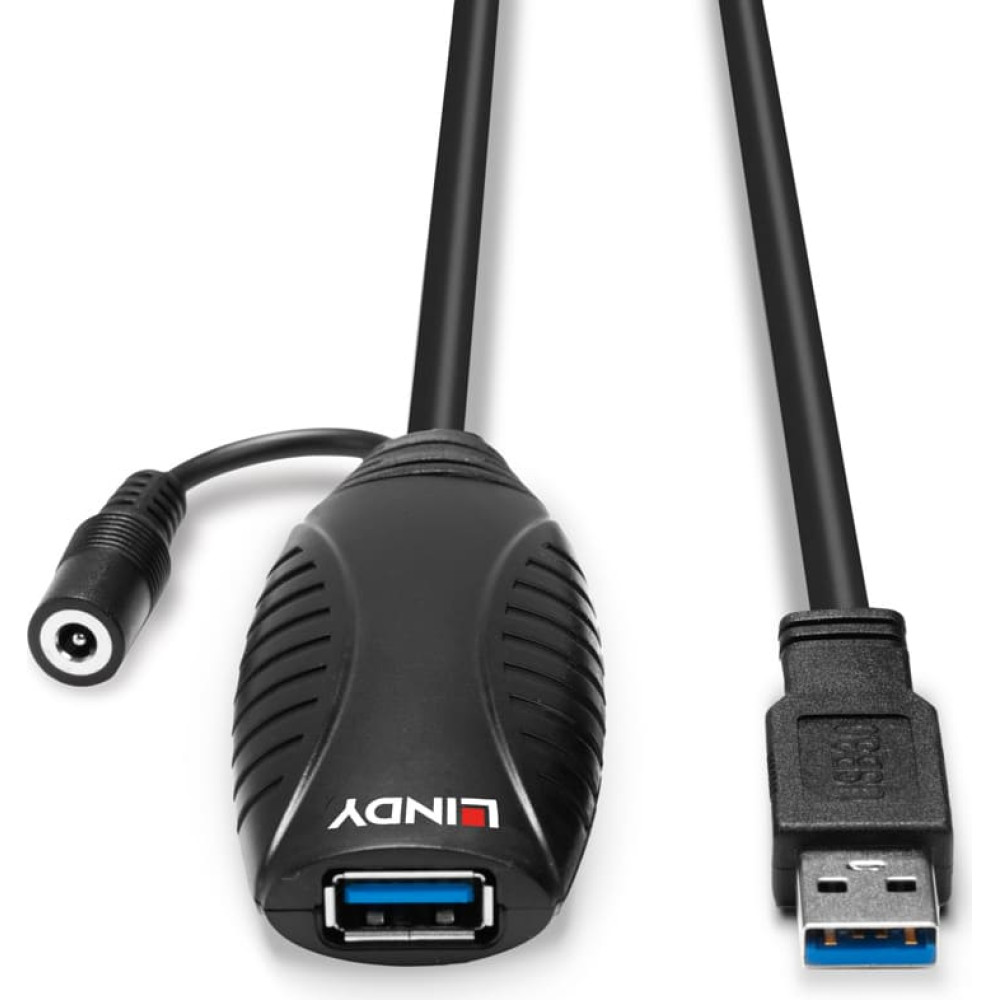

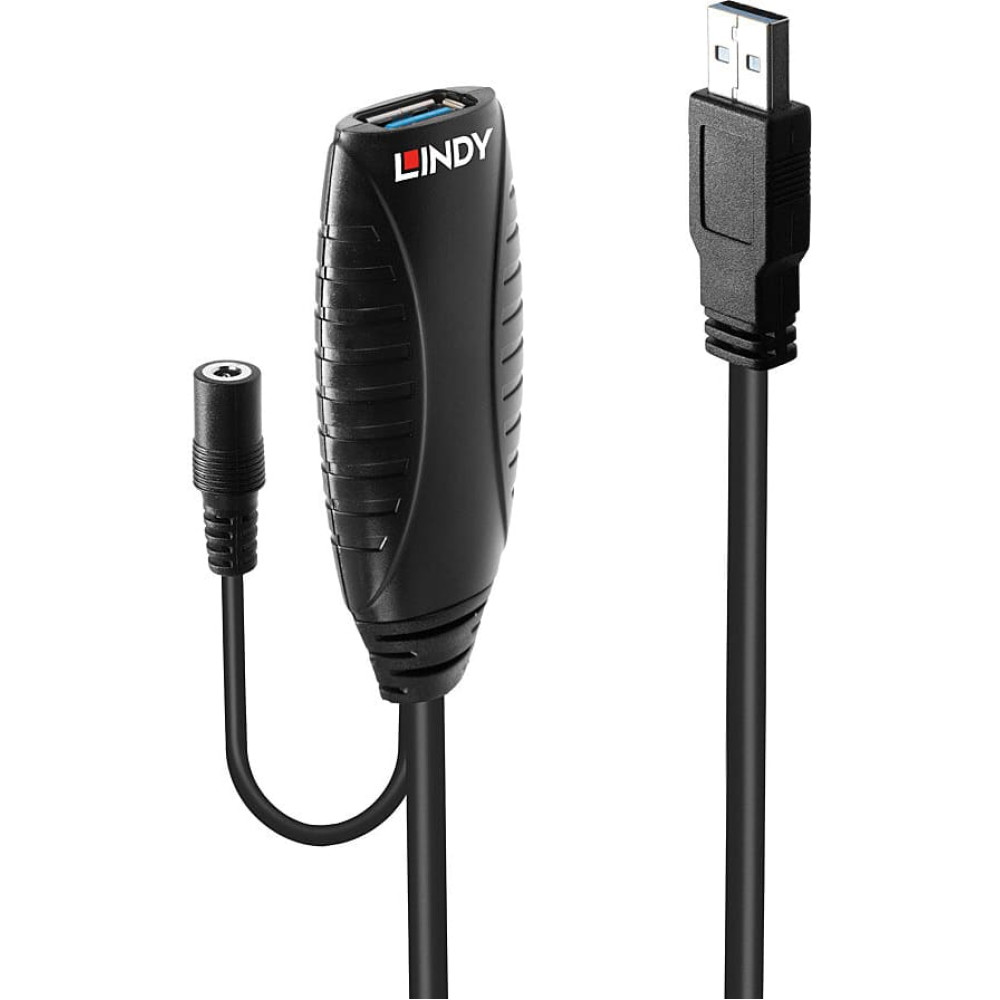

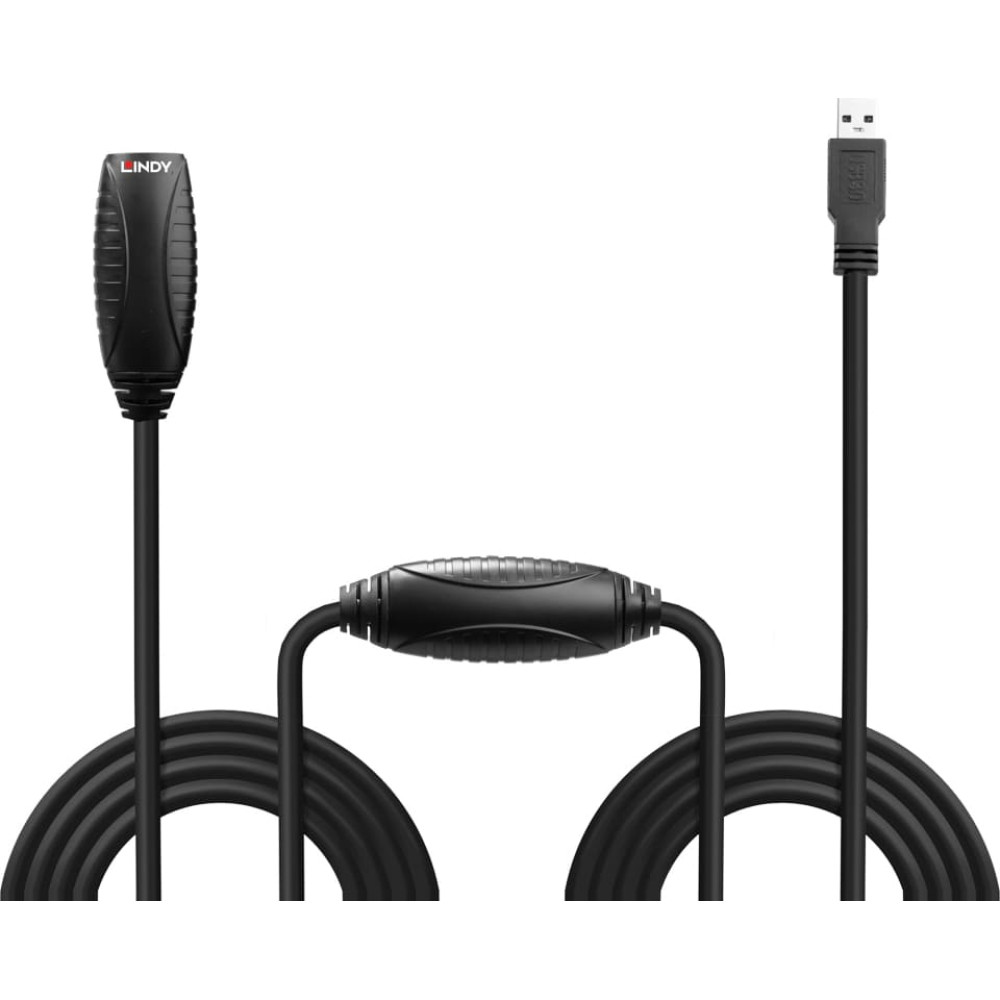

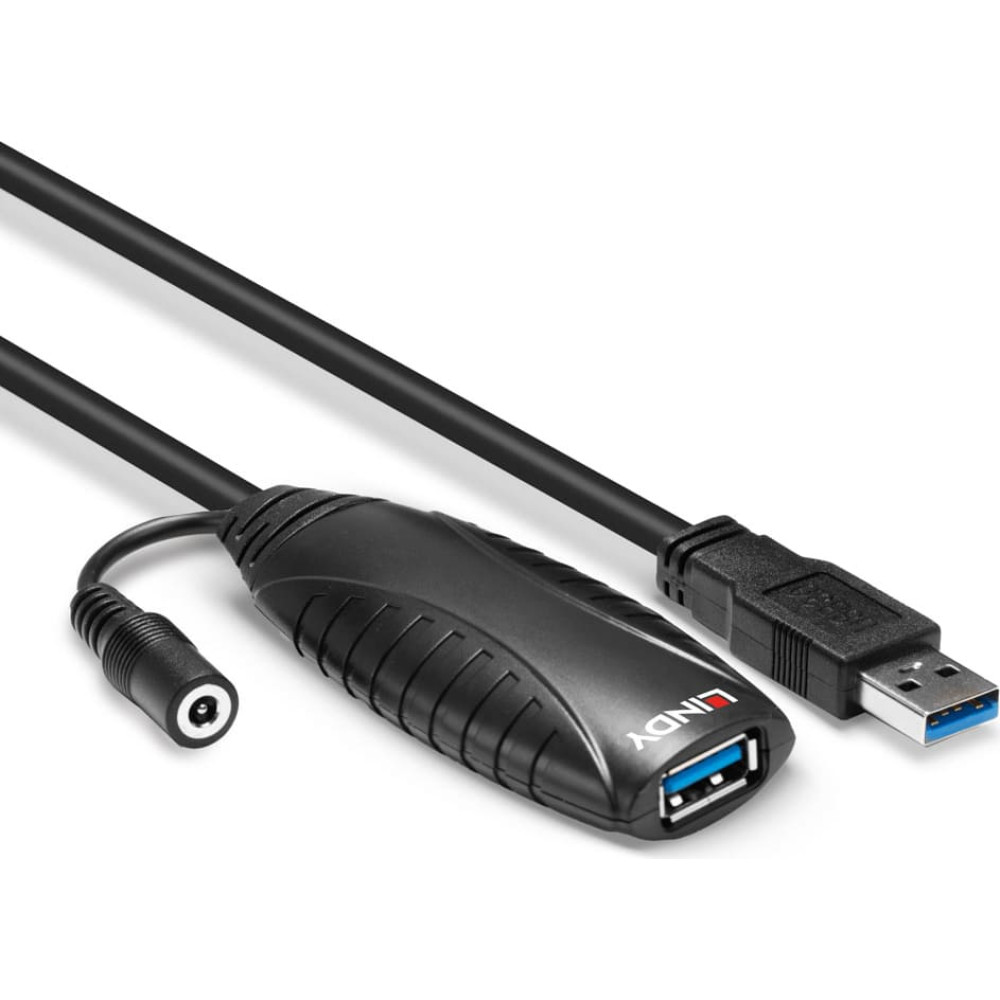

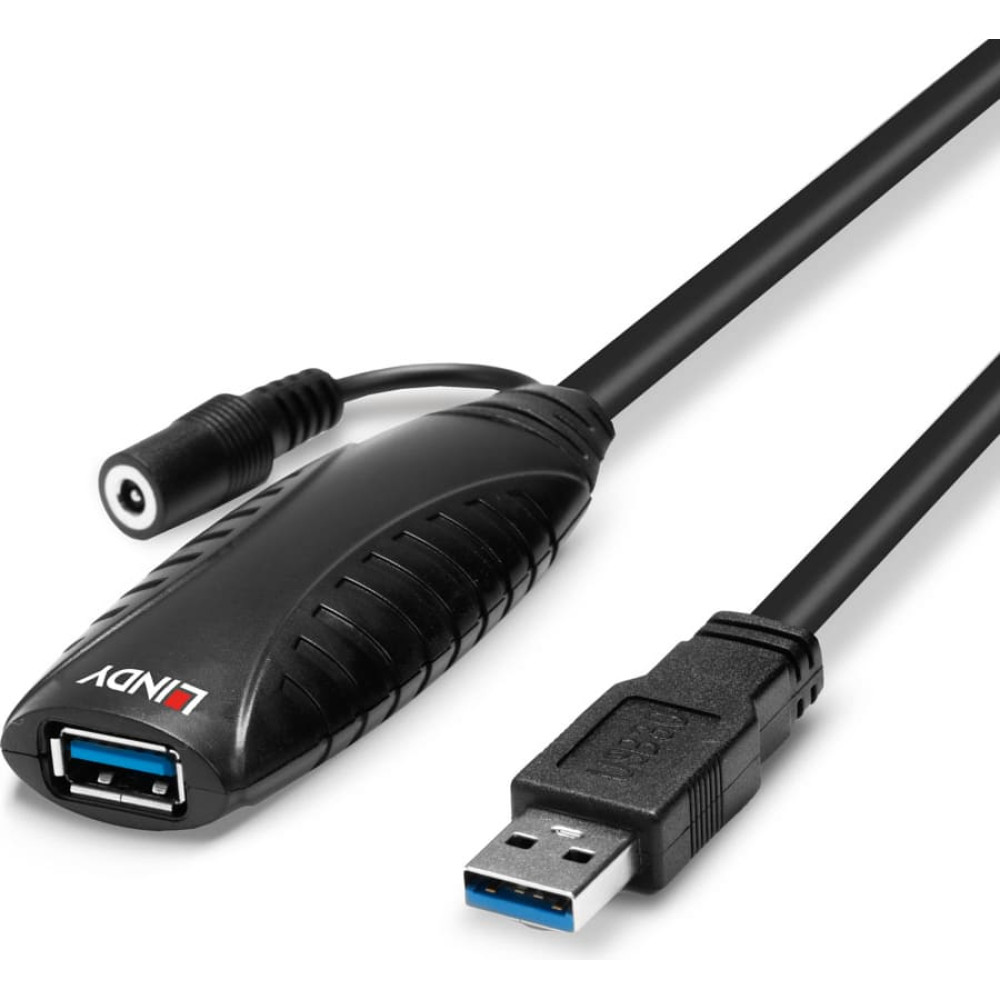

Lindy USB 3.0 Aktiv-Verlängerung Typ A/A M/F 15m
To purchase this product you must be registered in our system.
Specification
awg wire size: 28/28/22
bend radius (min): 6 cm
cable diameter: 7 mm
cable jacket material: Polyvinyl chloride (PVC)
cable length: 15 m
cable type: Round cable
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/98/73/4b/65/654b739890b4e3d078d9e149/CE_DoC_DE_43099.pdf
certification: CE, UKCA, FCC, RoHS, REACH
conductor material: Copper
connector 1: USB A
connector 1 dimensions (wxdxh): 16 x 49 x 9 mm
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB A
connector 2 dimensions (wxdxh): 35 x 85 x 15 mm
connector 2 form factor: Straight
connector 2 gender: Female
connector 3 dimensions (wxdxh): 35 x 100 x 15 mm
connector contacts plating: Nickel
connector housing material: Plastic
connector material: Nickel
connector shield material: Aluminium
connector shielding: Yes
contact material: Copper
country of origin: CN
harmonized system (hs) code: 84733080
manual: Yes
maximum data transfer rate: 5 Gbit/s
nominal attenuation: 100 MHz, -1.5 dB
1.25 GHz, -5.0 dB
2.5 GHz, -7.5 dB
7.5 GHz, -25 dB
operating temperature (t-t): 0 - 55 °C
package depth: 80 mm
package height: 300 mm
package type: Polybag
package weight: 1.39 kg
package width: 300 mm
packaging height: 33.5
packaging lenght: 32.4
packaging width: 7.0
plug and play: Yes
power note: 3.5/1.35mm DC
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): -20 - 85 °C
transmission medium: Twisted pair
usb version: USB 3.2 Gen 1 (3.1 Gen 1)
warranty: 2.0
weight: 1.33 kg
Description
Connectors
Cable Construction
Specifications
Miscellaneous
Packaging Content
Purchasing Information
This product is also available in other lengths
|
