Delock Cable USB male TTL 6 pin pin header female separate 1.8 m (5 V)
To purchase this product you must be registered in our system.
Specification
depth: 0.101
height: 0.020
width: 0.162
Description

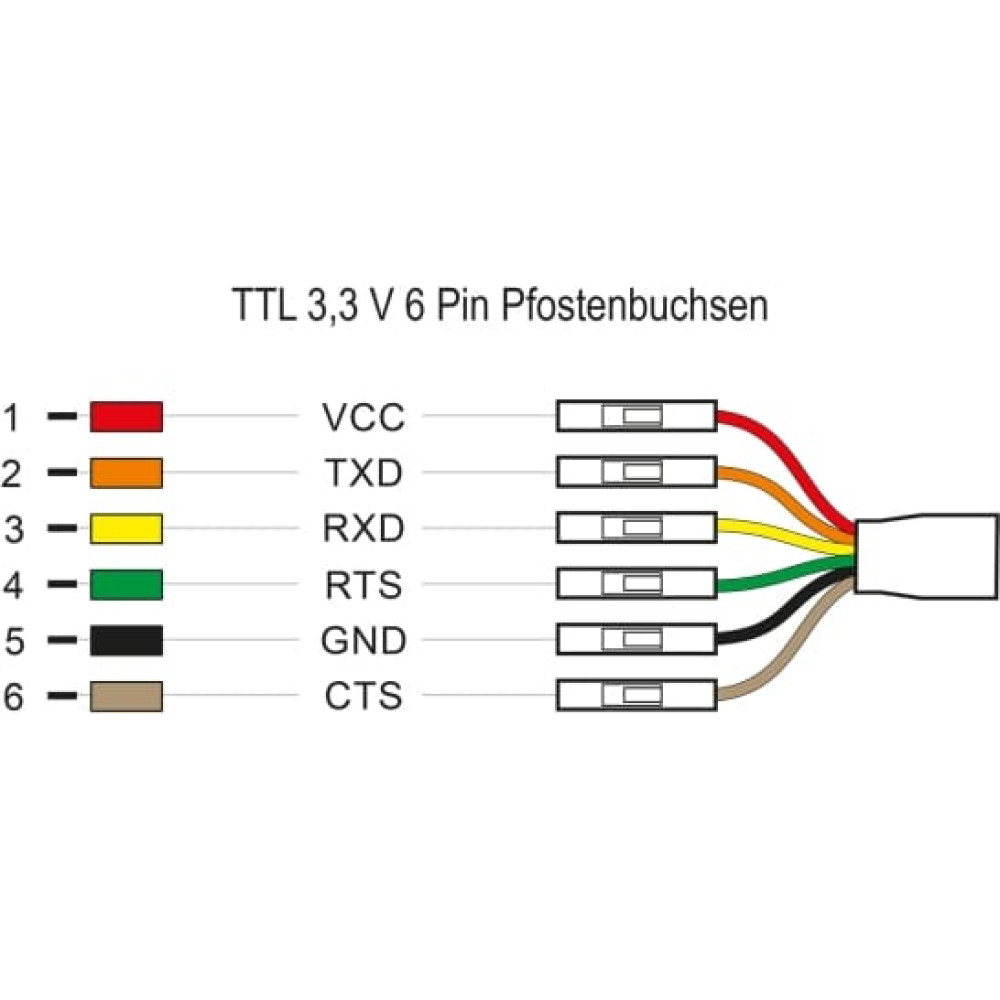

| This USB 2.0 to TTL converter by Delock can be connected directly to GPIO (General purpose input / output) connectors or UART (Universal Asynchronous Receiver / Transmitter) interfaces. The converter is suitable for applications on single-board computers, controllers, FPGAs, MCUs and in circuit electronics etc. System requirements: • Linux Kernel 2.6 or above • Mac OS 10.5 or above • Windows CE 4.2/5.0/6.0 • Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11 • PC or laptop with a free USB Type-A port Specification: • Connectors: 1 x USB 2.0 Type-A male > 1 x TTL 5 V 6 pin header female separately • Chipset: FTDI FT232RL • Cable gauge: 26 AWG • No-load current: 70 uA • Compatible to UHCI / OHCI / EHCI controller • Data transfer rate up to 3 Mbps • Databits: 7 or 8 • Stop bits: 1 or 2 • Parity: none, space, even, odd, mark • Flow control: none, hardware RTS / CTS, software XON / XOFF • FIFO: 128 Byte - RX 256 Byte - TX • Cable length incl. connectors: ca. 1.8 m • Operating temperature: -20 °C ~ 80 °C Package content: • Converter USB 2.0 serial TTL • Driver CD • User manual Data sheet: http://www.delock.de/produkt/83786/pdf.html?sprache=en |
