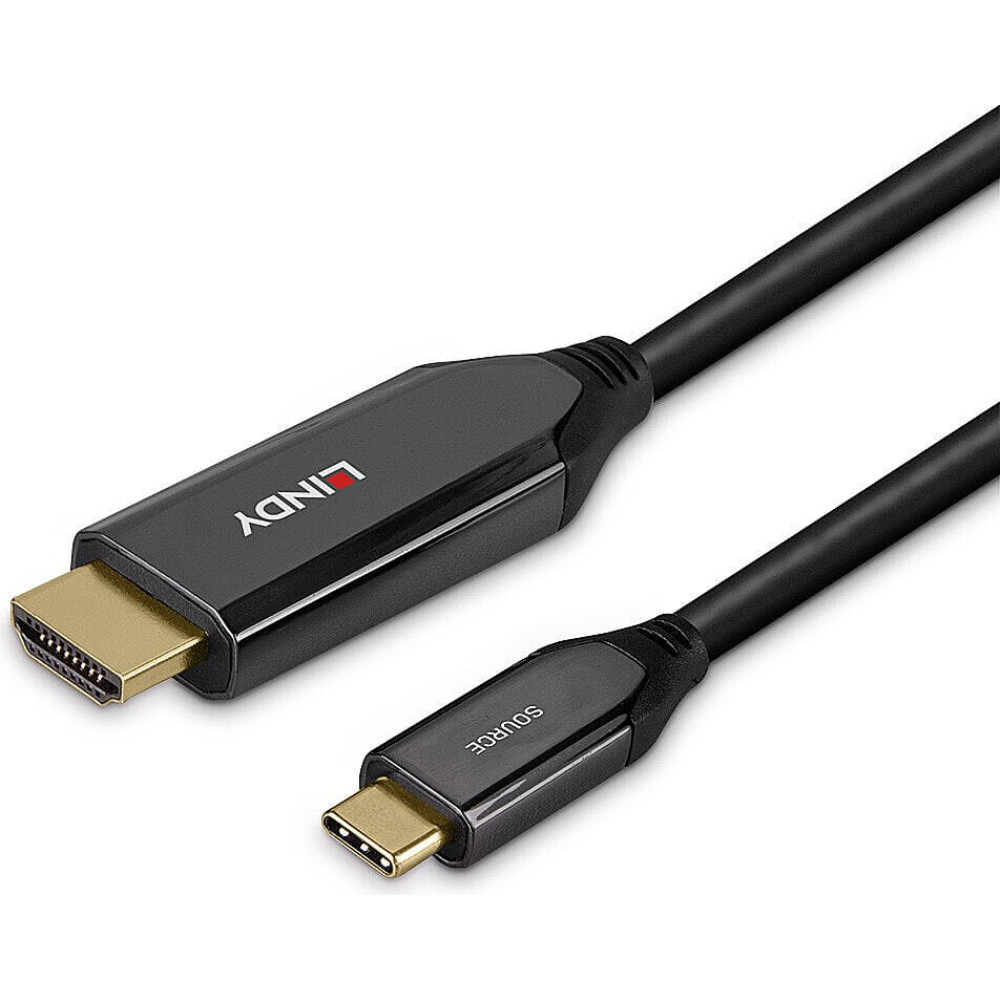

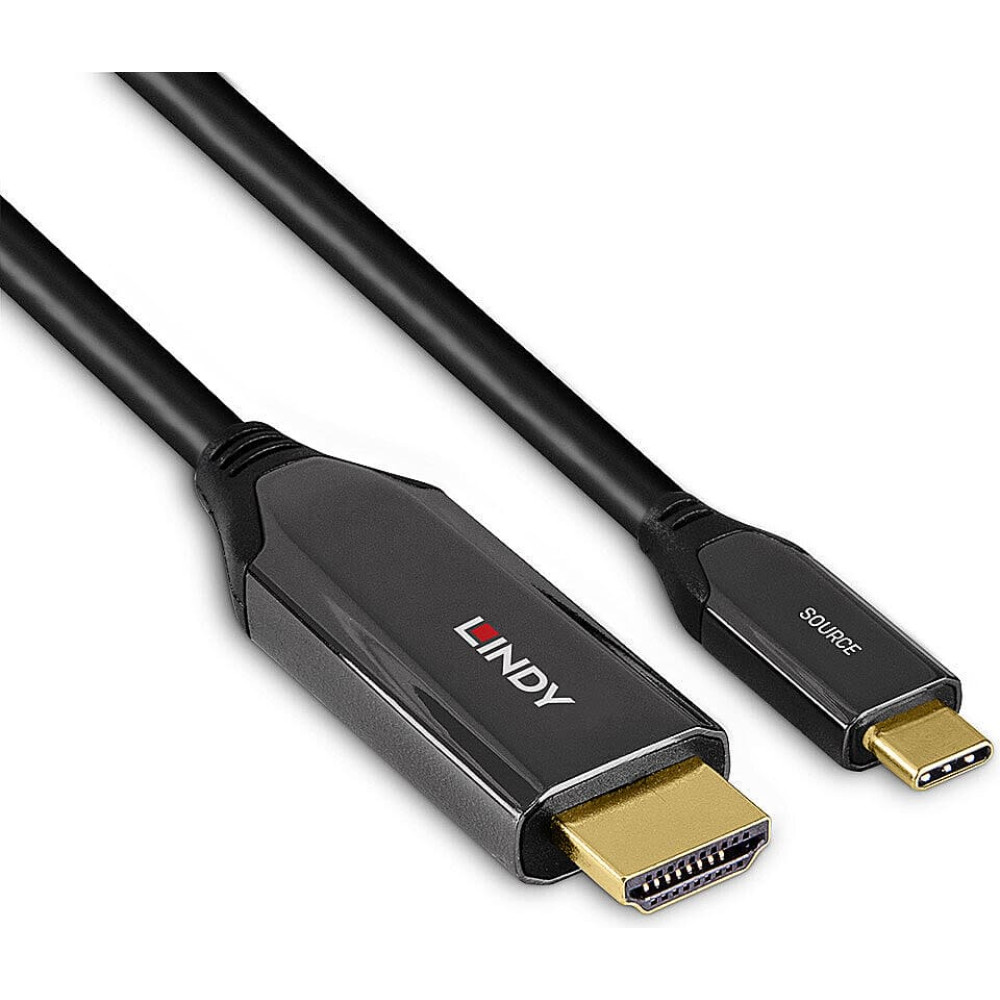

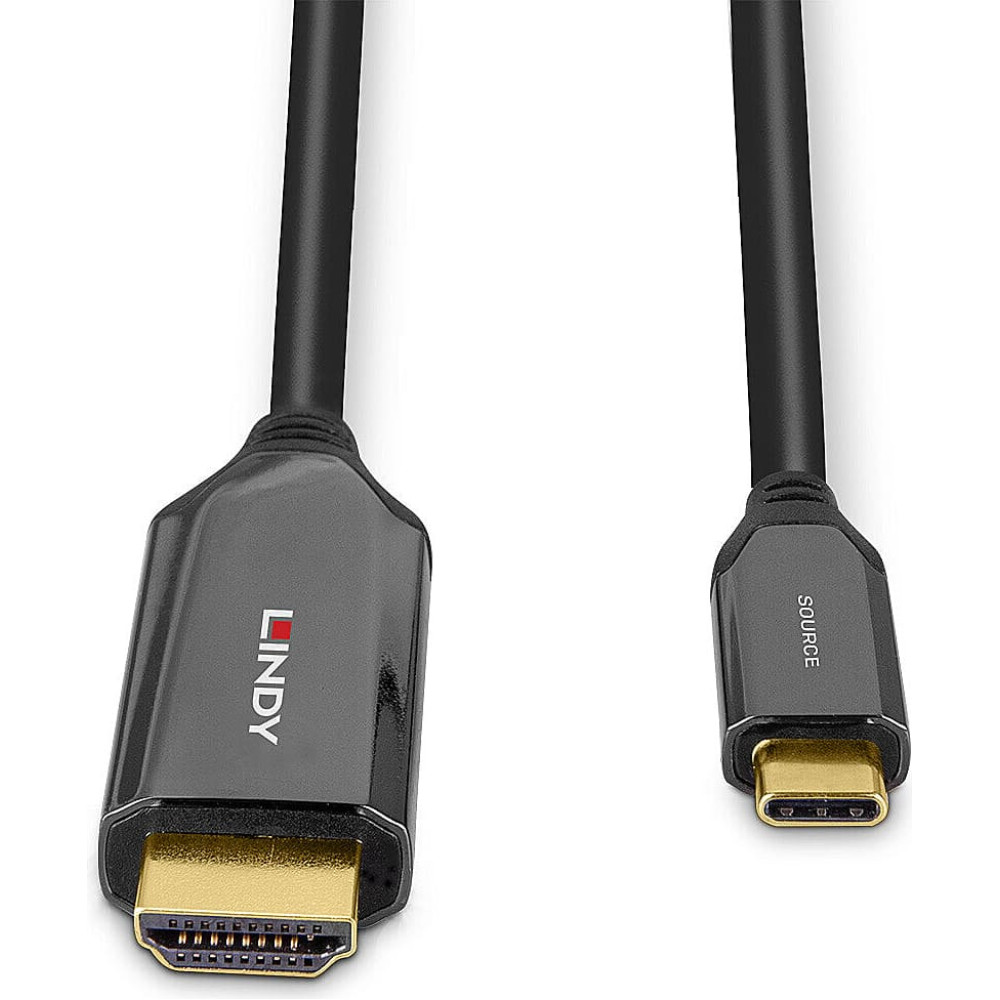

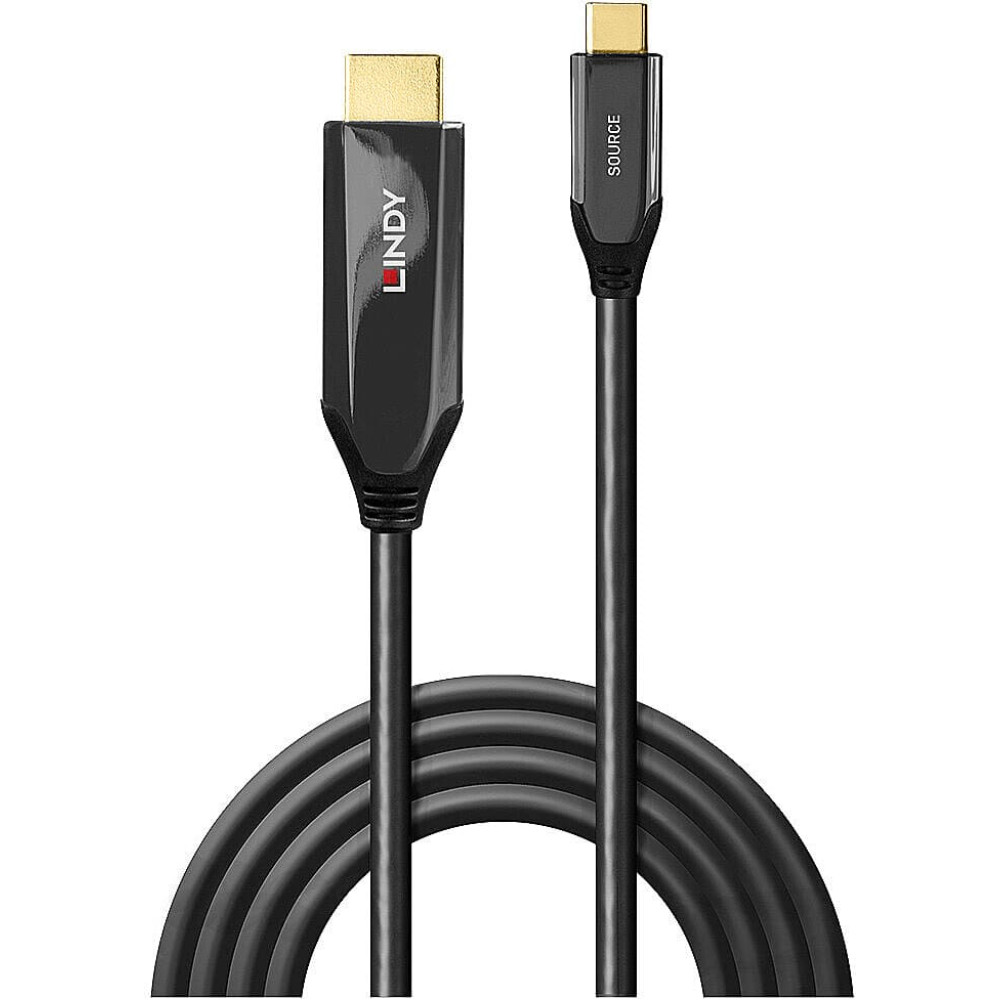

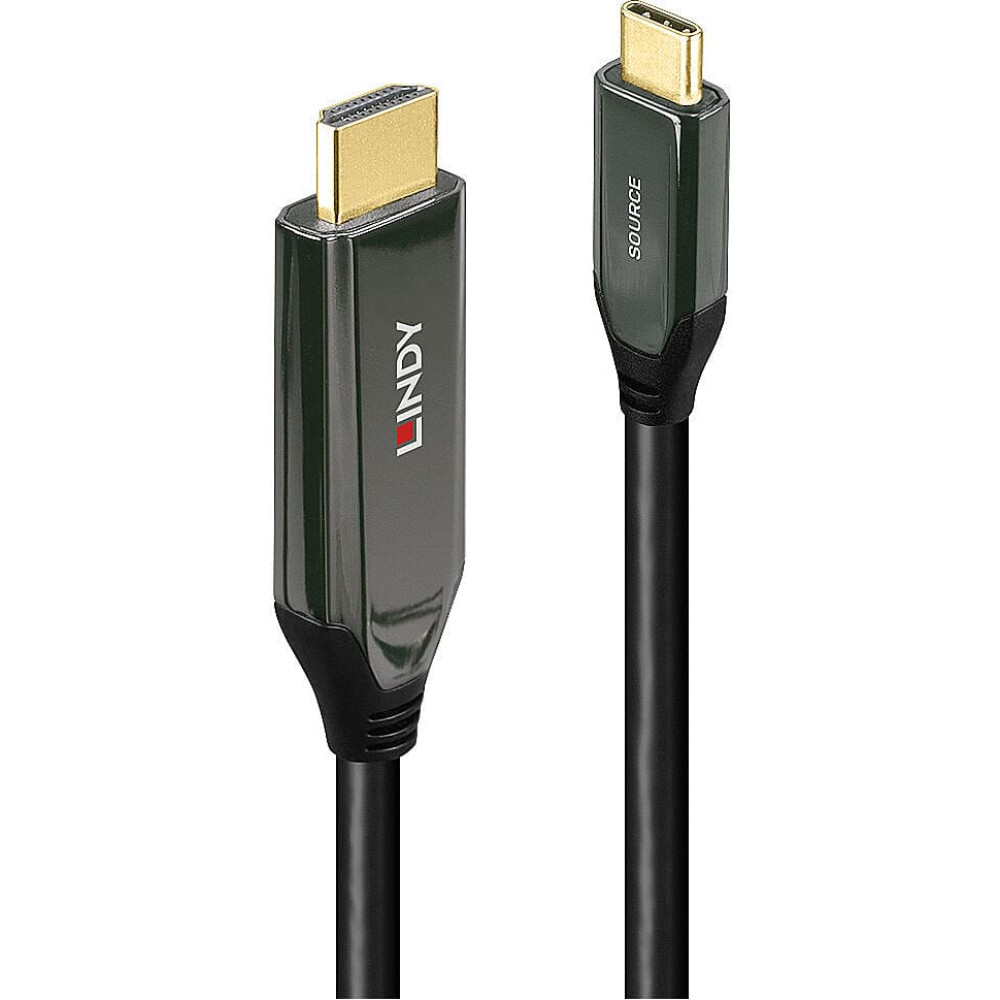

Lindy 2m USB Type C to HDMI 8K60 Adapter Cable

Product Code: 43368

Barcode 4002888433686

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

awg wire size: 34

cable diameter: 4.8 mm

cable type: Round

chipset: VMM7100

compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS

conductor material: Copper

data transfer rate (max): 48 Gbit/s

displayport output: No

dvi output: No

hdmi output: Yes

hdmi version: 2.1

housing material: Zinc

maximum resolution: 7680 x 4320 pixels

number of displays supported: 1

operating temperature (t-t): -20 - 40 °C

package type: Polybag

product colour: Black

refresh rate at maximum resolution: 60 Hz

storage temperature (t-t): -40 - 80 °C

supported graphics resolutions: 3840 x 2160, 7680 x 4320

sustainability certificates: UL ECOLOGO

sustainability compliance: Yes

usb cable length: 2 m

usb connector form factor: Straight

usb connector gender: Male

usb connector type: USB Type-C

usb version: 2.0/3.2 Gen 2 (3.1 Gen 2)

Description

Connectors

Connector A: USB Type C Male
Connector B: HDMI Type A Male
Housing Material: Zinc Alloy
Connector Plating: Gold plating
Pin Construction: Copper Alloy
Pin Plating: Gold plating
Dimensions (approx.) WxDxH:
- USB C: 30x10x5mm (1.80x0.39x0.2in)
- HDMI: 60x20x8mm (2.36x0.79x0.31in)

Cable construction

Length: 2m (6.56ft)
Standard: HDMI 2.1
Colour: Black
Type: Round
Jacket Diameter: 4.8mm (0.19in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 34AWG
Shielding: Tinplate

Specifications

Chipset: VMM7100
Supported Bandwidth: 48Gbps
Power Delivery: -
Maximum Resolution: 7680x4320 60Hz, 3840x2160 144Hz
Nominal Attenuation: 100MHz-10GHz ≤ 24dB
Minimum Bend Radius: 28.8mm (1.13in)
Operating Temperature: -20°C - 40°C (-4°F - 104°F)
Storage Temperature: -40°C - 80°C (-40°F - 176°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 2
Certificated: CE, FCC, RoHS, REACH & UL, CP65

Purchasing information

No.: 43368
EAN: 4002888433686

This product is also available in other lengths:

43367 - 1m (3.28ft)
43368 - 2m (6.56ft)
