Lindy Docking Station 2 Port Type C MST KVM

Product Code: 43202

Barcode 4002888432023

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

audio connections: Yes

ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6e/55/97/62/6297556ea7fecca6d5a65eea/CE_DoC_DE_43202.pdf

compliance certificates: REACH, RoHS

console ports: 3.5mm headphone, DisplayPort, HDMI, RJ–45, USB A, USB C

console usb ports quantity: 6

country of origin: CN

data transfer rate (max): 5 Gbit/s

depth: 79 mm

displayport version: 1.4

displayports quantity: 1

ethernet lan: Yes

ethernet lan (rj-45) ports: 1

hd type: 4K Ultra HD

hdcp: Yes

hdmi ports quantity: 1

hdmi version: 2.0

headphone outputs: 1

height: 28 mm

housing material: Aluminium, Plastic

input voltage: 24 V

manual: Yes

maximum resolution: 3840 x 2160 pixels

number of computers controlled: 2

operating relative humidity (h-h): 0 - 85%

operating temperature (t-t): 0 - 55 °C

output current: 5.6 A

package depth: 203 mm

package height: 50 mm

package type: Box

package weight: 1.08 kg

package width: 250 mm

packaging height: 5.0

packaging lenght: 25.0

packaging width: 20.3

product colour: Black

storage relative humidity (h-h): 0 - 85%

storage temperature (t-t): -10 - 70 °C

usb 2.0 type-c ports quantity: 2

video bandwidth: 60 Hz

video port type: HDMI

warranty: 2.0

weight: 926 g

width: 185 mm

Description

Specifications

Interface: USB Type C to HDMI, DP, RJ45, USB Type A, USB Type C, 3.5mm
Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 2.0, Gigabit LAN, DisplayPort 1.4
Supported Bandwidth: 18G, 5Gbps, 10/100/1000Mbps
Maximum Input Resolution: 3840x2160@60Hz
Maximum Output Resolution: 3840x2160@60Hz
Chipset: VL170 / VL160, FL7102 / FL7112, AX88179A, GL3510, KT0200, RTD2142
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
Power Delivery: PD 3.0 up to 100W on port 1 and up to 65W on port 2
HDCP Support: HDCP 1.4/2.2
Supported Audio: 24/96kHz audio sampling rate
Separate Audio Ports: 1x Audio combo port 3.5mm
Special Features: MST, DisplayPort Alternate Mode, BC 1.2 charging

Connectors

Inputs: 2 x USB Type C (Female)

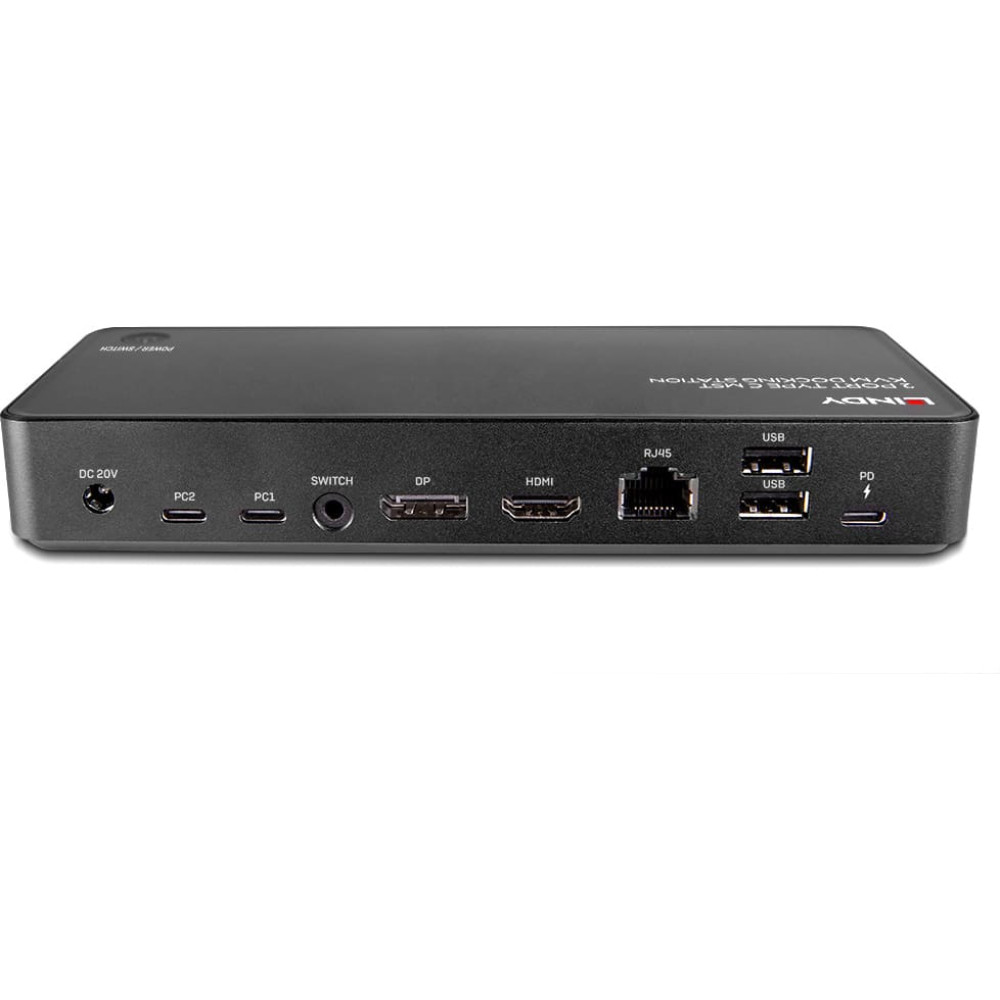

Outputs: 1 x HDMI (Female), 1 x DisplayPort (Female), 1 x RJ45 (Female), 3 x USB Type A (Female), 3 x USB Type C (1 for PD) (Female), 1 x 3.5mm (Female)
Power: 5.5/2.5mm

Physical Properties

Dimensions WxDxH: 185x79x28.7mm (7.28x3.11x1.13in)
Housing Material: Plastic and Aluminium
Net Weight: 1.2kg (2.65lb)
Operating Temperature: 0°C - 55°C (32°F - 131°F)
Storage Temperature: -10°C - 70°C (14°F - 158°F)
Humidity: 0 - 85% RH (non-condensing)
Power Requirements: 24VDC 5.63A
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 250x203x50mm (9.84x7.99x1.97in)
Gross Weight: 1.3kg (2.87lb)
Warranty (Years): 2
Certificated: CE, UKCA, FCC, REACH & RoHS, CP65

Package Contents

2 Port Type C MST KVM Docking Station
2 x USB 3.2 Gen2 Type C cables, 1m
2 x Mains Cable IEC C13 (Schuko and UK), 1m
IEC C14 Power Supply
Lindy Manual
