Home Computer Components HDD, ATX enclosures Lindy USB4 NVMe M.2 SSD Enclosure

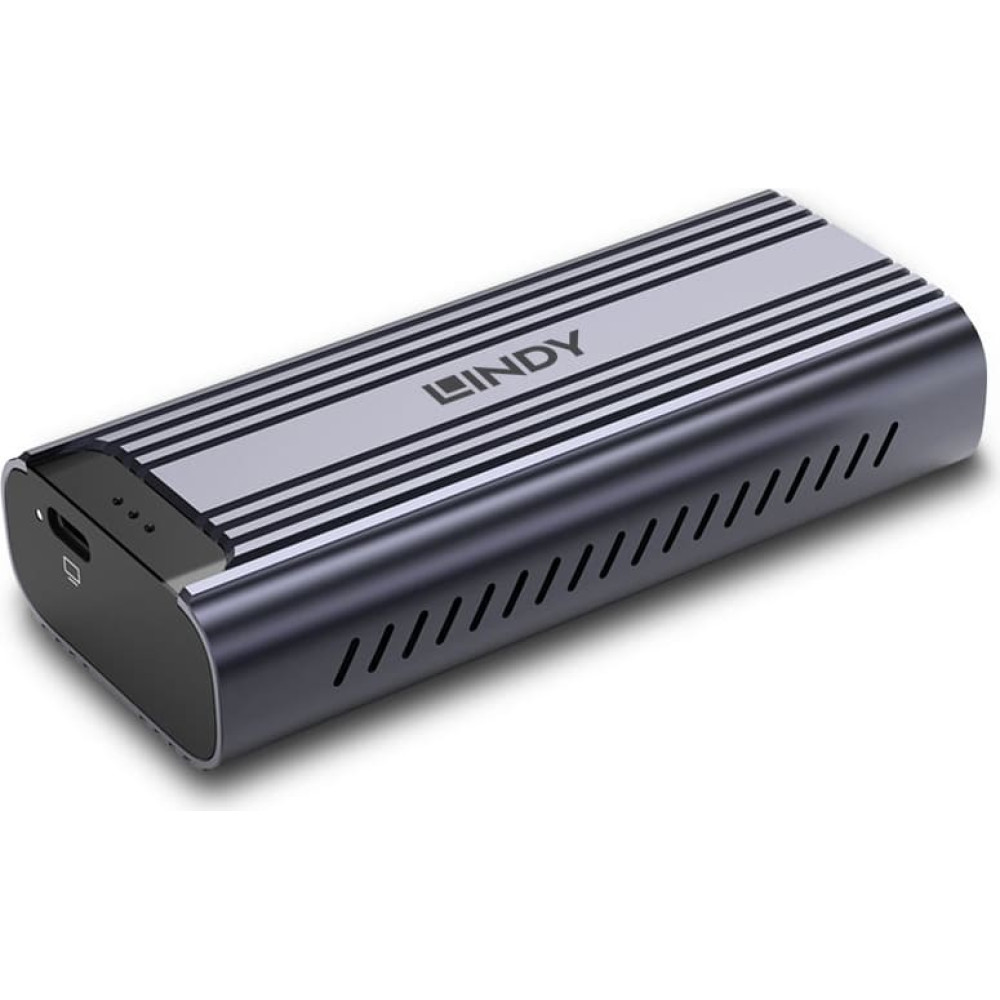

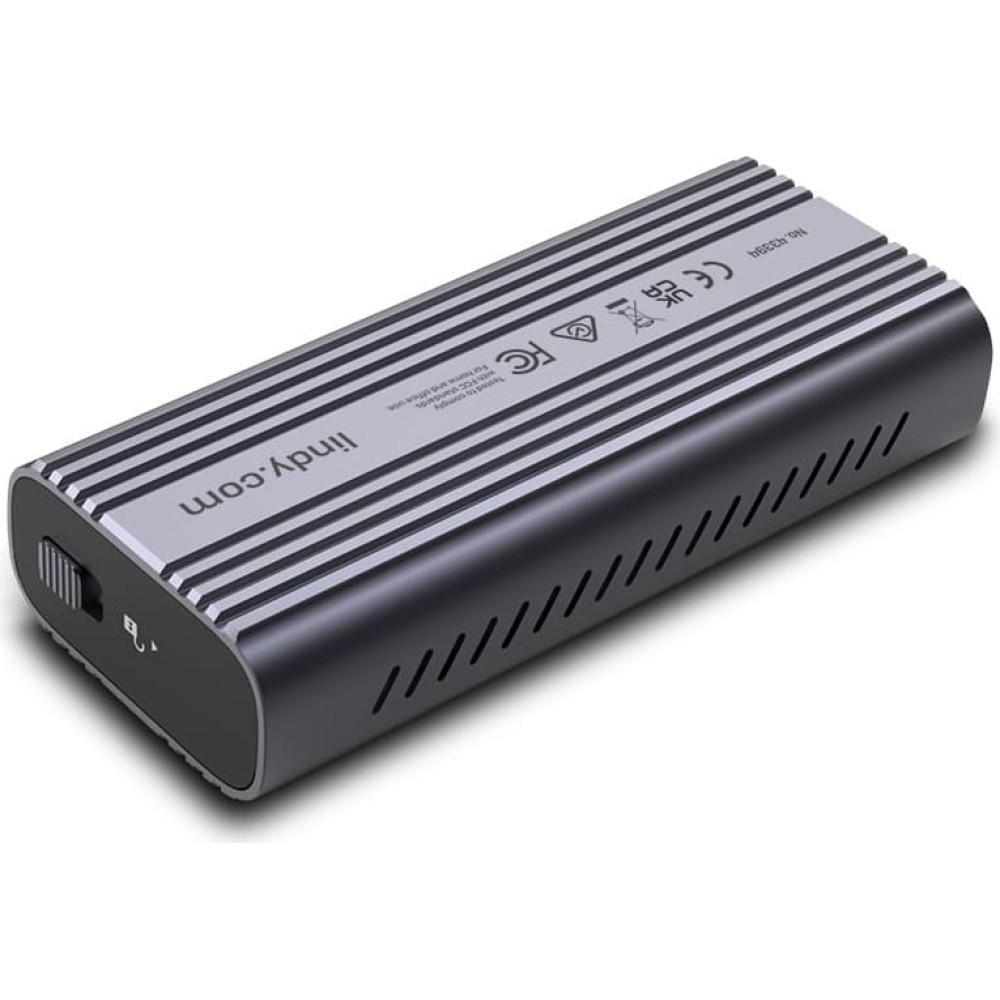

Lindy USB4 NVMe M.2 SSD Enclosure

Product Code: 43394

Barcode 4002888433945

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable length: 0.15 m

ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/eb/76/61/66/666176ebb6837d87ed5fb40a/CE_43394.pdf

certification: CE, FCC, RoHS & REACH, CP65

country of origin: CN

data transfer rate: 40 Gbit/s

depth: 47 mm

height: 24 mm

installed storage drive type: SSD

manual: Yes

material: Aluminium

number of storage drives supported: 1

operating relative humidity (h-h): 10 - 85%

operating temperature (t-t): 0 - 45 °C

package depth: 105 mm

package height: 30 mm

package weight: 200 g

package width: 180 mm

packaging height: 3.0

packaging lenght: 18.0

packaging width: 10.5

product colour: Grey

product type: SSD enclosure

screwdriver included: Yes

screws included: Yes

storage drive size: M.2

storage temperature (t-t): -10 - 70 °C

supported storage drive interfaces: PCI Express

usb connectivity: Yes

usb connector type: USB Type-C

warranty: 2.0

weight: 88 g

width: 107 mm

Description

Specifications

Interface: USB to PCIe/NVMe M.2 SSD
Interface Standard: USB4, PCIe 4.0 x4
Supported Bandwidth: 40Gbps
Chipset: ASM2464PD
Compatibility: USB4/Thunderbolt Type C equipped computers
Special Features: supports 42/60/80mm SSDs, SSDs with max. 12mm height, UASP & TRIM

Connectors

Inputs: 1 x USB Type C (Female)
Outputs: 1 x PCIe based M.2 (Female), M key and B+M key
Power: Bus-powered

Physical Properties

Dimensions WxDxH: 107x47x24mm (7.09x4.13x1.81in)
Cable Length: 0.15m (5.9ft)
Housing Material: Aluminium
Net Weight: 0.088kg (0.19lb)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -10°C - 70°C (-14°F - 158°F)
Humidity: 10 - 85% RH (non-condensing)
Power Requirements: -
Colour: Dark Grey

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 180x105x30mm (7.09x4.13x1.18in)
Gross Weight: 0.2kg (0.44lb)
Warranty (Years): 2
Product Compliance: CE, FCC, RoHS & REACH, CP65

Package Contents

USB4 NVMe M.2 SSD Enclosure
0.15m USB4 40Gbps FPC Flat cable

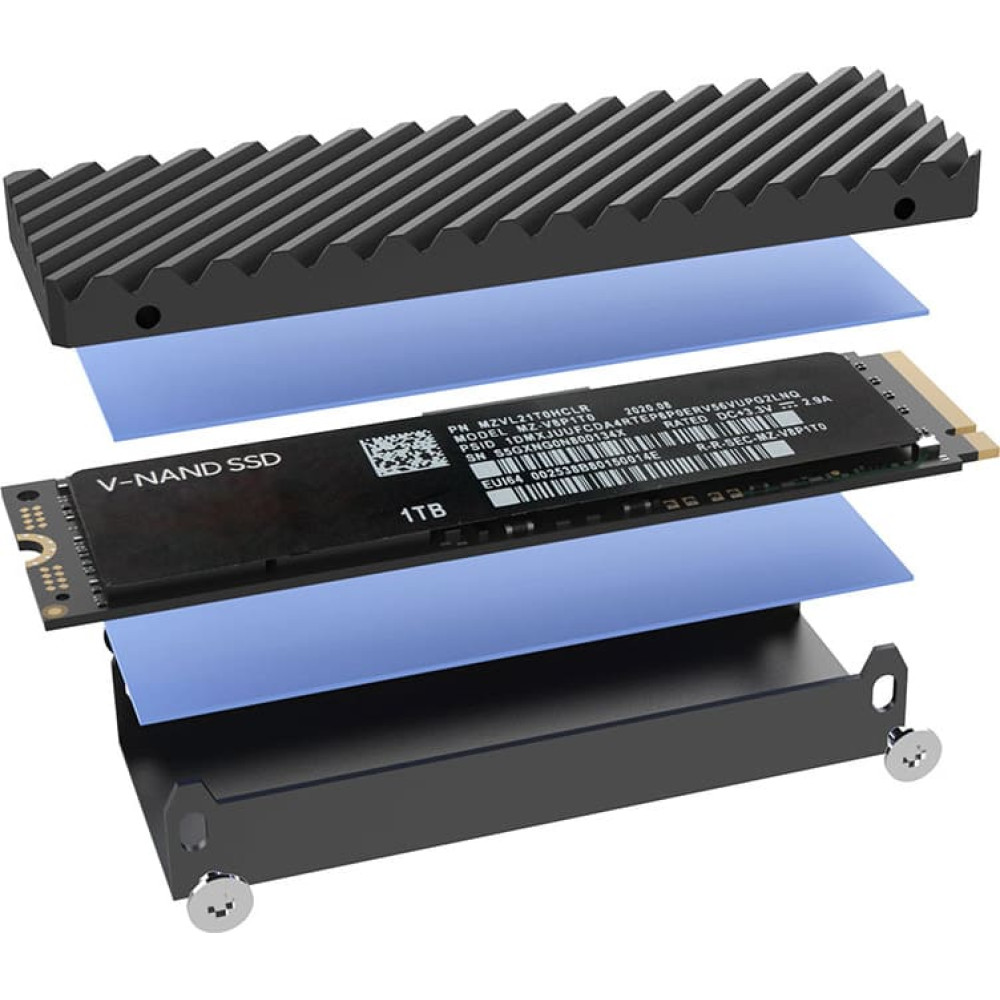

Aluminium Heatsink Kit (Aluminium Heatsink, Metal Bracket, 2x Silicone Thermal Pad, 4x Screws)
1x Mini Screwdriver
2x Screw + Nut
Lindy Manual

Purchasing Information

No.: 43394
EAN: 4002888433945
