Delock Converter U.2 SFF-8639 / SFF-8643 NVMe > 1 x M.2 Key M

DELOCK

Delock Converter U.2 SFF-8639 / SFF-8643 NVMe > 1 x M.2 Key M

Product Code: 62945
Barcode 4043619629459

To purchase this product you must be registered in our system.



Description
Related products
Description

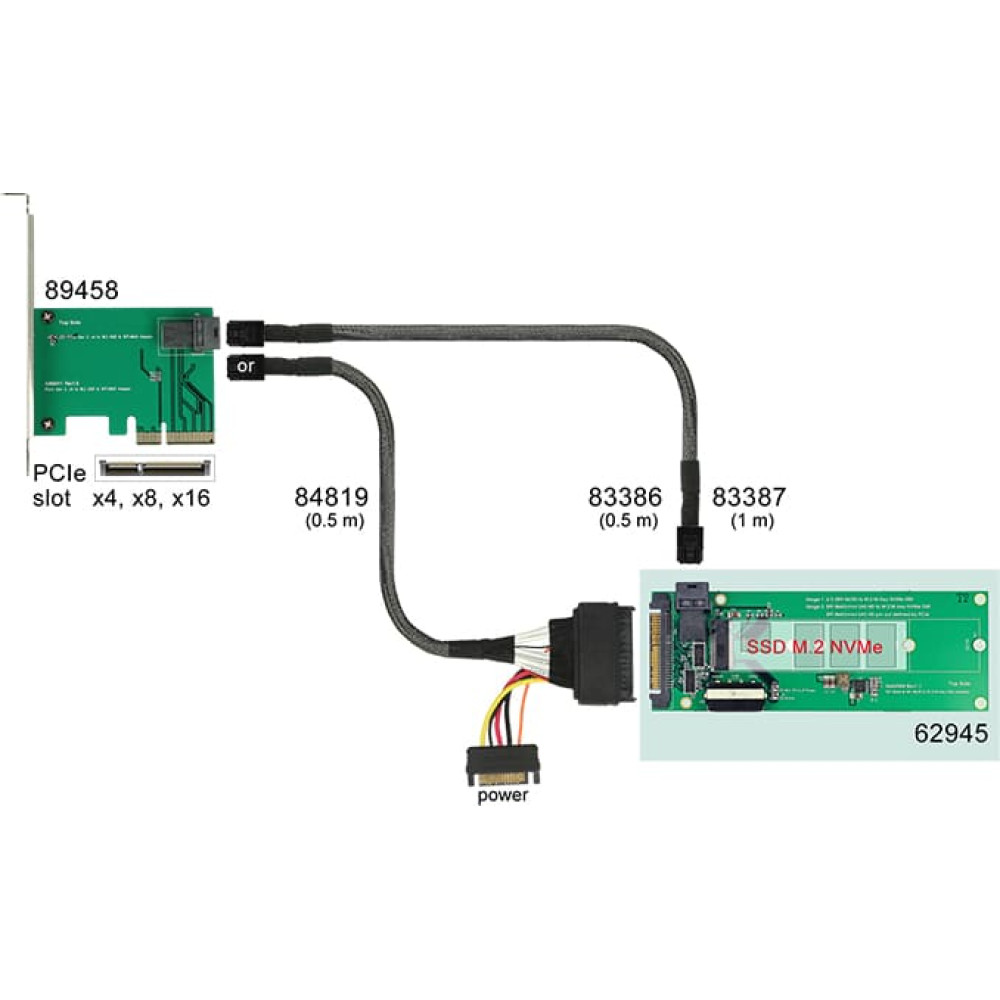

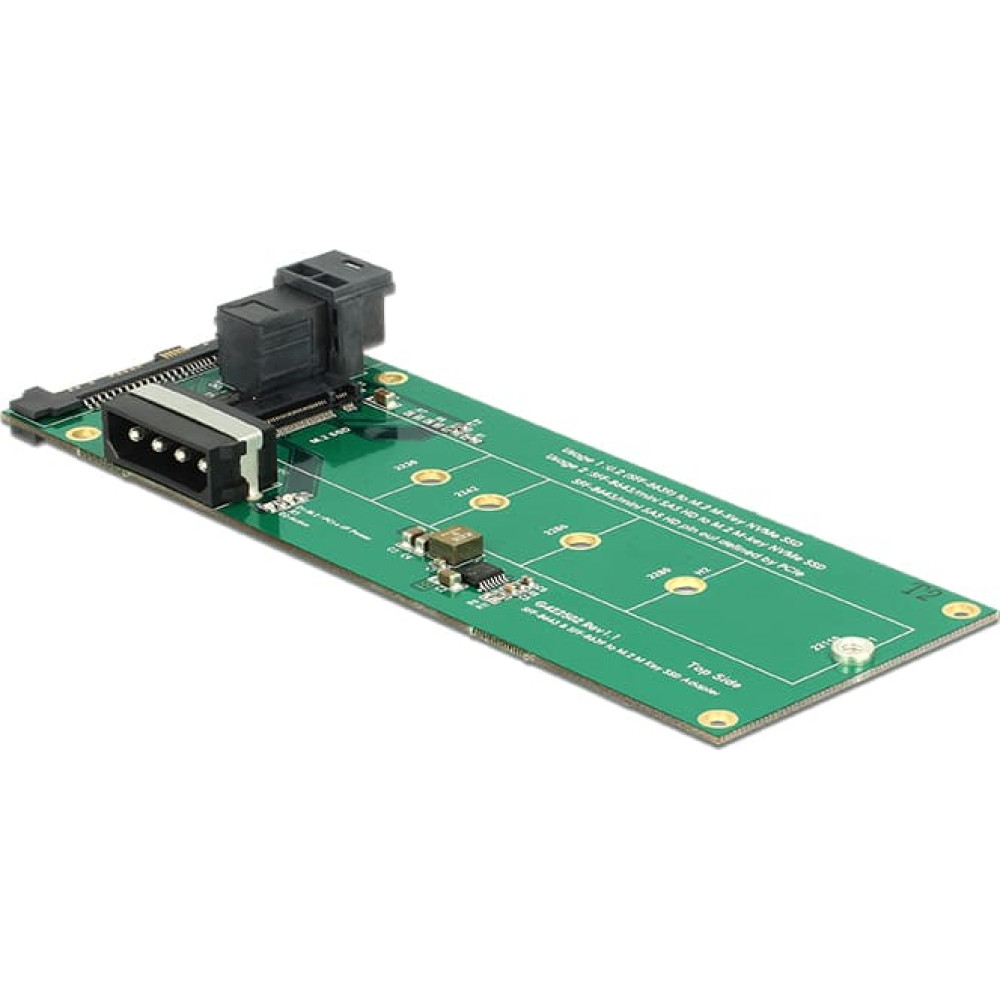

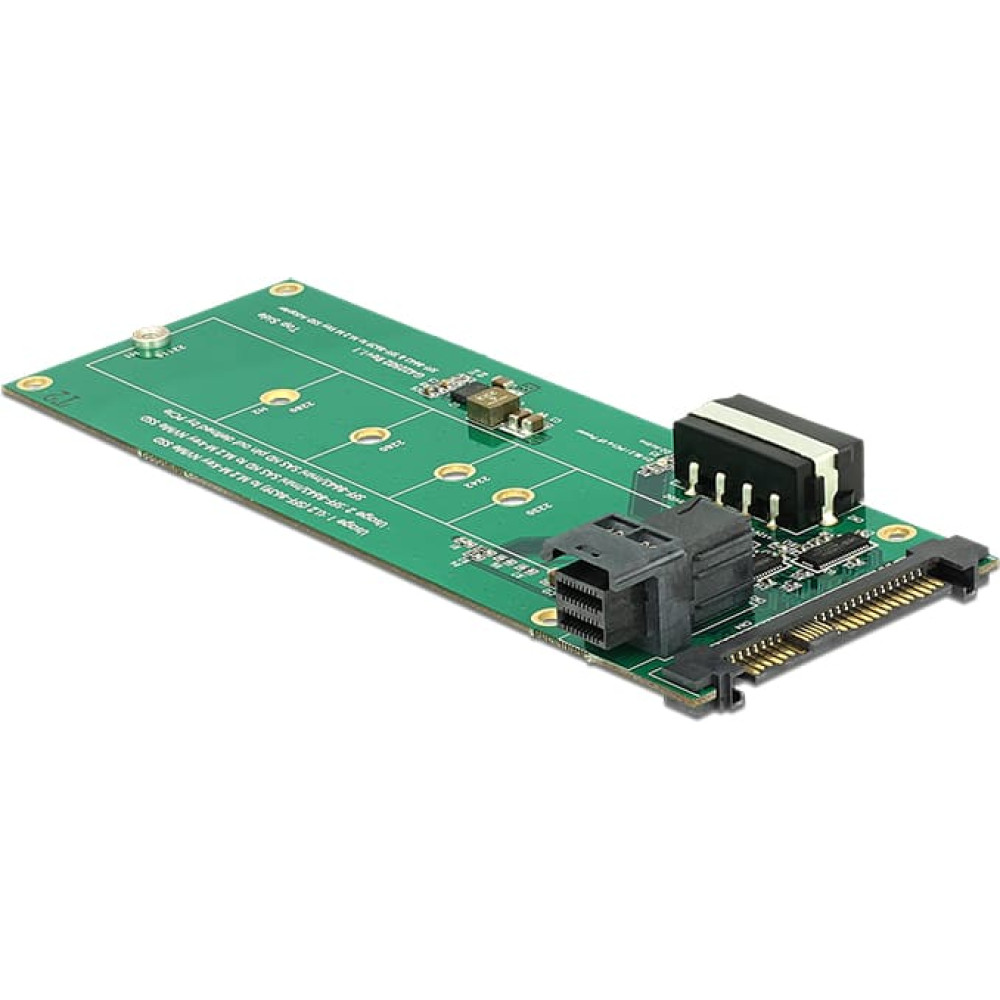

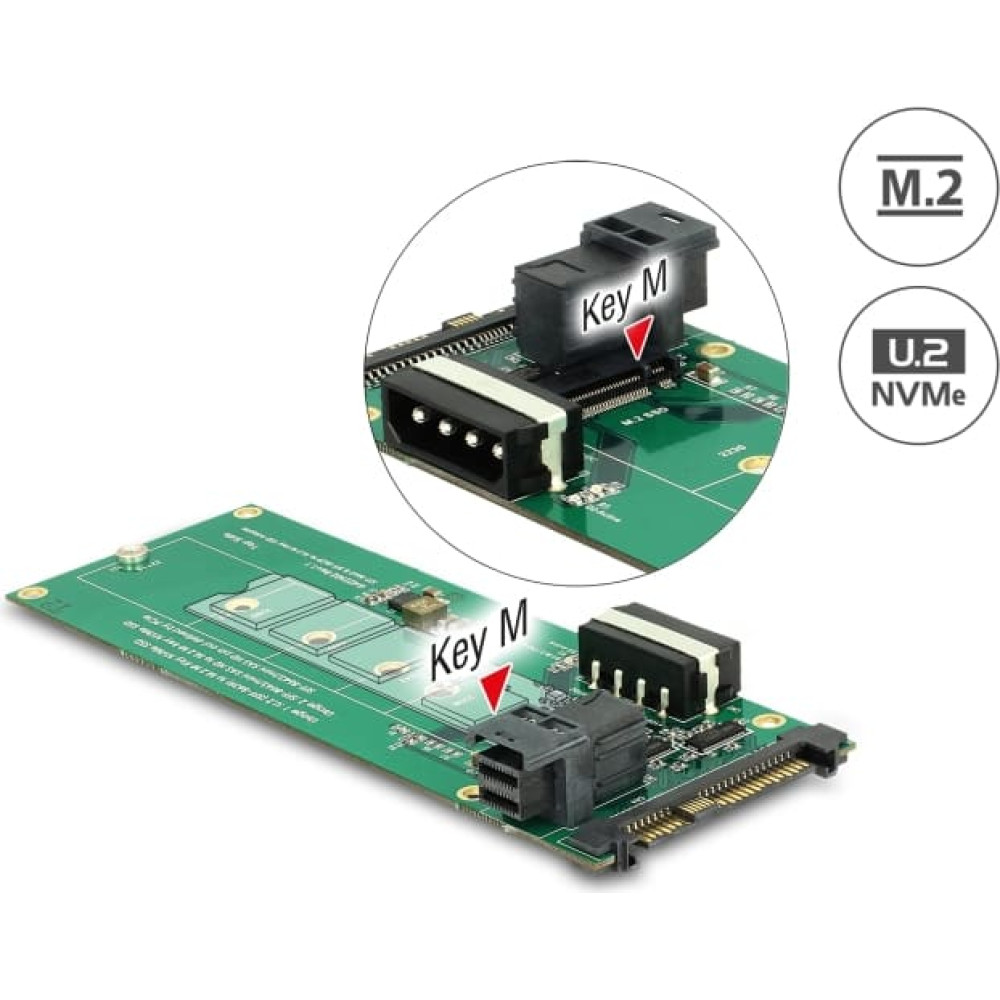

This Delock converter enables the connection of an M.2 SSD in 22110, 2280, 2260, 2242 and 2230 format. The converter can be installed into the system internally through U.2 SFF-8639 or U.2 SFF-8643 interface.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6.x
• A free U.2 SFF-8639 interface or
• A free U.2 SFF-8643 interface
Specification:
• Connectors:
  1 x 68 pin U.2 SFF-8639 male
  1 x 36 pin SFF-8643 female
  1 x 67 pin M.2 key M slot
  1 x Molex 4 pin male
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M
  or key B+M based on PCIe
• Maximum height of the components on the module: 1.35 mm,
  application of double-sided assembled modules supported
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Over current protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 145 x 52 x 16 mm
Package content:
• Converter

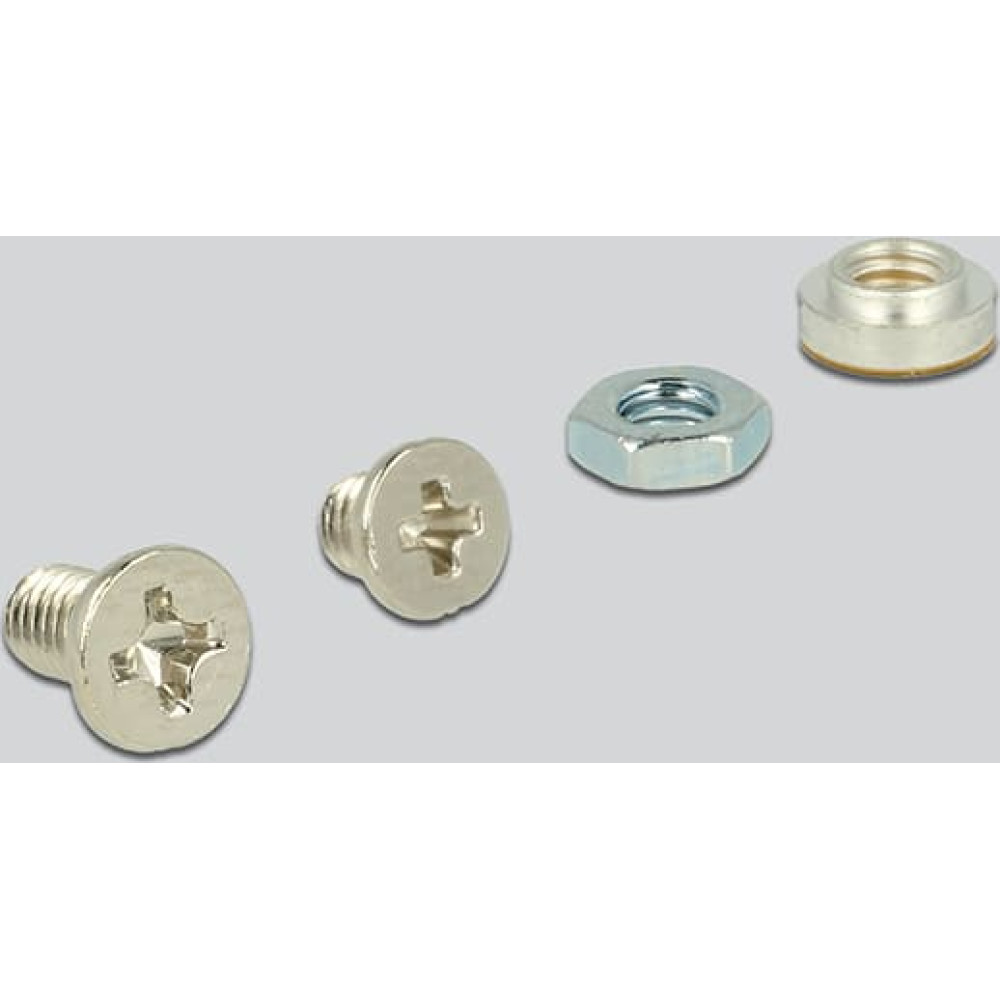

• Mounting material
• User manual
Data sheet:
http://www.delock.de/produkt/62945/pdf.html?sprache=en
