Delock Riser card PCI Express x16 angled 90 left insertion

Product Code: 89105

Barcode 4043619891054

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.080

height: 0.025

width: 0.180

Description

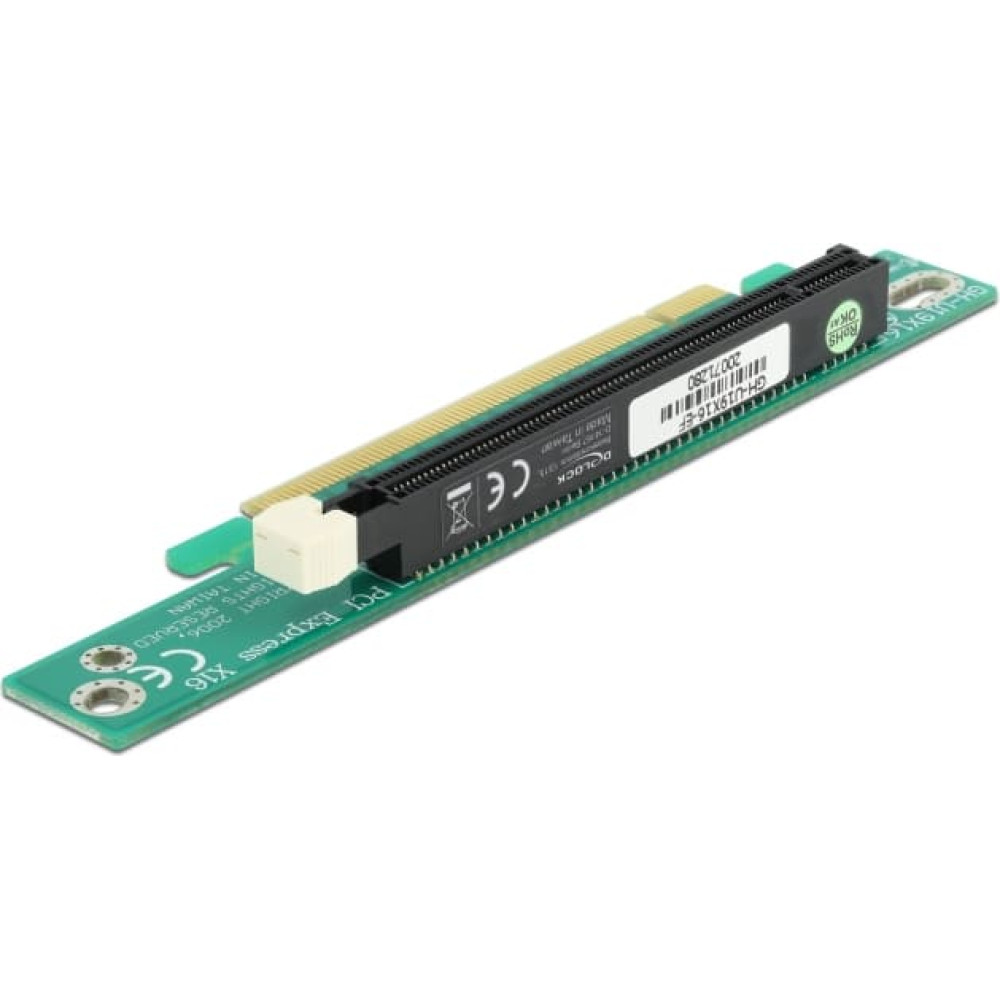

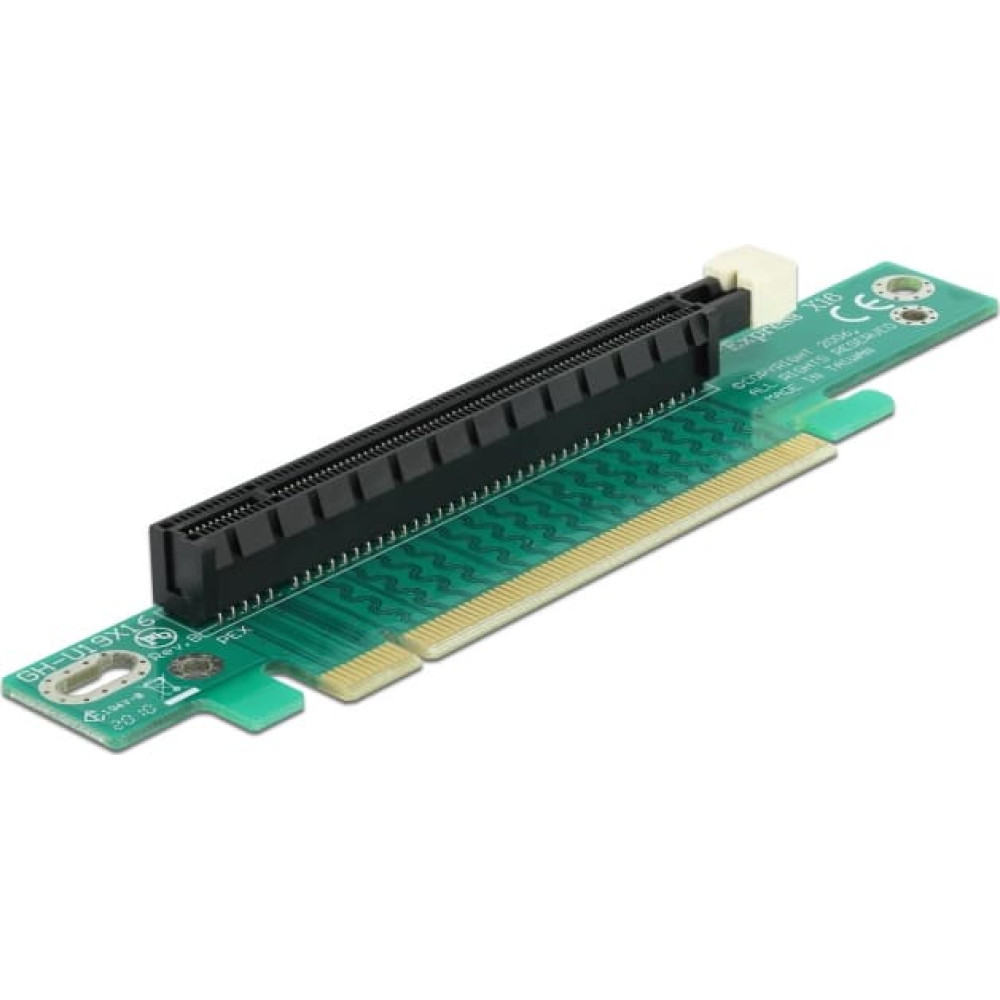

The PCI Express riser card by Delock angles the PCI Express slot by 90°. This type of horizontal installation is necessary inside 1U computer cases, where a vertical installation is not possible due to space limitation.

System requirements:
• PC with one free PCI Express x16 / x32 slot

Specification:
• Connectors:
1 x PCI Express x16 male >
1 x PCI Express x16 slot
• For 48.3 cm (19 inches) cases 1U
• Left insertion
• Dimension: mounting height 24 mm, complete height 32 mm
• OS independent, no driver installation necessary

Package content:
• PCIe riser card
