Exsys EX-46014 4S Seriell RS-232 PCIe Karte

Exsys EX-46014 4S Seriell RS-232 PCIe Karte

Product Code: EX-46014
Barcode 4718359460142
Brand: EXSYS

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
bus system: PCI Express
chipset: ASIX MCS9901CV-CC
connection ports: 4 x 9 Pin D-SUB Seriell Stecker
current catalog edition: 24.1
data transfer rate: 300Baud bis 921.6KBaud
depth of packaging (single piece): 230 mm
gross weight: 0.184
height: 60 mm
height of packaging (single piece): 40 mm
installation guide / manual: ja
interface: 4x 9-Pin serielle RS-232 Stecker
manufacturer: EXSYS
mounting height: Low Profile
operating system: WinXP/Vista/7/8.x/10/11 (32&64), Server 200x & 2012 R2, L...
operating temperature max.: 55 °C
operating temperature min.: 0 °C
package weight (single piece): 0.185 kg
power supply: 3.3V über PCIe Slot
product group: Schnittstellenkarten
product type: PCI-Express-Adapterkarte
rs-232 interface: ja

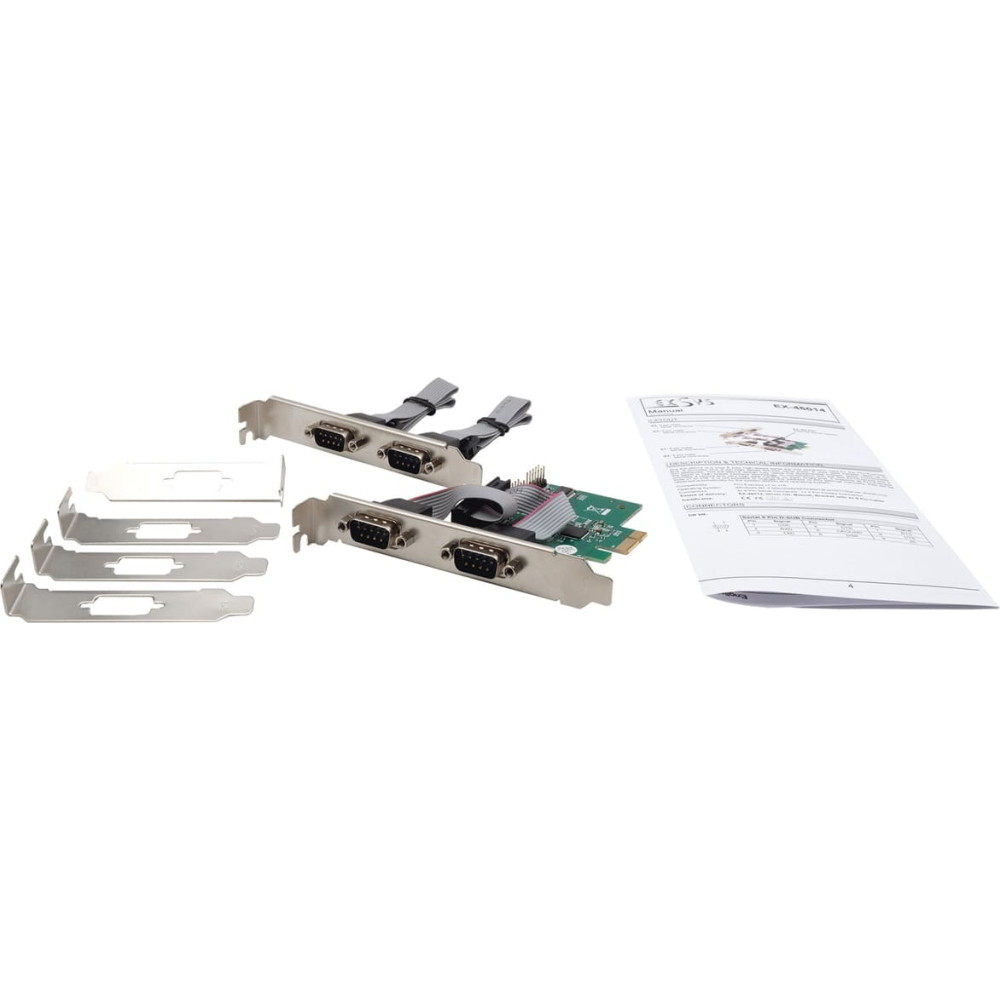

scope of delivery: EX-46014, 4x Low Profile Bügel, Handbuch
weight: 180 g
width: 89 mm
width of packaging (single piece): 160 mm
Description

Stellt vier serielle RS-232 High Performance UART 16C550 Ausgänge zur Verfügung.

Die EX-46014 PCIe I/O Karte stellt vier serielle RS-232 High Performance UART 16C550 Ausgänge zur Verfügung.

Sie wurde entwickelt um vier weitere serielle Ports für PC, kleine Workstation oder Server über den PCIe Bus zu erweitern.

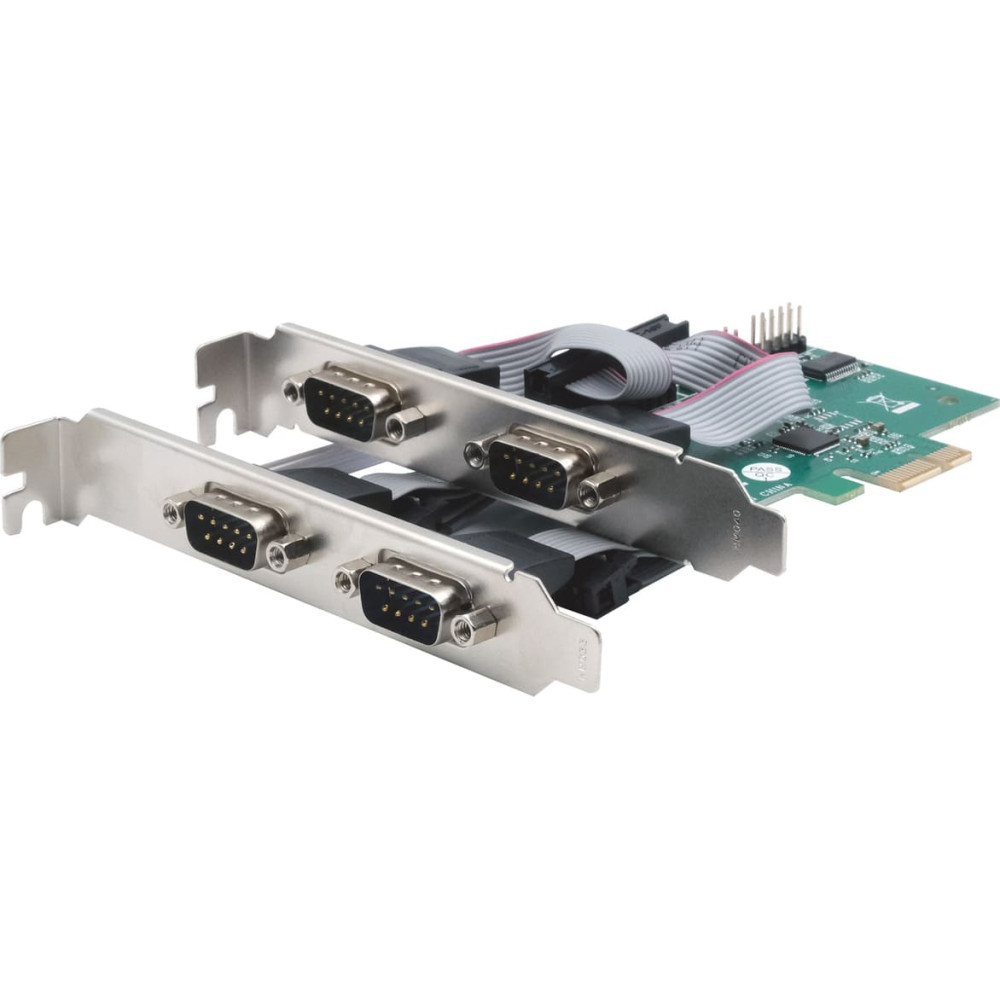

Die vier 9-Pin-Anschlüsse sind auf zwei Slotblechen angebracht. Für schmale Rechner werden vier Low Profile Bleche mitgeliefert.

  • RS-232 V.24 Schnittstelle
  • FIFO Buffer 16C550 mit 256Bytes
  • I/O Adressen und Interrupt werden vom Betriebssystem vergeben
  • PCIe Schnittstelle kompatibel mit 1.1 Spezifikationen
  • Daten Bits 5, 6, 7 und 8
  • Stop Bits 1, 1.5 und 2
  • Parity: none, even, odd, space und mark
  • RS-232 Signale TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Chip-Set: ASIX MCS9901CV-CC
