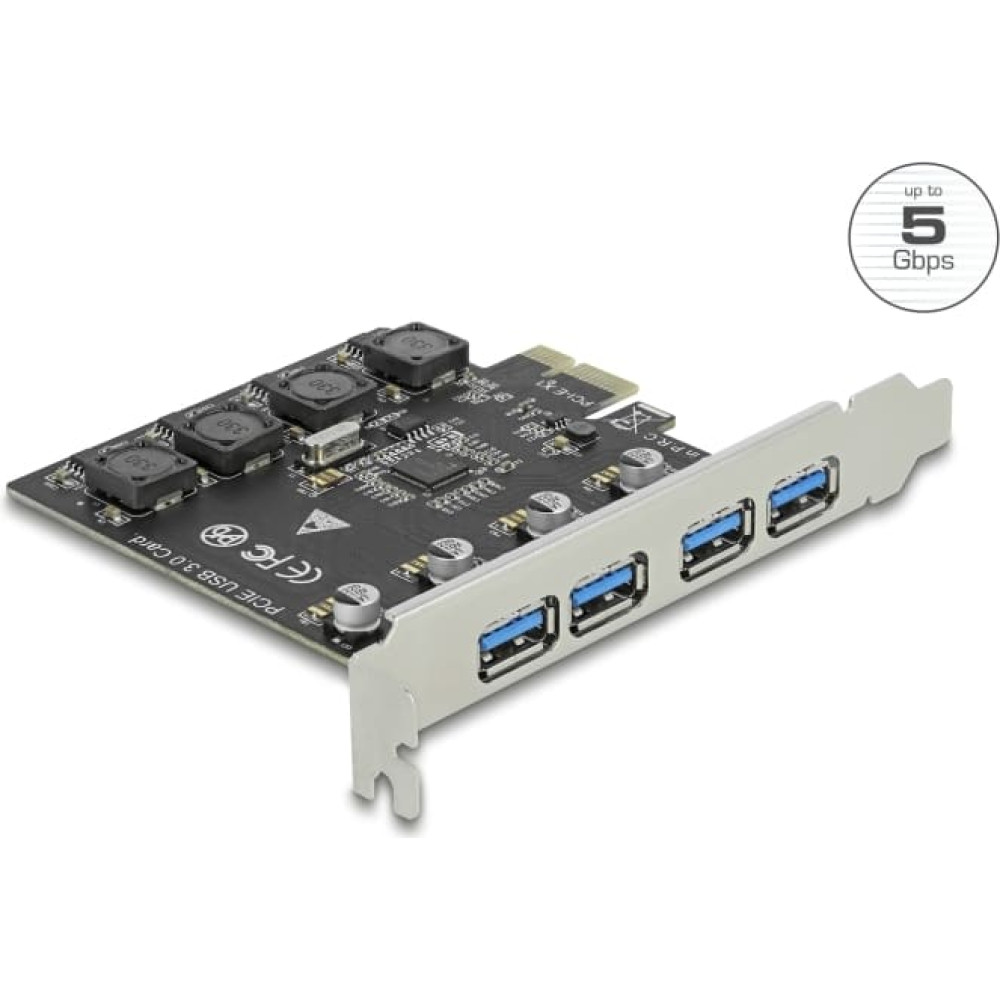

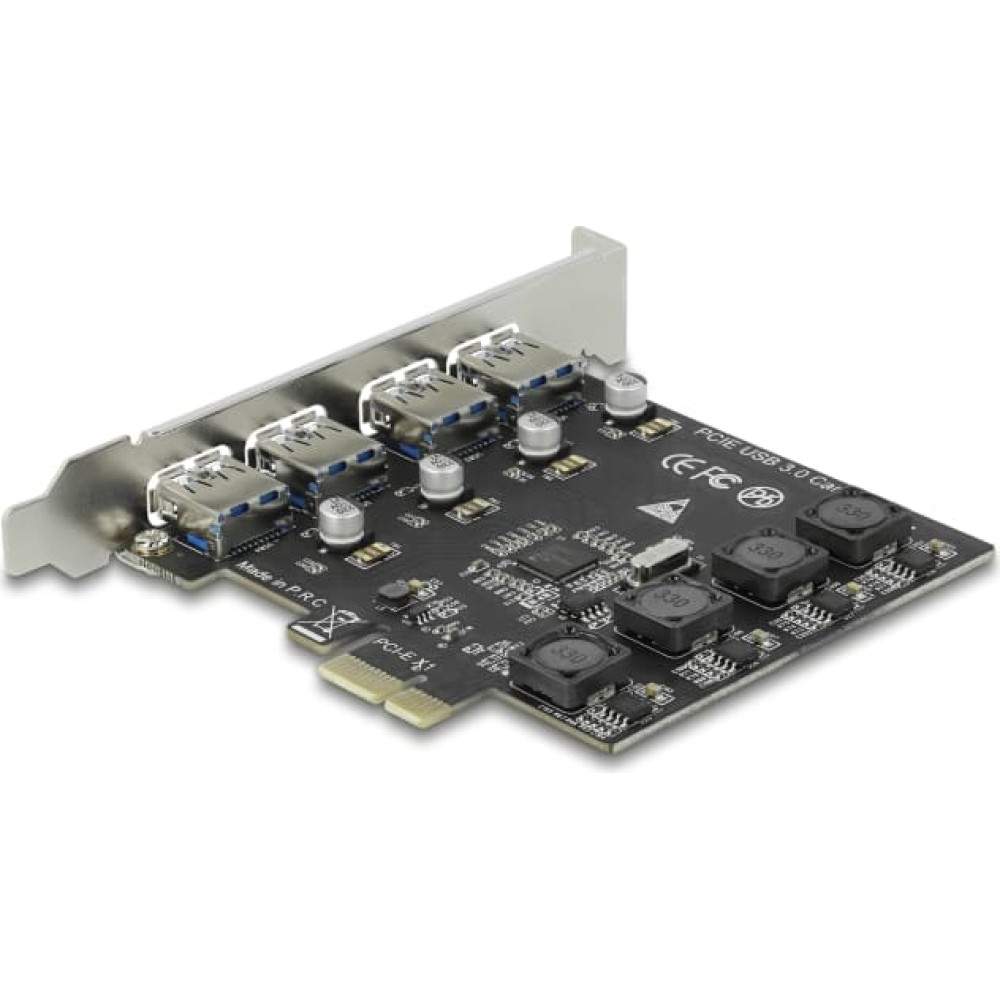

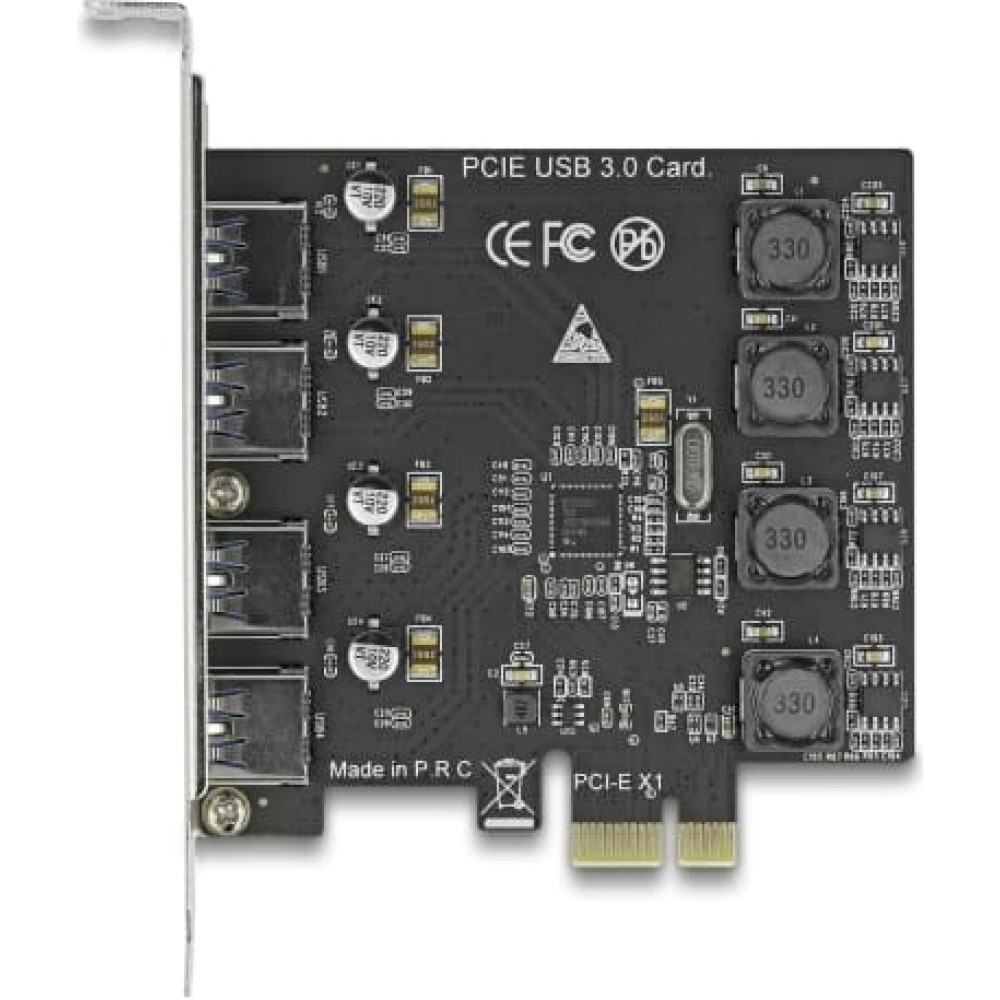

Delock PCI Express x1 Card to 4 x external USB Type-A female SuperSpeed USB (USB 3.2 Gen 1)
To purchase this product you must be registered in our system.
Specification
depth: 0.160
height: 0.030
width: 0.150
Description
| The PCI Express card by Delock expands a PC by four external USB 3.2 Gen 1 ports. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. 10 Watt output power per port The card requires no additional power supply and can still supply 2 A at each port. Thus, a total of 8 A can be achieved when all ports are used. System requirements: • Linux Kernel 3.18 or above • Windows 8.1/8.1-64/10/10-64 • PC with one free PCI Express slot Specification: • Connectors: external: 4 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female internal: 1 x PCI Express x1, V2.0 • Chipset: Renesas D720201 • Data transfer rate up to: SuperSpeed 5 Gbps, Hi-Speed 480 Mbps, Full-Speed 12 Mbps, Low-Speed 1.5 Mbps • Electrical power per port: max. 10 watt (5 V / 2 A) • Bootable • Operating temperature: 0 °C ~ 40 °C • Storage temperature: -10 °C ~ 70 °C • Relative humidity: 10 - 90 % (non condensing) Package content: • PCI Express card USB 3.2 Gen 1 • 1 x screw • User manual Data sheet: http://www.delock.de/produkt/90509/pdf.html?sprache=en |
