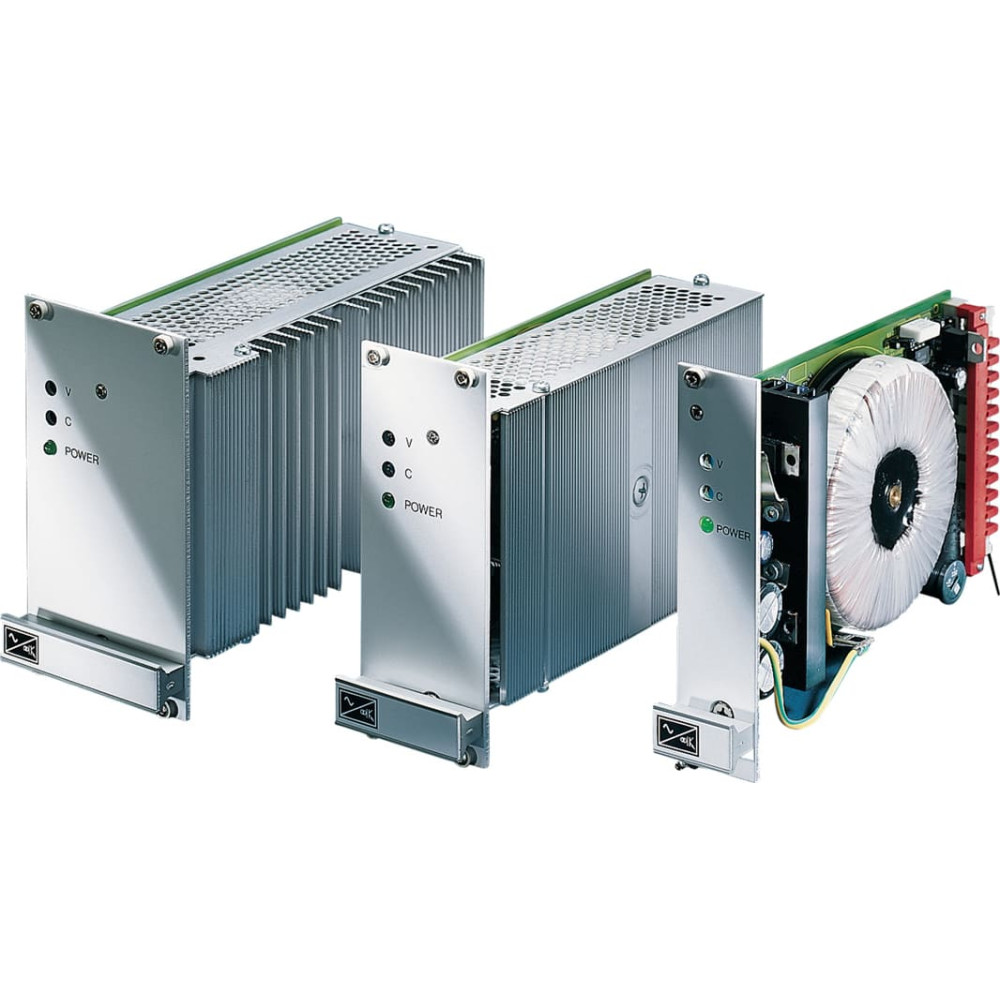

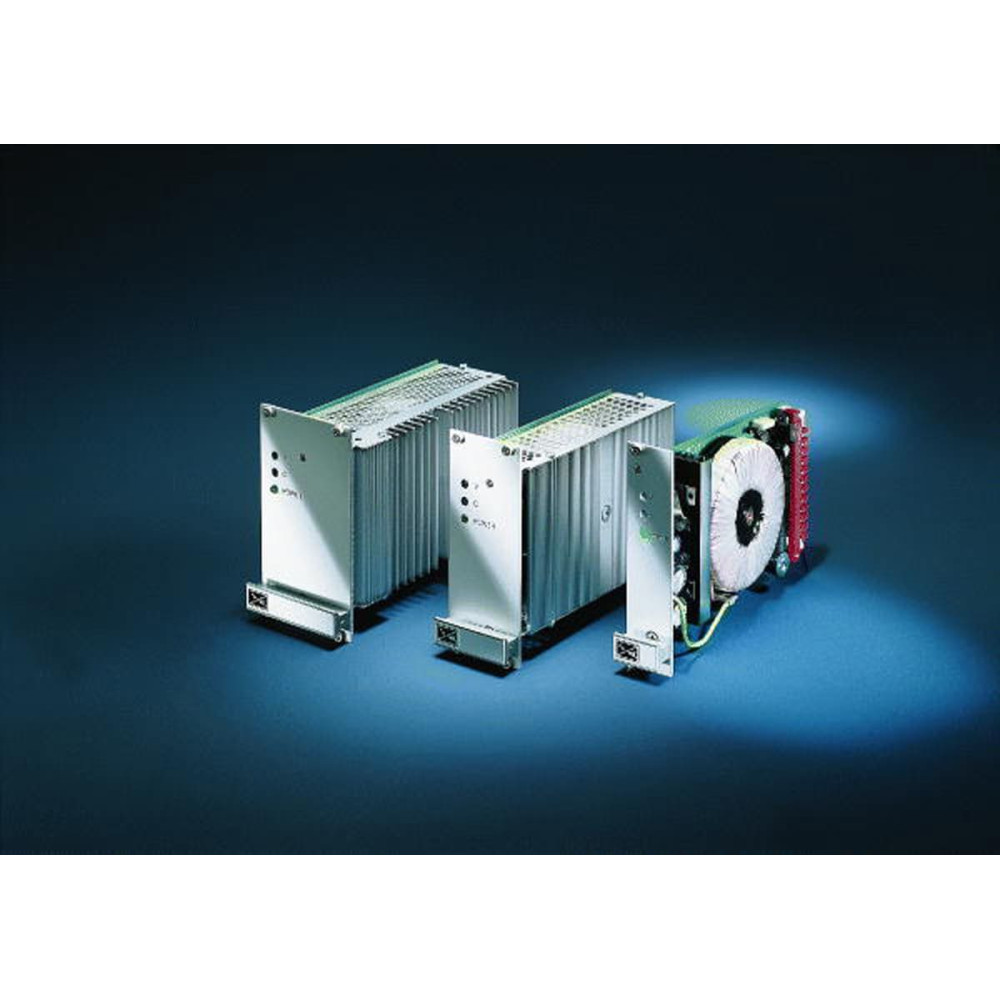

Schroff PSU 19" AC/DC Linear Regulator, Single, PSM 124

Schroff PSU 19" AC/DC Linear Regulator, Single, PSM 124

Product Code: 13105009
Barcode 4036088204180
Brand: SCHROFF

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 171.93 mm
depth of packaging (single piece): 290 mm
gross weight: 1.758
height of packaging (single piece): 90 mm
height units: 3 U
manufacturer: SCHROFF
package weight (single piece): 1.758 kg
product group: SCHROFF 19" cabinets & expansion parts
product type: power Supplies
width of packaging (single piece): 220 mm
width units: 10 HP
Description

Power supply unit 19'' AC/DC linear controller, single, PSM 124

POWER SUPPLY PSM 124 10HP

Mains input voltage 230 VAC (can be converted to 115 VAC with mains voltage conversion kit) - High control accuracy, low residual ripple and very low interference, suitable for medical applications (8 mm safety distances) - Output voltage can be remote-controlled externally (1 ... 10 V) - Conversion of the control characteristic for sensitive loads (U/I - fold back) - Current measurement via shunt
