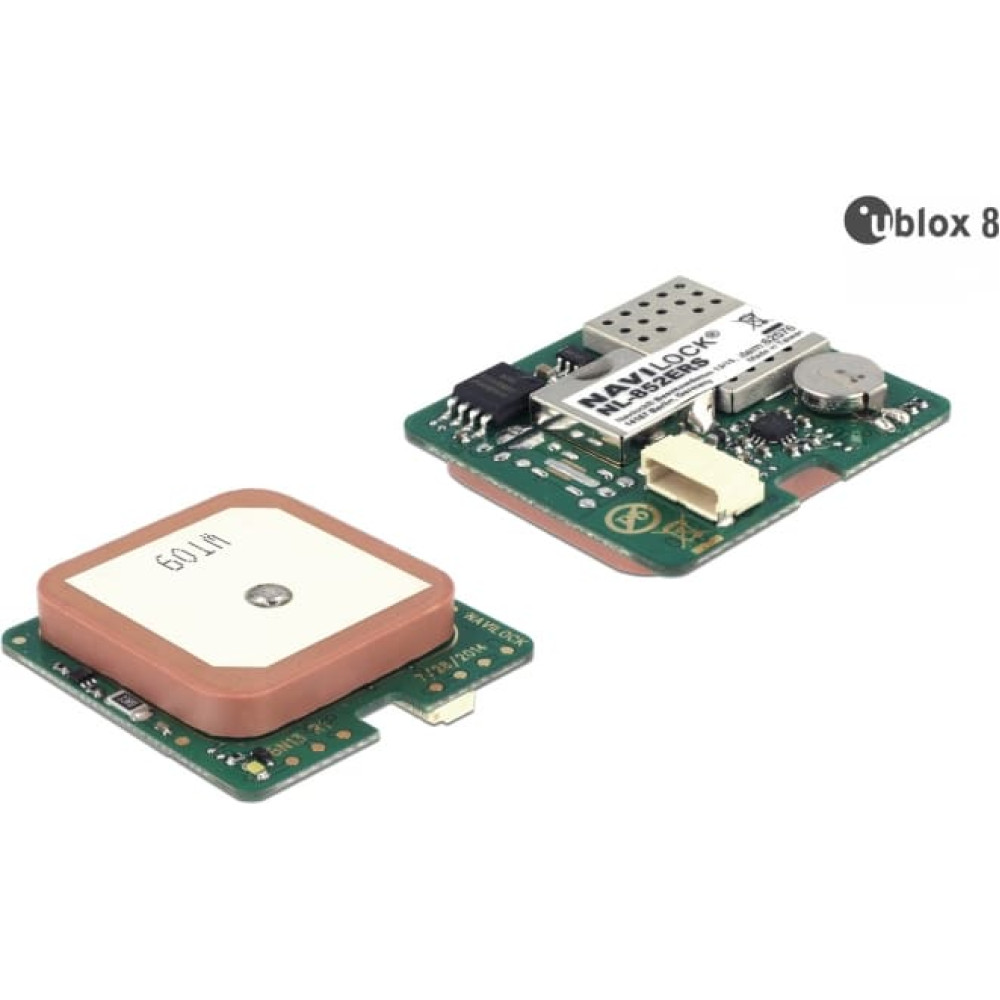

Navilock GNSS GPS Engine Module NL-852ERS PPS Navilock u-blox 8

Product Code: 62576
Barcode 4043619625765

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.000
height: 0.000
width: 0.000
Description
GNSS modules are fully assembled receiver with patch antenna, backup battery etc .. This version uses RS232.
System requirements:
• Device with free RS232 input
Specification:
• Connector: WTB serial RS-232, 6 pin, pitch 1.0 mm
• u-blox 8 UBX-M8030-KT chipset
• Frequency:
    GPS: L1, 1575.4200 MHz
    GLONASS: L1, 1602 (k x 0,5625) MHz
    BEIDOU COMPASS: B1, 1561.0980 MHz
    GALILEO E1, 1575.4200 MHz
    QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
    SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• TTL 3.3 V PPS signal on Pin 6
• Update rate:
    single GNSS: 18 Hz (e.g. GPS solo)
    multi GNSS: 10 Hz (e.g. GPS + GLONASS)
• Sensibility max. –167 dBm
• LED-indicator for GPS-status
• Operating temperature:
    -40 °C ~ 85 °C without battery
    -20 °C ~ 60 °C with battery
• Power supply: 5 Volt
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy:
    2.5 m CEP (Circular Error Probable) and
    2.0 m CEP with SBAS
• Dimension (LxWxH): ca. 30,0 x 30,0 x 7.90 mm
Package content:
• GNSS module

Data sheet:
http://www.navilock.de/produkt/62576/pdf.html?sprache=en
