Home Multimedia / Peripherals Transmitters / Amplifiers Roline DisplayPort Extender, 30m

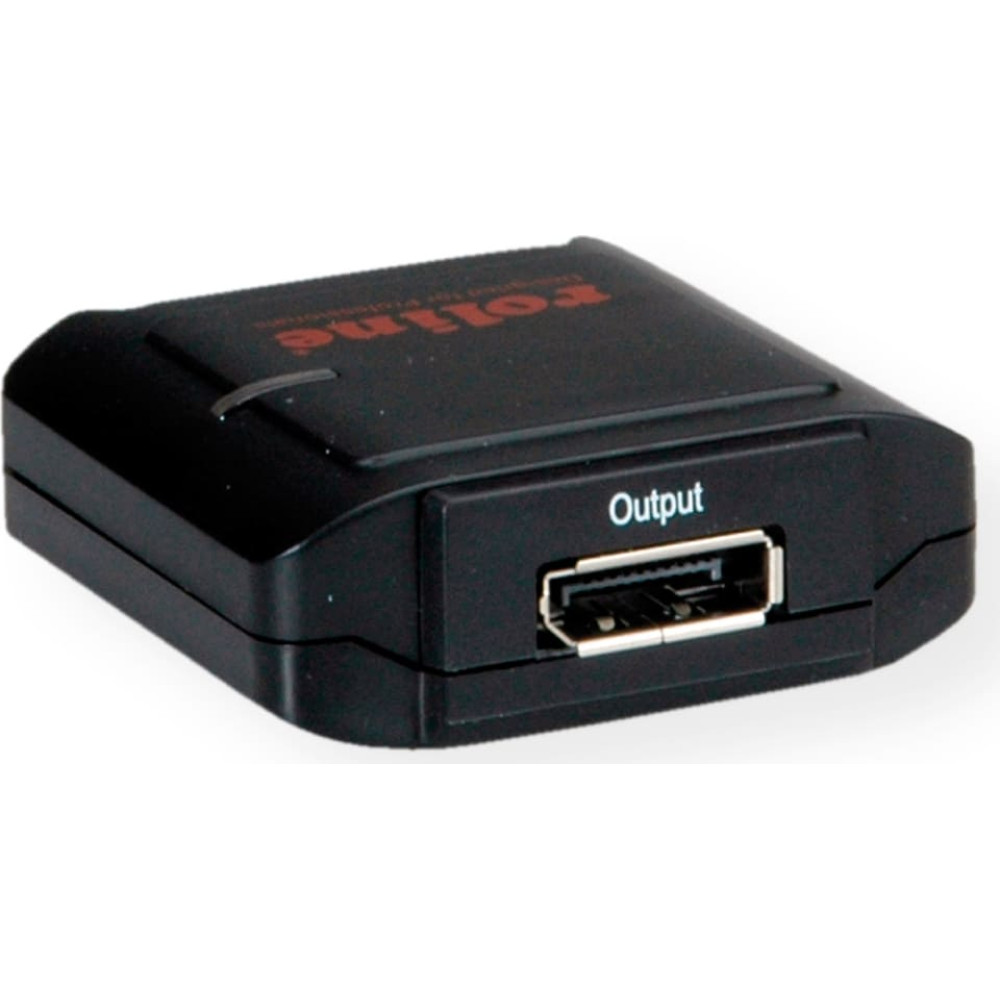

Roline DisplayPort Extender, 30m

ROLINE

Roline DisplayPort Extender, 30m

Product Code: 14.01.3473
Barcode 7630049692954

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: black
current catalog edition: C25-06.04
current catalog page: 9.10
depth: 20 mm
depth of packaging (single piece): 100 mm
dimensions (hxwxd): 55 x 54 x 20 mm
gross weight: 0.08
height: 55 mm
height of packaging (single piece): 50 mm
interface: DP
manufacturer: ROLINE
max. distance: 30 m
max. resolution: 3840 x 2160 @60Hz (4K, UHD-1)
max. resolution (nom.): 3840 x 2160 @60Hz
operating temperature max.: 40 °C
operating temperature min.: 5 °C
package weight (single piece): 0.08 kg
power supply output: DC 5V; 1A
power supply unit: 1
product group: Splitters and selectors
product type: DisplayPort extension
scope of delivery: DisplayPort v1.2 Repeater, Power Supply (5V 1A), Quick In...
video input: HDMI
video output: HDMI
weight: 31.1 g
width: 54 mm
width of packaging (single piece): 100 mm
Description

DisplayPort Repeater to create a point-to-point connection to reduce costs for applications that require a single DisplayPort input and output device over long distances - with up to 3840x2160 @60Hz resolution!

  • Ideal for display applications in conference rooms, classrooms & training facilities etc.
  • Extend the DisplayPort signal up to 30 meters
  • Supports DisplayPort resolutions up to 4K @60Hz
  • Compliant with DisplayPort specification v1.2
  • Compliant with HDCP 2.2 & DPCP
  • Supports 4K 60Hz (max. length: 5m in; 5m out); 4K 30Hz (max. length: 15m in; 15m out); 2560 x 1600 60Hz (max. length: 10m in; 20m out)
  • Supports DP++ Dual Mode, compatible with HDMI, DVI or VGA adapters
  • HDTV compatible
  • LED Indicator
  • Plug & Play
  • Power supply included in the scope of delivery (5 VDC, 1A)
