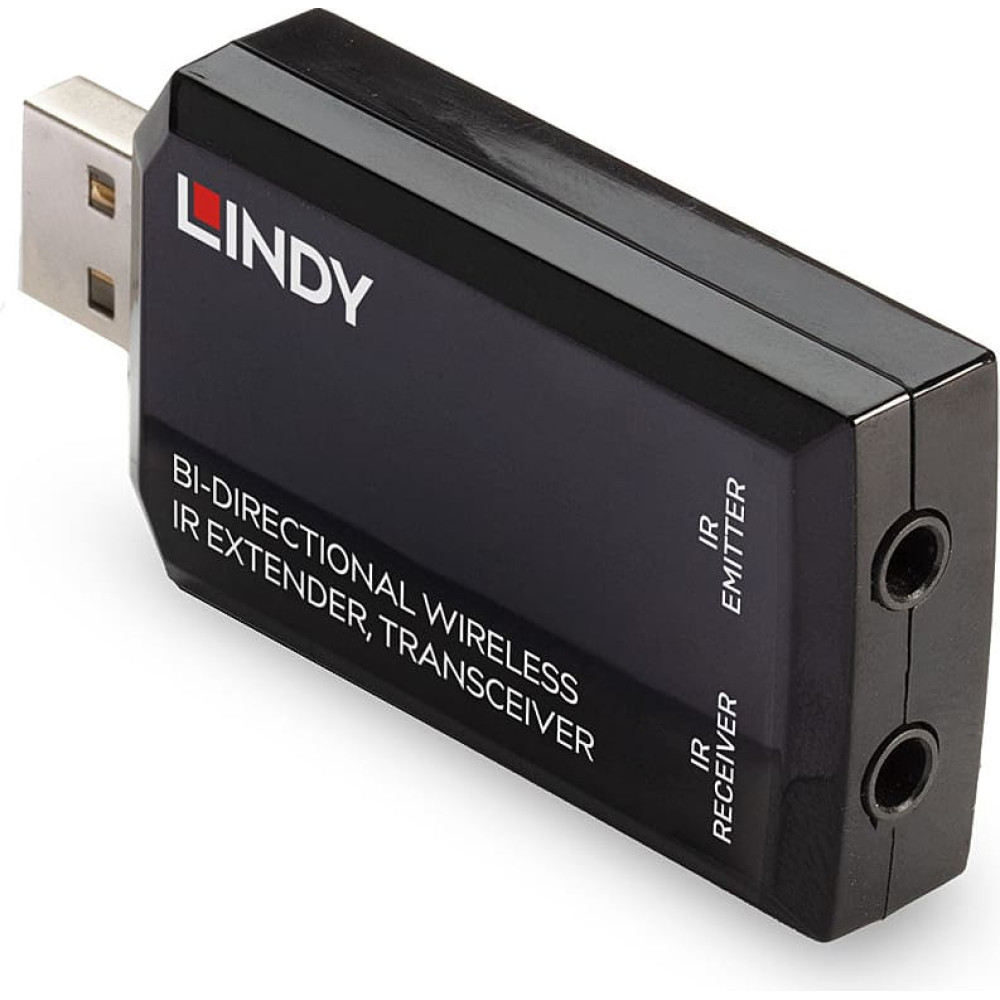

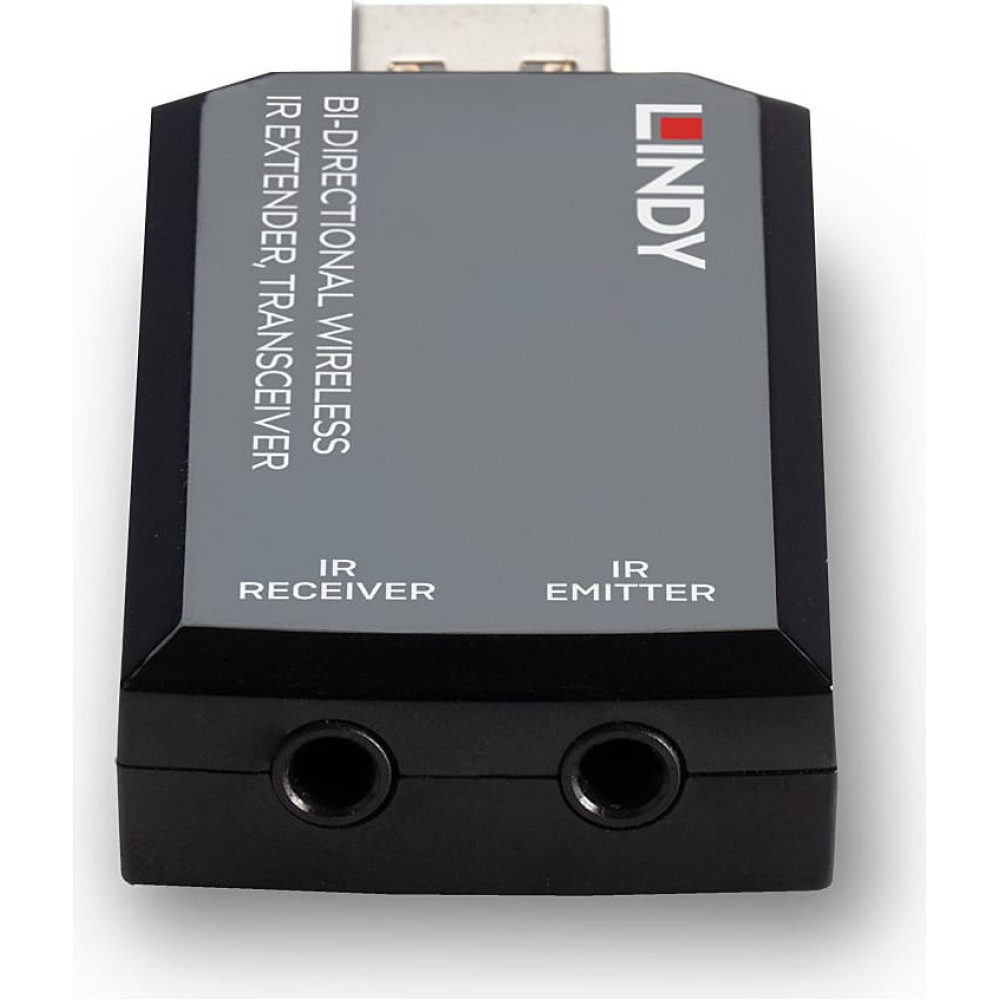

Lindy Bi-directional Wireless IR Extender, Transceiver

LINDY

Lindy Bi-directional Wireless IR Extender, Transceiver

Product Code: 38331
Barcode 4002888383318

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
3.5 mm (1/8-inch) in: Yes
cable length: 1.5 m
cables included: IR
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/fd/41/a1/65/65a141fdac890a918da8b9f3/CE_38331.pdf
chipset: AMICCOM A7129
compliance certificates: CE, REACH, RoHS
connectivity technology: Wired
country of origin: TW
depth: 13 mm
height: 63 mm
infrared (ir) frequency range: 20 - 60 kHz
material: Plastic
maximum transfer distance: 150 m
operating relative humidity (h-h): 10 - 85%
operating temperature (t-t): -40 - 85 °C
operating voltage: 3.3 V
package height: 255 mm
package weight: 75 g
package width: 236 mm
packaging height: 25.9
packaging lenght: 23.6
packaging width: 2.0
power source type: USB
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): -50 - 125 °C
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/5a/89/36/65/6536895adead5b2d57645d3d/38331_TDS_v1.pdf
type: AV transmitter & transceiver
warranty: 2.0
weight: 13 g
width: 30 mm
Description

Specifications

  • AV Interface: IR
  • Interface Standard: -
  • Supported Bandwidth: -
  • Maximum Distance: 150m (492.12ft)
  • Maximum Resolution: -
  • HDCP Support: -
  • EDID Pass Through: -
  • Supported Audio: -
  • Separate Audio Ports: -
  • IR Support: 20~60KHz
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: 866MHz RF
  • Transmission Medium: FSK Wireless
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: AMICCOM A7129
  • Special Features: Bi-directional 1 - 1 and 1 - Many Extension



Connectors

  • Transmitter Input: -
  • Transmitter Output: -
  • Receiver Input: -
  • Receiver Output: -
  • Bi-directional Ports: 3.5mm IR (Female)
  • Power : USB Powered



Physical Properties

  • Dimensions (approx.) WxDxH: 30x13x63mm (1.18x0.51x2.48in)
  • Housing Material: Plastic
  • Net Weight: 0.013kg (0.03lb)
  • Operating Temperature: -40°C - 85°C (-40°F - 185°F)
  • Storage Temperature: -55°C - 125°C (-67°F - 257°F)
  • Humidity: 10-85% RH (non-condensing)
  • Power Requirements: 3.3V
  • Colour: Black



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 236x255mm (9.29x10.04in)
  • Gross Weight: 0.027kg (0.06lb)
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

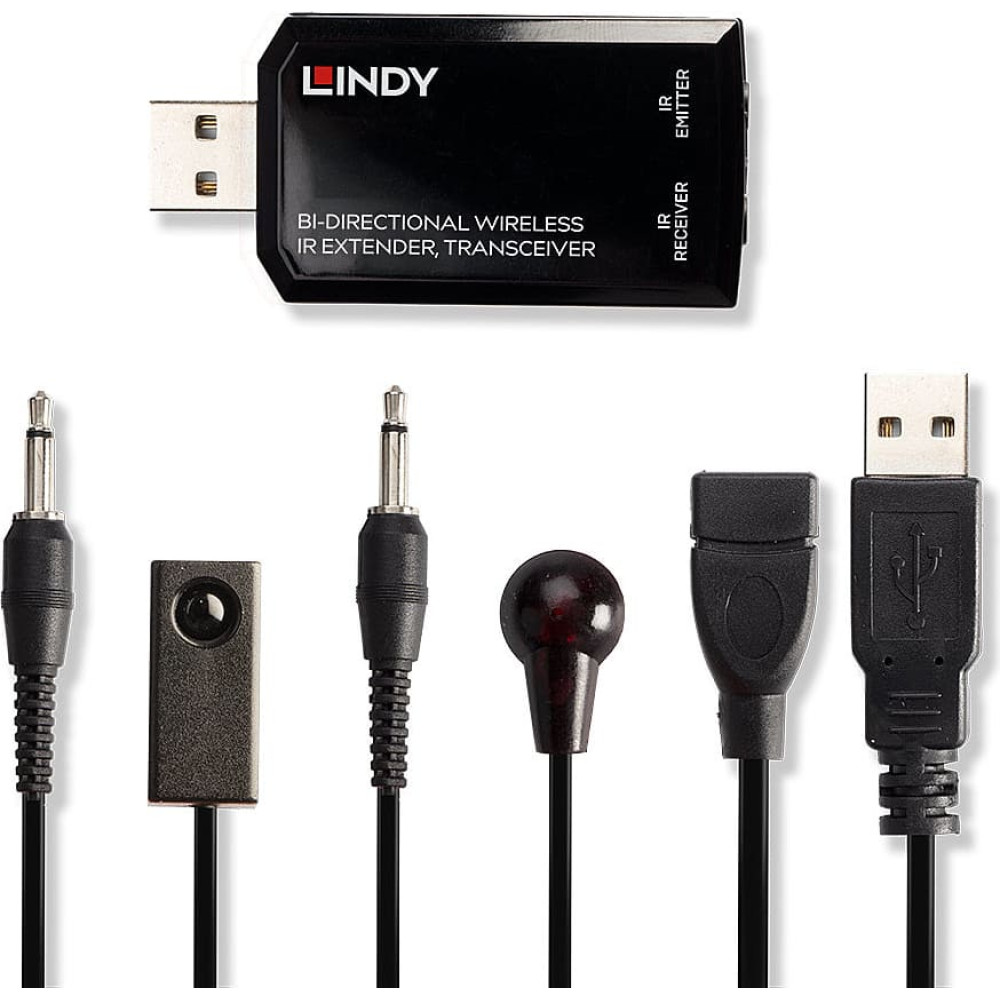

Package Contents

  • Bi-directional Wireless IR Extender, Transceiver
  • USB Type A Male to Female Cable, 0.3m (0.98ft)
  • 3.5mm (male) to IR receiver cable, 1.5m (4.92ft)
  • 3.5mm (male) to IR transmitter cable., 1.5m (4.92ft)
  • Lindy Manual



Purchasing Information

  • No.: 38331
  • EAN: 4002888383318
