Lindy Fibre Optic USB 3.0 Extender 350m

LINDY

Lindy Fibre Optic USB 3.0 Extender 350m

Product Code: 42708
Barcode 4002888427081

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
certification: CE, FCC, REACH, California Proposition 65
compliance certificates: RoHS
data transfer rate: 5000 Mbit/s
dc-in jack: Yes
external power adapter: Yes
fiber optic connector: LC
fiber ports quantity: 2
harmonized system (hs) code: 85176990
input current: 3 A
maximum transfer distance: 350 m
operating relative humidity (h-h): 20 - 80%
operating temperature (t-t): 0 - 50 °C
package depth: 123 mm
package height: 115 mm
package type: Box
package weight: 643 g
package width: 154 mm
product colour: Black
receiver depth: 9.3 cm
receiver height: 2.8 cm
receiver weight: 129 g
receiver width: 5.7 cm
storage temperature (t-t): -20 - 70 °C
transmitter depth: 9.3 cm
transmitter height: 2.8 cm
transmitter weight: 125 g
transmitter width: 5.7 cm
type: Network transmitter & receiver
weight: 254 g
Description

Specifications

  • USB Standard: USB 3.1 Gen 1 / USB 3.0
  • Supported Bandwidth: 5Gbps
  • Maximum Distance: 350m (1148.28ft)
  • Transmission Medium:
    • 100m (328.08ft) - 1 x Multimode 62.5µm/125µm OM1
    • 200m (656.16ft) - 1 x Multimode 50µm/125µm OM2
    • 350m (1148.28ft) - 1 x Multimode 50µm/125µm OM3
  • Chipset: TI TUSB8041 and Macom
  • Special Features: Supports isochronous data transfer

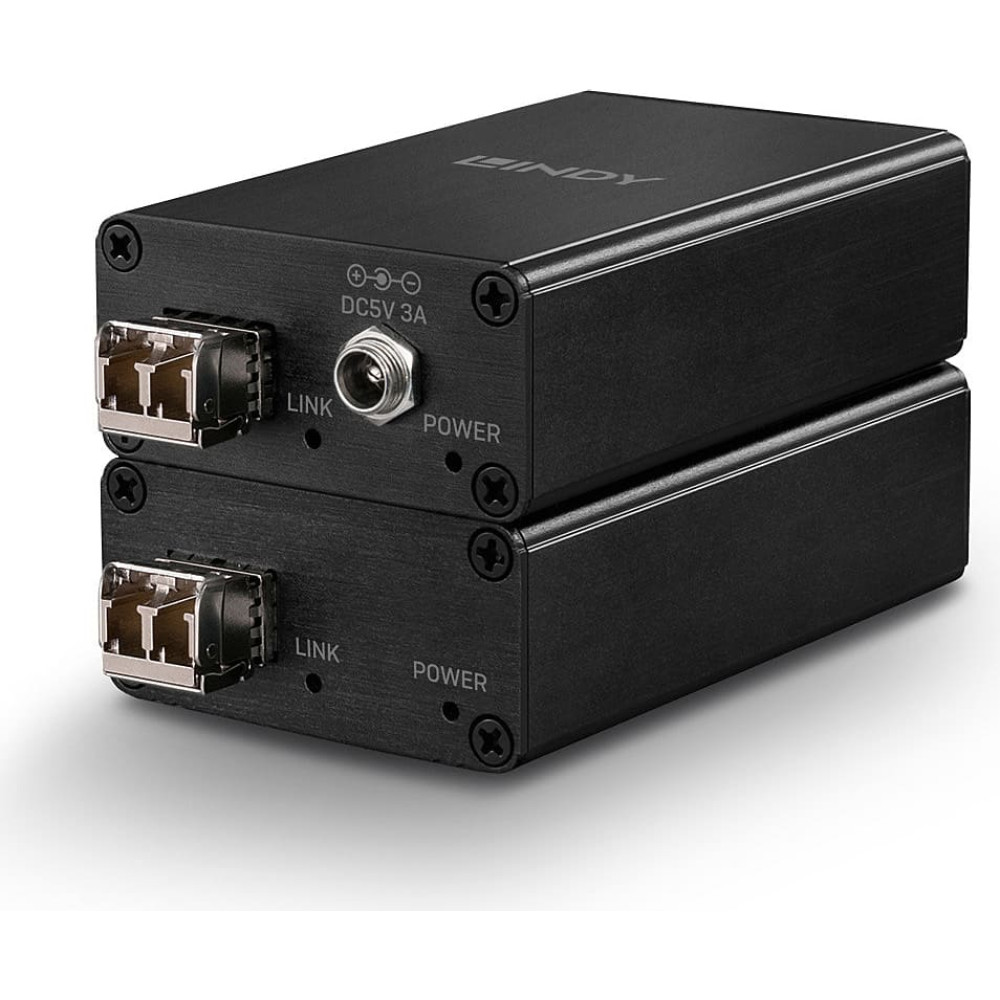

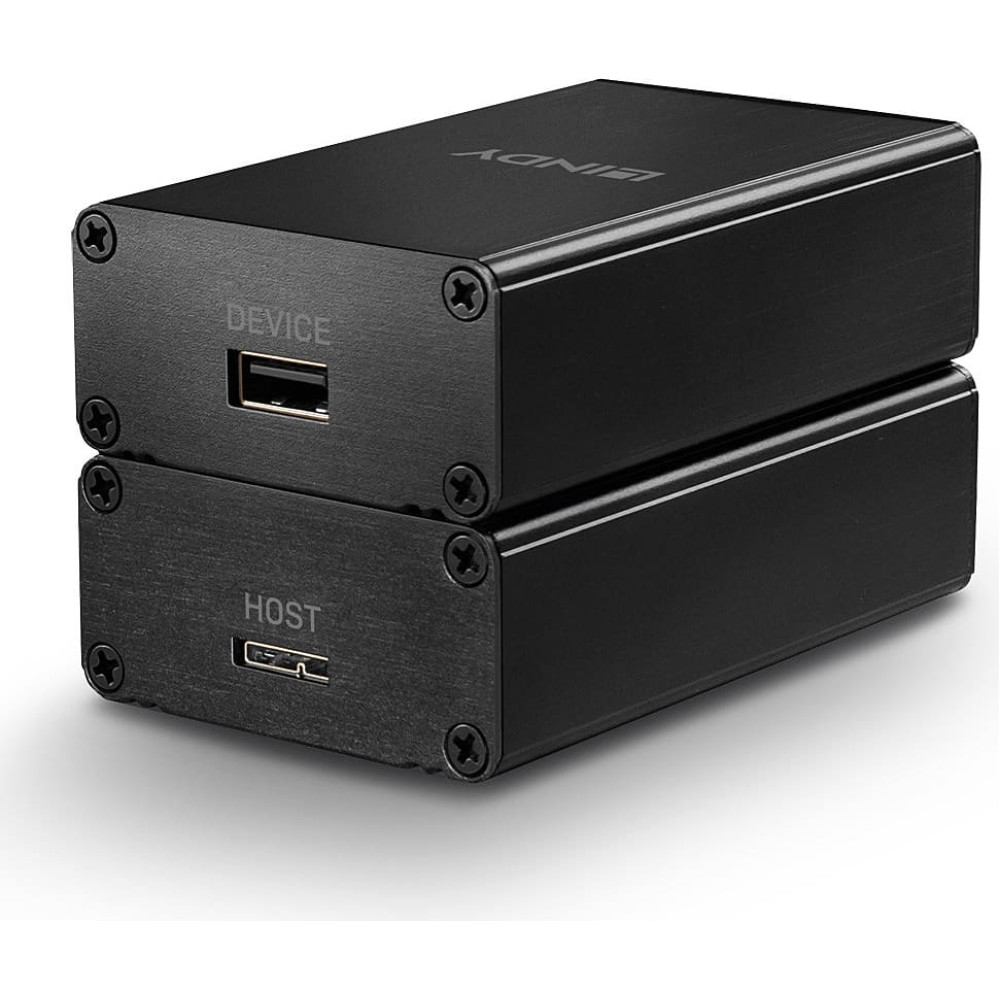

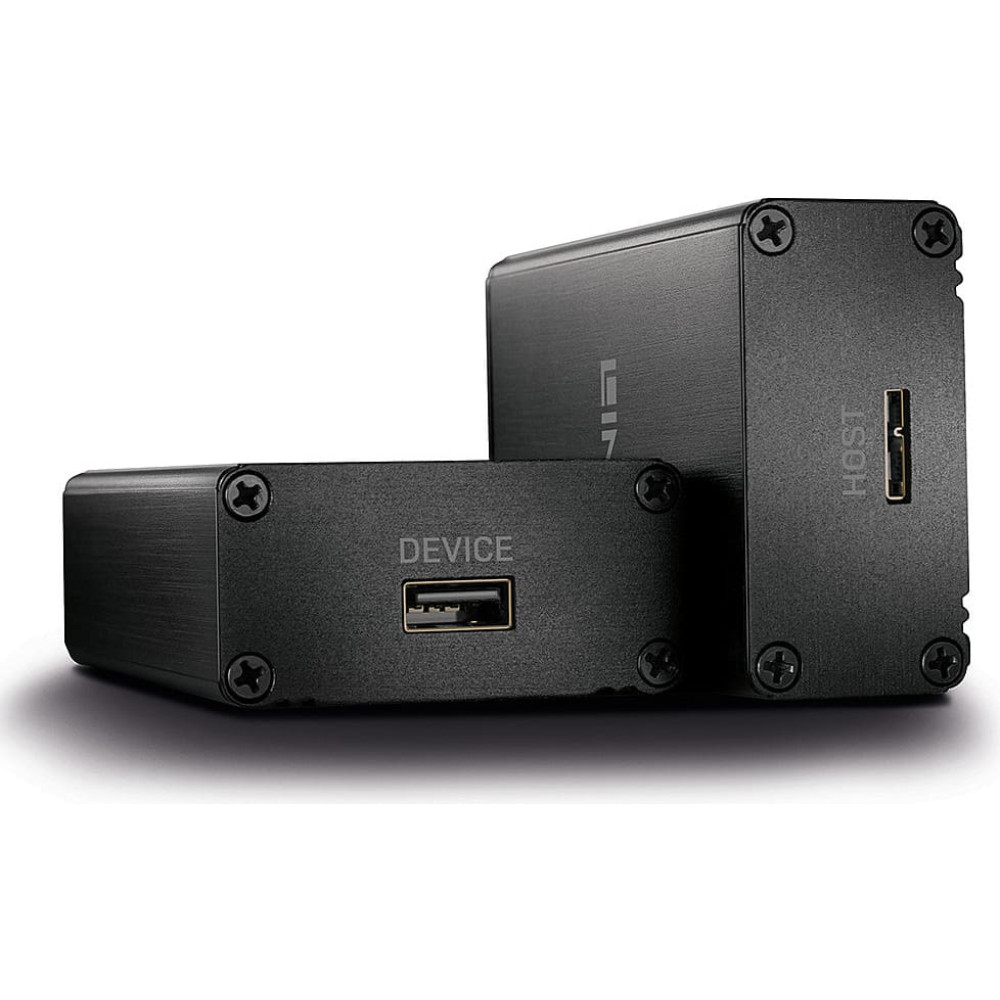

Connectors

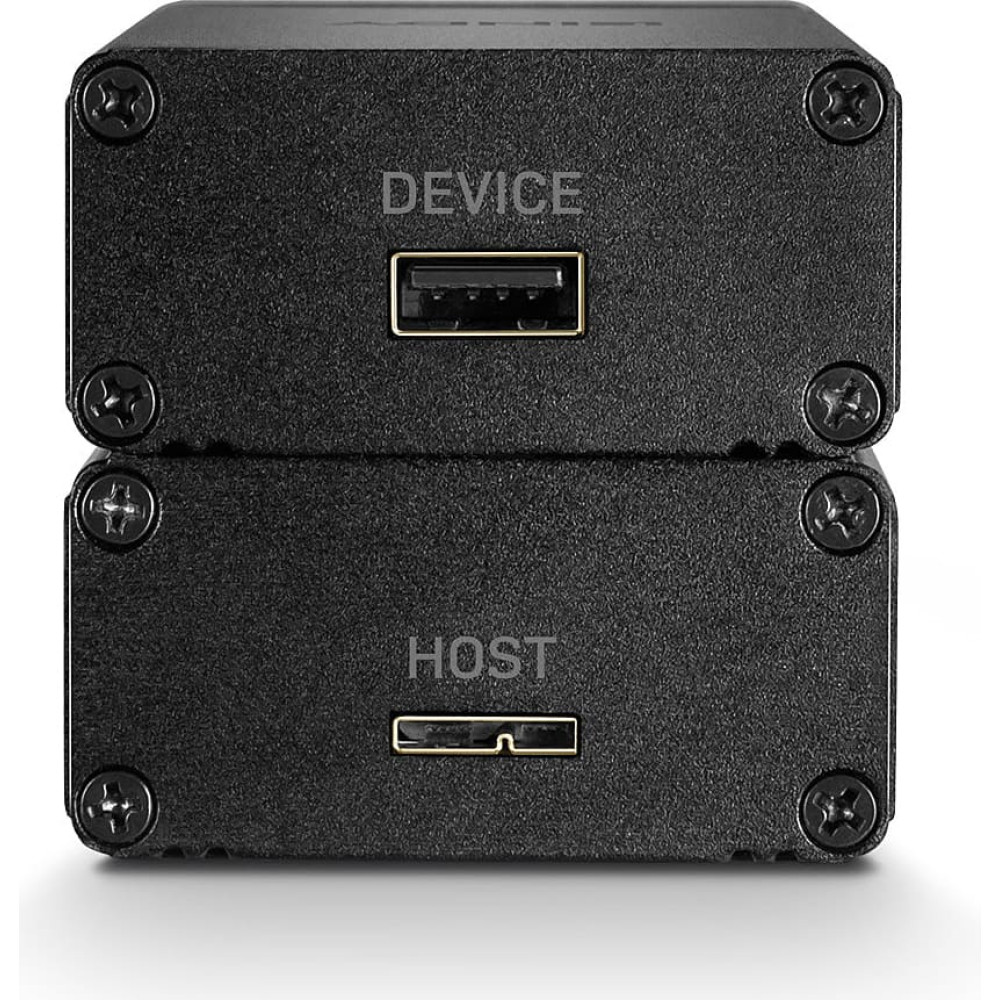

  • Transmitter Input: USB Micro-B (Female)

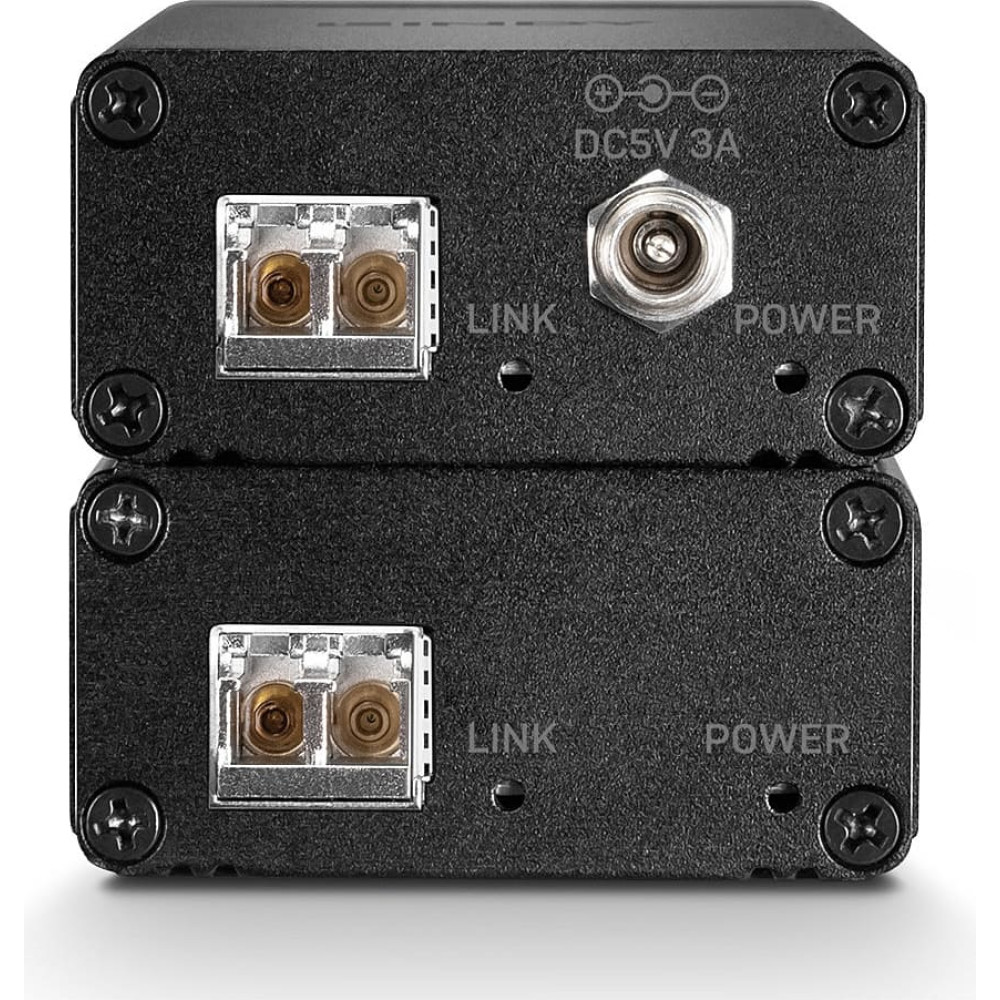

  • Transmitter Output: Duplex LC (Female)
  • Receiver Input: Duplex LC (Female)
  • Receiver Output: USB Type-A (Female)
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions WxDxH: 57x93x28mm (2.24x3.66x1.1in)
  • Housing Material: Metal
  • Net Weight:
    • Transmitter: 0.125kg (0.28lb)
    • Receiver: 0.129kg (0.28lb)
  • Operating Temperature: 0° - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 20 - 80% RH (non-condensing)
  • Power Requirements: 5VDC 3A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 151x127x112mm (5.94x5x4.40in)
  • Gross Weight: 0.643kg (1.42lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, REACH, ROHS, California Proposition 65



Package Contents

  • 1 x Transmitter
  • 1 x Receiver
  • 1 x Multi-Country PSU DC 5V 3A (EU/UK/US/AUS)
  • Lindy Manual



Purchasing information

  • No.: 42708
  • EAN: 4002888427081
