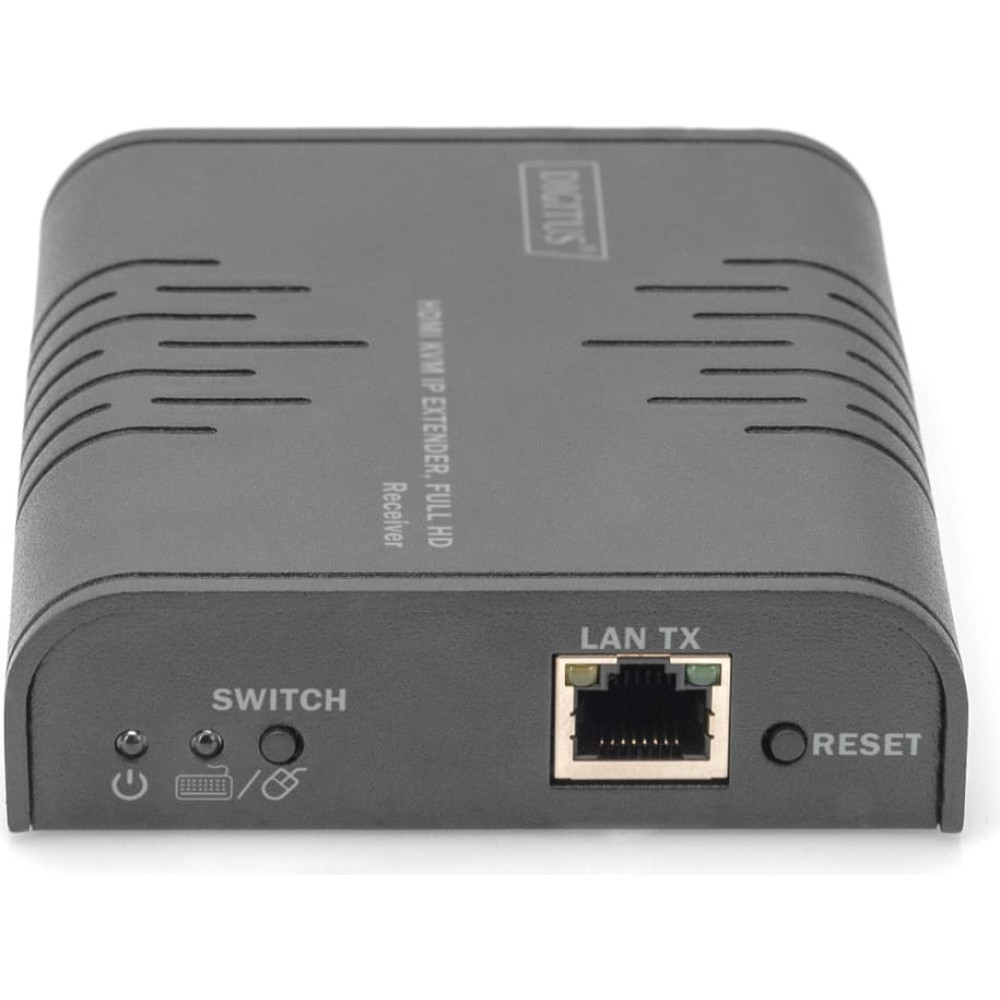

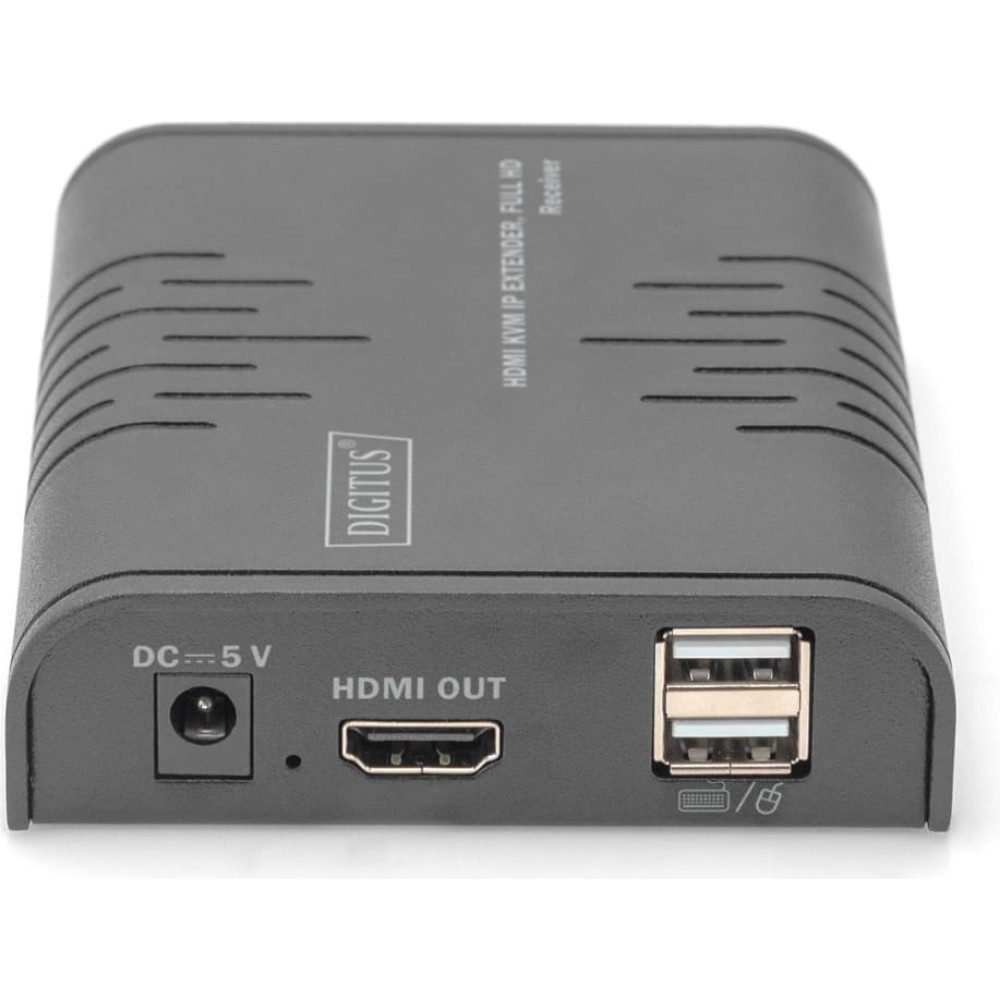

Digitus HDMI KVM IP Extender Receiver, Full HD
To purchase this product you must be registered in our system.
Specification
country of origin: CN
depth: 0.160
height: 0.090
height(cm): 7.7
length(cm): 15
volume(cm3): 1351.35
weight(kg): 0.35
width: 0.120
width(cm): 11.7
Description
| IP KVM Extender, Receiver (RX) Unit for DS-55529 Expand the HDMI KVM IP Extender Set (DS-55529) with additional receiver units to reproduce your AV content on multiple screens (up to 253) at the same time. DS-55529 can be extended on up to 253 screens (receivers) KVM function for connection of mouse/keyboard to control the signal source on the output screen Supports resolutions of up to 1080p/60Hz, Full HD Supports CAT 5e (or higher) network cable Easy installation thanks to Plug & Play - no additional software/drivers etc. required HDMI 1.3 HDCP 1.4 Expand the HDMI KVM IP Extender Set (DS-55529) with additional receiver units to reproduce your AV content on multiple monitors at the same time. The set extends Full HD AV signals using a CAT5e (or higher) network cable (point-to-point connection) up to 120 m. In addition, using network switches and the individual receiver units (DS-55530), you can distribute your video content over up to 253 displays via the already existing network (IP connection) and extend them over an unlimited distance. Thanks to KVM functionality, a mouse/keyboard can be connected to the receiver, making it possible to control the signal source on the output screen. Distance: 120 m KVM: true PoE (Power over Ethernet): false Transmission technology: IP Supports resolutions of up to 1080p/60Hz, Full HD Supports CAT 5e (or higher) network cable Easy installation thanks to Plug & Play - no additional software/drivers etc. required Supports Full-HD resolutions of up to 1920x1080 / 60 Hz HDMI 1.3 HDCP 1.4 Receiver unit connections: 1x HDMI output (1080p/60Hz) - Connection output device 1x RJ45 input - Connection CAT transmission cable 2x USB-A (2.0) input - Connection of mouse/keyboard 1x Power adapter input (DC 5V/1A) - Connection for external power adapter 1x KVM button - Switch to the desired receiver (output device) to use the KVM functionality 1x Reset button Operating temperature: -10 - 60° Power consumption: approx. 3.5W Housing: Metal Dimensions: L 11 x W 9 x H 2.7 cm Weight (1 unit): 244 g Color: black Package content: 1x Receiver unit 1x Power adapter (DC 5V/1A, 1.5 m) 1x user manual |
