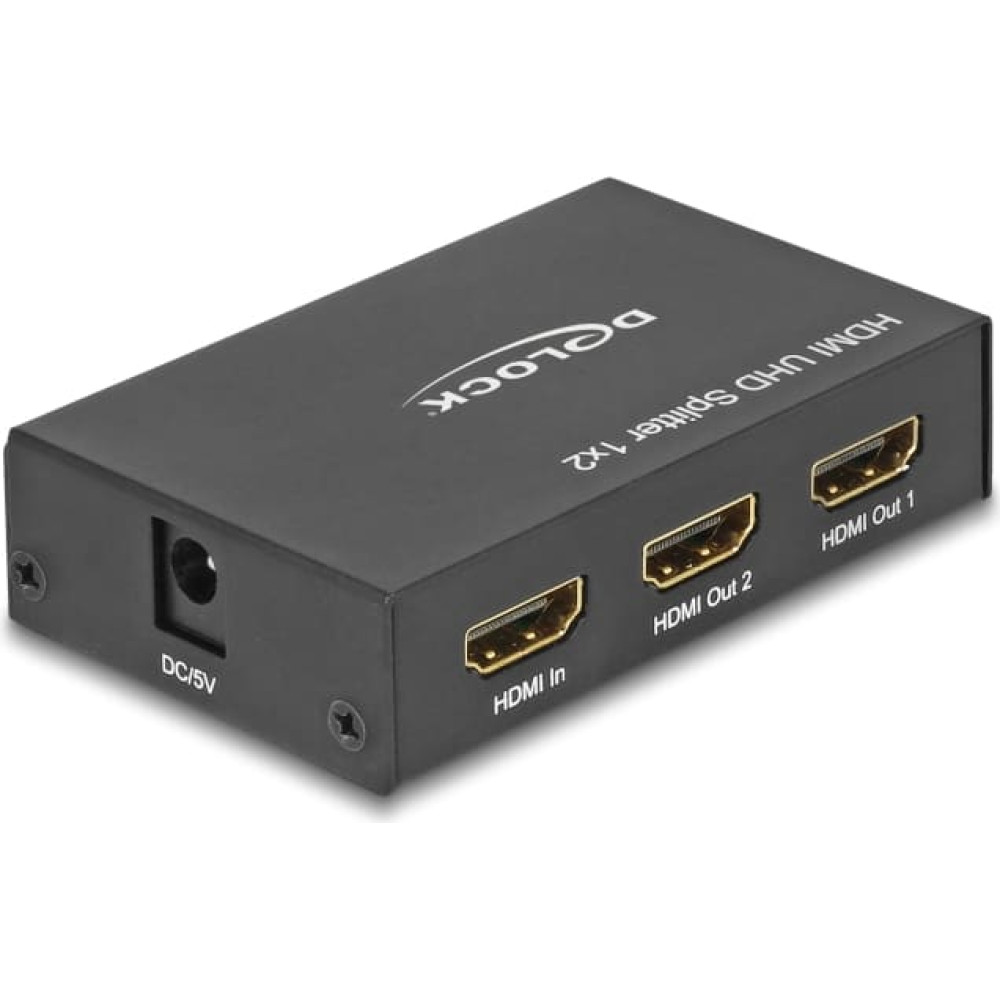

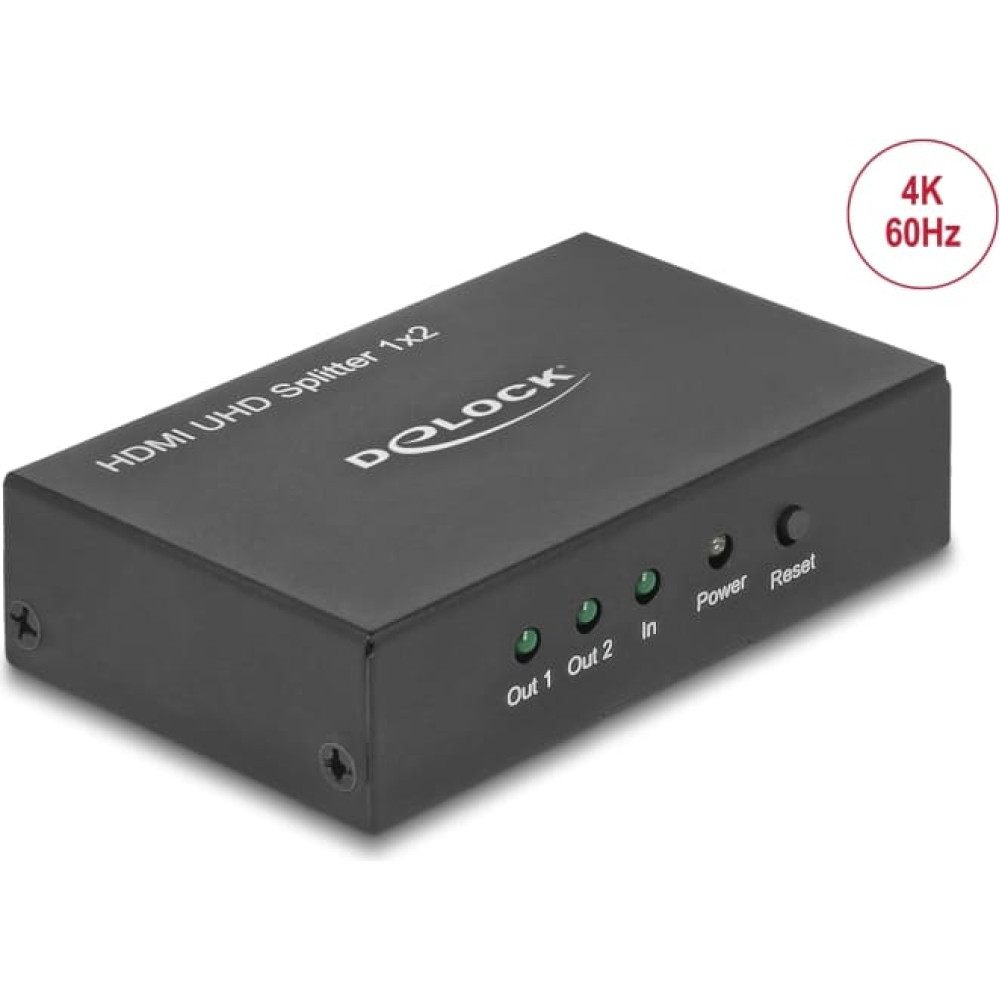

Delock HDMI UHD Splitter 1 x HDMI in - 2 x HDMI out 4K
To purchase this product you must be registered in our system.
Specification
depth: 0.160
height: 0.045
width: 0.150
Description
| This splitter by Delock receives an HDMI signal from a PC or laptop and splits it to two connected displays. Thereby one HDMI connection can be used to operate two HDMI monitors. System requirements: • One free HDMI female • HDMI cable Specification: • Connectors: Input: 1 x HDMI-A 19 pin female 1 x DC 5 V power connector Output: 2 x HDMI-A 19 pin female • High Speed HDMI specification • Supports 3D displays • Supports HDCP 1.4 and 2.2 • Supports HDR • Reset button • LED indicator • Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware) • Video bandwidth up to 600 MHz / 6 Gbps per channel, max. 18 Gbps • Power consumption: max. 2.4 W • Metal housing • Colour: black • Dimensions (LxWxH): ca. 80 x 51 x 20 mm Power supply specification • Wall power supply • Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A • Output: 5 V / 1 A • Ground outside, plus inside • Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm length: ca. 9 mm Package content: • HDMI Splitter • USB power cable, length: ca. 0.5 m • External power supply • User manual Data sheet: http://www.delock.de/produkt/18682/pdf.html?sprache=en |
