Home Multimedia / Peripherals Videoswitches / Videoselectors Lindy 4 Port HDMI 18G Splitter

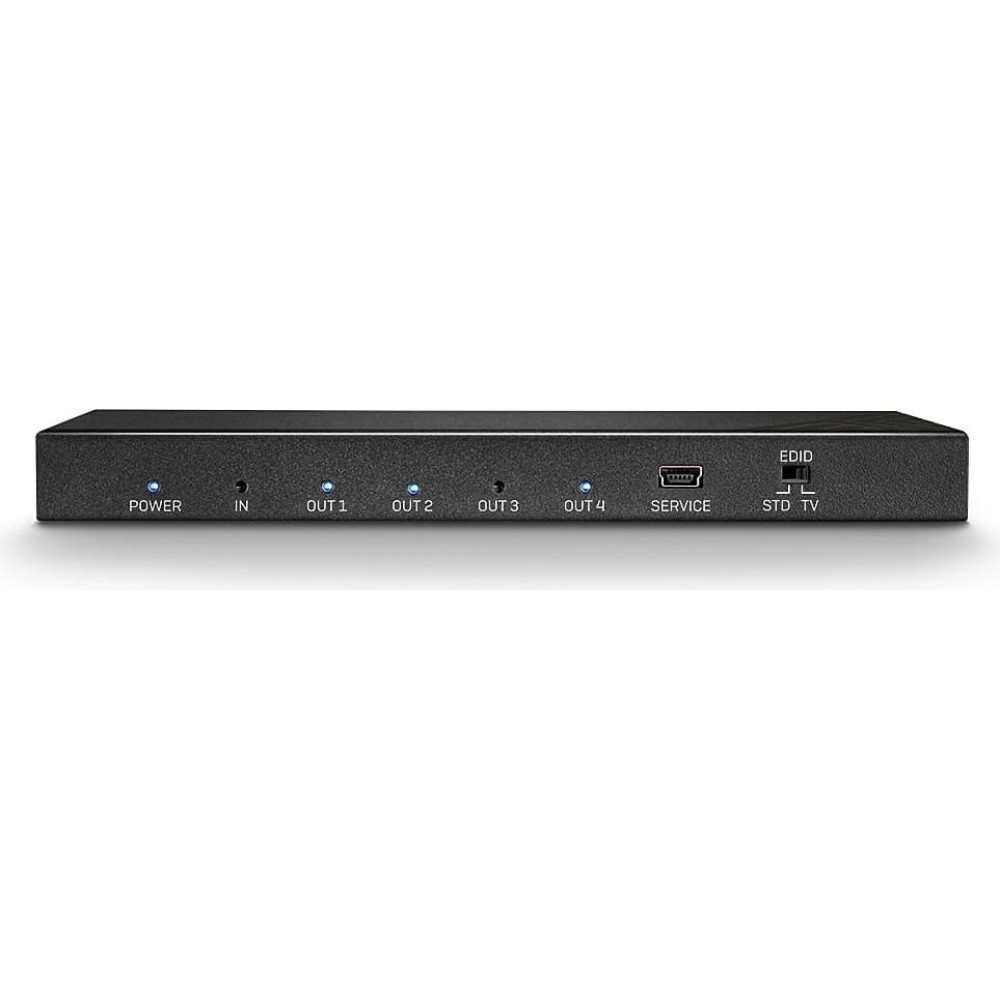

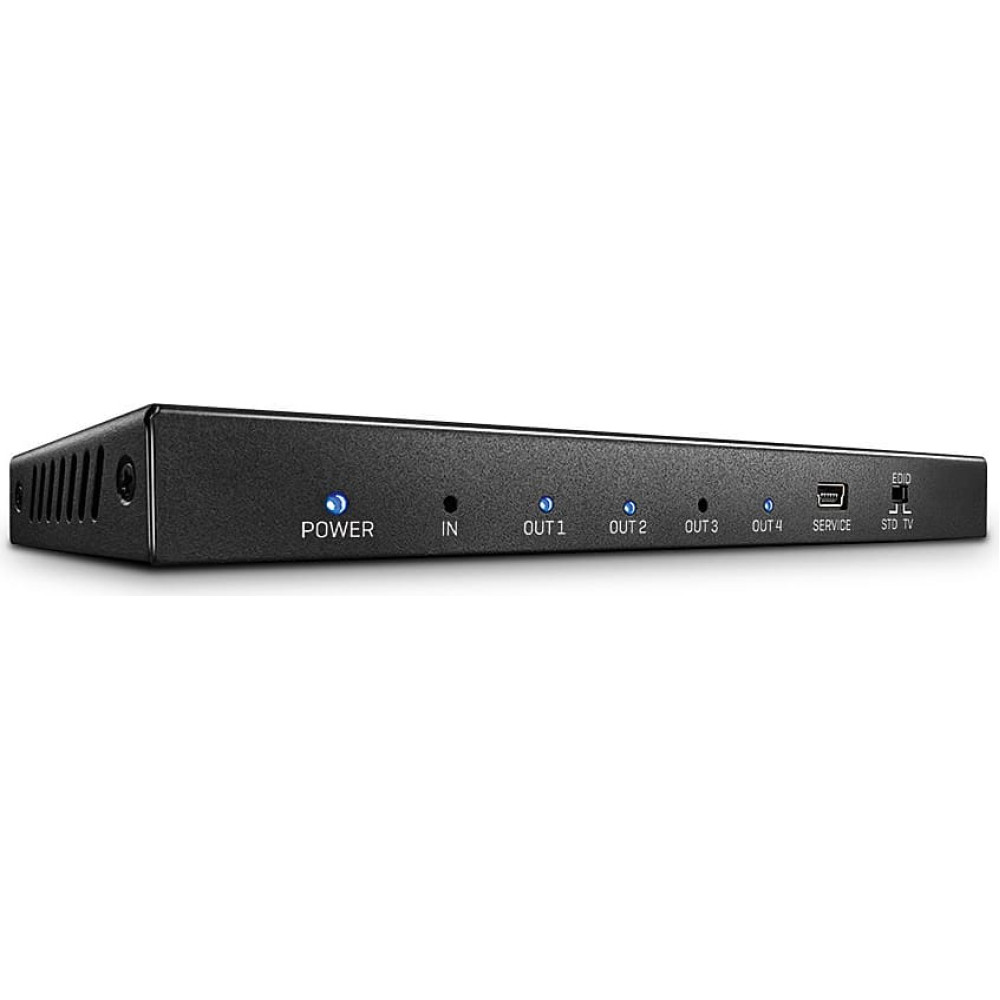

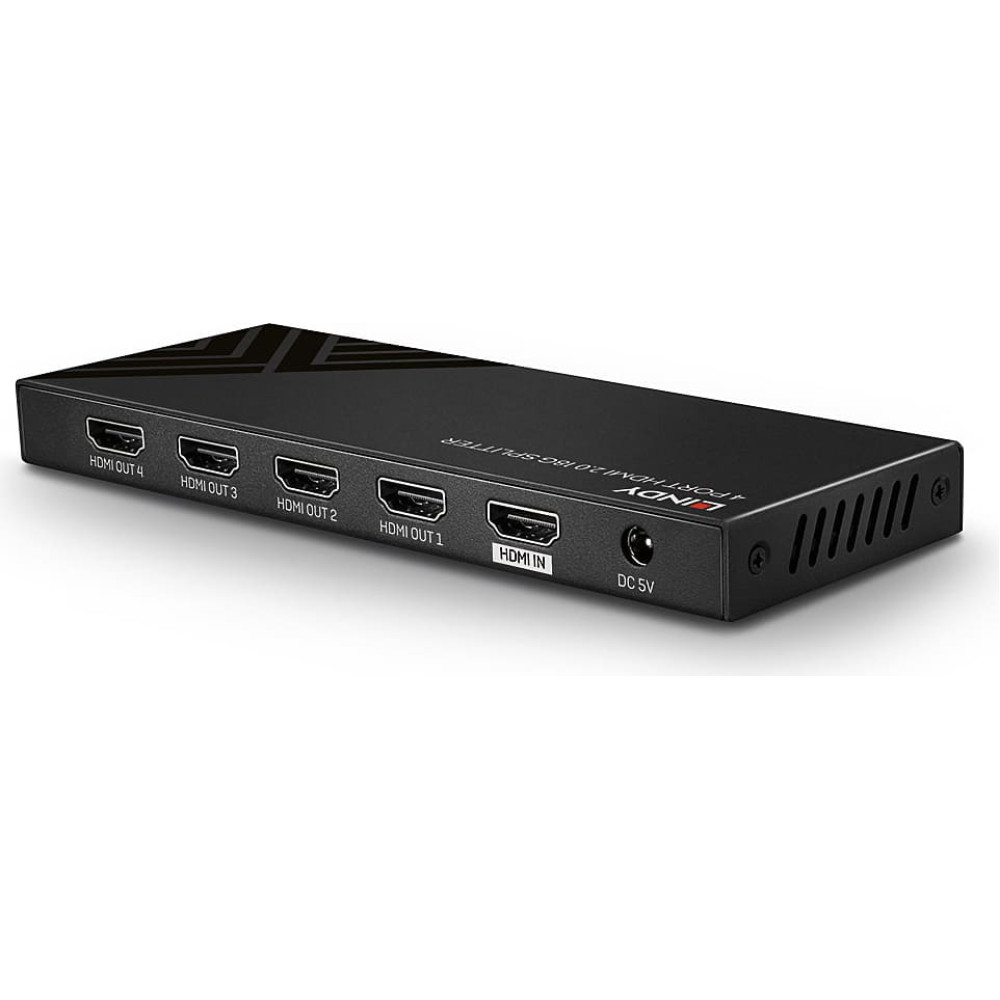

Lindy 4 Port HDMI 18G Splitter

LINDY

Lindy 4 Port HDMI 18G Splitter

Product Code: 38236
Barcode 4002888382366

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
ac input voltage: 5 V
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/70/55/97/62/62975570a7fecca6d5a65f57/CE_DoC_DE_38235_38237.pdf
certification: CE, FCC, REACH, California Proposition 65
compliance certificates: RoHS
country of origin: CN
dc-in jack: Yes
depth: 63 mm
harmonized system (hs) code: 85176990
hd type: 4K Ultra HD
hdcp: Yes
hdmi version: 2.0
height: 16 mm
housing material: Metal
input current: 1 A
led indicators: Yes
manual: Yes
maximum refresh rate: 60 Hz
maximum resolution: 3840 x 2160 pixels
operating relative humidity (h-h): 20 - 90%
operating temperature (t-t): 0 - 40 °C
package depth: 55 mm
package height: 183 mm
package type: Box
package weight: 526 g
package width: 248 mm
packaging height: 5.5
packaging lenght: 21.4
packaging width: 15.0
product colour: Black
storage temperature (t-t): -20 - 60 °C
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f5/67/97/62/629767f5d0ebe20d37a65f57/38236_TDS_v1.pdf
video out: 4x HDMI
video port type: HDMI
video ports quantity: 5
warranty: 2.0
weight: 373 g
width: 163 mm
Description

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supports Bandwidth: 18Gbps
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • Supported Audio: Audio Pass-through
  • Separate Audio Ports: -
  • CEC Support: -
  • Serial Interface: -
  • Special Features: EDID emulation



Connectors

  • Input: 1 x HDMI (Female)
  • Output: 4 x HDMI (Female)
  • Control: -
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions (approx.) WxDxH: 163x63x16mm (6.42x2.48x0.63in)
  • Housing Material: Metal
  • Net Weight: 0.373kg (0.82lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (Non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 248x55x183mm (9.76x2.17x7.2in)
  • Gross Weight: 0.526kg (1.16lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • HDMI Splitter
  • Multi-country PSU (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38236
  • EAN: 4002888382366
