Delock HDMI Stereo 5.1 Channel Audio Extractor 4K
To purchase this product you must be registered in our system.
Specification
depth: 0.160
height: 0.050
width: 0.160
Description

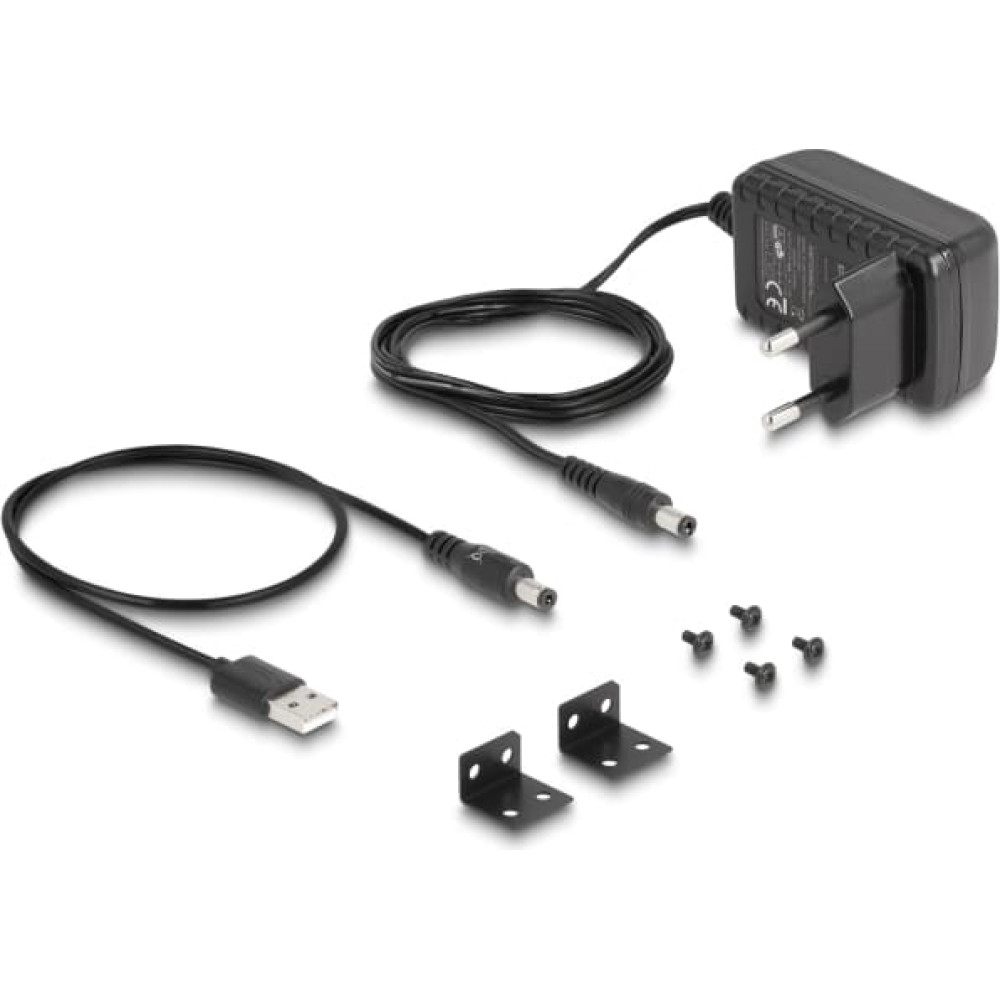

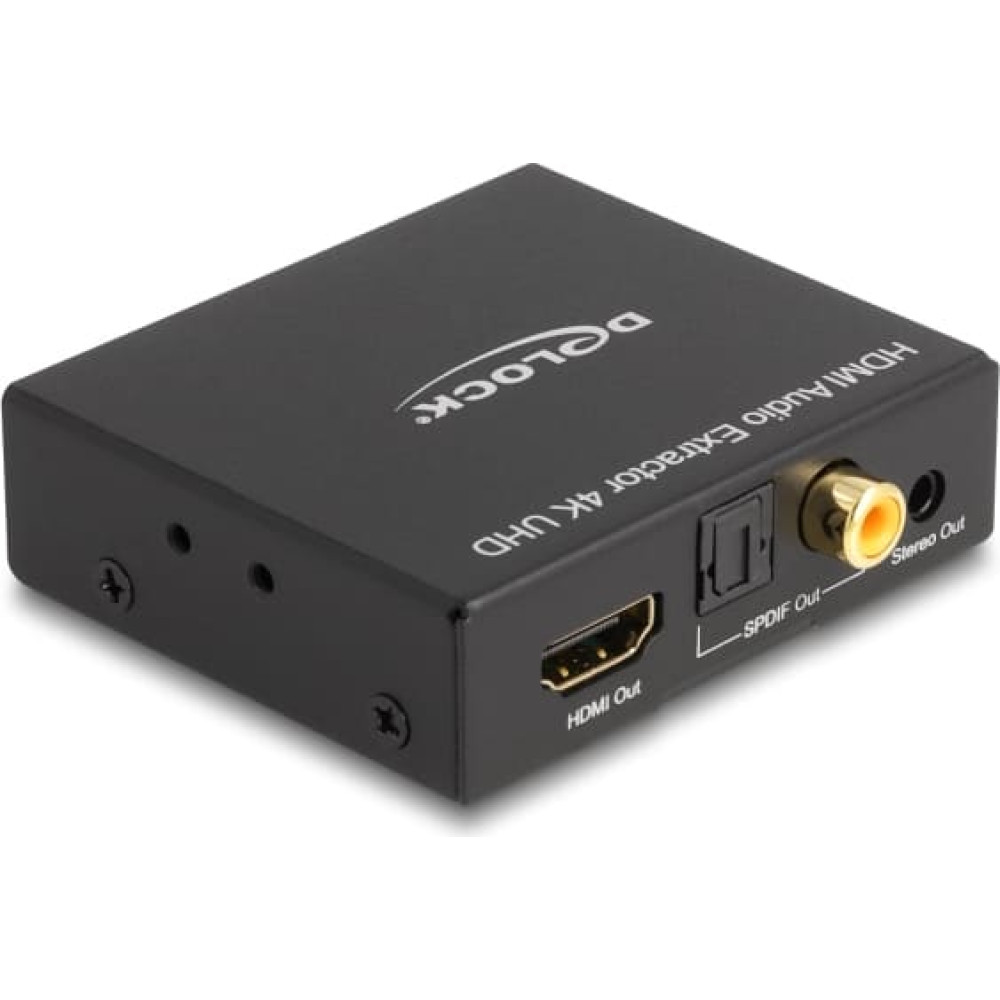

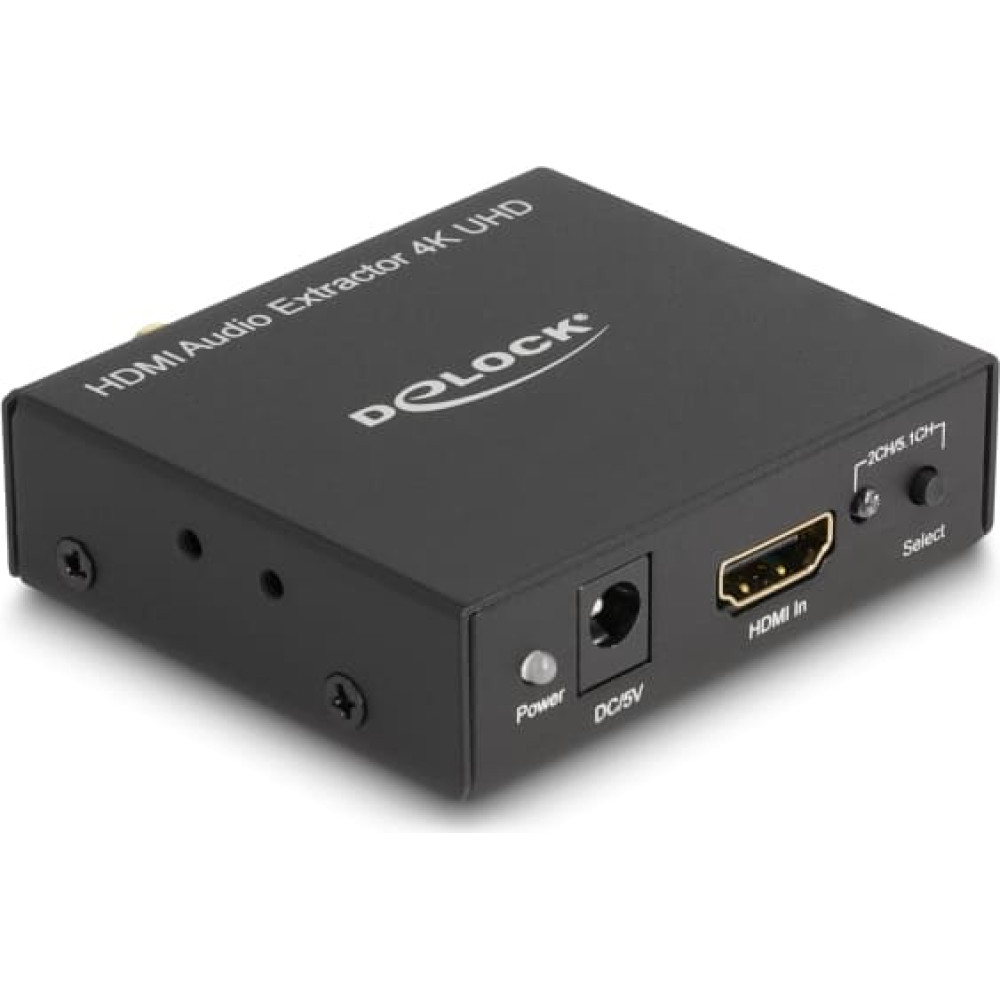

| This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver. System requirements: • A free HDMI-A female Specification: • Connectors: Input: 1 x HDMI-A 19 pin female 1 x 5 V DC jack 2.1 x 5.5 mm Output: 1 x HDMI-A 19 pin female 1 x 3.5 mm 3 pin stereo jack female (audio) 1 x TOSLINK female S/PDIF 1 x RCA female S/PDIF • Switchable between stereo and 5.1 channel • High Speed HDMI, 3D and HDCP 1.4 • Output with HDMI repeater function • Resolution up to 3840 x 2160 @ 30 Hz (8 bit), 1920 x 1080 @ 60 Hz (12 bit) • Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max. • Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio • Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz (depending on the system and the connected devices) • CEC and HDMI audio routed to the output (pass-through) • Chipset: CS4344, 24 bit / 192 kHz • Robust metal housing • Power consumption: max. 2.5 W • Dimensions (LxWxH): ca. 71 x 61 x 21 mm Power supply specification • Wall power supply • Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A • Output: 5 V / 1 A • Ground outside, plus inside • Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm length: ca. 9 mm Package content: • HDMI Audio Extractor • Mounting brackets and screws • USB power cable, length: ca. 0.5 m • Power supply • User manual Data sheet: http://www.delock.de/produkt/62692/pdf.html?sprache=en |
