Home Network products 19" rack-mounts / accessories 19" accessories Schroff Telescopic Slide Universal, Slim, 2 U, 457L
Schroff Telescopic Slide Universal, Slim, 2 U, 457L

Schroff Telescopic Slide Universal, Slim, 2 U, 457L

Product Code: 20110073
Barcode 4036088202049
Brand: SCHROFF

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth of packaging (single piece): 480 mm
gross weight: 2.826
height of packaging (single piece): 20 mm
height units: 2 U
manufacturer: SCHROFF
maximum weight capacity: 55 kg
package weight (single piece): 2.826 kg
product group: SCHROFF 19" cabinets & expansion parts
product type: Telescopic rails
width of packaging (single piece): 190 mm
Description

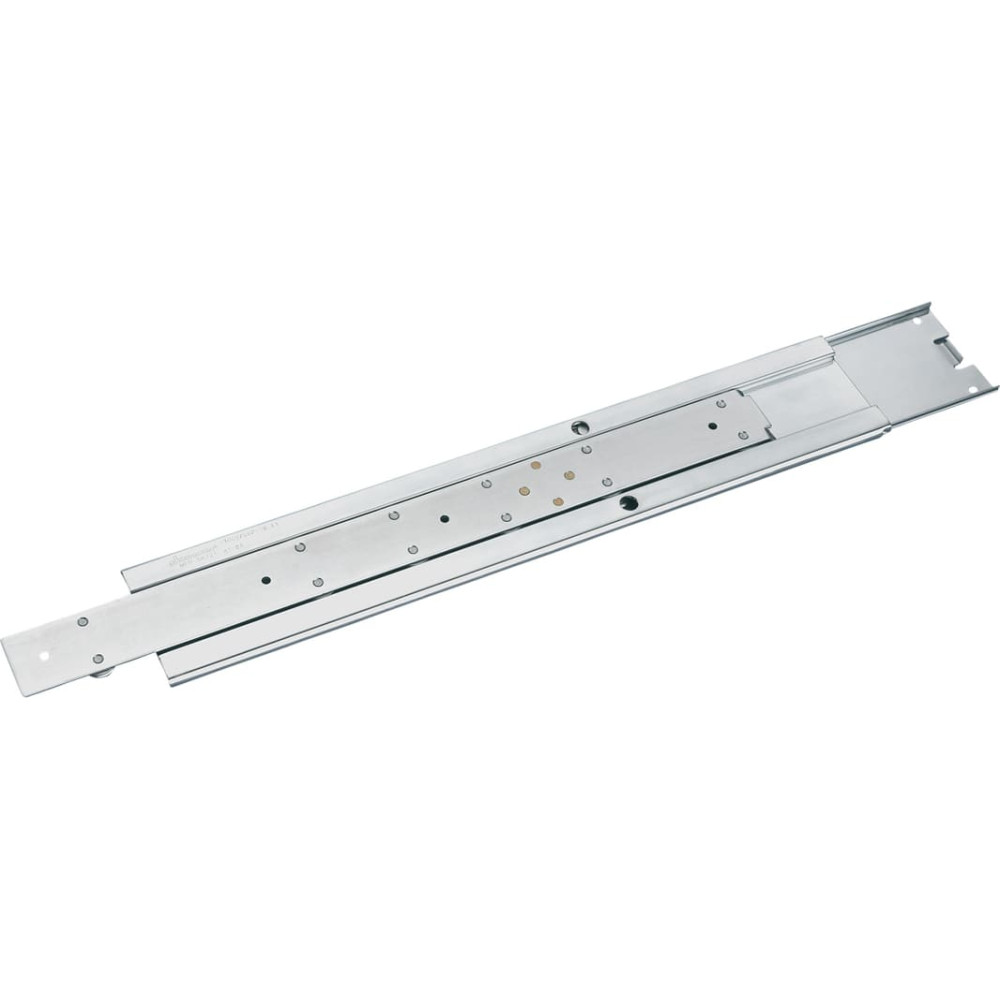

Universal telescopic rail, narrow, 2 U, 457 long

TELESCOPIC SLIDE UNIV.2U 457D

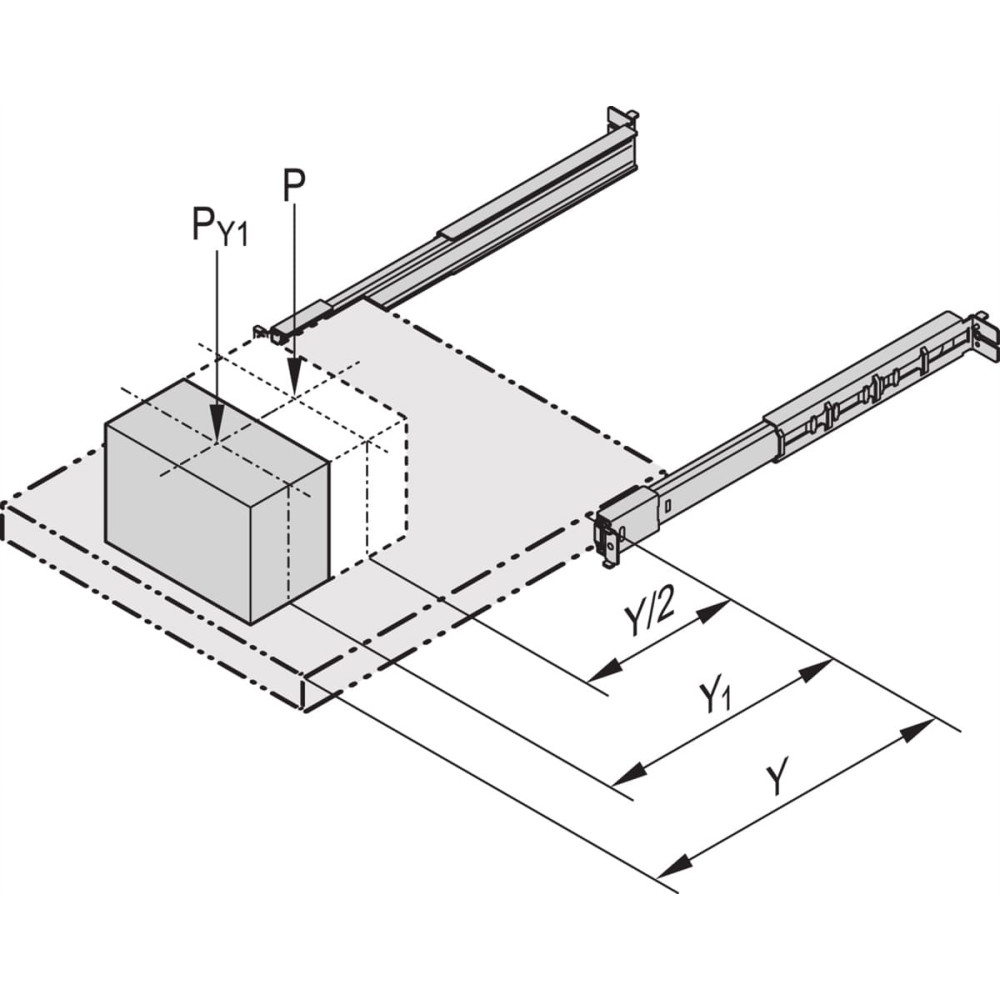

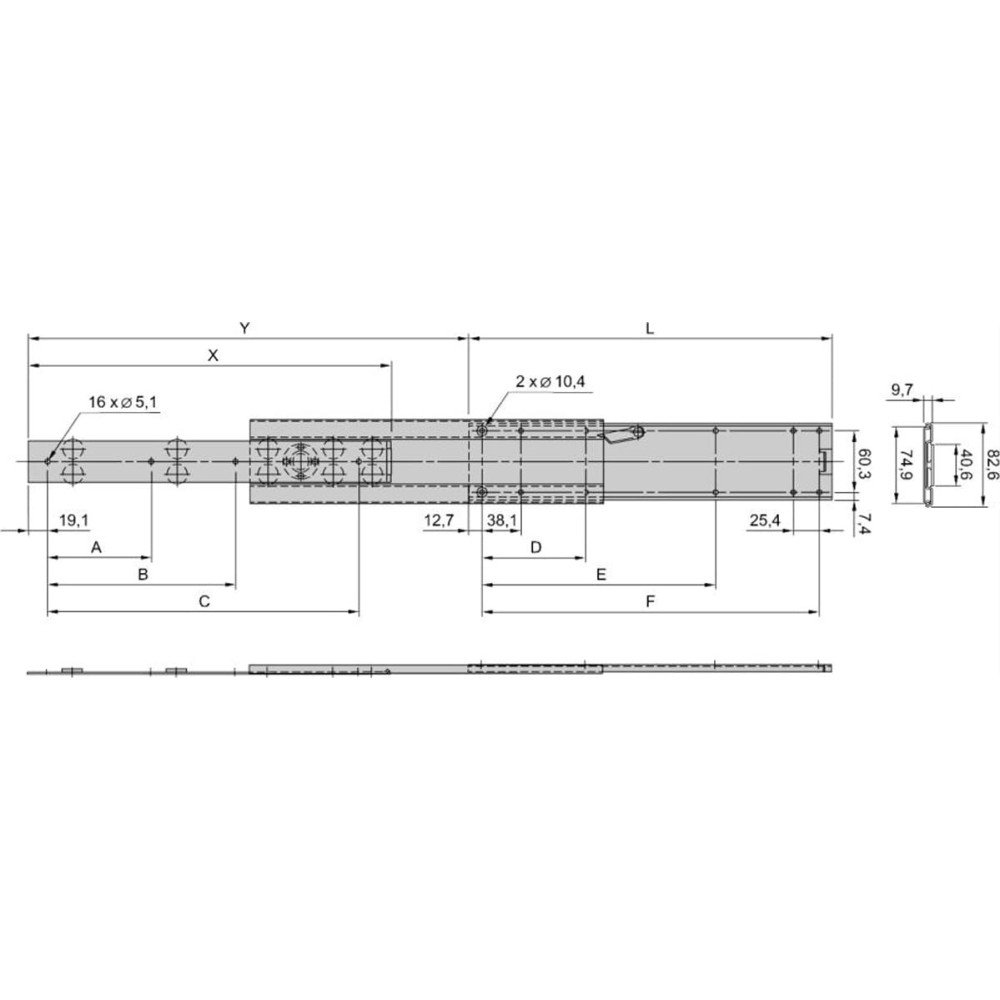

Static load capacity per pair of 46 - 57 kg - Mounting on the side of the 19" uprights (19" level remains free for mounting the pull-out/drawer) - Locking mechanism for full extension - Extension length > 110 % - Rail width k = 9.7 mm, max. installation width of the pull-out/drawer w = 429 mm
