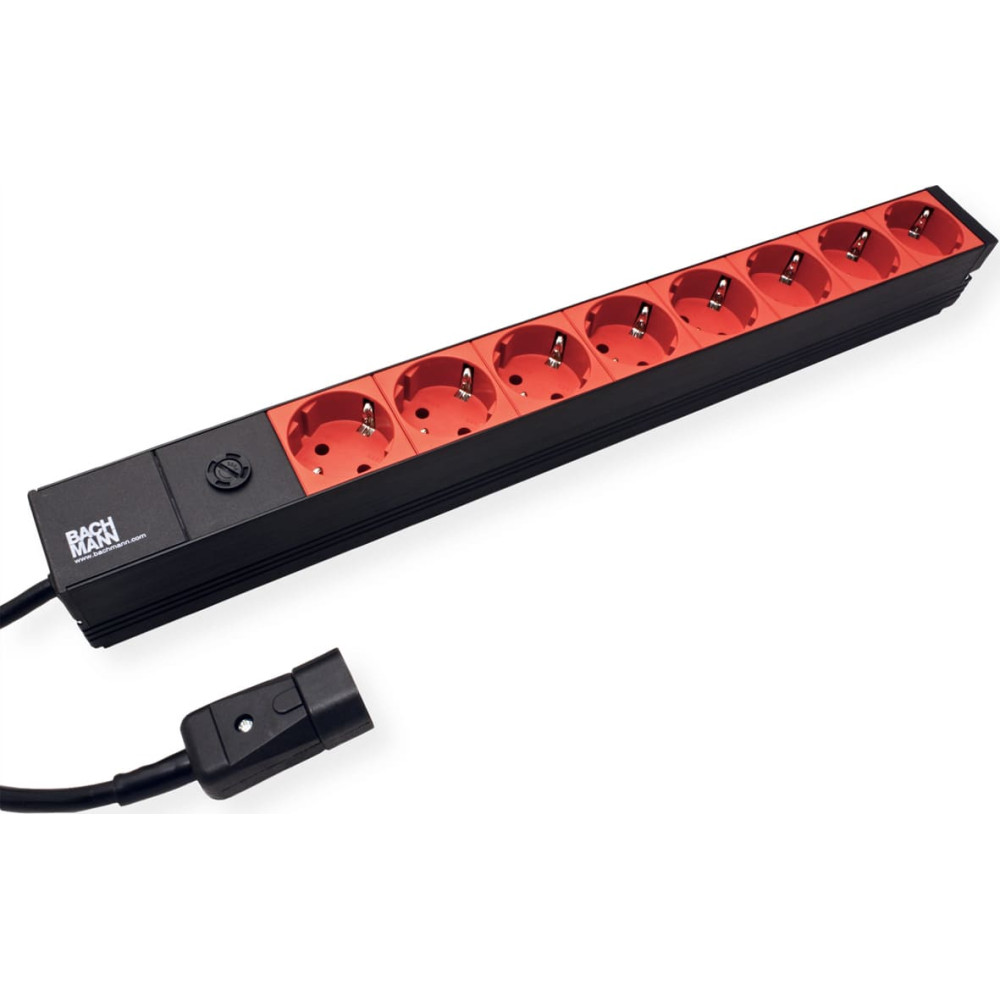

Bachmann 19" socket strip 8-way 2300W, IEC320 C14 plug, black
To purchase this product you must be registered in our system.
Specification
colour: white
colour (design profile): black
connection cable: H05VV-F 3G 1,5mm²
connector plug: IEC320 C14
current catalog edition: 24.1
current catalog page: 10.19
depth: 44 mm
depth of packaging (single piece): 490 mm
function: 19" socket strip
gross weight: 0.842
height: 44 mm
height of packaging (single piece): 60 mm
length: 2 m
length: 2 m
manufacturer: BACHMANN
material (casing): Aluminum
max. capacitance: 2300W
max. voltage: 250V AC
mounting form: 19" Rackmount
number of socket pots: 9
on/off switch: no
output alignment: Reihe
package weight (single piece): 0.842 kg
plug type: IEC320 C14, 10A
product group: Power Bars
product type: 19" power strip
quantity of outputs/angles: 9 / 35°
regional use: Germany, Austria, Netherlands
weight: 0.88 kg
width: 440 mm
width of packaging (single piece): 150 mm
Description

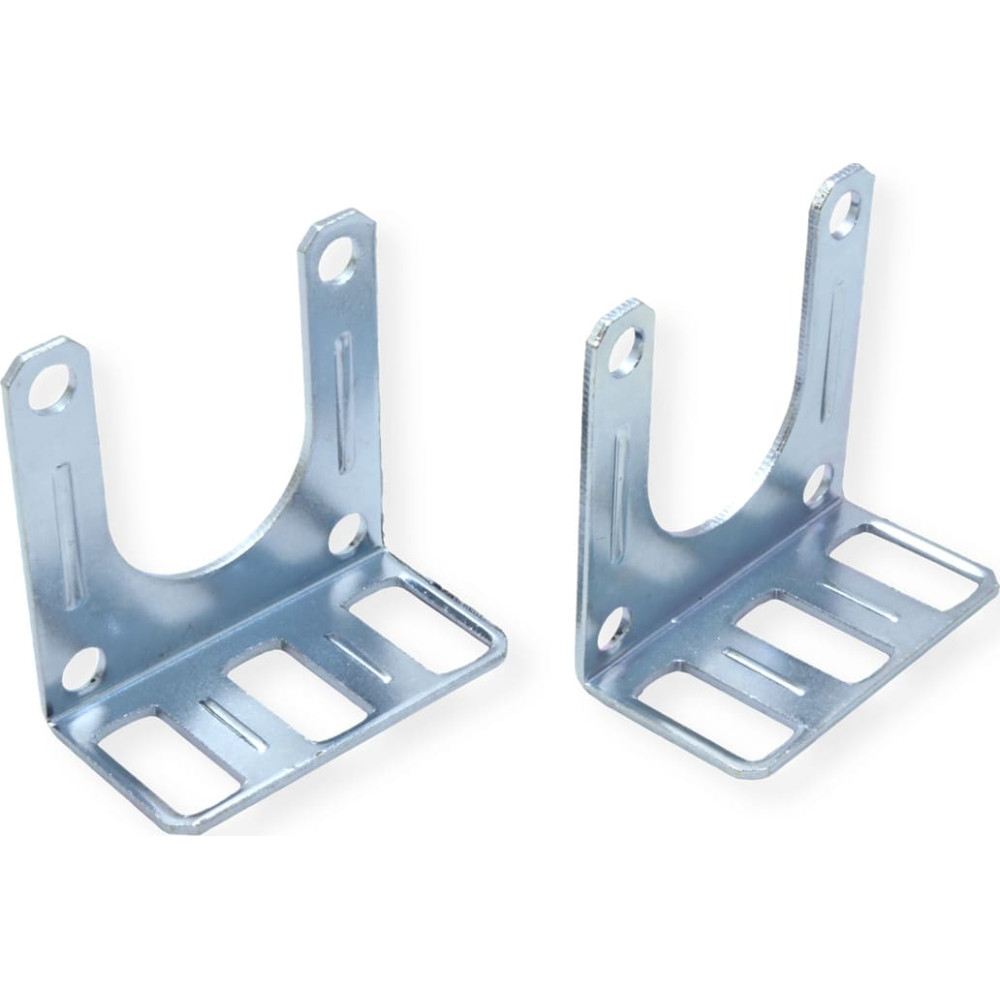

19" socket strip with IEC supply cable for installation in a 19" cabinet19" socket strip 1U for installation in 19" cabinets, incl. mounting bracket Installation bracket - Arrangement of sockets: 35° - Profile made of black anodised aluminium - Protective contact inserts: red - Insert: For connecting devices with protective contact plugs to the IEC connections of a UPS - Technical data: - Cable: 2.0m H05VV-F 3G 1.50mm² black - Supply cable with IEC320 C14 IEC plug - Max. Load: 10A - With replaceable 10A miniature fuse - Colour: Black - Height: 44mm - Depth: 44mm - Width: 440mm |
