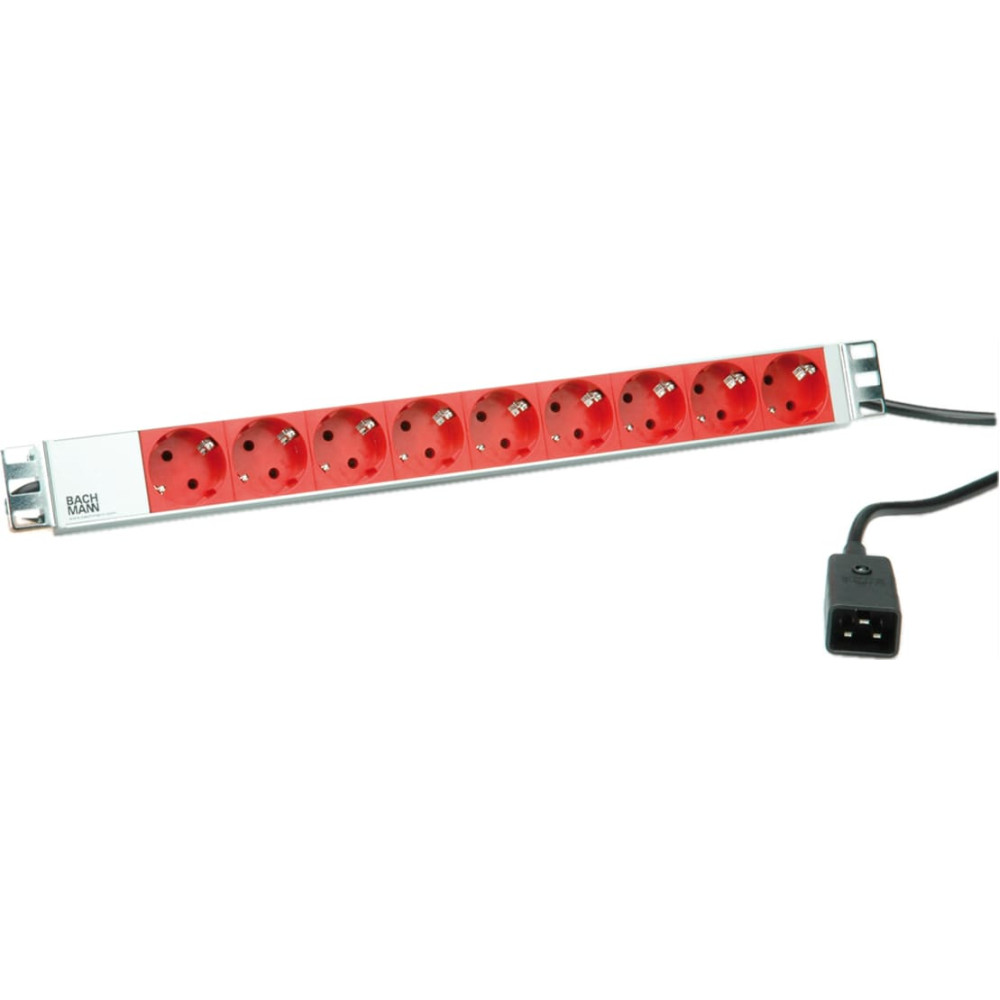

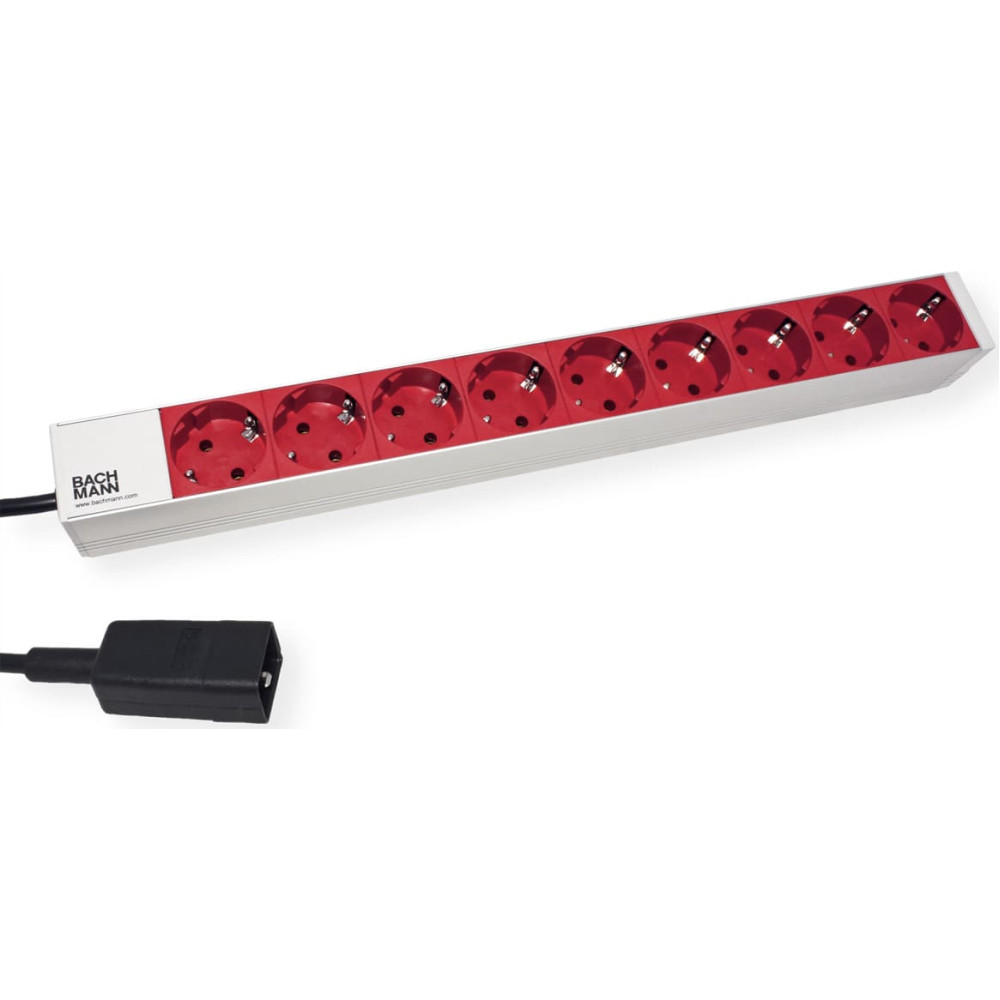

Bachmann 19" socket strip 9x protective contact C20 plug, Aluminium
To purchase this product you must be registered in our system.
Specification
colour: Aluminium
colour (design profile): Aluminium
connection cable: H05VV-F 3G 1,5mm²
connector plug: Kaltgeräte IEC320 C20
current catalog edition: 24.1
current catalog page: 10.19
depth: 44 mm
depth of packaging (single piece): 480 mm
function: 19" socket strip
gross weight: 0.959
height: 44 mm
height of packaging (single piece): 60 mm
length: 2 m
length: 2 m
manufacturer: BACHMANN
material (casing): Aluminum
max. capacitance: 3600W
max. voltage: 250V AC
mounting form: 19" Rackmount
number of socket pots: 9
on/off switch: no
output alignment: Reihe
package weight (single piece): 0.959 kg
plug type: IEC320 C20, 16A
product group: Power Bars
product type: 19" power strip
quantity of outputs/angles: 9 / 45°
regional use: Germany, Austria, Netherlands

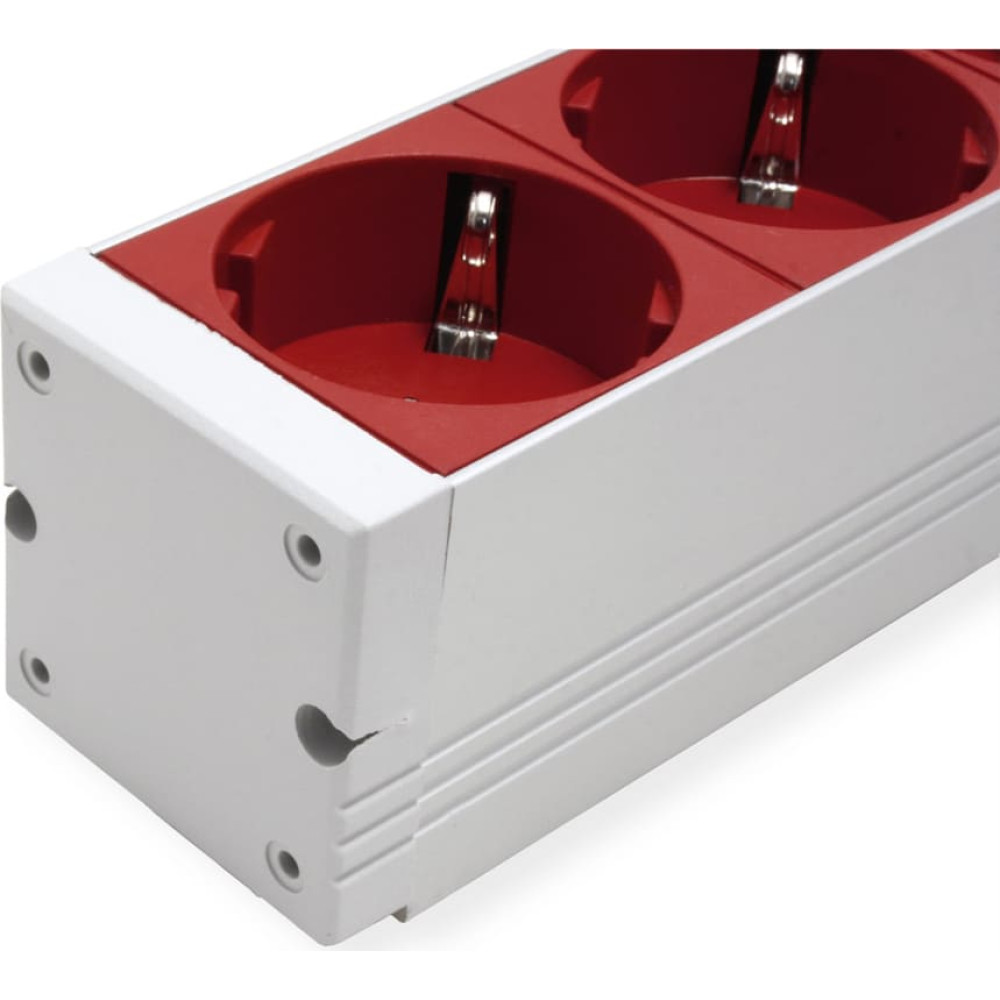

technical particularity: Doseneinsätze rot
weight: 0.88 kg
width: 440 mm
width of packaging (single piece): 110 mm
Description

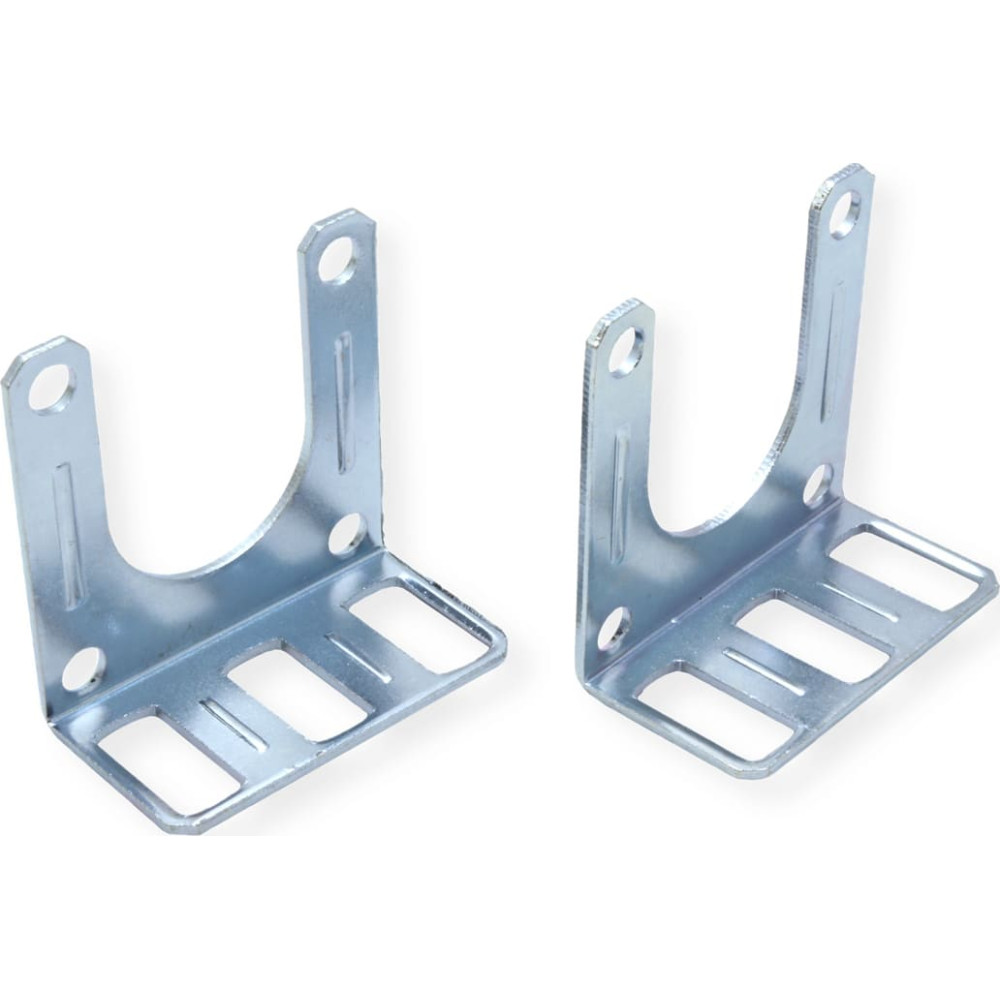

19" socket strip with power cable for installation in a 19" cabinet19" socket strip 1U for installation in 19" cabinets, incl. mounting bracket - . Installation bracket - Outlet arrangement: 35° - Profile made of anodised aluminium - Protective contact inserts: red - Insert: For connecting devices with protective contact plugs to the IEC connections of a UPS - Technical data: - Cable: 2.0m H05VV-F 3G 1.50mm² black - Supply cable with IEC320 C20 IEC plug - Max. Load: 16A - Colour: aluminium - Height: 44mm - Depth: 44mm - Width: 440mm - |
