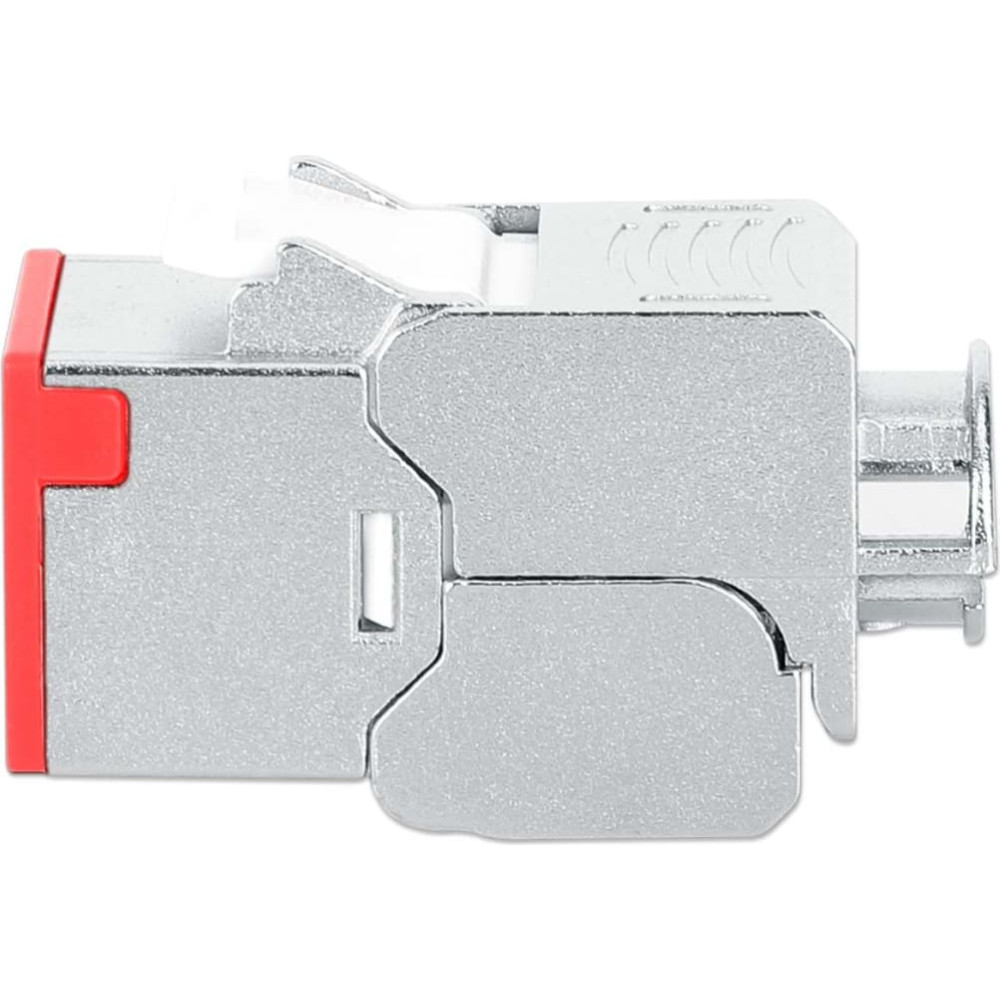

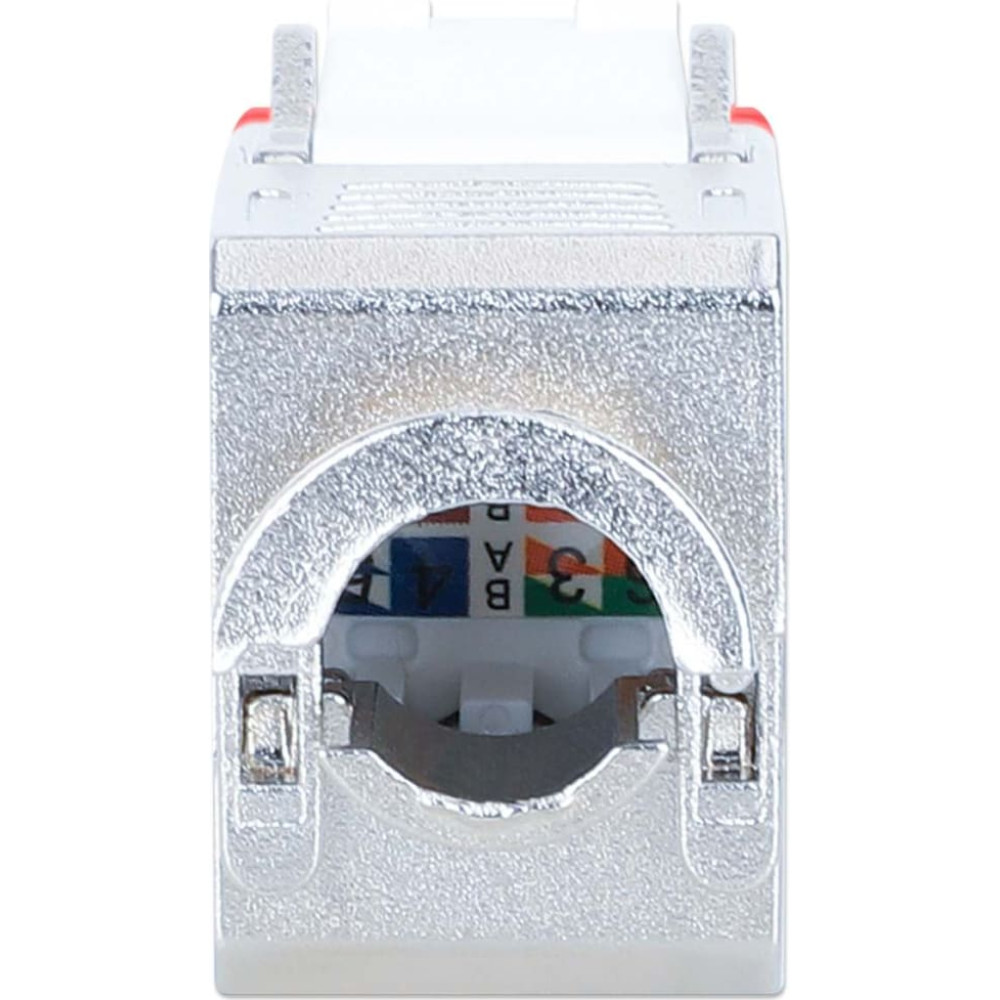

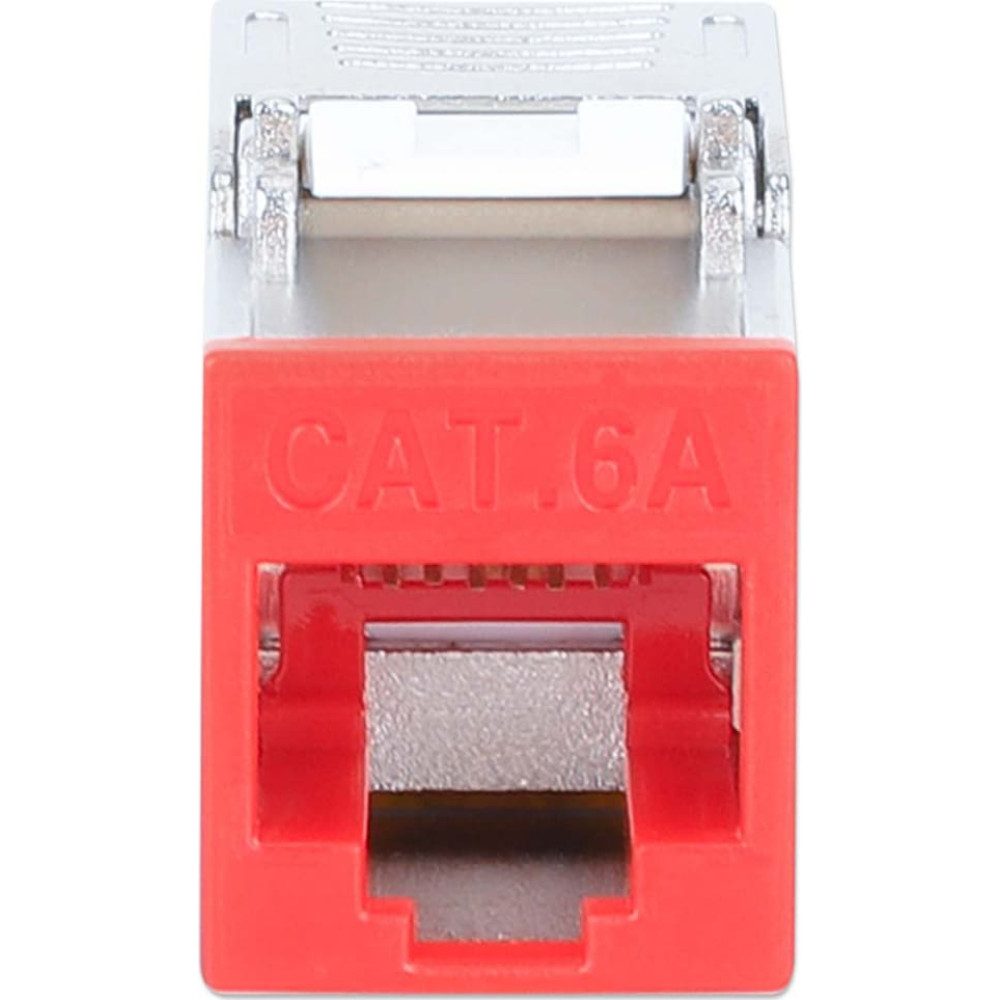

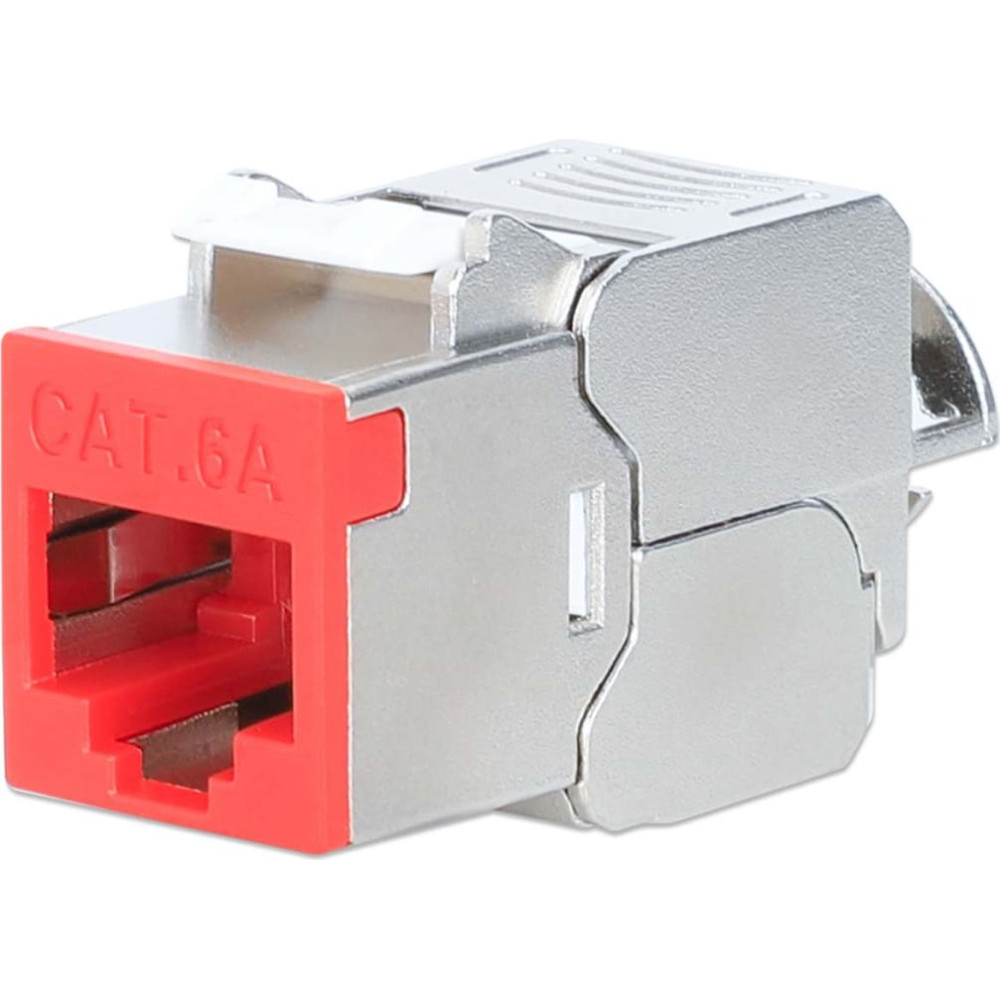

Intellinet Cat6a 10G STP Keystone-Modul rot
To purchase this product you must be registered in our system.
Specification
cable types supported: Cat6a
cabling technology: 10GBase-T
compliance certificates: CE, REACH, RoHS, UKCA
connector 1: RJ-45
connector 1 gender: Female
connector contacts plating: Gold
construction type: Flat
depth: 36 mm
frequency: 500 MHz
height: 20 mm
housing material: Zinc
networking standards: IEEE 802.3bt
operating relative humidity (h-h): 10 - 90%
operating temperature (t-t): -10 - 60 °C
package weight: 20 g
plug/connector retention force: 30 N
power over ethernet (poe): Yes
product colour: Red, Stainless steel
quantity per pack: 1 pc(s)
storage temperature (t-t): -40 - 70 °C
weight: 10 g
width: 14.8 mm
Description
| The Cat6a 10G Shielded Toolless Slim Keystone Jack, Black from Intellinet Network Solutions is designed for quick, seamless side-by-side deployment. Without any special tools, this module easily snaps into blank patch panels, wall plates or surface connection boxes. It is suitable for solid conductor cables in high-performance network applications up to 10GBase-T and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For maximum signal integrity, it is equipped with gold-plated contacts and 360° STP shielding. |
