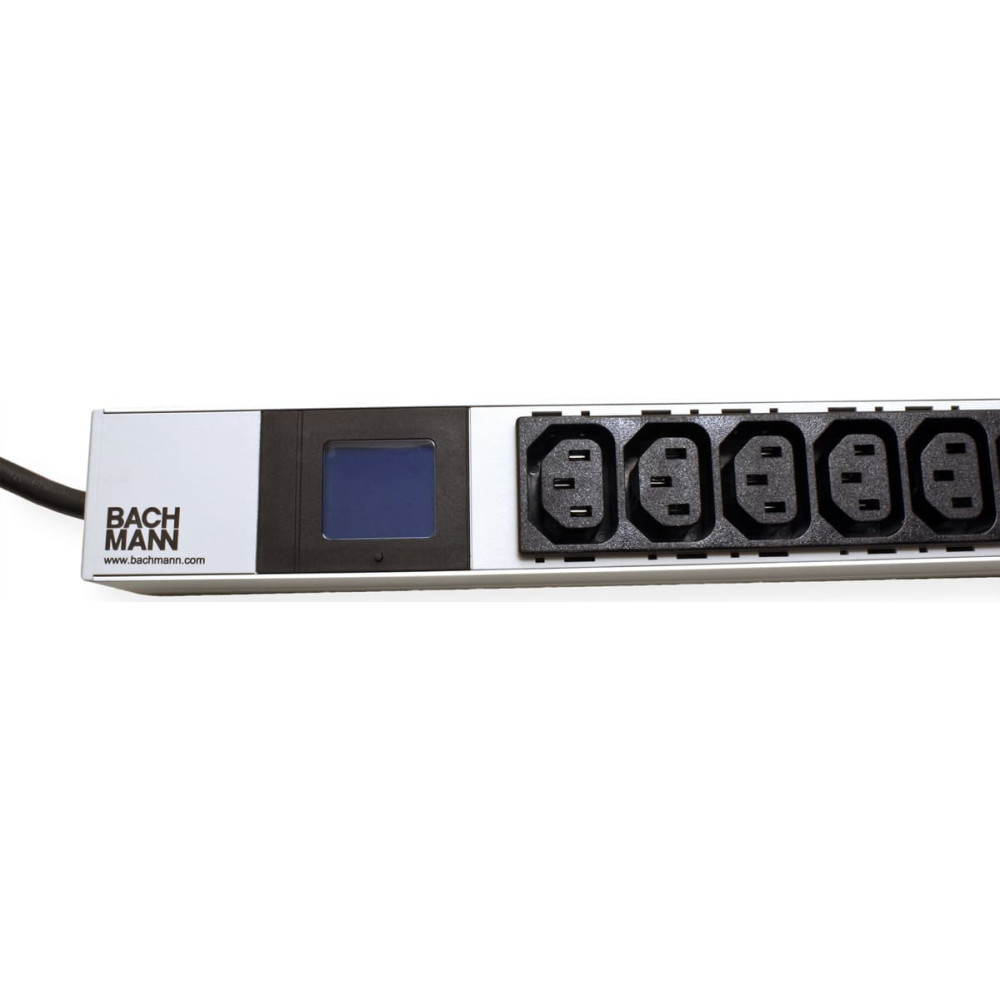

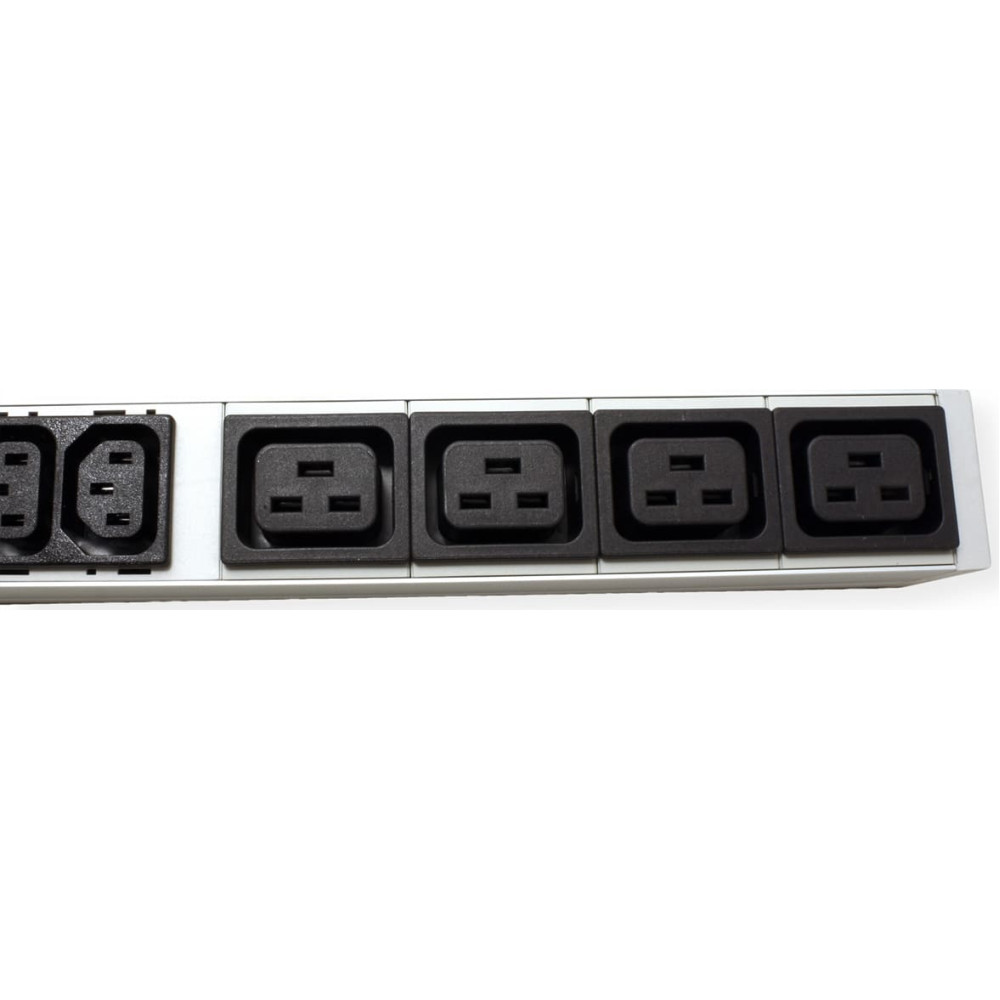

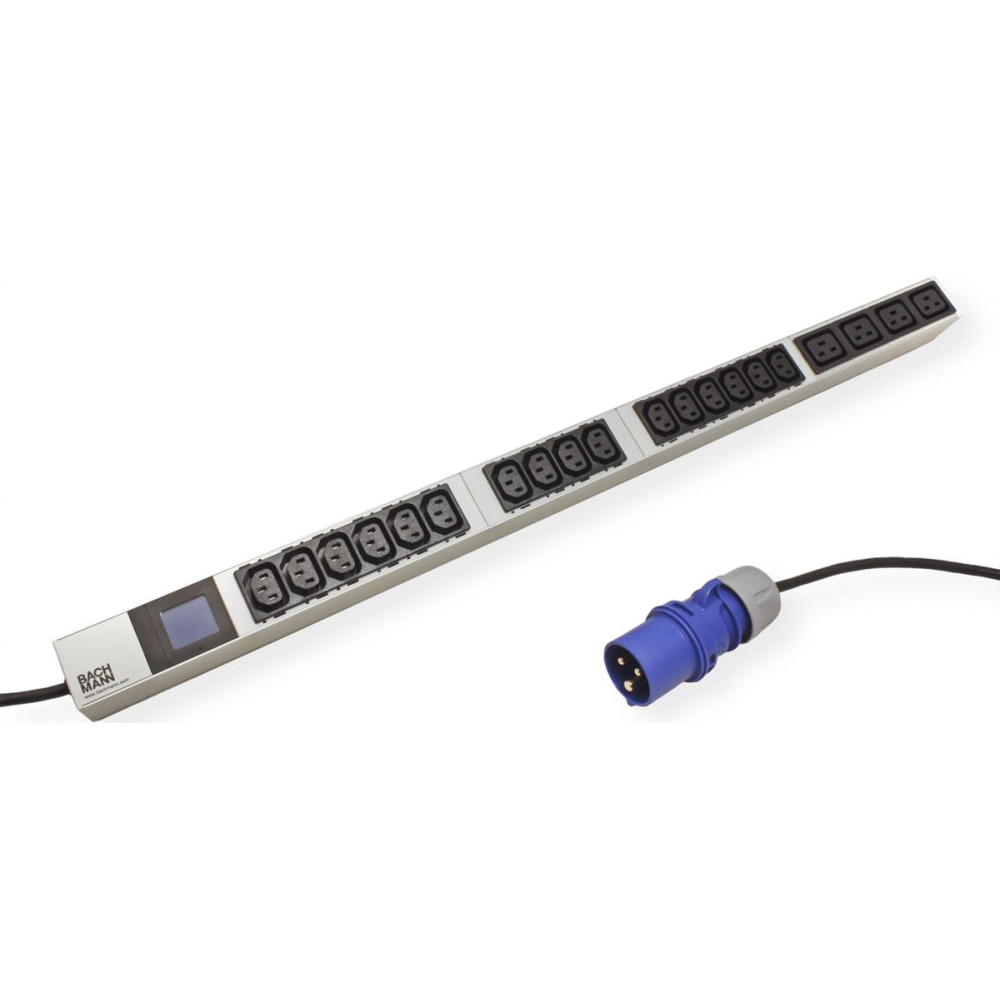

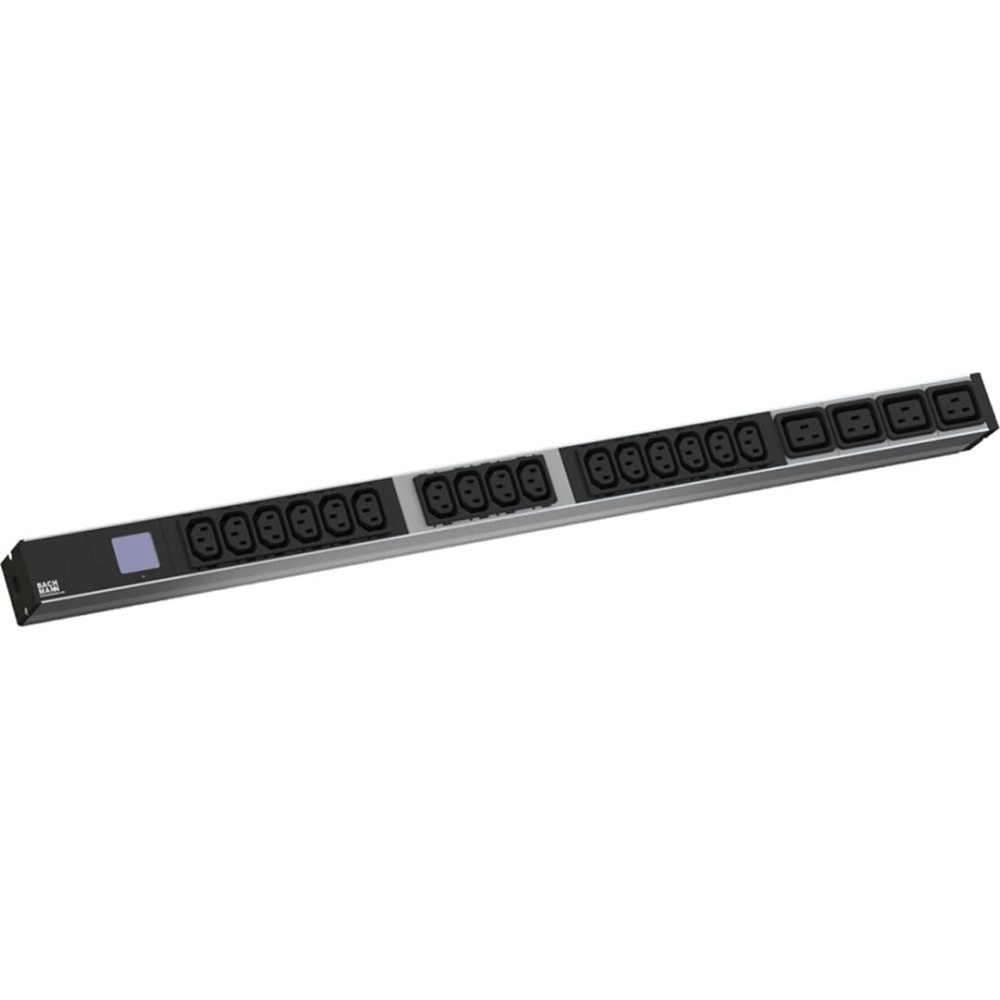

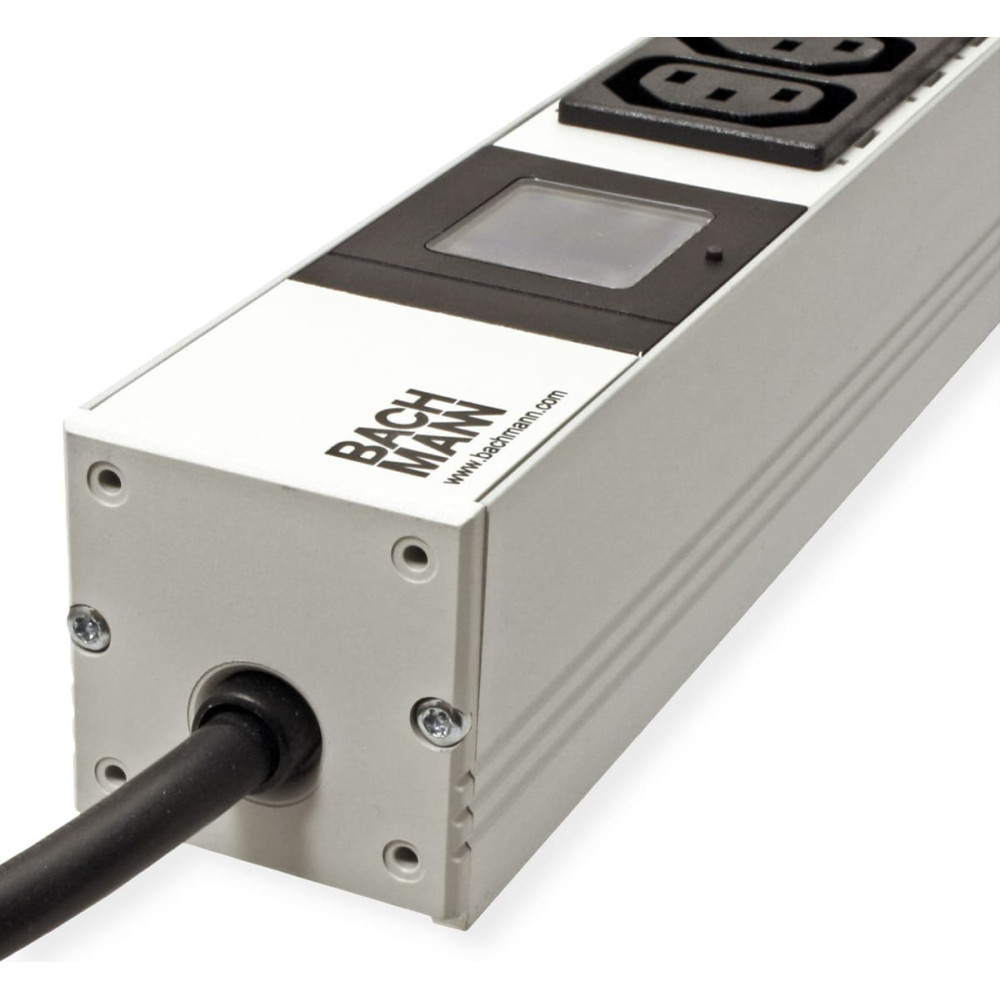

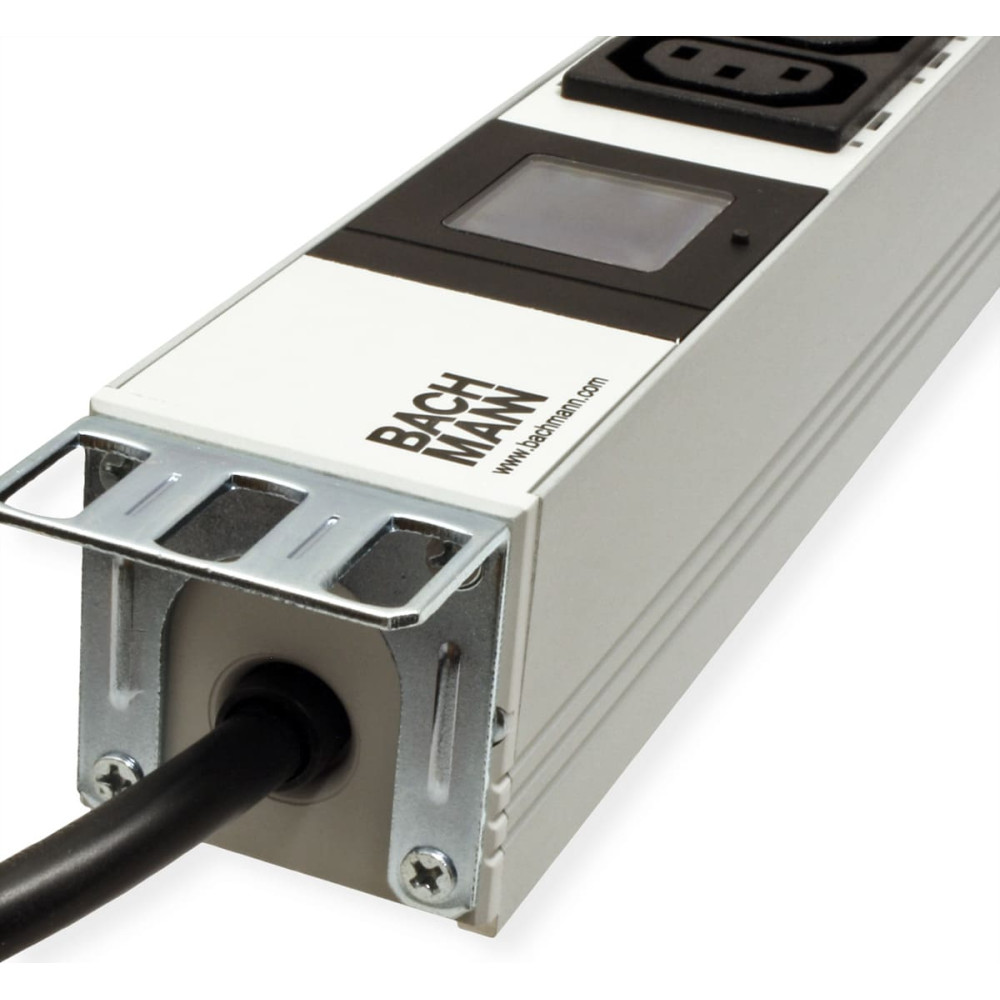

Bachmann BN0500 19" PDU 1U 16xC13 4xC19, power measurement, CEE 16A connection, blue

BACHMANN

Bachmann BN0500 19" PDU 1U 16xC13 4xC19, power measurement, CEE 16A connection, blue

Product Code: 800.2395
Barcode 4057298016721

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: black
colour (design profile): black / silver
connection cable: H05VV-F 3G 1,5mm²
connector plug: Schuko
current catalog edition: 24.1
depth: 44 mm
depth of packaging (single piece): 780 mm
function: 19" socket strip
gross weight: 1.657
height: 44 mm
height of packaging (single piece): 120 mm
length: 2 m
manufacturer: BACHMANN
material (casing): Kunststoff/Alu Profil
mounting form: 19" Rackmount
number of socket pots: 20
on/off switch: no
output alignment: Reihe
package weight (single piece): 1.657 kg
product group: Power Bars
product type: 19" power strip
quantity of outputs/angles: 12 x IEC320 Kaltgerätedose C13
regional use: Germany, Austria, Netherlands
socket type: IEC320 C13, 10A
weight: 1721 g
width: 746 mm
width of packaging (single piece): 100 mm
Description

BlueNet for structuring, controlling and monitoring IT power networks

- Integrated measurement of current, voltage, active power, frequency, phase angle and energy - Power measurement (kW), phase shift in the grid - Display on illuminated LC display - Resettable energy meter (value remains stored even without power supply) - Measurement accuracy +/- 2 % - End pieces riveted, cannot be opened - Includes mounting bracket and screws - Black plastic, silver aluminium profile - Technical data: - Cable: 3.0m H05VV-F 3G1.50mm², black - Connector plug: CEE 1L+N+PE, 16A , blue - 16x C13 - 4x C19 - Dimensions: 746.0 x 44 x 44mm, vertical installation
