Bachmann 19" 1U 7xCEE7/3 1xSPD-Plus 1xswitch 2.0m CEE7/7

BACHMANN

Bachmann 19" 1U 7xCEE7/3 1xSPD-Plus 1xswitch 2.0m CEE7/7

Product Code: 800.3934
Barcode 4057298137303

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
connector plug: Schutzkontaktwinkelstecker
current catalog edition: 24.1
depth: 0.44 m
depth of packaging (single piece): 490 mm
gross weight: 0.902
height: 0.05 m
height of packaging (single piece): 100 mm
length: 2 m
length: 2 m
manufacturer: BACHMANN
number of socket pots: 7
package weight (single piece): 0.902 kg
plug type: 3P. German, CEE 7/7, Type-E/F
product group: Power Bars
product type: IT power strip
regional use: Germany, Austria, Netherlands
socket type: 3P. German, CEE 7/3, Type-F
weight: 0.89 kg
width: 0.04 m
width of packaging (single piece): 100 mm
Description

19" 1U 7xCEE7/3 1xSPD-Plus 1xswitch 2.0m CEE7/7

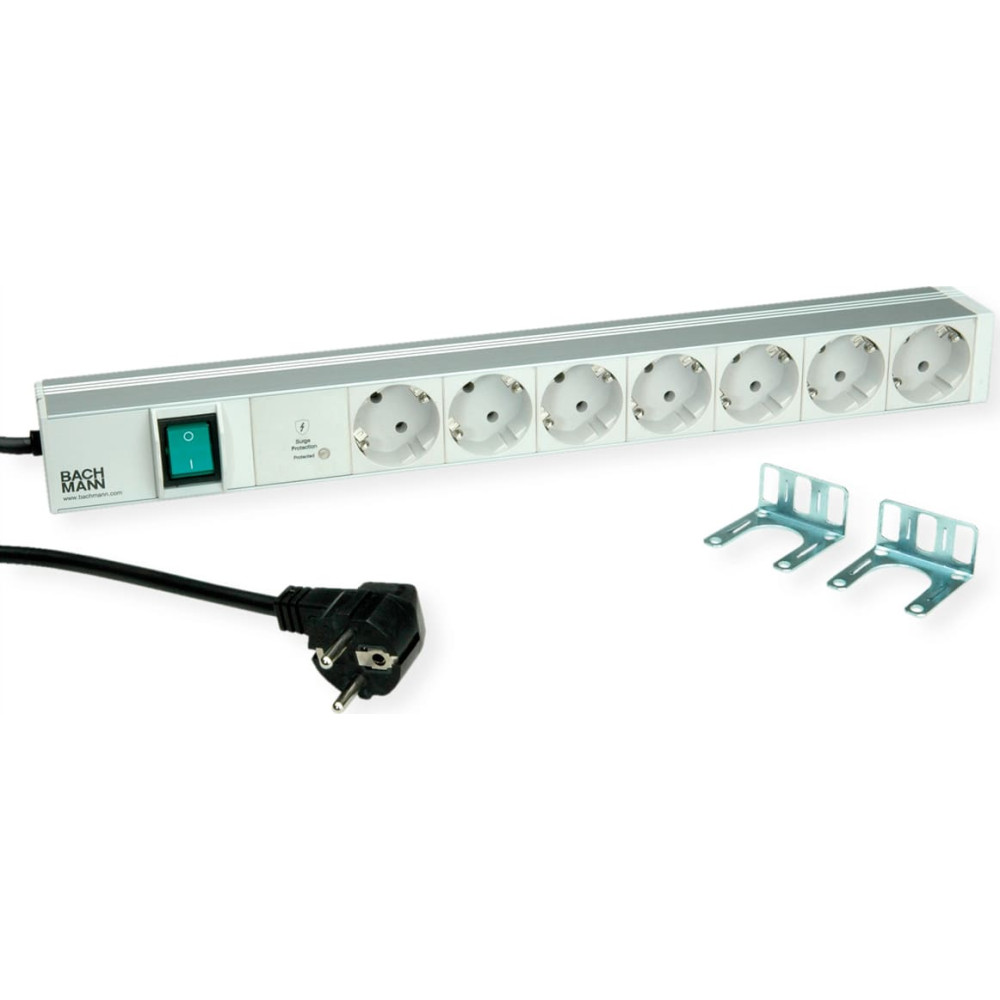

19" 1U socket strip 1xswitch green 1xovervoltage protection plus 1.5kA 7xprotected contact sockets RAL7035 supply cable 2.0m H05VV-F 3G1.5mm² black with angled safety plug, with BACHMANN logo incl. mounting bracket packed in cardboard box
